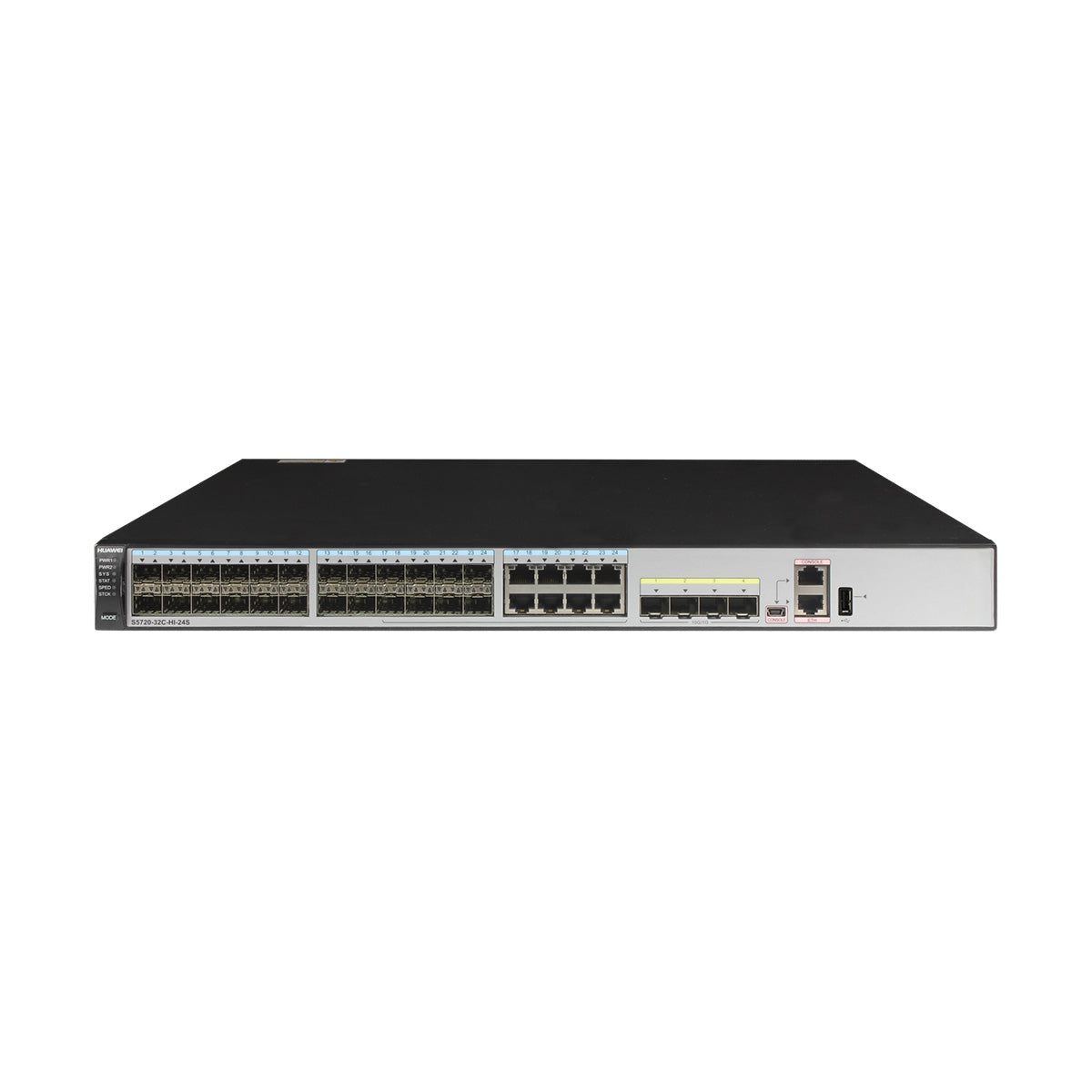

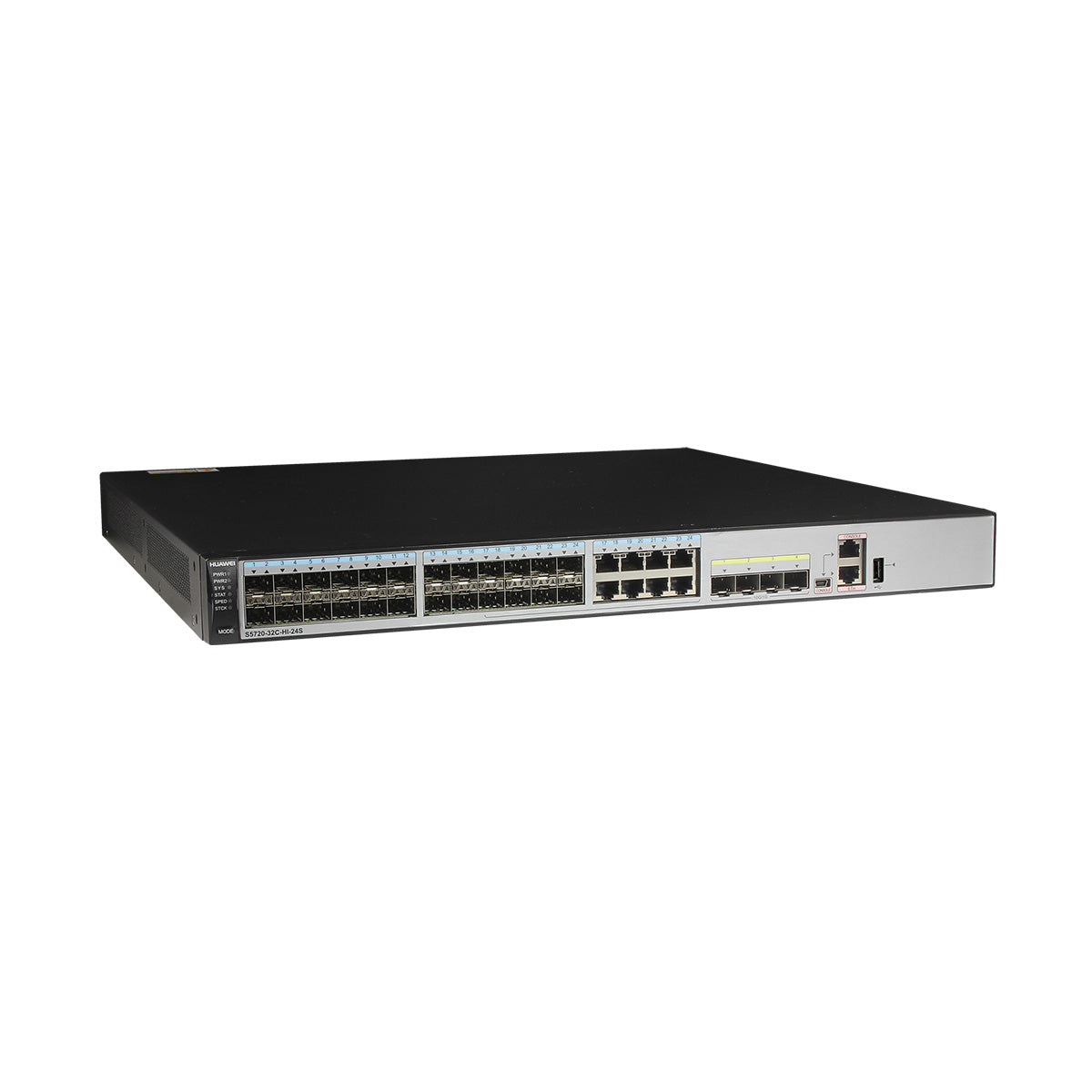

Huawei S5720-32C-HI-24S-AC Switch

  • Brand New Condition
  • Original Box Packed
  • Latest Firmware Version
Available:In Stock
$0.00

Huawei S5720-32C-HI-24S-AC switch with 24-ports GE SFP,  including 8-ports GE SFP combo, 4-ports 10GE SFP+, 2 power slots

Forwarding performance: 168Mpps

Switching capacity: 598Gbps

128K MAC address entries

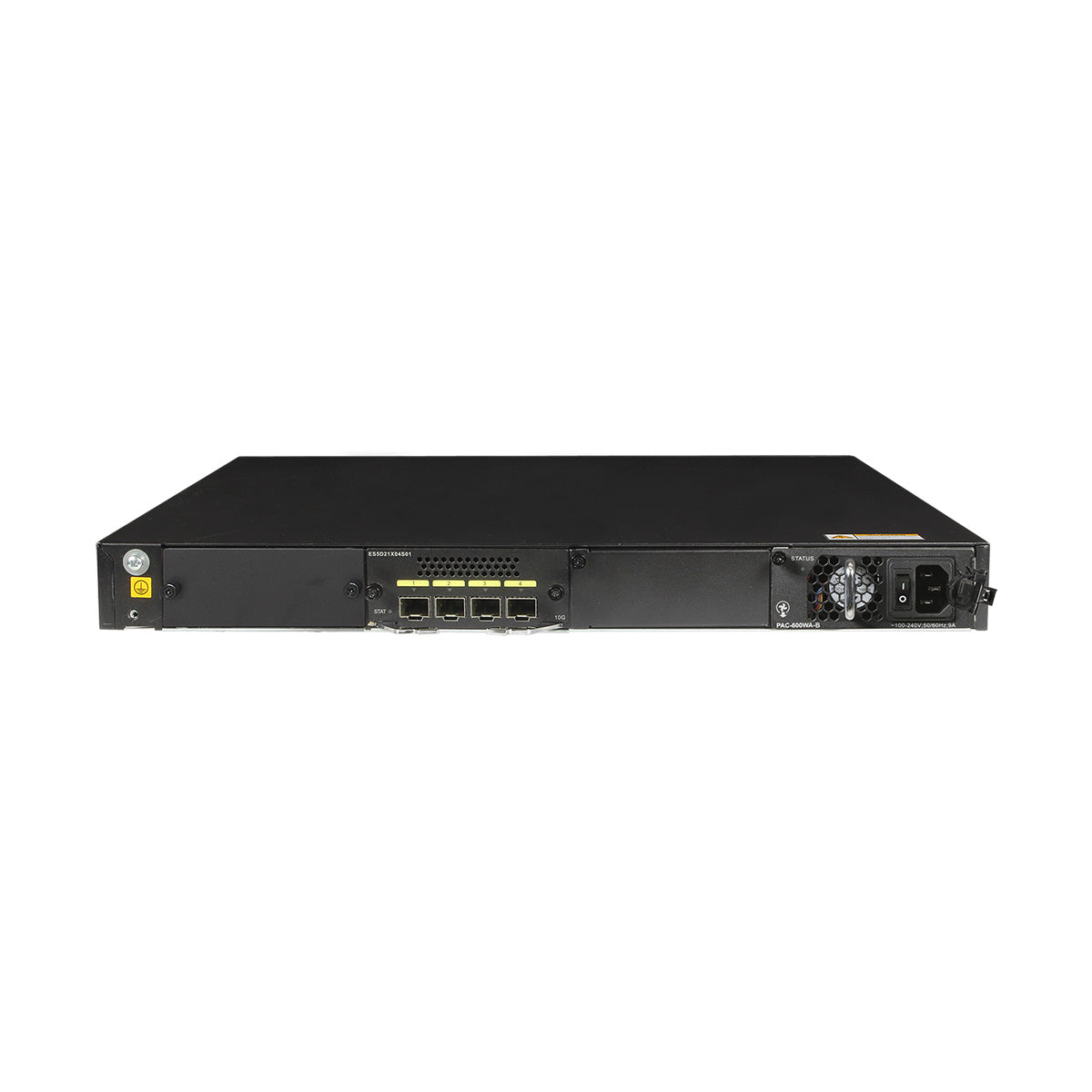

2 extension slots, Card supported:

ES5D21X04S01 (4-Port 10 GE SFP+ Rear Interface Card)

Huawei S5720-HI series are fixed switches that provide extensive agile features. They work as core devices in enterprise branches or small/midsize campus networks or as aggregation devices in large campus networks. They build easily scalable, manageable, reliable enterprise campus networks.

Item Description
Fixed port 24x1000Base-X, 8xCombo (10/100/1000Base-T), 4x10GE SFP+
Forwarding performance 168 Mpps
Extended slot One port extended slot with optional subcard 4x10GE SFP+



One slot reserved for the stack card
MAC address table IEEE 802.1d
128K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN 4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
VLAN mapping
Wireless AC AP access control, AP domain management, and AP configuration template



management

Radio management, unified static configuration, and dynamic centralized management

WLAN basic services, QoS, security, and user management

CAPWAP, Tag/terminal location, and spectrum analysis
IP routing Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP,



routing policy
IPv6 features Neighbor Discovery (ND)
Path maximum transmission unit (PMTU)
IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
6 to4 tunnel, ISATAP tunnel, and manually configur ed tunnel
ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports



or protocol types
Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics collection
IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent
Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM)
Multicast Source Discovery Protocol (MSDP)
QoS/ACL Rate limitation in the inbound and outbound directions of a port
Packet redirection
Broadcast storm control
Port-based traffic policing and two-rate and three-color CAR
Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
Weighted random early detection (WRED)
Re-marking of the 802.1p priority and DSCP fields of packets
Packet filtering on Layer 2 to Layer 4, filtering out invalid fr ames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol number, or VLAN
Queue-based rate limitation and shaping on ports
HQoS
Security features Hierarchical user management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface number, and VLAN ID of a user
Port isolation, port security, and sticky MAC
MAC Forced Forwarding (MFF)
Blackhole MAC address entries
Limit on the number of learned MAC addresses
IEEE 802.1x authentication and the limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense; Blacklist and whitelist; MACSec ready
Access security DHCP Relay, DHCP Server, DHCP Snooping, DHCP Client, DHCP Security
Reliability RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
SEP
G.8032 Ethernet Ring Protection Switching (ERPS)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
Super Virtual Fabric (SVF) Working as the parent node to vertically virtualize downlink switches and APs as one



device for management
Supports a two-layer client architecture
Management and
Maintenance		 Virtual cable test, SNMP v1/v2c/v3, RMON
Network management system (NMS) and Web managemen
System logs and multi-level alarms
802.3az EEE
GVRP
Dying Gasp upon power-off
Interoperability VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST
Link-type Negotiation Protocol (LNP), similar with DTP
VLAN Central Management Protocol (VCMP), similar with VTP
Operating environment Operating temperature:
0-1800 m altitude: 0-45℃
1800-5000m altitude: The operating temperature reduces by 1oC every time the altitude increases by 220m.
Relative humidity: 5% to 95% (noncondensing)
Input voltage AC:
Rated voltage range: 100 V to 240 V A C, 50/60 Hz
Maximum voltage range: 90 to 264 V AC, 47/63 Hz
Dimensions (mm) 442 (W) x 420 (D)x 43.6 (H)
Typical power consumption <172.7W
PN. 02358600
