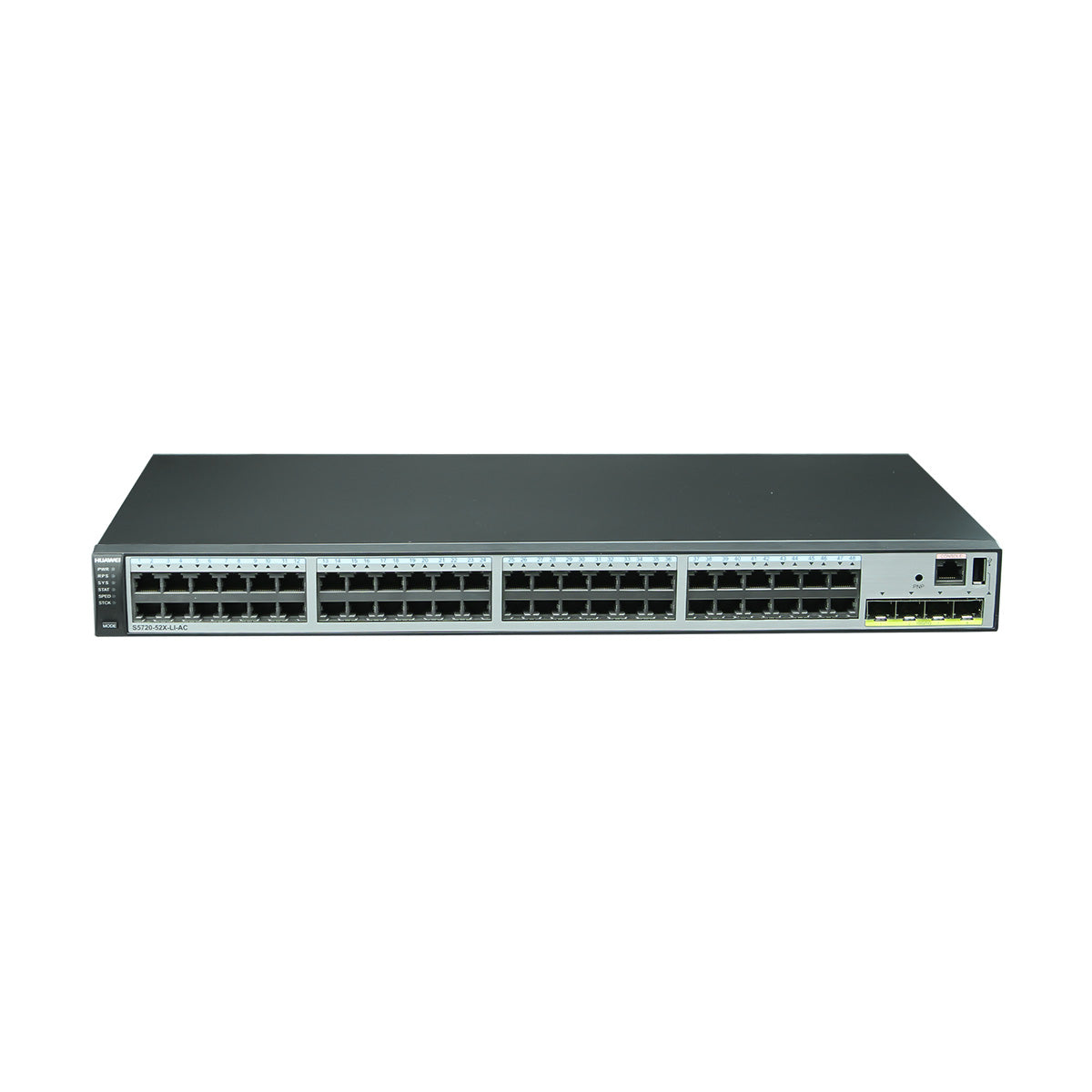

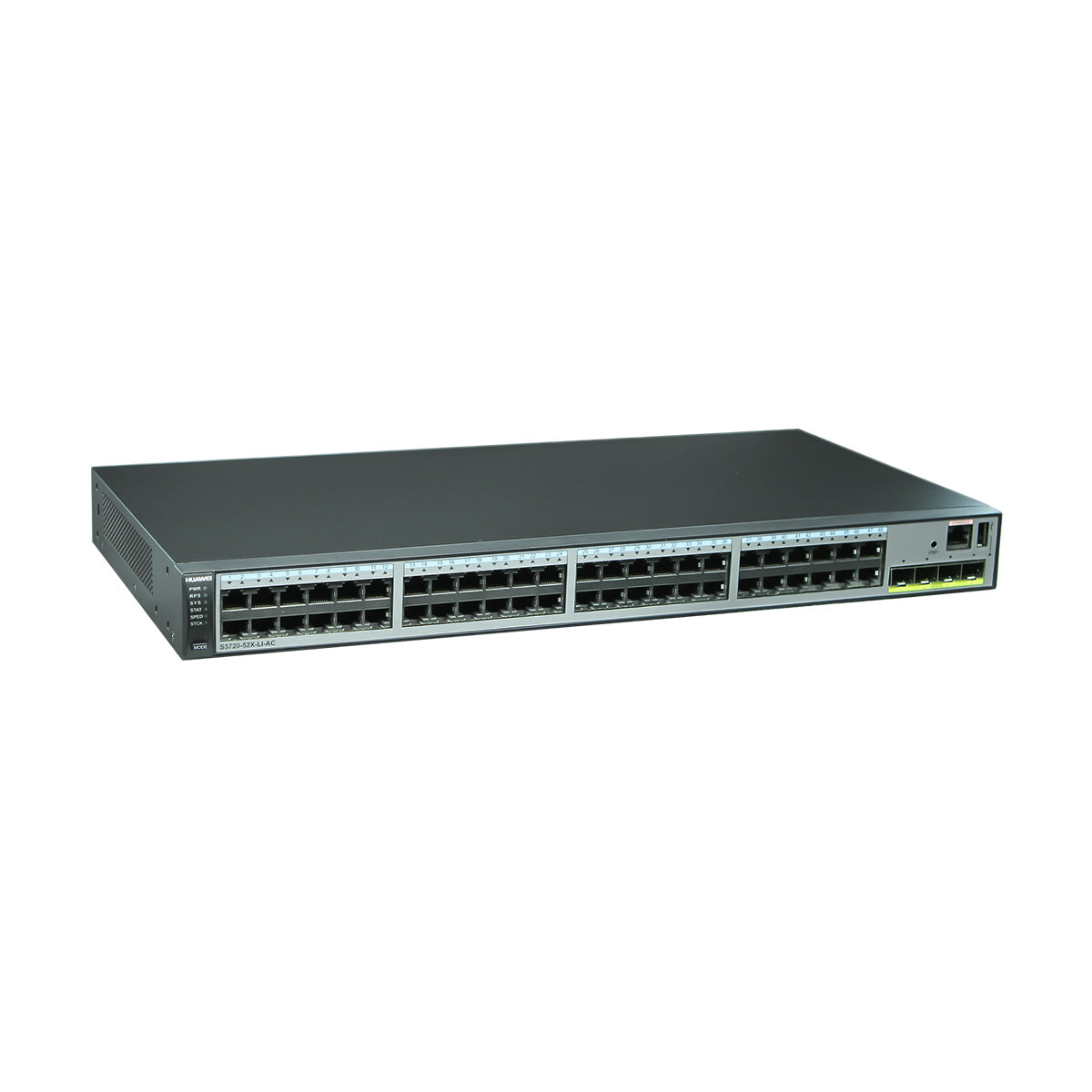

Huawei S5720-52X-LI-AC Switch
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Huawei S5720-52X-LI-AC Switch

  • Brand New Condition
  • Original Box Packed
  • Latest Firmware Version
Available:In Stock
$0.00

Huawei S5720-52X-LI-AC switch with 48-port 1000BASE-T, 4-port 10GE SFP+, 1 AC power

Forwarding performance: 144Mpps

Switching capacity: 336Gbps

16K MAC address entries



The S5720-LI series are energy-saving gigabit Ethernet switches that provide flexible GE access ports and 10 GE uplink ports. Building on high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720-LI series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control.



Item Description
Fixed port 48 Ethernet 10/100/1000Base-T ports, 4 10 Gig SFP+ ports
Forwarding performance 144 Mpps
MAC address table Interface-based MAC learning limiting
16K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN 4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
Wireless AC AP access control, AP domain management, and AP configuration template
management
Radio management, unified static configuration, and dynamic centralized management
WLAN basic services, QoS, security, and user management
CAPWAP, Tag/terminal location, and spectrum analysis
Jumbo frame 10K
IP routing Static routes, RIP, RIPng, OSPF
IPv6 features Neighbor Discovery (ND)
Path maximum transmission unit (PMTU)
IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports
or protocol types
Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics collection
QoS/ACL Rate limiting on packets sent and received by an interface
Packet redirection
Broadcast storm control
Port-based traffic policing and two-rate and three-color CAR
Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
Weighted random early detection (WRED)
Re-marking of the 802.1p priority and DSCP priority
Packet filtering on Layer 2 to Layer 4, filtering out invalid fr ames based on the source
MAC address, destination MAC address, source IP address, destination IP address,
TCP/UDP source/destination port number, protocol number, and VLAN ID
Rate limiting in each queue and traffic shaping on interfaces
Security features Hierarchical user management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface number, and VLAN ID of a user
Port isolation, port security, and sticky MAC
MAC Forced Forwarding (MFF)
Blackhole MAC address entries
Limit on the number of learned MAC addresses
IEEE 802.1x authentication and the limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense; Blacklist and whitelist; MACSec ready; DHCP relay, DHCP server,DHCP snooping DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Reliability VRRP,VRRP for BFD,VRRP6
EFM OAM (802.3ah)
CFM OAM (802.1ag)
ITU-Y.1731
DLDP
LACP
Super Virtual Fabric (SVF) Working as an SVF client that is plug-and-play with zero configuration
Automatically loading the system software package and patches of clients One-click,and automatic delivery of service configurations
Supports independent running client
Management and
Maintenance
iStack
Virtual Cable Test (VCT)
Remote configuration and maintenance using Telnet
SNMPv1/v2c/v3
RMON
web-based NMS
HTTPS
LLDP/LLDP-MED
System logs and multi-level alarms
802.3az EEE
Dying Gasp (S5720-X-LI, S5720-TP-LI series)
Interoperability Supports VBST (Compatible with PVST/PVST+/RPVST)
Supports LNP (Similar to DTP
Supports VCMP (Similar to VTP)
Operating environment Operating temperature: 0-1800 m altitude: 0-45℃
1800-5000m altitude: The operating temperature reduces by 1℃ every time the
altitude increases by 220m.
Relative humidity: 5% to 95% (noncondensing)
Input voltage AC:
Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage range: 90 V to 264 V AC, 50/60 Hz
DC:Rated voltage range: –48 V to –60 V, DC
Maximum voltage range: –36 V to –72 V, DC
Dimensions (mm) 442 (W) x 220 (D)x 43.6 (H)
Max power consumption 50.3W
PN. 98010606

Huawei S5720-52X-LI-AC switch with 48-port 1000BASE-T, 4-port 10GE SFP+, 1 AC power

Forwarding performance: 144Mpps

Switching capacity: 336Gbps

16K MAC address entries



The S5720-LI series are energy-saving gigabit Ethernet switches that provide flexible GE access ports and 10 GE uplink ports. Building on high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720-LI series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control.



Item Description
Fixed port 48 Ethernet 10/100/1000Base-T ports, 4 10 Gig SFP+ ports
Forwarding performance 144 Mpps
MAC address table Interface-based MAC learning limiting
16K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN 4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
Wireless AC AP access control, AP domain management, and AP configuration template
management
Radio management, unified static configuration, and dynamic centralized management
WLAN basic services, QoS, security, and user management
CAPWAP, Tag/terminal location, and spectrum analysis
Jumbo frame 10K
IP routing Static routes, RIP, RIPng, OSPF
IPv6 features Neighbor Discovery (ND)
Path maximum transmission unit (PMTU)
IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports
or protocol types
Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics collection
QoS/ACL Rate limiting on packets sent and received by an interface
Packet redirection
Broadcast storm control
Port-based traffic policing and two-rate and three-color CAR
Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
Weighted random early detection (WRED)
Re-marking of the 802.1p priority and DSCP priority
Packet filtering on Layer 2 to Layer 4, filtering out invalid fr ames based on the source
MAC address, destination MAC address, source IP address, destination IP address,
TCP/UDP source/destination port number, protocol number, and VLAN ID
Rate limiting in each queue and traffic shaping on interfaces
Security features Hierarchical user management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface number, and VLAN ID of a user
Port isolation, port security, and sticky MAC
MAC Forced Forwarding (MFF)
Blackhole MAC address entries
Limit on the number of learned MAC addresses
IEEE 802.1x authentication and the limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense; Blacklist and whitelist; MACSec ready; DHCP relay, DHCP server,DHCP snooping DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Reliability VRRP,VRRP for BFD,VRRP6
EFM OAM (802.3ah)
CFM OAM (802.1ag)
ITU-Y.1731
DLDP
LACP
Super Virtual Fabric (SVF) Working as an SVF client that is plug-and-play with zero configuration
Automatically loading the system software package and patches of clients One-click,and automatic delivery of service configurations
Supports independent running client
Management and
Maintenance
iStack
Virtual Cable Test (VCT)
Remote configuration and maintenance using Telnet
SNMPv1/v2c/v3
RMON
web-based NMS
HTTPS
LLDP/LLDP-MED
System logs and multi-level alarms
802.3az EEE
Dying Gasp (S5720-X-LI, S5720-TP-LI series)
Interoperability Supports VBST (Compatible with PVST/PVST+/RPVST)
Supports LNP (Similar to DTP
Supports VCMP (Similar to VTP)
Operating environment Operating temperature: 0-1800 m altitude: 0-45℃
1800-5000m altitude: The operating temperature reduces by 1℃ every time the
altitude increases by 220m.
Relative humidity: 5% to 95% (noncondensing)
Input voltage AC:
Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage range: 90 V to 264 V AC, 50/60 Hz
DC:Rated voltage range: –48 V to –60 V, DC
Maximum voltage range: –36 V to –72 V, DC
Dimensions (mm) 442 (W) x 220 (D)x 43.6 (H)
Max power consumption 50.3W
PN. 98010606
