What's the Difference between PoE, PoE+, and PoE++ on Huawei Switch? 22 Oct, 2025. Posted by:XPONSHOP

Power over Ethernet (PoE) is a technology that provides power along the 10BASE-T, 100BASE-TX, 1000BASE-T, 2.5GBASE-T, 10GBASE-T, or other Ethernet cables. PoE can effectively provide centralized power for terminals such as IP phones, WLAN Access Points (APs), chargers of portable devices, Point of Sale (POS) machines, cameras, and data collection devices. Terminals are PoE-powered when they access the network; therefore, the indoor cabling of power supply is not required.

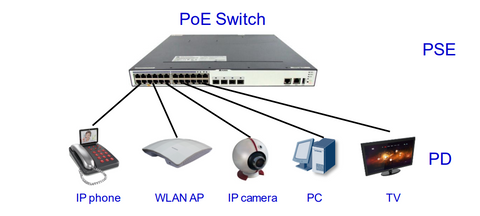

A PoE system consists of Power Sourcing Equipment (PSE) and Powered Devices (PDs). A PSE provides power, and a PD receives power from the PSE. As shown in Figure 1-1, the PoE switch functions as a PSE, and terminals such as IP phones, WLAN APs, and cameras are PDs.

Diagram of a PoE system

 Huawei switches, equipped with PoE, PoE+, and PoE++ capabilities (PoE Switch), provide flexible options for powering various network devices like IP cameras, access points, and VoIP phones. But what exactly distinguishes PoE, PoE+, and PoE++? and how to recognize PoW Switch models?

PoE
Involved Network Elements: Powered devices (PDs)

PoE function

· The switch supports power supply capability negotiation using the Link Layer Discovery Protocol (LLDP).
· The switch supports perpetual power supply and fast power-on.
·  If a switch supports PoE, its PoE feature is not affected after it joins a stack.


Licensing Requirements
PoE is a basic feature of a switch and is not under license control.

NOTE: Only switches with "PWR" or "PWH" in the device names are PoE switches. Whether switches support PoE depends on the hardware. Non-PoE switches cannot be changed to PoE switches through software upgrades.

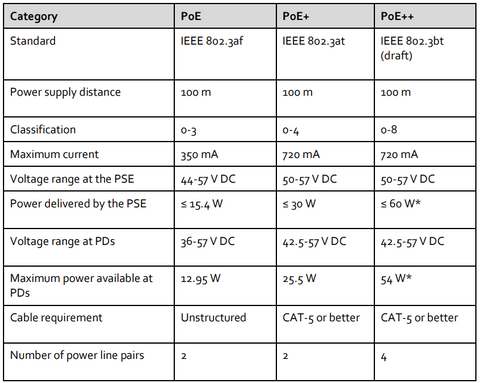

Performance parameters of PoE, PoE+, and PoE++

Applicable Huawei PoE Switches models and versions

Product

Product Model

Software Version

S2700S2700SINot supported
S2710SI

V100R006(C03&C05)

S2700EI

V100R005C01, V100R006(C00&C01&C03&C05)

S2720EIV200R011C10, V200R012C00, V200R013C00
S2750EI

V200R003C00, V200R005C00SPC300, V200R006C00, V200R007C00, V200R008C00, V200R009C00, V200R010C00, V200R011C00, V200R011C10, V200R012C00

S3700S3700SI

V100R005C01, V100R006(C00&C01&C03&C05)

S3700EI

V100R005C01, V100R006(C00&C01&C03&C05)

S3700HINot supported
S5700S5700LI

V200R001C00, V200R002C00, V200R003(C00&C02&C10), V200R005C00SPC300, V200R006C00, V200R007C00, V200R008C00, V200R009C00, V200R010C00, V200R011C00, V200R011C10, V200R012C00

S5700S-LIV200R008C00, V200R009C00, V200R010C00, V200R011C00, V200R011C10, and V200R012C00
S5710-C-LI

V200R001C00

S5710-X-LINot supported
S5720LI and S5720S-LI

V200R010C00, V200R011C00, V200R011C10, V200R012(C00&C20), V200R013C00

S5700SI

V100R005C01, V100R006C00, V200R001C00, V200R002C00, V200R003C00, V200R005C00

S5700EI

V100R005C01, V100R006(C00&C01), V200R001(C00&C01), V200R002C00, V200R003C00, V200R005(C00&C01&C02&C03)

S5710EI

V200R001C00, V200R002C00, V200R003C00, V200R005(C00&C02)

S5720EI

V200R007C00, V200R008C00, V200R009C00, V200R010C00, V200R011C00, V200R011C10, V200R012C00, V200R013C00

S5700HINot supported
S5710HI

V200R003C00, V200R005(C00&C02&C03)

S5720HI

V200R006C00, V200R007(C00&C10), V200R008C00, V200R009C00, V200R010C00, V200R011C00, V200R011C10, V200R012C00, V200R013C00

S5730HI

V200R012C00, V200R013C00

S5720SI

V200R008C00, V200R009C00, V200R010C00, V200R011C00, V200R011C10, V200R012C00, V200R013C00

S5720I-SI

V200R012C00, V200R013C00

S5720S-SINot supported
S5730SI

V200R011C10, V200R012C00, V200R013C00

S5730S-EI

V200R011C10, V200R012C00, V200R013C00

S6700S6700EINot supported
S6720EINot supported
S6720S-EINot supported
S6720SI

V200R011C00, V200R011C10, V200R012C00, V200R013C00

S6720S-SINot supported
S6720LI and S6720S-LINot supported
S6720HINot supported

 XPONSHOP offers Huawei full series switch. And if you require the technical support, please email us at sales@xponshop.com.
