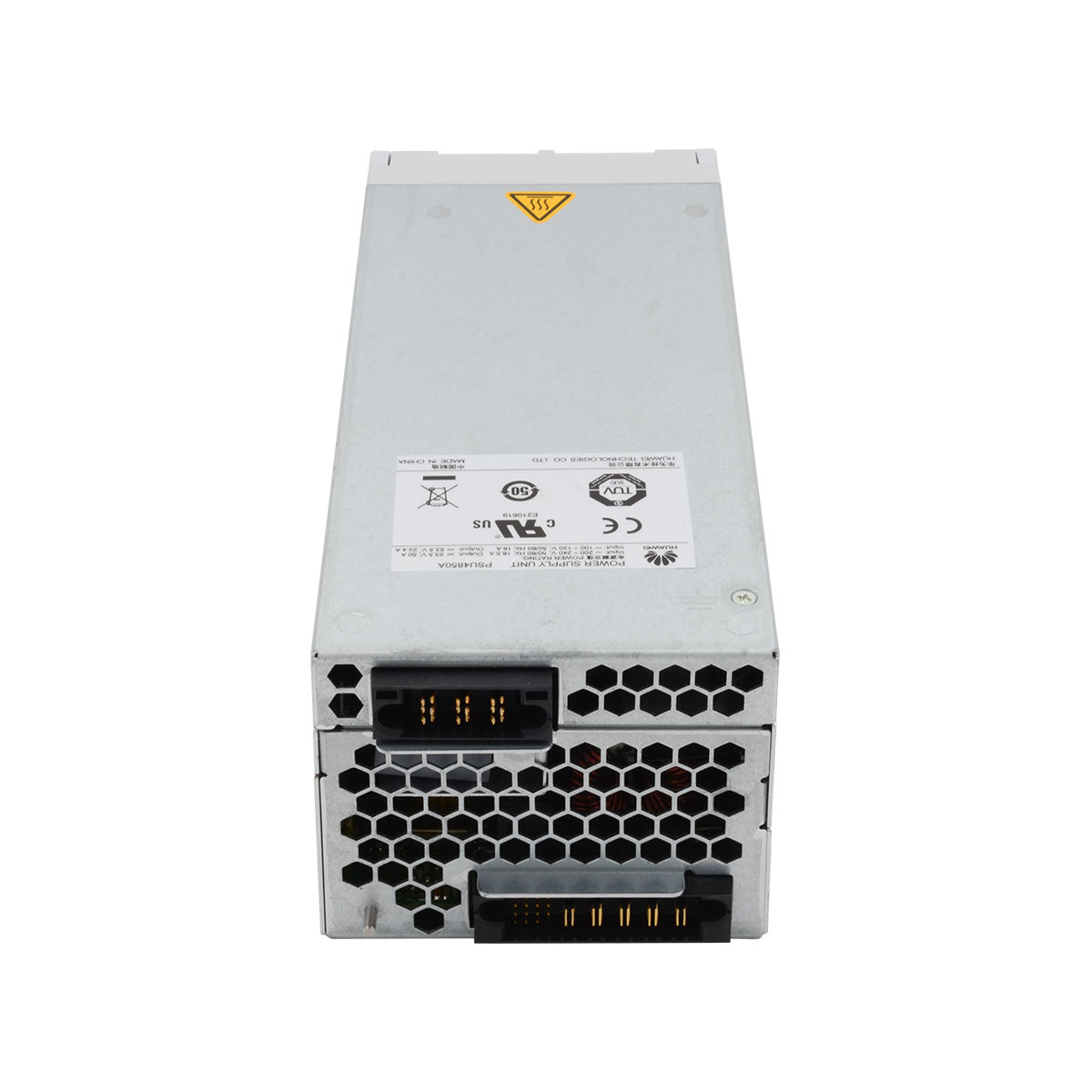

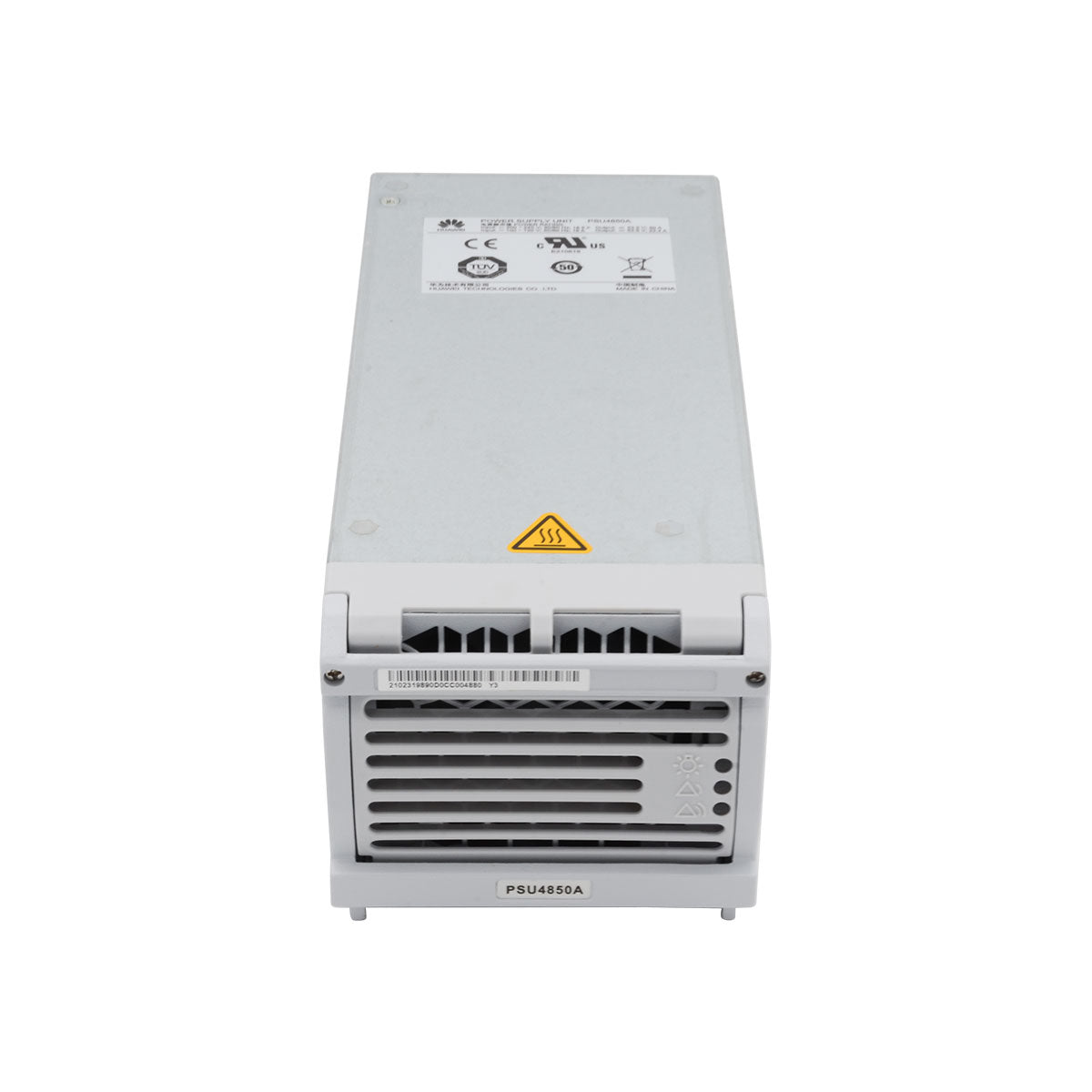

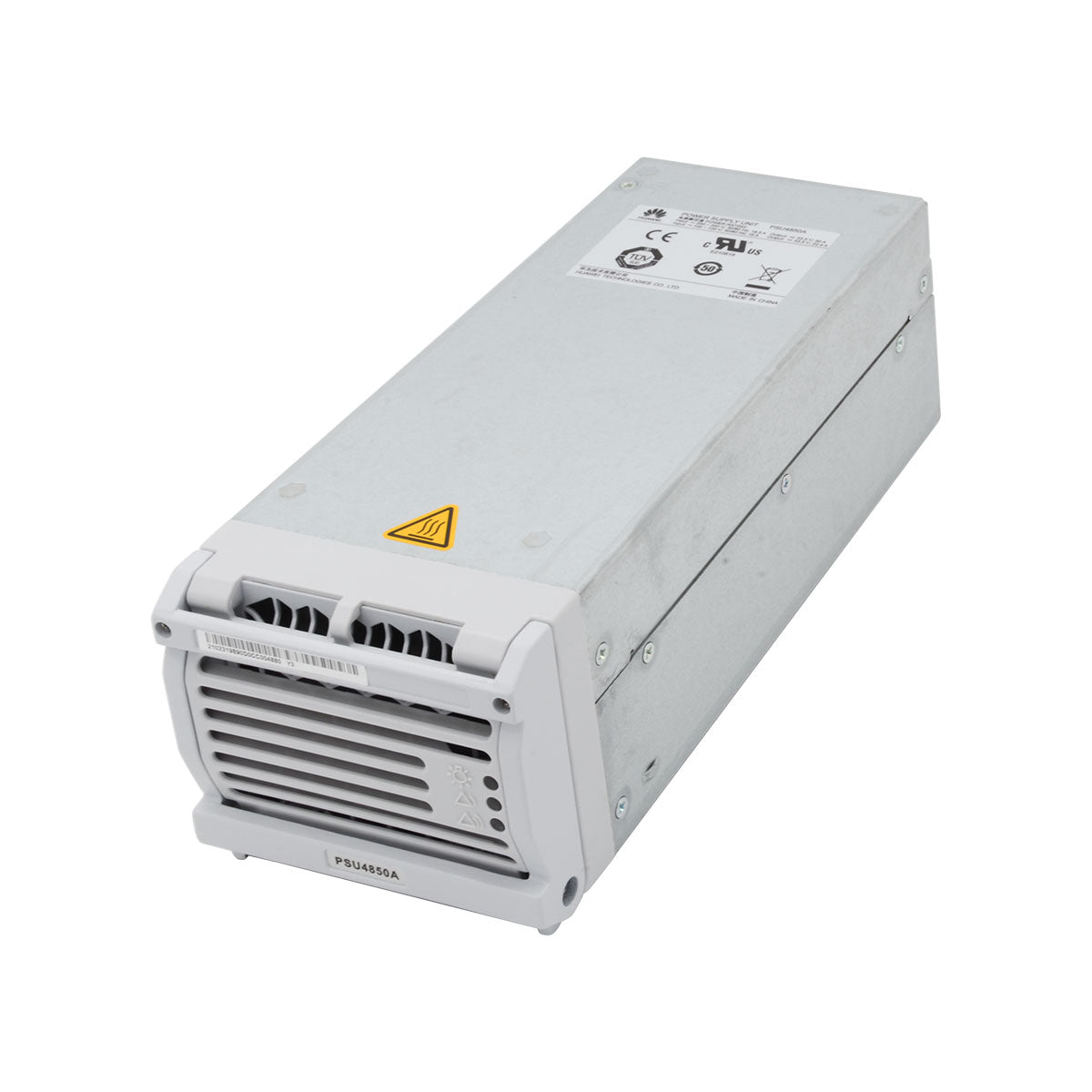

Huawei PSU4850A Rectifier
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Huawei PSU4850A Rectifier

  • Installed in EPS200
Available:In Stock
$0.00

Specification

Efficiency

The peak point is≥ 96%;

≥ 95%(230V AC,20%–90%

load)

Height x Width x

Depth

88.9 mm x 103 mm x 243

mm

(3.50 in. x 4.06 in. x 9.57 in.)

Weight

≤ 2.8 kg (6.17 lb)

Operating temperature

-40 °C to +75 °C （referring

to Figure 3）

(-40°F to +167°F)

Storage temperature

-40 °C to +75 °C （not

packaged）

(-40°F to +167°F)

Relative humidity

5%-95% (non-condensing)

Altitude range

≤ 4000 m (13,123.2 ft)

Input

Operating voltage

85–300 VAC

Frequency

45–66 Hz

Rated : 50Hz and 60 Hz

Maximum input current

≤ 18.5 A

Power factor

≥ 0.99 (50% load or more)

THD

≤ 5％ (50% load or more)

Output

Output voltage

43.2–58 .0VDC

Default voltage: 53.5 VDC

Output power

3000 W (176–300 VAC);

1200 W (85–175 VAC)

Regulated voltage

precision

≤±0.6％Vo

Ripple and noise

≤ 200 mVp-p (Bandwidth ≤

20MHz)

Static voltage regulation

±0.5% (from no load to 100%

load)

Dynamic regulation

Over Shoot:≤ ±5％ Vo

Recovery time: ≤ 200us

Standby power

≤ 5W

Turn-on output delay

3–8 s

Hold up time

>10 ms

Psophometric noise

≤ 2 mV

Broad frequency noise

≤ 50 mV (3.4–150 kHz)

≤ 20 mV (0.15M–30MHz)
