FiberHome HSUC Switch Uplink Card for AN5516-04 OLT
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

FiberHome HSUC Switch Uplink Card for AN5516-04 OLT

  • Control Board Synchronized
  • Latest Firmware Loaded
Available:In Stock
$0.00

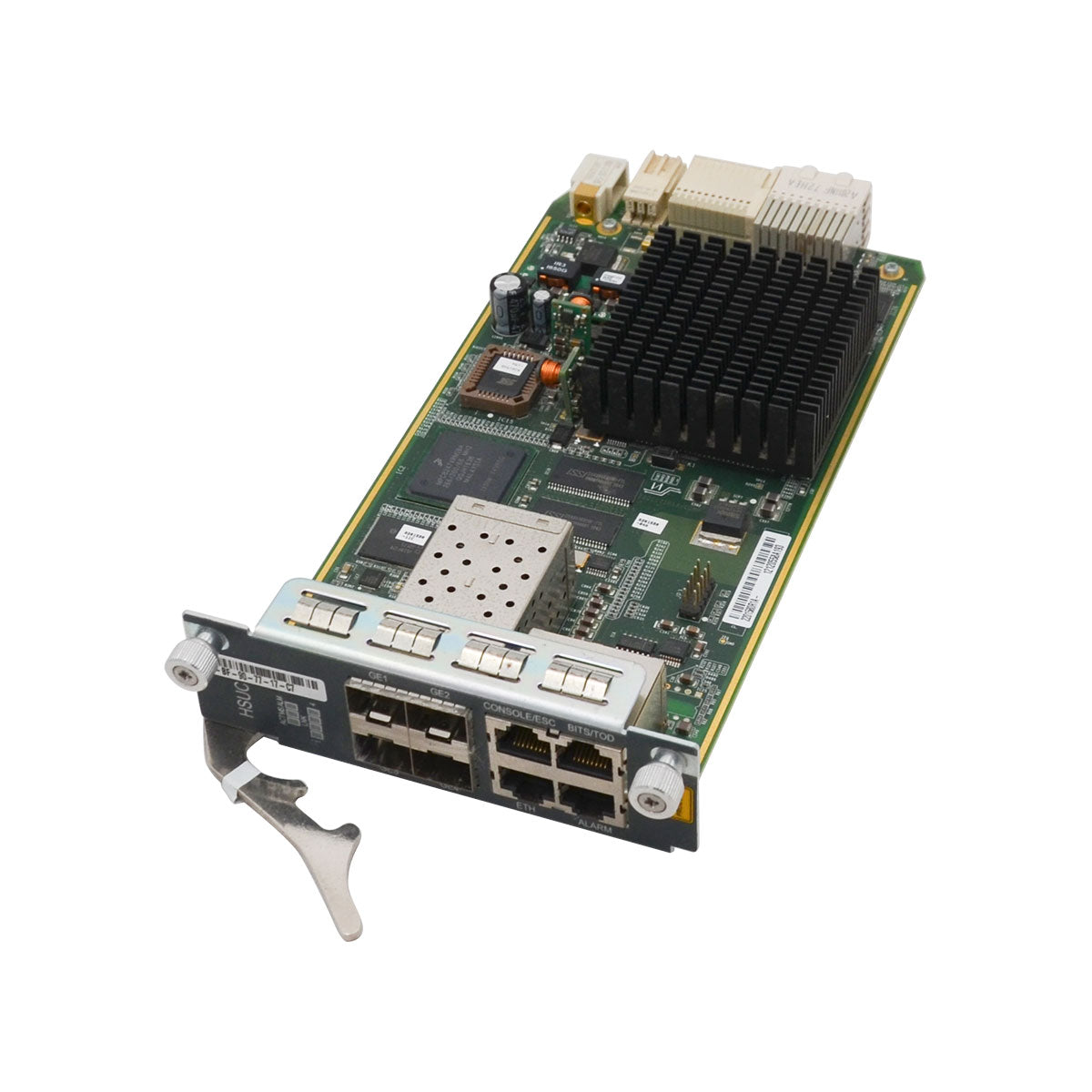

HSUC is the Switch Uplink Card for AN5516-04 OLT, with 4*GE Uplink Optical/ Electrical Port.

Capacity of the switch uplink card HSUC is 488 Gbit/s.

HSUC Supports  32 k MAC address quantity.



Ports specs.  4-Port GE Optical/Electrical Uplink
Supported Intra-card aggregation; Inter-card aggregation
Clock Synchronization Modes SyncE, 1588 V2, and BITS
Specification of Optical Interfaces on HSU card
Item 1000Base-SX 1000Base-LX
Interface type LC / PC LC / PC
Interface rate 1000Mbit/s 1000Mbit/s
Central wavelength 850nm 1310nm
Maximum transmission
distance
500m 20km
Maximum launched power -4dBm -3dBm
Minimum launched power -9.5dBm -11.5dBm
Maximum receiving sensitivity -17dBm -19dBm
Minimum extinction ratio 9dB 9dB
Specifications of Ethernet electrical interfaces on HSU card
Item 10 / 100 / 1000Base-T
Interface type RJ45
Interface rate 10 / 100 / 1000Mbit/s self-adaptive
Transmission media CAT-5
Applicable standard IEEE 802.3-2005
Transmission Distance 100m





Card Type Card Name Card Number Matching Subracks
AN5516-01/
AN5116-06B
AN5516-06 AN5516-04
Core switch card HSWA 2115331 V V X
2115334 V V X
HSWB 2201631 V V X
HSWD 2201069 V V X
2202258 (supporting the 1588 function) V V X
Switch uplink card HSUB 2201341 X X V
HSUC 2201580 X X V
Uplink card HU1A 2170846 V V X
HU1B 2201320 V V X
HU2A 2170854 V V X
HU2C 2202303 V V X
HU4A 2201073 V V X
GU6B 2201319 V V X
GU6F 2170855 V V X
Power card PWR 2201894 X V X
PWRA 2201471 X X V
PWRD 2201409 X X V

HSUC is the Switch Uplink Card for AN5516-04 OLT, with 4*GE Uplink Optical/ Electrical Port.

Capacity of the switch uplink card HSUC is 488 Gbit/s.

HSUC Supports  32 k MAC address quantity.



Ports specs.  4-Port GE Optical/Electrical Uplink
Supported Intra-card aggregation; Inter-card aggregation
Clock Synchronization Modes SyncE, 1588 V2, and BITS
Specification of Optical Interfaces on HSU card
Item 1000Base-SX 1000Base-LX
Interface type LC / PC LC / PC
Interface rate 1000Mbit/s 1000Mbit/s
Central wavelength 850nm 1310nm
Maximum transmission
distance
500m 20km
Maximum launched power -4dBm -3dBm
Minimum launched power -9.5dBm -11.5dBm
Maximum receiving sensitivity -17dBm -19dBm
Minimum extinction ratio 9dB 9dB
Specifications of Ethernet electrical interfaces on HSU card
Item 10 / 100 / 1000Base-T
Interface type RJ45
Interface rate 10 / 100 / 1000Mbit/s self-adaptive
Transmission media CAT-5
Applicable standard IEEE 802.3-2005
Transmission Distance 100m





Card Type Card Name Card Number Matching Subracks
AN5516-01/
AN5116-06B
AN5516-06 AN5516-04
Core switch card HSWA 2115331 V V X
2115334 V V X
HSWB 2201631 V V X
HSWD 2201069 V V X
2202258 (supporting the 1588 function) V V X
Switch uplink card HSUB 2201341 X X V
HSUC 2201580 X X V
Uplink card HU1A 2170846 V V X
HU1B 2201320 V V X
HU2A 2170854 V V X
HU2C 2202303 V V X
HU4A 2201073 V V X
GU6B 2201319 V V X
GU6F 2170855 V V X
Power card PWR 2201894 X V X
PWRA 2201471 X X V
PWRD 2201409 X X V
