AN6000-17 is a large-sized optical line terminal device deployed in a central office. Providing 17 service slots and featuring large capacity and high bandwidth, the device can cater to the access demand in a densely-populated area.

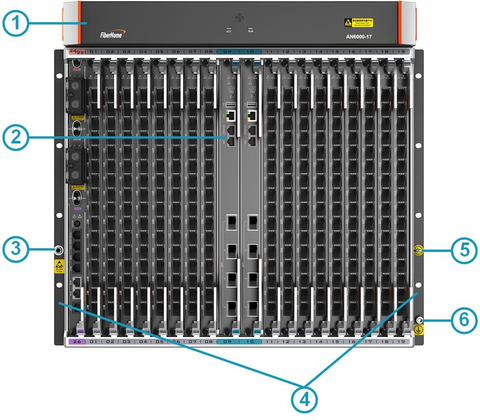

Appearance and Structure
|
No.
|
Name
|
Function
|
| 1 |
Horizontal card slot
|
Houses a fan unit.
|
| 2 |
Vertical card slot
|
Accommodates cards to implement various functions of the equipment. |
| 3 | ESD protection earth ground fastener |
Connects with an ESD protection unit.
|
| 4 |
Mounting ears
|
Secure the subrack in a cabinet.
|
| 5 |
Fiber puller hanger
|
Holds a fiber puller.
|
| 6 |
Subrack earth ground point
|
Connects with the subrack protection earth ground cable. |

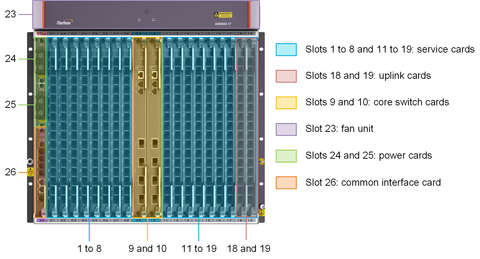

Slot Distribution
The AN6000-17 subrack provides 22 vertical slots and one horizontal slot.
Card Supported
The slots can be classified as follows according to the cards they house:
|
Type
|
Slot
|
Card Supported
|
|
Service card slot
|
1-8 and 11-19
|
GPOA, EX8A, EXOA, GX8A, GM8A, GM8B, GMOA, GNOA, GFOA and PXNA
|
|
Uplink card slot
|
18-19
|
HU8A, KU1B
|
|
Core switch card slot
|
9-10
|
HSCA
|
|
Fan unit slot
|
23
|
FA
|
|
Power card slot
|
24-25
|
PIBA
|
|
Common interface card slot
|
26
|
CIOA
|
Product Specification
|
Item
|
Specification
|
|
Slot configuration
|
Two slots for core switch cards (slots 9 and 10) 17 slots for service cards (slots 1 to 8 and 11 to 19) Two slots for uplink cards (slots 18 and 19) Two slots for power cards (slots 24 and 25) One slot for the common interface card (slot 26) One slot for the fan unit (slot 23) |
| Dimensions (H × W × D) of a subrack with mounting ears for 21-inch cabinets |
486 mm × 530 mm × 282 mm
|
| Weight of an empty subrack (excluding the fan unit) |
14 kg
|
| Weight of an empty subrack (including the fan unit) |
19 kg
|
|
Maximum input current
|
63 A
|
|
Power supply mode
|
DC (two channels of power supplies forming redundancy protection) |
|
Working voltage range
|
-38.4 V to -57.6 V
|
|
Rated voltage
|
-48 V
|
|
Operating temperature
|
-40℃ to 65℃
|
|
Operating relative humidity
|
5% to 95% (non-condensing)
|
|
Storage temperature
|
-40℃ to 70℃
|
|
Relative humidity for storage
|
5% to 95% (non-condensing)
|
|
Atmospheric pressure
|
70 kPa to 106 kPa
|
|
Slot bandwidth
|
200 Gbit/s
|
|
Switch capacity of the backplane bus
|
13.6 Tbit/s
|
| Core switch card capacity (in the load sharing mode) |
6.8 Tbit/s
|
| Maximum number of MAC addresses in the system |
262144
|
| Maximum number of IPv4 routing tables in the system |
16384
|
| Maximum number of IPv6 routing tables in the system |
8192
|
|
Maximum number of ARP tables in the system
|
18432
|
|
Maximum number of ND tables in the system
|
9216
|
| Maximum number of multicast groups in the system |
4096
|
|
Maximum number of uplink ports in the system
|
· 8 × 10GE / GE uplink ports (HSCA) (Only core switch cards are used to provide uplink ports.) · 16 × 10GE / GE uplink ports (HU8A) + 8 × 10GE / GE uplink ports (HSCA) (Both core switch cards and uplink cards are used to provide uplink ports.) · 8 × 10GE / GE uplink ports (KU1B) + 2 × 100GE uplink ports (KU1B) + 8 × 10GE / GE uplink ports (HSCA) (Both core switch cards and uplink cards are used to provide uplink ports.) |
|
Maximum number of Ethernet ports in the system
|
408
|
| Maximum number of ONUs connected to the system |
17408
|
|
Maximum number of multicast users in the system
|
17408
|
|
Bandwidth allocation granularity of DBA
|
GPOA: 64 kbit/s
EX8A: 640 kbit/s
EXOA: 640 kbit/s
GX8A: 256 kbit/s GM8A: 256 kbit/s (XG-PON) / 64 kbit/s (GPON) GM8B: 256 kbit/s (XG-PON) / 64 kbit/s (GPON) GMOA: 256 kbit/s (XG-PON) / 64 kbit/s (GPON) GNOA: 64 kbit/s (XGS-PON) / 64 kbit/s (GPON) GFOA: 64 kbit/s (XGS-PON) / 256 kbit/s (XG-PON) / 64 kbit/s (GPON) |
|
Minimum configurable bandwidth of DBA
|
GPOA: 1024 kbit/s EX8A: 2560 kbit/s EXOA: 2560 kbit/s GX8A: 1024 kbit/s GM8A: 1024 kbit/s GM8B: 1024 kbit/s GMOA: 1024 kbit/s GNOA: 1024 kbit/s GFOA: 1024 kbit/s |
|
Overall power consumption
|
Typical configuration: 2 × HSCA + 17 × GNOA + 2 × PIBA + FAN + CIOA Static power consumption: 1211 W Typical power consumption: 2093 W Maximum power consumption: 2449 W The equipment can only be used together with a PDP with a rated current of 63 A. |
