Huawei H905CSHF board is a 16-port XGS-PON and GPON Combo OLT interface board for  Huawei SmartAX MA5800 series OLT including the MA5800-X17, MA5800-X15MA5800-X7, and MA5800-X2. It works together with the optical network unit (ONU) to provide XG(S)-PON and GPON access services.

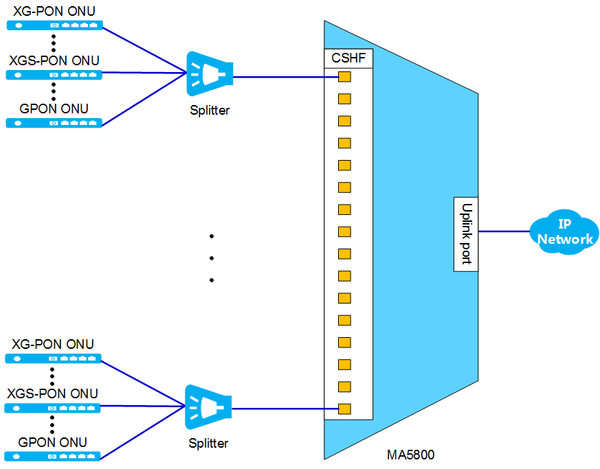

CSHF application scenario

H901CSHF application scenario


Item Specification
Port quantity 16
Port rate mode Supports two modes:
Asymmetric
Symmetric
Port rate GPON upstream: 1.244 Gbit/s
GPON downstream: 2.488 Gbit/s
XG-PON upstream: 2.488 Gbit/s
XG-PON downstream: 9.953 Gbit/s
XGS-PON upstream: 9.953 Gbit/s
XGS-PON downstream: 9.953 Gbit/s
Supported ONU rates GPON: 2.5G/1.25G (downstream rate/upstream rate)
XG-PON: 10G/2.5G (downstream rate/upstream rate)
XGS-PON: 10G/10G (downstream rate/upstream rate)
Forwarding capability [Gbit/s] 200 Gbit/s
Maximum number of MAC addresses 131072
Maximum distance difference between 2 ONUs under the same PON port (board capability) [km] 40km
T-CONTs per port GPON/auto type ONU: 1024XG(S)-PON: 2048
Service flows per board 16352
1588v2 Synchronization Y
9216-byte jumbo frames Y
CAR group Y
Bidirectional FEC Y
Type B protection (single-homing) Y
Type B protection (dual-homing) Y
Type C protection (single-homing) Y
Type C protection (dual-homing) Y
HQoS Y
PON ISSU Y
ONU-based or queue-based shaping Y
Variable-length OMCI Y
Rogue ONU detection and isolation Y
Automatic shutdown at high temperature Y
Energy conservation for service boards Y
Technical specifications
Dimensions without packaging (H x W x D) [mm] 399.20 mm x 23.30 mm x 257.90 mm
Weight without packaging [kg] 1.18 kg
Static power consumption [W] 36 W
Maximum power consumption [W] 86 W
Operating temperature [°C] -40°C to +55°C
Maximum Frame Size of Boards (Default) [bytes] 2052 bytes
Maximum Frame Size of Boards (jumbo frame enabled) [bytes] 9216 bytes
Maximum split ratio GPON: 1:128
XG(S)-PON: 1:256
