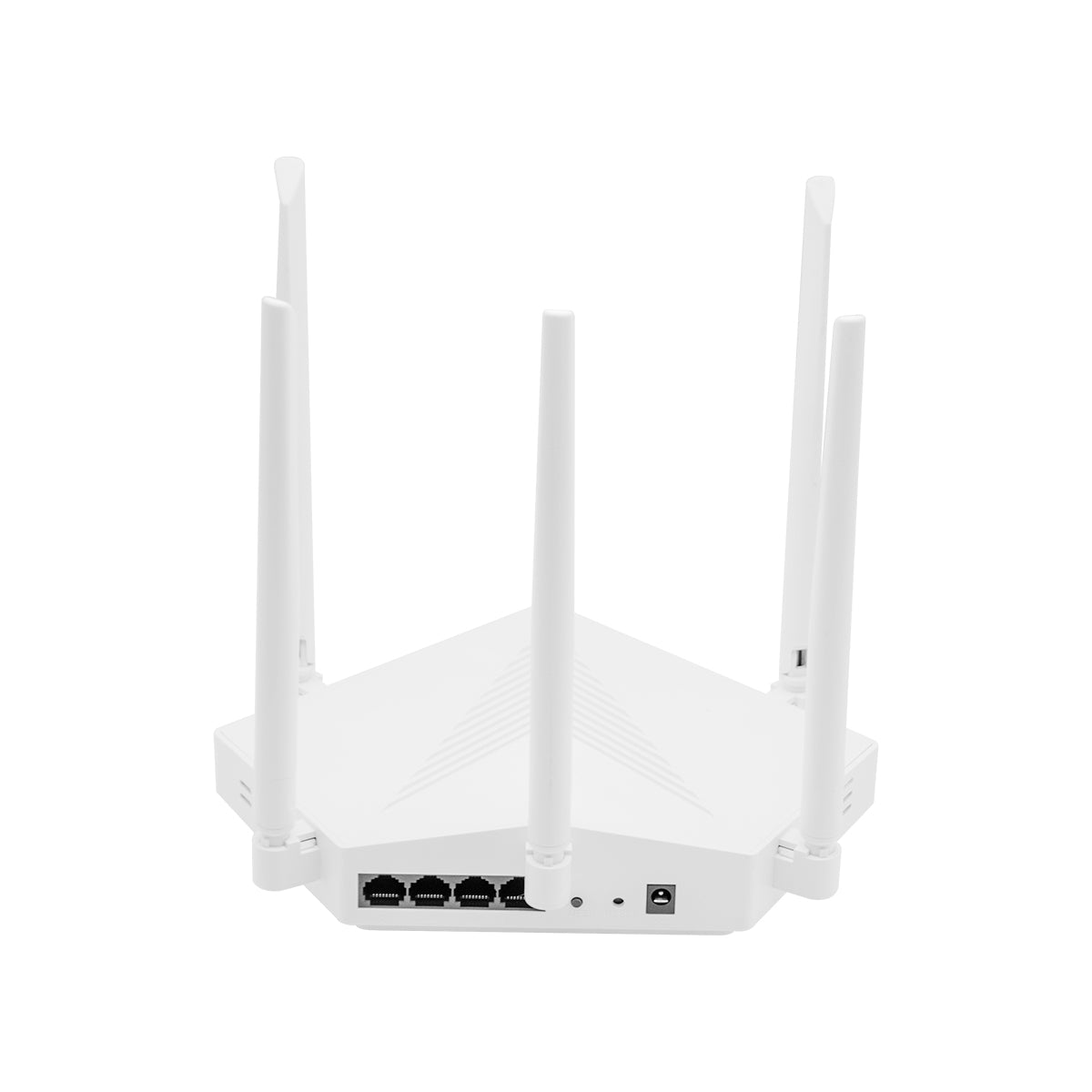

R30B1 is an AX3000 WiFi 6 Dual-Band (2.4GHz/5GHz) home router, designed to deliver high-speed and reliable wireless connectivity.
Based on customer requirements, the router supports up to 5x 5dBi high-gain antennas, significantly enhancing Wi-Fi coverage and overall performance.
Equipped with 1 GE WAN port and 3 GE LAN ports, the R30B1 operates simultaneously on both the 2.4GHz and 5GHz bands.
Powered by a MediaTek chipset with a Dual-Core CPU, it delivers robust processing power. The router’s advanced WiFi 6 capabilities ensure faster speeds, improved efficiency, and a seamless online experience for users.
WiFi 6 VS. WiFi 5 and predecessors
| Specification | |
| Interfaces |
1*GE WAN+3*GE LAN
|
| WiFi |
IEEE 802.11b/g/n/ac/ax 2.4G: 574Mbps@2*2 WiFi 6 5G: 2402Mbps@2*2 WiFi 6 |
|
DDR/FLASH |
256MB/128MB |
|
Chipset |
MT7981B+MT7976C+MT7531A |
| Support |
MU-MIMO |
|
Management |
WEBUP |
|
Working Mode |
Routing/Bridging/Relay mode |
|
Maximum device |
256 |
| Antenna | 5*5dbi External antennas |
| Led Light | 1*dual-color LED |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% | |
| Power supply | 12 V DC, 1A |
|
Max Power Cons. |
12W |
