HG6143F is FiberHome original WiFi 6 AX3000 GPON ONT, providing interface 4GE+1POTS+1USB+2.4GHz/5GHz WIFI 6.
HG6143F adopts the management based on TR-069 and OMCI, and supports TR-069 over OMCI. It can manage terminal services without IP network, which facilitates automatic provisioning, maintenance and management of services remotely.
The HG6143F can be used together with the FiberHome OLT equipment to make up a GPON system and access multiple services for users. The HG6143F has the following characteristics:
- The equipment provides WiFi wireless access based on IEEE 802.11 a/b/g/n/ac/ax to set up safe and reliable wireless network for users.
- Compatible with IEEE 802.11 a/b/g/n/ac/ax and passed Wi-Fi Alliance authentication, with good compatibility with other WLAN devices.
- Support eight SSIDs (four SSIDs for the 2.4 GHz band and another four SSIDs for the 5 GHz band)
| Item | Specification | |
| Interface |  |
|
| WLAN | 2.4G&5G | |
|
IEEE 802.11 b/g/n/ax (2.4GHz)
|
||
| IEEE 802.11 a/n/ac/ax (5GHz) | ||
| Wi-Fi 6 (802.11ax) | ||
|
ITU-T G.984, Class B+ |
||
| Network-side Port | GPON | |
| Rate | Upstream 2.488Gbit/s, Upstream 2.488Gbit/s, | |
| User-side Ports |

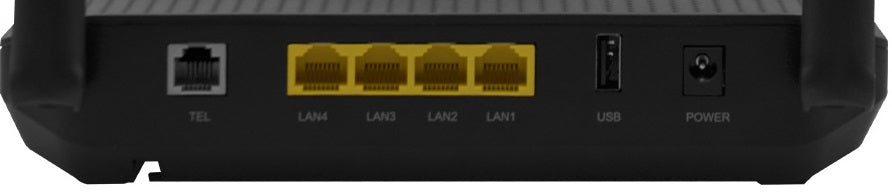

1 x POTS + 4 x GE + 1 x USB + 2.4G/5G Wi-Fi |
|
| Dimensions |
204 mm × 3 8 . 9 mm × 150mm
|
|
| (length x width x height) | ||
| Weight | About 358g | |
| Working environment | Operating temperature: -5℃ to 45℃ | |
| Max. power consumption: 16W | 12.5W | |
| Power specifications | System power supply: 12V DC, 1.5 A |
