Huawei OptiXstar K153 is the FTTR slave ONT, which needs work with OptiXstar F30 Series master ONT such as V173-50 and V173 to provide Huawei Fiber to the Room(FTTR) solution.
K153 supports ultra-gigabit broadband access through optical fiber uplink, and providing users with ultra-gigabit dual-band Wi-Fi and gigabit network ports.
Interface: 2*GE+2.4GHz&5GHz Wi-Fi
Downlink: 2.488Gbit/s, Uplink: 1.244Gbit/s
Air interface rate: 574 Mbps (2.4GHz)，2402 Mbps (5GHz)
IEEE 802.11 b/g/n/ax(2.4GHz)
IEEE 802.11 a/n/ac/ax(5GHz)
2×2 MIMO（2.4GHz&5GHz）
Connector: SC/UPC
1024 QAM
160MHz
128 MB Flash，256 MB RAM
Built-in smart antenna with 360-degree coverage and support for Beamforming to ensure IOT connection reliability.

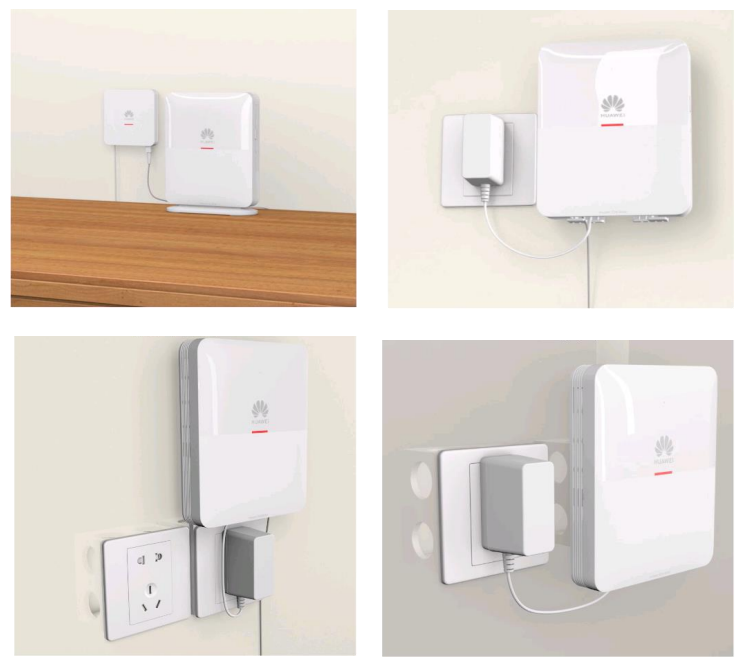

OptiXstar K153 Installation Scenaria
Solution Overview
The Fiber to the Room (FTTR) all-optical Wi-Fi solution directly extends optical fibers to each room, achieving gigabit coverage everywhere at home. The Huawei Inspiration Lab proposes an innovative photoelectric composite micro optical cable and FTTR construction solution.
FTTR is Huawei's innovative next-generation home networking solution. This solution uses fibers that feature small size, light weight, ultra-long service life, anti-EMI, and unlimited bandwidth evolution. It solves the last-meter coverage problem of home networks and provides a new choice for home networking.
Solution Benefits (FTTR for Home)
As 200 Mbit/s or higher home broadband becomes the mainstream, requirements surge for home services such as online education, video, remote office, and e-sports. Against this backdrop, home users require Wi-Fi networks that feature high bandwidth, low latency, wide coverage, and high concurrency.
Huawei's fiber to the room (FTTR) solution extends fibers to rooms and provides various gigabit Wi-Fi 6 master/slave FTTR units, all-optical components, and optical cable routing tools. This enables home users to enjoy stable gigabit Wi-Fi experience from anywhere in the home.
In addition, FTTR supports end-to-end intelligent management. NCE and the LinkHome app help home users learn about the home network status in real time, as well as support parental control to safeguard children when they use the Internet.
| Item | Specification |
| Interface |
2*GE+2.4GHz&5GHz Wi-Fi
|
| WLAN |
1024 QAM
|
|
IEEE 802.11 b/g/n/ax(2.4GHz)
IEEE 802.11 a/n/ac/ax(5GHz
|
|
|
2×2 MIMO（2.4GHz&5GHz）
|
|
| Built-in smart antenna with 360-degree coverage | |
| Air interface rate: 574 Mbps (2.4GHz)，2402 Mbps (5GHz) | |
| Network-side Port | XG-PON |
| User-side Ports |
1 x POTS + 4 x GE + 1 x USB +1*downlink optical port+ 2.4G/5G Wi-Fi |
| Dimensions |
157mm x 250mm x 30mm
|
| (length x width x height) | |
| Weight | About 600g |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Max. power consumption | 20 W |
| Power specifications | Power adapter input: 170 ～ 240 V AC，50/60 Hz |
| System power supply: 12V DC, 2 A |
