ZTE ZXHN F660 is a GPON Optical Network Terminal designed for FTTH scenario. It supports L3 function to help subscriber construct intelligent home network. It provides subscribers rich, colorful, individualized, convenient and comfortable services including voice, video (IPTV) and high speed internet access.
ZTE F660 GPON ONT provides three FE Ethernet ports, one GE Ethernet port, one POTS port and one USB. F660 has WiFi function, support 802.11 b/g/n.
Provides 1GE+3FE+1POTS+WIFI+USB 5dbi antennas
Global version of the latest firmware
Optical connector SC/UPC
OMCI supported

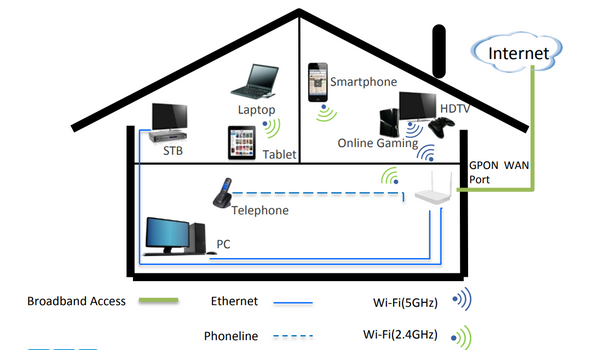

ZTE F660 Application Scenaria
| Specification | |
| Interface | 1GE+3FE+1POTS+WIFI+USB 5dbi antennas |
| Optical port | 1 * GPON interface (SC/UPC) |
| Transmission Rate | 2.488Gbps downstream and 1.244Gbps upstream |
| Transmitting Optical Power | 0.5~5dBm |
| Receiving Sensitivity | Better than -28dBm |
| Antenna | 5dbi External antennas |
| Overload Optical Power | -8 dBm |
| Link distance | 0 ~ 20km max |
| Transmission Wavelength | Receiving: 1,490 nm Transmitting: 1,310 nm |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% | |
| System power supply | 12 V DC, 1 A |
| Dimensions |
220mm x 160 mm x 44 mm |
