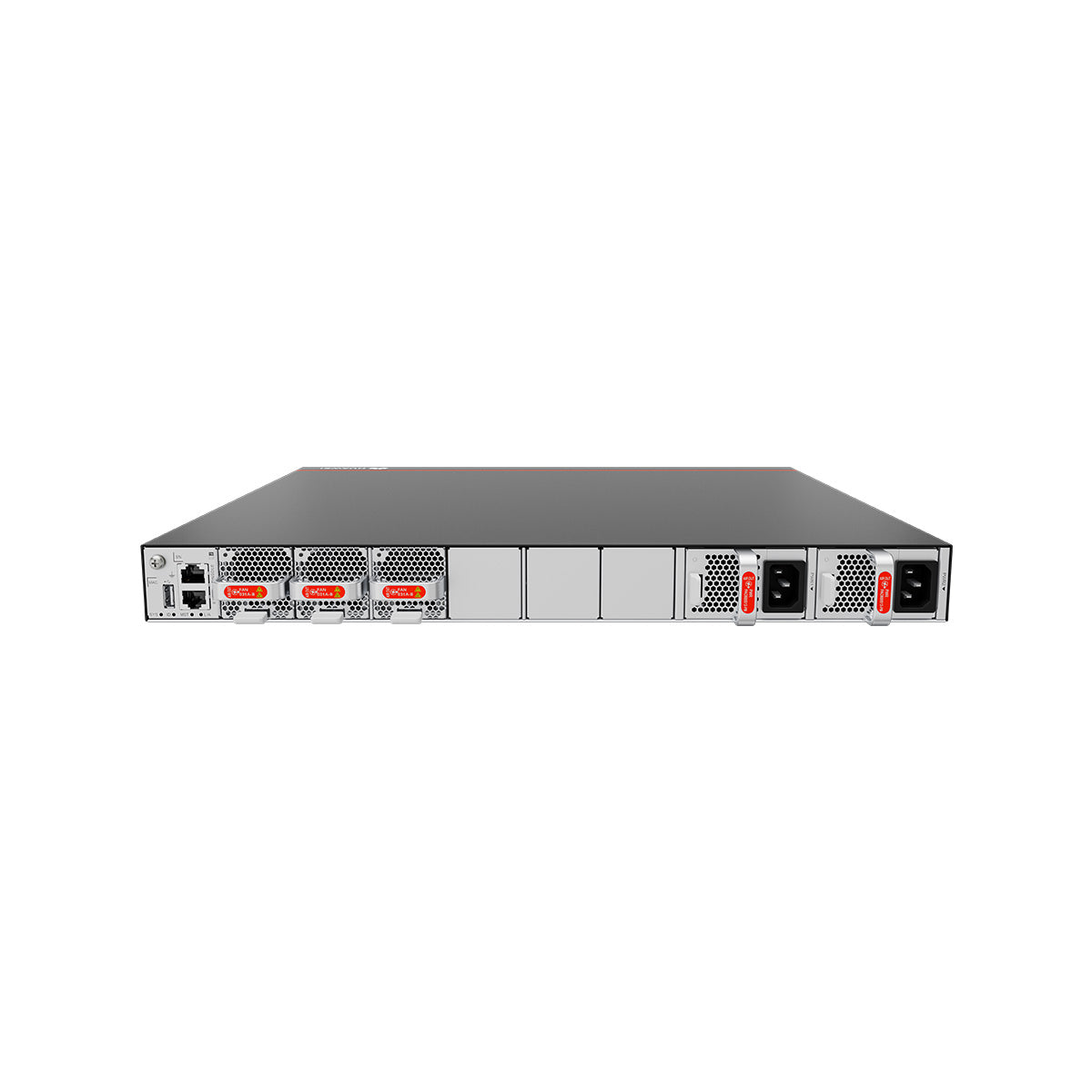

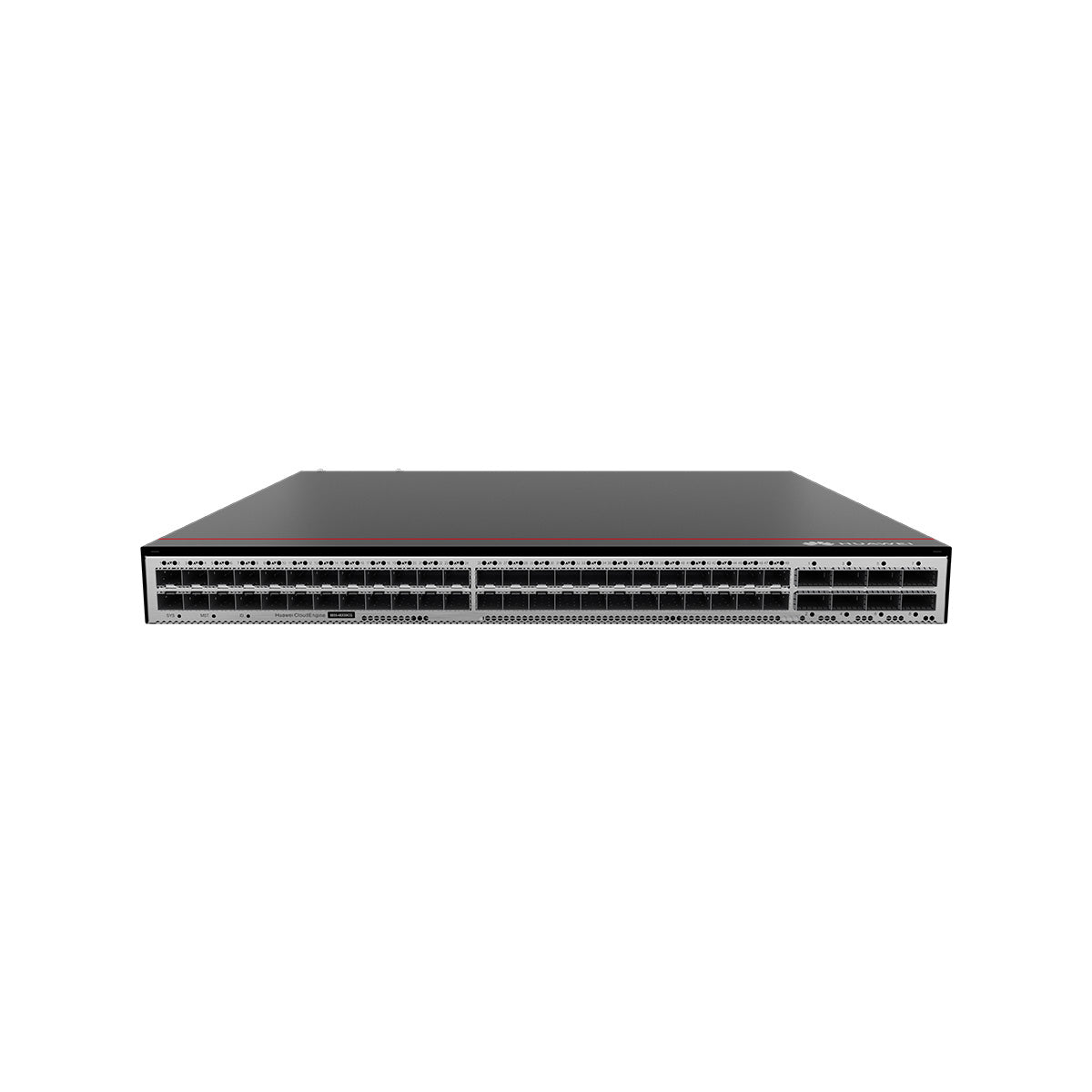

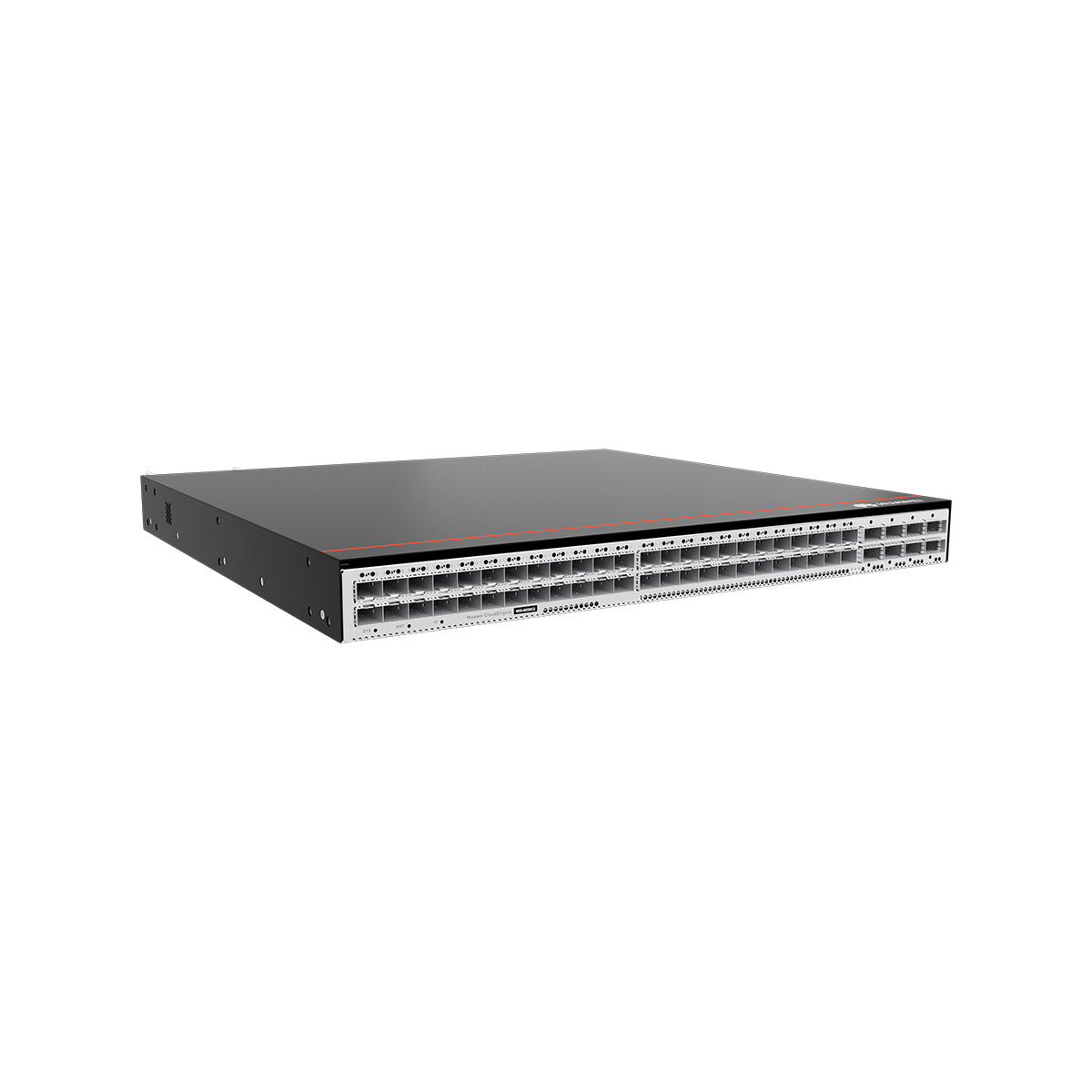

Huawei CE6855-48XS8CQ Switch

  • Brand New Condition
  • Original Box Packed
  • Latest Firmware Version
Available:In Stock
$0.00
Huawei CE6855-48XS8CQ switch with 48-port 10GE SFP+, 8-port 100G QSFP28, 2 power slots PN#02355KTJ
Memory: DRAM: 8 GB
NOR Flash: 64 MB
SSD Flash: 4 GB
Applicable power module:
PDC1K2S12-CE (1200W DC Power Module)
PDC1K2S12-PB (1200W HVDC Power Module)


The CloudEngine 6850 series has advanced hardware architecture with 40GE/100GE uplink ports and high-density 10GE access ports. Using Huawei's new software platform.

CloudEngine 6850 series can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers.


Item Specification
Dimensions with packaging (H x W x D) [mm (in.)] 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
Maximum dimensions (the depth is the maximum distance from the protruding port on the front panel to the module handle on the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.40 in. x 17.58 in.)
Weight without packaging [kg (lb)] 6.36 kg (14.02 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)] 8.35 kg (18.41 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging [kg (lb)] 10.63 kg (23.43 lb)
Weight with packaging (full configuration) [kg (lb)] 12.62 kg (27.82 lb)
Installation Type Cabinet installation
CPU 4-core, 1.4 GHz
Memory DRAM: 8 GB
NOR Flash 64 MB
SSD Flash 4GB SSD
USB It can be used for log backup and USB-based deployment.This function is reserved.
Power supply mode AC
DC
HVDC
Console port RJ45
Downlink Service interface 48*10GE SFP+
Uplink Service interface 8 x 100GE QSFP28
Service port supporting the stack function Reserved function. This function is not enabled.
RTC Supported
Typical power consumption [W] 138 W (100% traffic load, 24 x 10G + 4 x 100G copper cables, normal temperature, dual AC power modules)
156 W (100% traffic load, short-distance optical modules on 24 x 10G + 4 x 100G ports, normal temperature, dual AC power modules)
Typical heat dissipation [BTU/hour] 471 BTU/hr (100% traffic load, 24 x 10G + 4 x 100G copper cables, normal temperature, dual AC power modules)
532 BTU/hr (100% traffic load, short-distance optical modules on 24 x 10G + 4 x 100G ports, normal temperature, dual AC power modules)
Static power consumption [W] 124 W
Static heat dissipation [BTU/hour] 423 BTU/hr
Maximum power consumption [W] 187 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules)
298 W (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules)
Maximum heat dissipation 638 BTU/hr (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules)
1017 BTU/hr (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules)
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V] 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC
1200 W DC power module: –48 V DC to –60 V DC; +48 V DC
Input voltage range [V] 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC
1200 W DC power module: -38.4 V DC to -72 V DC; +40 V DC to +57 V DC
Maximum input current [A] 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC)
1200 W DC power module: 38 A (-48 V DC to -60 V DC); 38 A (+48 V DC)
Rated output power [W] 600 W AC&240 V DC power module: 600 W
1200 W DC power module: 1200 W
Certification · Compliance with safety standards
· Compliance with EMC standards
· Compliance with environment and environmental protection standards
Power supply surge protection [kV] AC: 6 kV in common mode and 6 kV in differential mode
DC: 4 kV in common mode and 2 kV in differential mode
HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans Pluggable
Number of fans 3
Redundant fans The device supports 2+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Port-side air intake/port-side air exhaust, depending on the selected fan module and power module.
Availability 0.999994851
MTBF [year] 44.34 year
MTTR [hour] 2 hour
Noise at normal temperature (27°C, sound pressure) [dB(A)] Front-to-back airflow: 50.1 dB(A) on average; maximum: 55.9 dB(A)
Back-to-front airflow: 48.4 dB(A) on average; maximum: 56.1 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)] Front-to-back airflow: 66.4 dB(A) on average; maximum: 73.2 dB(A)
Back-to-front airflow: 67.3 dB(A) on average; maximum: 72.5 dB(A)
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)

NOTE:
When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Storage relative humidity [RH] 5% to 95% RH, non-condensing
Storage temperature [°C (°F)] -40ºC to +70ºC (-40°F to +158°F)
Huawei CE6855-48XS8CQ switch with 48-port 10GE SFP+, 8-port 100G QSFP28, 2 power slots PN#02355KTJ
Memory: DRAM: 8 GB
NOR Flash: 64 MB
SSD Flash: 4 GB
Applicable power module:
PDC1K2S12-CE (1200W DC Power Module)
PDC1K2S12-PB (1200W HVDC Power Module)


The CloudEngine 6850 series has advanced hardware architecture with 40GE/100GE uplink ports and high-density 10GE access ports. Using Huawei's new software platform.

CloudEngine 6850 series can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers.


Item Specification
Dimensions with packaging (H x W x D) [mm (in.)] 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
Maximum dimensions (the depth is the maximum distance from the protruding port on the front panel to the module handle on the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.40 in. x 17.58 in.)
Weight without packaging [kg (lb)] 6.36 kg (14.02 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)] 8.35 kg (18.41 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging [kg (lb)] 10.63 kg (23.43 lb)
Weight with packaging (full configuration) [kg (lb)] 12.62 kg (27.82 lb)
Installation Type Cabinet installation
CPU 4-core, 1.4 GHz
Memory DRAM: 8 GB
NOR Flash 64 MB
SSD Flash 4GB SSD
USB It can be used for log backup and USB-based deployment.This function is reserved.
Power supply mode AC
DC
HVDC
Console port RJ45
Downlink Service interface 48*10GE SFP+
Uplink Service interface 8 x 100GE QSFP28
Service port supporting the stack function Reserved function. This function is not enabled.
RTC Supported
Typical power consumption [W] 138 W (100% traffic load, 24 x 10G + 4 x 100G copper cables, normal temperature, dual AC power modules)
156 W (100% traffic load, short-distance optical modules on 24 x 10G + 4 x 100G ports, normal temperature, dual AC power modules)
Typical heat dissipation [BTU/hour] 471 BTU/hr (100% traffic load, 24 x 10G + 4 x 100G copper cables, normal temperature, dual AC power modules)
532 BTU/hr (100% traffic load, short-distance optical modules on 24 x 10G + 4 x 100G ports, normal temperature, dual AC power modules)
Static power consumption [W] 124 W
Static heat dissipation [BTU/hour] 423 BTU/hr
Maximum power consumption [W] 187 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules)
298 W (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules)
Maximum heat dissipation 638 BTU/hr (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules)
1017 BTU/hr (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules)
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V] 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC
1200 W DC power module: –48 V DC to –60 V DC; +48 V DC
Input voltage range [V] 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC
1200 W DC power module: -38.4 V DC to -72 V DC; +40 V DC to +57 V DC
Maximum input current [A] 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC)
1200 W DC power module: 38 A (-48 V DC to -60 V DC); 38 A (+48 V DC)
Rated output power [W] 600 W AC&240 V DC power module: 600 W
1200 W DC power module: 1200 W
Certification · Compliance with safety standards
· Compliance with EMC standards
· Compliance with environment and environmental protection standards
Power supply surge protection [kV] AC: 6 kV in common mode and 6 kV in differential mode
DC: 4 kV in common mode and 2 kV in differential mode
HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans Pluggable
Number of fans 3
Redundant fans The device supports 2+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Port-side air intake/port-side air exhaust, depending on the selected fan module and power module.
Availability 0.999994851
MTBF [year] 44.34 year
MTTR [hour] 2 hour
Noise at normal temperature (27°C, sound pressure) [dB(A)] Front-to-back airflow: 50.1 dB(A) on average; maximum: 55.9 dB(A)
Back-to-front airflow: 48.4 dB(A) on average; maximum: 56.1 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)] Front-to-back airflow: 66.4 dB(A) on average; maximum: 73.2 dB(A)
Back-to-front airflow: 67.3 dB(A) on average; maximum: 72.5 dB(A)
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)

NOTE:
When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Storage relative humidity [RH] 5% to 95% RH, non-condensing
Storage temperature [°C (°F)] -40ºC to +70ºC (-40°F to +158°F)
