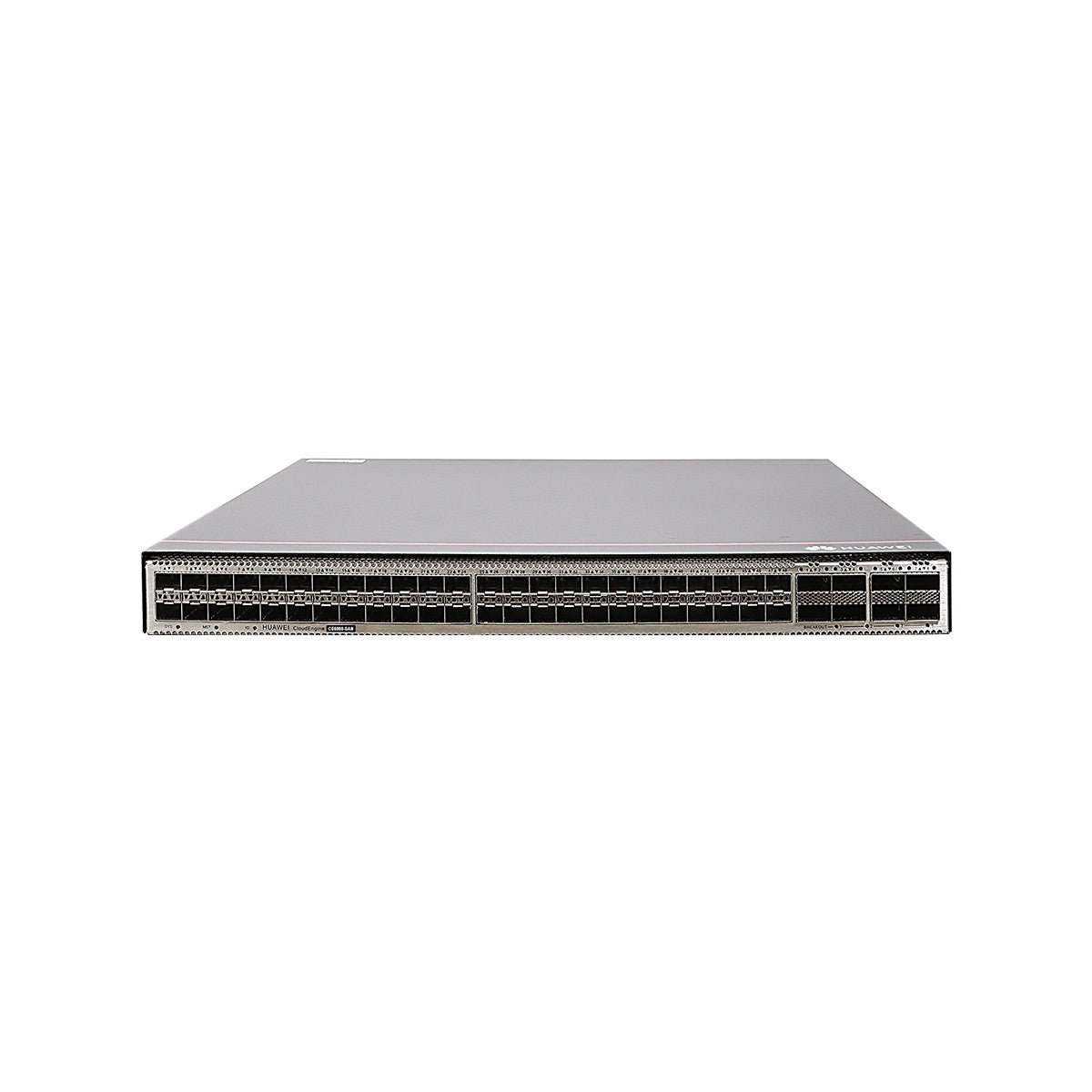

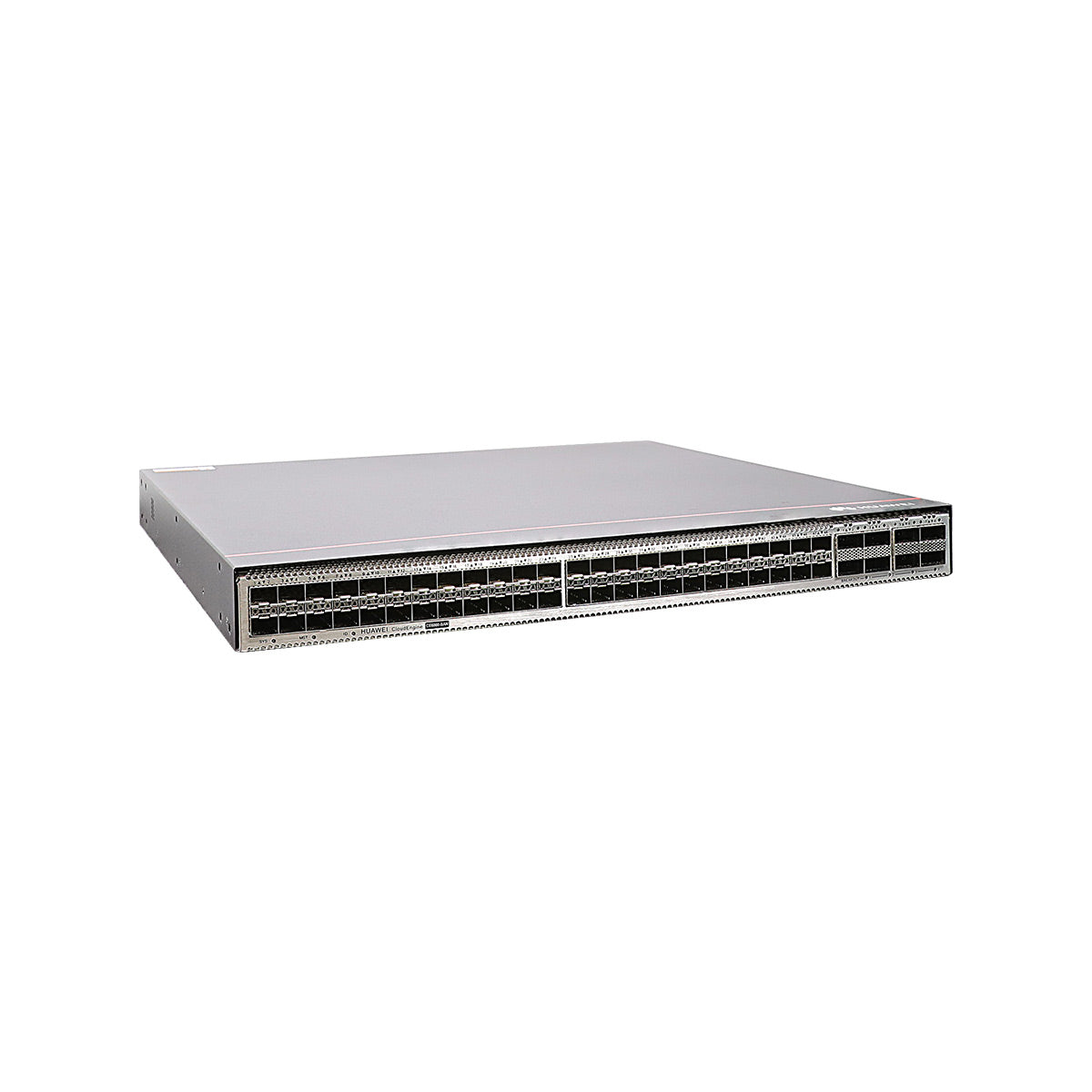

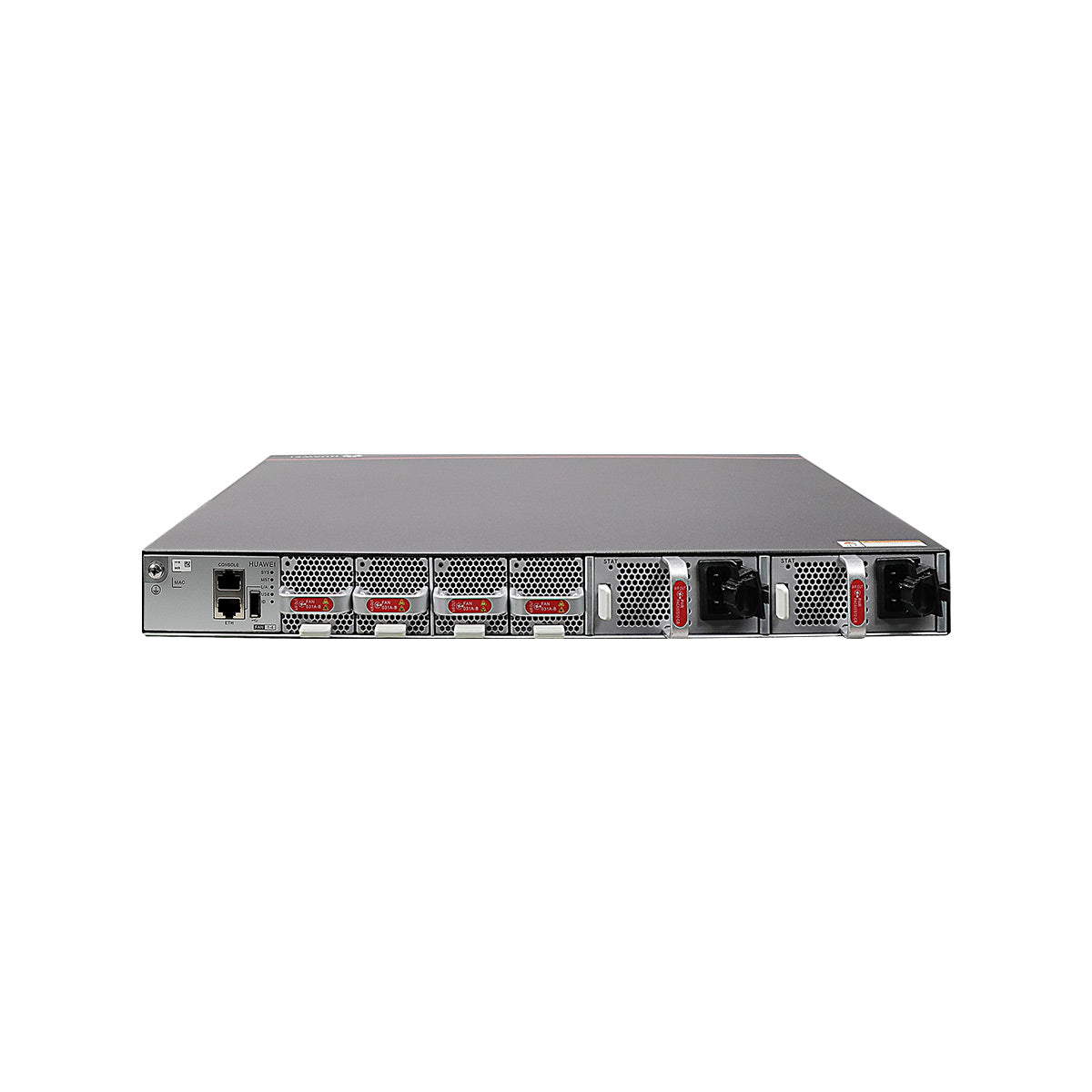

Huawei CE6860-SAN Switch
![Huawei CE6860-SAN Switch]()
![Huawei CE6860-SAN Switch]()
![Huawei CE6860-SAN Switch]()
![Huawei CE6860-SAN Switch]()
![Huawei CE6860-SAN Switch]()
![Huawei CE6860-SAN Switch]()
![Huawei CE6866-48S8CQ-K Switch]()
![Huawei CE6863H-48S6CQ-K Switch]()
![Huawei CE6863H-48S6CQ Switch]()
![Huawei CE6860-HAM Switch]()
![Huawei CE6855-48XS8CQ Switch]()
![Huawei CE6820S-48S6CQ Switch]()
Huawei CE6860-SAN Switch
- Brand New Condition
- Original Box Packed
- Latest Firmware Version
- Category:CE6800 Series,Huawei,Huawei Switch
Available:In Stock
$0.00
Huawei CE6860-SAN switch with 48-port 25GE SFP28, 8-port 100GE QSFP28, 2 power slots PN#02354FPM
Memory: DRAM: 8 GB
NOR Flash: 64 MB
SSD Flash: 4 GB
Applicable power module:
PAC600S12-CB (600W AC Power Module)
PAC600S12-DB (600W AC Power Module)
PAC600S12-EB (600W AC Power Module)
PAC600S12-CF (600W AC Power Module)
PAC600S12-DF (600W AC Power Module)
PAC600S12-EF (600W AC Power Module)
PDC1000S12-DB (1000W DC Power Module)
PDC1000S12-DF (1000W DC Power Module)
PHD1K2S12-DB (1200W HVDC Power Module)
Huawei CloudEngine 6860-SAN switch is next-generation highdensity 10GE/25GE/50GE access switch with 40GE/100GE/200GE uplink ports designed for all-flash storage data centers.
| Item | Specification |
| Dimensions with packaging (H x W x D) [mm (in.)] | 225 mm x 860 mm x 650 mm (8.86 in. x 33.86 in. x 25.59 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 445 mm (1.72 in. x 17.40 in. x 17.52 in.) |
| Weight without packaging [kg (lb)] | 6.7 kg (14.8 lb) (excluding optical modules, power modules, and fan modules) |
| Weight without packaging (full configuration) [kg (lb)] | 8.7 kg (19.2 lb) (including AC power modules and fan modules, excluding optical modules) |
| Weight with packaging [kg (lb)] | 11.9 kg (26.24 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 13.9 kg (30.64 lb) |
| Installation Type | Cabinet Installation |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 8 GB |
| NOR Flash | 64 MB |
| NAND Flash | 4 GB |
| USB | It can be used for log backup and USB-based deployment. This function is reserved. |
| Power supply mode | AC DC HVDC |
| Console port | RJ45 |
| Downlink Service interface | 48 x 25GE SFP28/48 x 50GE SFP56 1. 25GE ports can be used as 10GE ports. 50GE ports can be used as 25GE ports but not 10GE or GE ports. 2. When 25GE ports are upgraded to 50GE ports, eight ports form a group. NOTE: 1. Support for optical modules: (1) In the case of port-side air intake, downlink ports support 10G-AOC/SR/LR/ER/ZR and 25G-AOC/SR/LR. (2) In the case of port-side air exhaust, downlink ports support 10G-AOC/SR/LR and 25G-AOC/SR/LR. 2. Support for copper cables: When 50GE copper cables are used, contact Huawei engineers for interconnection verification. |
| Uplink Service interface | 8 x 100GE QSFP28/8 x 200GE QSFP56 1. Each 100GE port can be configured as a 40GE port, and each 200GE port can be configured as a 100GE/40GE port. 2. When 100GE ports are upgraded to 200GE, four such ports form a group. 3. 100GE ports are divided into groups 1 to 4 and 5 to 8. Four ports in each group are split together. Ports 2, 4, 6, and 8 can be split into four 25GE ports (whose speeds can be set to 10 Gbit/s). After the split, ports 1, 3, 5, and 7 cannot be used. A 100GE port cannot be split into 2 x 50GE (50GE: 2 x 25GE) ports. 4. 200GE ports cannot be split. NOTE: 1. Support for optical modules: (1) In the case of port-side air intake, 100GE/200GE ports support 100G-AOC/SR4/CWDM4/LR4/4WDM. (2) In the case of port-side air exhaust, 100GE/200GE ports support 100G-AOC/SR4/CWDM4/LR4 optical modules, but do not support 50GE and 200GE optical modules. 2. Support for copper cables: When 200GE copper cables are used, contact Huawei engineers for interconnection verification. |
| Service port supporting the stack function | Reserved function. This function is not enabled. |
| RTC | Supported |
| Typical power consumption [W] | 48 x 50G + 8 x 200G: 374 W (50% throughput, copper cables on all ports, normal temperature, dual power modules) 48 x 25G + 8 x 100G: 360 W (50% throughput, copper cables on all ports, normal temperature, dual power modules), 407 W (50% throughput, short-distance optical modules on all ports, normal temperature, dual power modules) |
| Typical heat dissipation [BTU/hour] | 48 x 50G + 8 x 200G: 1277 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power modules) 48 x 25G + 8 x 100G: 1229 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power modules), 1389 BTU/hour (50% throughput, short-distance optical modules on all ports, normal temperature, dual power modules) |
| Static power consumption [W] | 322 W |
| Static heat dissipation [BTU/hour] | 1100 BTU/hour |
| Maximum power consumption [W] | 48 x 50G + 8 x 200G: 619 W (100% throughput, downlink 2 W 50G optical modules, uplink 6.5 W 200G optical modules, 40°C, dual power modules) 48 x 25G + 8 x 100G: 544 W (100% throughput, downlink 1.5 W 25G optical modules, uplink 5 W 100G optical modules, 40°C, dual power modules) |
| Maximum heat dissipation | 48 x 50G + 8 x 200G: 2110 BTU/hour (100% throughput, downlink 2 W 50G optical modules, uplink 6.5 W 200G optical modules, 40°C, dual power modules) 48 x 25G + 8 x 100G: 1858 BTU/hour (100% throughput, downlink 1.5 W 25G optical modules, uplink 5 W 100G optical modules, 40°C, dual power modules) |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Rated input voltage [V] | 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC 1000 W DC power module: –48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC |
| Input voltage range [V] | 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC 1000 W DC power module: –38.4 V DC to –72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC |
| Maximum input current [A] | 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V DC); 4 A (240 V DC) 1000 W DC power module: 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module: 8 A |
| Rated output power [W] | 600 W AC&240 V DC power module: 600 W 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W |
| Power supply surge protection [kV] | AC power supply protection: 6 kV in common mode and 6 kV in differential mode 240 V HVDC power supply protection: 4 kV in common mode and 2 kV in differential mode –48 V DC power supply protection: 4 kV in common mode and 2 kV in differential mode 380 V HVDC power supply protection: 4 kV in common mode and 2 kV in differential mode |
| Types of fans | Pluggable |
| Number of fans | 4 |
| Redundant fans | The device supports 3+1 backup of fan modules that work in hot standby mode. If a single fan module fails, the device can work properly in a short period of time. To guarantee long-term operation of the device, you are advised to replace the failed fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | port-side intake/port-side exhaust airflow |
| Availability | 0.999994352 |
| MTBF [year] | 30.32 years |
| MTTR [hour] | 1.5 hours |
| RTU License Supported | Yes. By default, only 24 of the 48 x 25GE ports are enabled and can work only at 25 Gbit/s, and the eight 100GE ports can work only at 100 Gbit/s. The following RTU licenses can be used: 88036XTL: 24 x 25GE ports are added. 88036YCK: The speed of 24 x 25GE ports is upgraded to 50 Gbit/s. 88036YCL: The speed of eight 100GE ports is upgraded to 200 Gbit/s. |
Huawei CE6860-SAN switch with 48-port 25GE SFP28, 8-port 100GE QSFP28, 2 power slots PN#02354FPM
Memory: DRAM: 8 GB
NOR Flash: 64 MB
SSD Flash: 4 GB
Applicable power module:
PAC600S12-CB (600W AC Power Module)
PAC600S12-DB (600W AC Power Module)
PAC600S12-EB (600W AC Power Module)
PAC600S12-CF (600W AC Power Module)
PAC600S12-DF (600W AC Power Module)
PAC600S12-EF (600W AC Power Module)
PDC1000S12-DB (1000W DC Power Module)
PDC1000S12-DF (1000W DC Power Module)
PHD1K2S12-DB (1200W HVDC Power Module)
Huawei CloudEngine 6860-SAN switch is next-generation highdensity 10GE/25GE/50GE access switch with 40GE/100GE/200GE uplink ports designed for all-flash storage data centers.
| Item | Specification |
| Dimensions with packaging (H x W x D) [mm (in.)] | 225 mm x 860 mm x 650 mm (8.86 in. x 33.86 in. x 25.59 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 445 mm (1.72 in. x 17.40 in. x 17.52 in.) |
| Weight without packaging [kg (lb)] | 6.7 kg (14.8 lb) (excluding optical modules, power modules, and fan modules) |
| Weight without packaging (full configuration) [kg (lb)] | 8.7 kg (19.2 lb) (including AC power modules and fan modules, excluding optical modules) |
| Weight with packaging [kg (lb)] | 11.9 kg (26.24 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 13.9 kg (30.64 lb) |
| Installation Type | Cabinet Installation |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 8 GB |
| NOR Flash | 64 MB |
| NAND Flash | 4 GB |
| USB | It can be used for log backup and USB-based deployment. This function is reserved. |
| Power supply mode | AC DC HVDC |
| Console port | RJ45 |
| Downlink Service interface | 48 x 25GE SFP28/48 x 50GE SFP56 1. 25GE ports can be used as 10GE ports. 50GE ports can be used as 25GE ports but not 10GE or GE ports. 2. When 25GE ports are upgraded to 50GE ports, eight ports form a group. NOTE: 1. Support for optical modules: (1) In the case of port-side air intake, downlink ports support 10G-AOC/SR/LR/ER/ZR and 25G-AOC/SR/LR. (2) In the case of port-side air exhaust, downlink ports support 10G-AOC/SR/LR and 25G-AOC/SR/LR. 2. Support for copper cables: When 50GE copper cables are used, contact Huawei engineers for interconnection verification. |
| Uplink Service interface | 8 x 100GE QSFP28/8 x 200GE QSFP56 1. Each 100GE port can be configured as a 40GE port, and each 200GE port can be configured as a 100GE/40GE port. 2. When 100GE ports are upgraded to 200GE, four such ports form a group. 3. 100GE ports are divided into groups 1 to 4 and 5 to 8. Four ports in each group are split together. Ports 2, 4, 6, and 8 can be split into four 25GE ports (whose speeds can be set to 10 Gbit/s). After the split, ports 1, 3, 5, and 7 cannot be used. A 100GE port cannot be split into 2 x 50GE (50GE: 2 x 25GE) ports. 4. 200GE ports cannot be split. NOTE: 1. Support for optical modules: (1) In the case of port-side air intake, 100GE/200GE ports support 100G-AOC/SR4/CWDM4/LR4/4WDM. (2) In the case of port-side air exhaust, 100GE/200GE ports support 100G-AOC/SR4/CWDM4/LR4 optical modules, but do not support 50GE and 200GE optical modules. 2. Support for copper cables: When 200GE copper cables are used, contact Huawei engineers for interconnection verification. |
| Service port supporting the stack function | Reserved function. This function is not enabled. |
| RTC | Supported |
| Typical power consumption [W] | 48 x 50G + 8 x 200G: 374 W (50% throughput, copper cables on all ports, normal temperature, dual power modules) 48 x 25G + 8 x 100G: 360 W (50% throughput, copper cables on all ports, normal temperature, dual power modules), 407 W (50% throughput, short-distance optical modules on all ports, normal temperature, dual power modules) |
| Typical heat dissipation [BTU/hour] | 48 x 50G + 8 x 200G: 1277 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power modules) 48 x 25G + 8 x 100G: 1229 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power modules), 1389 BTU/hour (50% throughput, short-distance optical modules on all ports, normal temperature, dual power modules) |
| Static power consumption [W] | 322 W |
| Static heat dissipation [BTU/hour] | 1100 BTU/hour |
| Maximum power consumption [W] | 48 x 50G + 8 x 200G: 619 W (100% throughput, downlink 2 W 50G optical modules, uplink 6.5 W 200G optical modules, 40°C, dual power modules) 48 x 25G + 8 x 100G: 544 W (100% throughput, downlink 1.5 W 25G optical modules, uplink 5 W 100G optical modules, 40°C, dual power modules) |
| Maximum heat dissipation | 48 x 50G + 8 x 200G: 2110 BTU/hour (100% throughput, downlink 2 W 50G optical modules, uplink 6.5 W 200G optical modules, 40°C, dual power modules) 48 x 25G + 8 x 100G: 1858 BTU/hour (100% throughput, downlink 1.5 W 25G optical modules, uplink 5 W 100G optical modules, 40°C, dual power modules) |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Rated input voltage [V] | 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC 1000 W DC power module: –48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC |
| Input voltage range [V] | 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC 1000 W DC power module: –38.4 V DC to –72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC |
| Maximum input current [A] | 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V DC); 4 A (240 V DC) 1000 W DC power module: 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module: 8 A |
| Rated output power [W] | 600 W AC&240 V DC power module: 600 W 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W |
| Power supply surge protection [kV] | AC power supply protection: 6 kV in common mode and 6 kV in differential mode 240 V HVDC power supply protection: 4 kV in common mode and 2 kV in differential mode –48 V DC power supply protection: 4 kV in common mode and 2 kV in differential mode 380 V HVDC power supply protection: 4 kV in common mode and 2 kV in differential mode |
| Types of fans | Pluggable |
| Number of fans | 4 |
| Redundant fans | The device supports 3+1 backup of fan modules that work in hot standby mode. If a single fan module fails, the device can work properly in a short period of time. To guarantee long-term operation of the device, you are advised to replace the failed fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | port-side intake/port-side exhaust airflow |
| Availability | 0.999994352 |
| MTBF [year] | 30.32 years |
| MTTR [hour] | 1.5 hours |
| RTU License Supported | Yes. By default, only 24 of the 48 x 25GE ports are enabled and can work only at 25 Gbit/s, and the eight 100GE ports can work only at 100 Gbit/s. The following RTU licenses can be used: 88036XTL: 24 x 25GE ports are added. 88036YCK: The speed of 24 x 25GE ports is upgraded to 50 Gbit/s. 88036YCL: The speed of eight 100GE ports is upgraded to 200 Gbit/s. |
