Huawei CR5D000DE171 Flexible Sub-Card
- Board Functional Testing
- Hardware Compatibility Testing

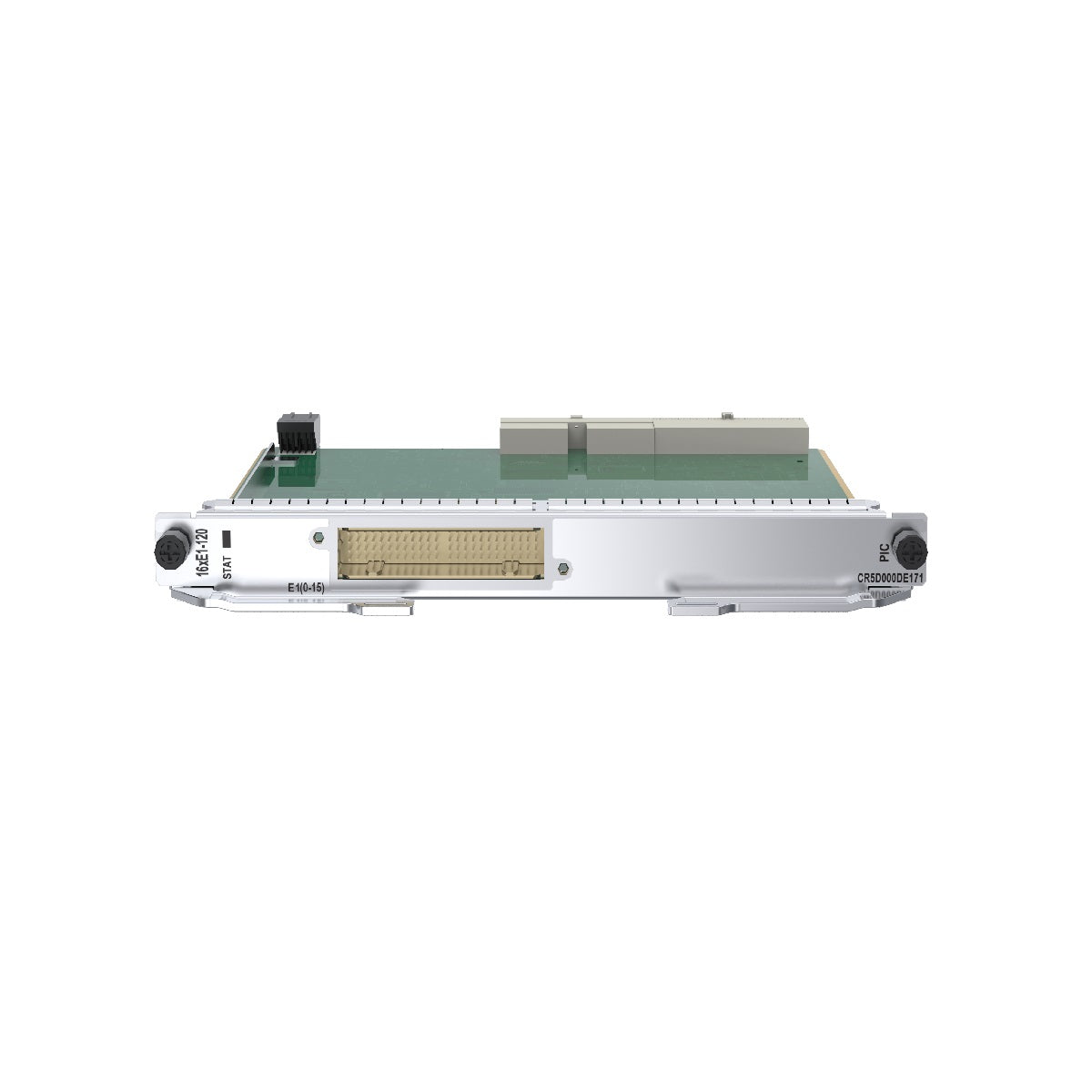

Huawei NE8000 M8 and M14 16-Port E1 Physical Interface Card(PIC,120ohm) CR5D000DE171 PN# 03030REW
| Item | Specification |
| Description | 16-Port E1 Physical Interface Card(PIC,120ohm) |
| Part Number | 03030REW |
| Model | CR5D000DE171 |
| Card type | Interface Card |
| Silkscreen | 16xE1-120 |
| Basic function | Supports a maximum of 16 E1 interfaces. Services on each interface can be configured. |
| Reliability and availability | Hot swappable. |
| Breakout supported | No |
| Interface rate auto-sensing supported | No |
| FlexE supported | No |
| Link protocol | TDM, PPP, MP, ATM, IMA |
| Dimensions without packaging (H x W x D) [mm(in.)] | 19.8 mm x 193.8 mm x 209.3 mm (0.78 in. x 7.63 in. x 8.24 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 70 mm x 285 mm x 300 mm (2.76 in. x 11.22 in. x 11.81 in.) |
| Weight without packaging [kg(lb)] | 0.5 kg (1.1 lb) |
| Weight with packaging [kg(lb)] | 0.9 kg (1.98 lb) |
| Typical power consumption [W] | 9.5 W |
| Typical heat dissipation [BTU/hour] | 30.66 BTU/hour |
| Long-term operating temperature [°C(°F)] | –40°C to +65°C (–40°F to +149°F) |
| Product Model | NetEngine 8000 M14 | NetEngine 8000 M8 | NetEngine 8000 M6 | NetEngine 8000 M4 |
| Switching Capacity | 4 Tbit/s | 2.4 Tbit/s | 320 Gbit/s | 2.4 Tbps |
| Forwarding Performance | 906 Mpps | 453 Mpps | 72 Mpps | 455 Mpps |
| Maximum Board Capability | 200 Gbit/s | 200 Gbit/s | 50 Gbit/s | 200 Gbps |
| Capacity Density (G/U) | 400 | 400 | 80 | 800 |
| Main Control Board | 2, 1:1 | 2, 1:1 | 2, 1:1 | Single |
| SFU | 2, 1:1 | 2, 1:1 | 2, 1:1 | 2，1+1 |
| (integrated) | (integrated) | (integrated) | (integrated) | |
| Line Card | 14(DC) | 8(DC) | 6(DC) | 4 |
| 10(AC) | 8(AC) | 4(AC) | ||
| Power Module | 2, 1 + 1 (DC) | 2, 1 + 1 | 2, 1 + 1 | 2, 1 + 1 |
| 4, 2 + 2 (AC) | ||||
| Fan Module | 4, 3 + 1 | 2, 1 + 1 | 2, 1 + 1 | 2，1+1 |
| Dimensions (H x W x D) | 222 (5U) x 442 x 220mm | 132.6 (3U) x 442 x 220mm | 88.9 (2U) x 442 x 220mm | 88.4mm (2U) x 442mm x 220mm |
| Typical Power Consumption | 1270 W | 485 W | 220 W | 305.1 W |
| Weight in Full Configuration | 27.4 kg | 16.5 kg | 3.52 kg | 7.2 kg (15.87 lb) |
Huawei NE8000 M8 and M14 16-Port E1 Physical Interface Card(PIC,120ohm) CR5D000DE171 PN# 03030REW
CR5D000DE171 is 32-Port E1 Physical Interface Card(PIC,120ohm) used for Huawei NE8000 Series Router NetEngine 8000 M14 and NetEngine 8000 M8.CR5D000DE171 supports a maximum of 16 E1 interfaces. Services on each interface can be configured. Hot swappable.
| Item | Specification |
| Description | 16-Port E1 Physical Interface Card(PIC,120ohm) |
| Part Number | 03030REW |
| Model | CR5D000DE171 |
| Card type | Interface Card |
| Silkscreen | 16xE1-120 |
| Basic function | Supports a maximum of 16 E1 interfaces. Services on each interface can be configured. |
| Reliability and availability | Hot swappable. |
| Breakout supported | No |
| Interface rate auto-sensing supported | No |
| FlexE supported | No |
| Link protocol | TDM, PPP, MP, ATM, IMA |
| Dimensions without packaging (H x W x D) [mm(in.)] | 19.8 mm x 193.8 mm x 209.3 mm (0.78 in. x 7.63 in. x 8.24 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 70 mm x 285 mm x 300 mm (2.76 in. x 11.22 in. x 11.81 in.) |
| Weight without packaging [kg(lb)] | 0.5 kg (1.1 lb) |
| Weight with packaging [kg(lb)] | 0.9 kg (1.98 lb) |
| Typical power consumption [W] | 9.5 W |
| Typical heat dissipation [BTU/hour] | 30.66 BTU/hour |
| Long-term operating temperature [°C(°F)] | –40°C to +65°C (–40°F to +149°F) |
| Product Model | NetEngine 8000 M14 | NetEngine 8000 M8 | NetEngine 8000 M6 | NetEngine 8000 M4 |
| Switching Capacity | 4 Tbit/s | 2.4 Tbit/s | 320 Gbit/s | 2.4 Tbps |
| Forwarding Performance | 906 Mpps | 453 Mpps | 72 Mpps | 455 Mpps |
| Maximum Board Capability | 200 Gbit/s | 200 Gbit/s | 50 Gbit/s | 200 Gbps |
| Capacity Density (G/U) | 400 | 400 | 80 | 800 |
| Main Control Board | 2, 1:1 | 2, 1:1 | 2, 1:1 | Single |
| SFU | 2, 1:1 | 2, 1:1 | 2, 1:1 | 2，1+1 |
| (integrated) | (integrated) | (integrated) | (integrated) | |
| Line Card | 14(DC) | 8(DC) | 6(DC) | 4 |
| 10(AC) | 8(AC) | 4(AC) | ||
| Power Module | 2, 1 + 1 (DC) | 2, 1 + 1 | 2, 1 + 1 | 2, 1 + 1 |
| 4, 2 + 2 (AC) | ||||
| Fan Module | 4, 3 + 1 | 2, 1 + 1 | 2, 1 + 1 | 2，1+1 |
| Dimensions (H x W x D) | 222 (5U) x 442 x 220mm | 132.6 (3U) x 442 x 220mm | 88.9 (2U) x 442 x 220mm | 88.4mm (2U) x 442mm x 220mm |
| Typical Power Consumption | 1270 W | 485 W | 220 W | 305.1 W |
| Weight in Full Configuration | 27.4 kg | 16.5 kg | 3.52 kg | 7.2 kg (15.87 lb) |
