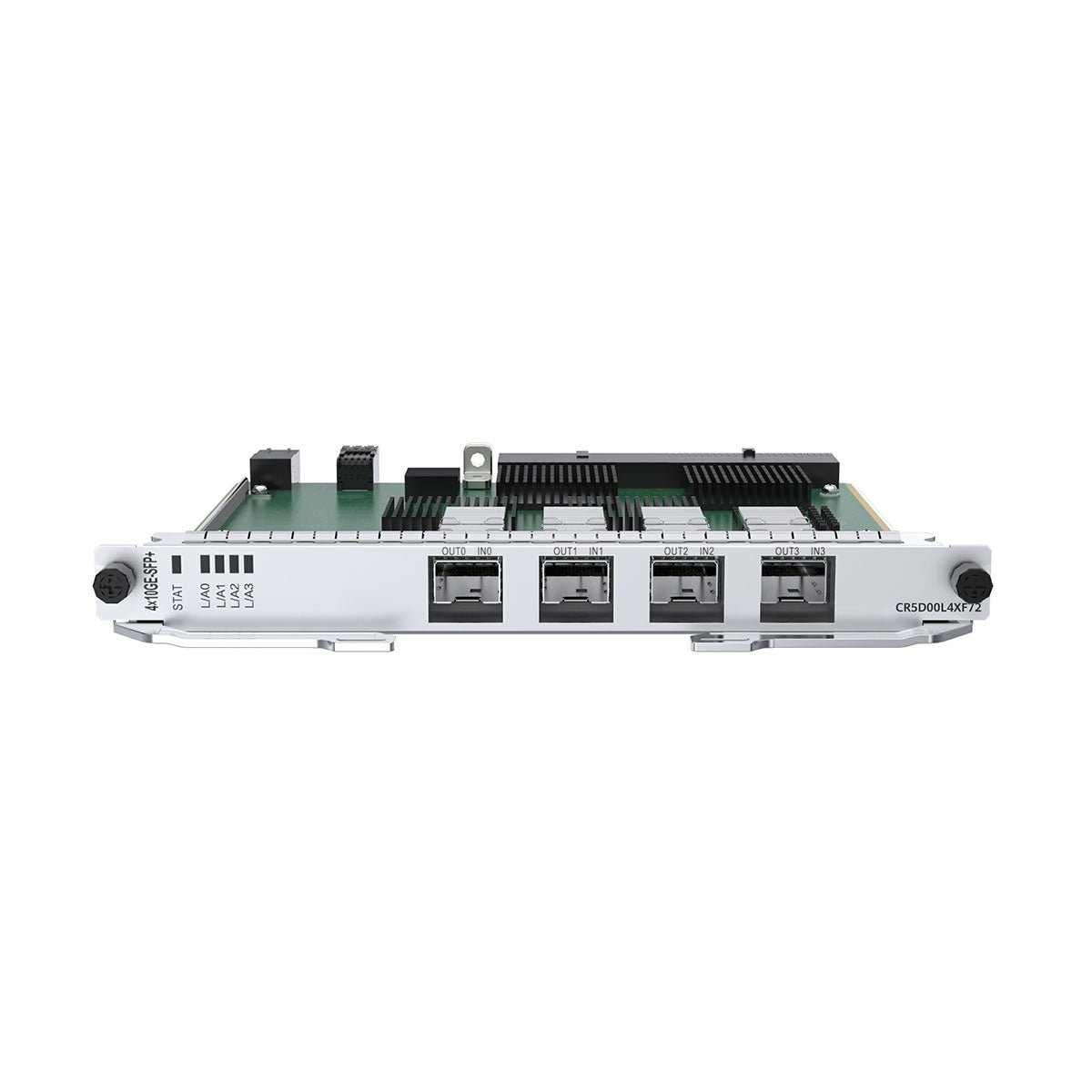

Huawei NE8000 M8 and M14 4-Port 10GBase LAN/WAN-SFP+ Physical Interface Card(PIC) CR5D00L4XF72 PN# 03031DJM
CR5D00L4XF72 is 4-Port 10GBase LAN/WAN-SFP+ Physical Interface Card(PIC) used for Huawei NE8000 Series Router NetEngine 8000 M14 and NetEngine 8000 M8.
CR5D00L4XF72 Provides four 10GE interfaces for line-rate transmitting and receiving, and supports SFP+ optical modules.
Supports GE/10GE auto-sensing.
Note: it does not support the OTN mode or FEC function. If a colored optical module is used and does not support optical amplifier insertion, the board supports only point-to-point optical transmission.
Item | Details |
Description | 4-Port 10GBase LAN/WAN-SFP+ Physical Interface Card(PIC) |
Part Number | 03031DJM |
Model | CR5D00L4XF72 |
Card type | Interface Card |
Silkscreen | 4×10GE-SFP+ |
Dimensions without packaging | 19.8 mm x 193.8 mm x 209.3 mm |
Dimensions with packaging | 70 mm x 285 mm x 300 mm |
Weight without packaging | 0.7 kg |
Weight with packaging | 1.1 kg |
Typical power consumption [W] | 25 W |
Typical heat dissipation [BTU/hour] | 81.11 BTU/hour |
Long-term operating temperature | –40°C to +65°C |
Product Model | NetEngine 8000 M14 | NetEngine 8000 M8 | NetEngine 8000 M6 | NetEngine 8000 M4 |
Switching Capacity | 4 Tbit/s | 2.4 Tbit/s | 320 Gbit/s | 2.4 Tbps |
Forwarding Performance | 906 Mpps | 453 Mpps | 72 Mpps | 455 Mpps |
Maximum Board Capability | 200 Gbit/s | 200 Gbit/s | 50 Gbit/s | 200 Gbps |
Capacity Density (G/U) | 400 | 400 | 80 | 800 |
Main Control Board | 2, 1:1 | 2, 1:1 | 2, 1:1 | Single |
SFU | 2, 1:1 | 2, 1:1 | 2, 1:1 | 2,1+1 |
(integrated) | (integrated) | (integrated) | (integrated) | |
Line Card | 14(DC) | 8(DC) | 6(DC) | 4 |
10(AC) | 8(AC) | 4(AC) | ||
Power Module | 2, 1 + 1 (DC) | 2, 1 + 1 | 2, 1 + 1 | 2, 1 + 1 |
4, 2 + 2 (AC) | ||||
Fan Module | 4, 3 + 1 | 2, 1 + 1 | 2, 1 + 1 | 2,1+1 |
Dimensions (H x W x D) | 222 (5U) x 442 x 220mm | 132.6 (3U) x 442 x 220mm | 88.9 (2U) x 442 x 220mm | 88.4mm (2U) x 442mm x 220mm |
Typical Power Consumption | 1270 W | 485 W | 220 W | 305.1 W |
Weight in Full Configuration | 27.4 kg | 16.5 kg | 3.52 kg | 7.2 kg (15.87 lb) |
