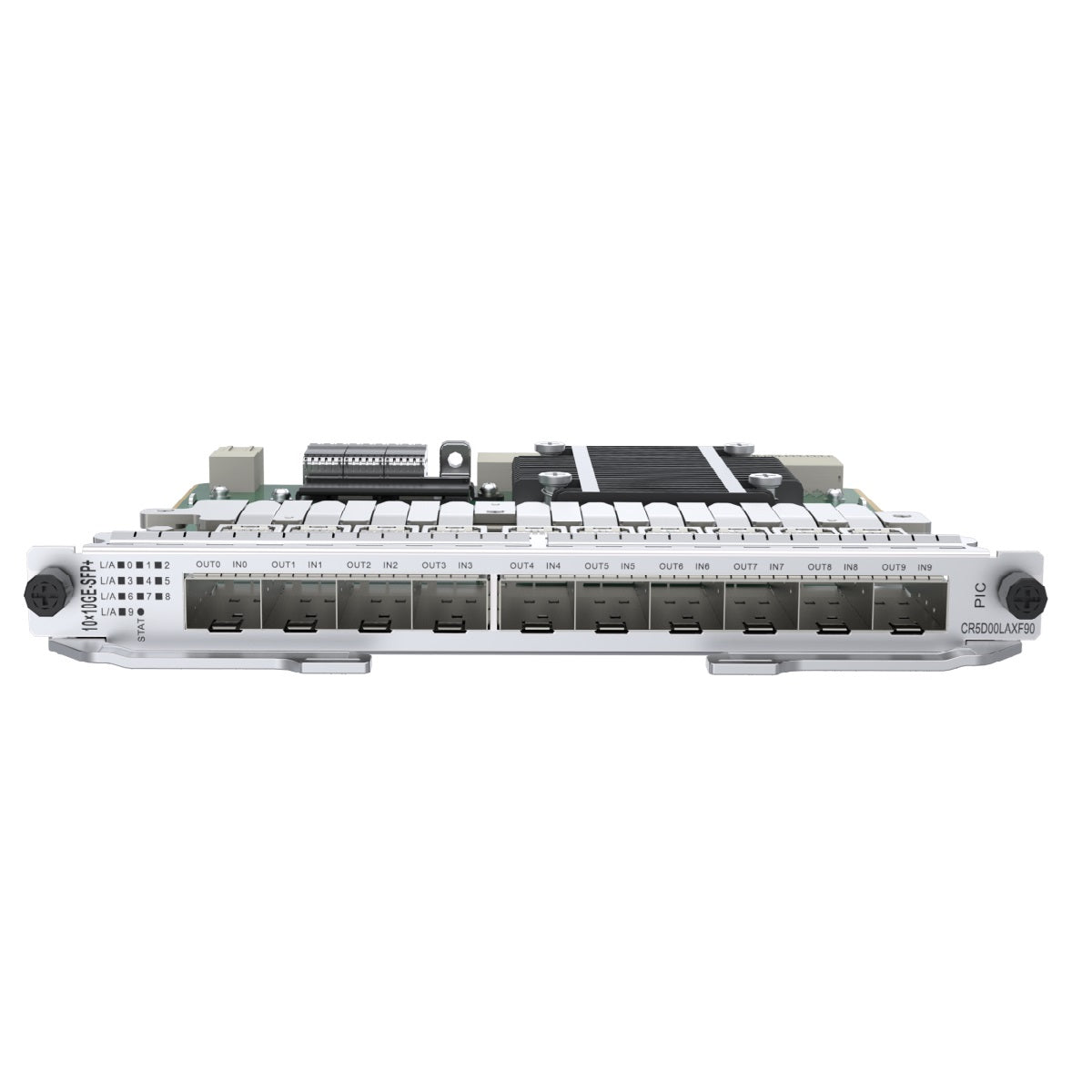

Huawei NE8000 M4, M8 and M14 10-Port 10GBase LAN/WAN-SFP+ Physical Interface Card(PIC) CR5D00LAXF90 PN# 03032TUB

CR5D00LAXF90 is 10-Port 10GBase LAN/WAN-SFP+ Physical Interface Card(PIC) used for Huawei NE8000 Series Router NetEngine 8000 M14, NetEngine 8000 M4, and NetEngine 8000 M8.

CR5D00LAXF90 Occupies one flexible interface card slot. Provides ten 10GE/GE interfaces for line-rate transmitting and receiving, and supports SFP+/SFP optical modules.

The outdoor application is not supported. The board does not support the OTN or FEC mode. When being used with the colored optical module, it does not support the intermediate optical amplifier and supports only point-to-point transmission.


Item Specification
Description 10-Port 10GBase LAN/WAN-SFP+ Physical Interface Card(PIC)
Part Number 03032TUB
Model CR5D00LAXF90
Card type Interface Card
Silkscreen 10x10GE-SFP+
Basic function Occupies one flexible interface card slot.
Provides ten 10GE/GE interfaces for line-rate transmitting and receiving, and supports SFP+/SFP optical modules.
Reliability and availability Hot swappable.
Restrictions and remarks The outdoor application is not supported. The board does not support the OTN or FEC mode. When being used with the colored optical module, it does not support the intermediate optical amplifier and supports only point-to-point transmission.
Breakout supported No
Interface rate auto-sensing supported Supports GE/10GE auto-sensing.
FlexE supported No
Dimensions without packaging (H x W x D) [mm(in.)] 19.8 mm x 193.8 mm x 209.3 mm (0.78 in. x 7.63 in. x 8.24 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 70 mm x 285 mm x 300 mm (2.76 in. x 11.22 in. x 11.81 in.)
Weight without packaging [kg(lb)] 0.6 kg (1.32 lb)
Typical power consumption [W] 46.7 W
Typical heat dissipation [BTU/hour] 151.51 BTU/hour
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)] –5°C to +55°C (23°F to 131°F)



Product Model NetEngine 8000 M14 NetEngine 8000 M8 NetEngine 8000 M6 NetEngine 8000 M4
Switching Capacity 4 Tbit/s 2.4 Tbit/s 320 Gbit/s 2.4 Tbps
Forwarding Performance 906 Mpps 453 Mpps 72 Mpps 455 Mpps
Maximum Board Capability 200 Gbit/s 200 Gbit/s 50 Gbit/s 200 Gbps
Capacity Density (G/U) 400 400 80 800
Main Control Board 2, 1:1 2, 1:1 2, 1:1 Single
SFU 2, 1:1 2, 1:1 2, 1:1 2，1+1
(integrated) (integrated) (integrated) (integrated)
Line Card 14(DC) 8(DC) 6(DC) 4
10(AC) 8(AC) 4(AC)
Power Module 2, 1 + 1 (DC) 2, 1 + 1 2, 1 + 1 2, 1 + 1
4, 2 + 2 (AC)
Fan Module 4, 3 + 1 2, 1 + 1 2, 1 + 1 2，1+1
Dimensions (H x W x D) 222 (5U) x 442 x 220mm 132.6 (3U) x 442 x 220mm 88.9 (2U) x 442 x 220mm 88.4mm (2U) x 442mm x 220mm
Typical Power Consumption 1270 W 485 W 220 W 305.1 W
Weight in Full Configuration 27.4 kg 16.5 kg 3.52 kg 7.2 kg (15.87 lb)

Huawei NE8000 M4, M8 and M14 10-Port 10GBase LAN/WAN-SFP+ Physical Interface Card(PIC) CR5D00LAXF90 PN# 03032TUB

CR5D00LAXF90 is 10-Port 10GBase LAN/WAN-SFP+ Physical Interface Card(PIC) used for Huawei NE8000 Series Router NetEngine 8000 M14, NetEngine 8000 M4, and NetEngine 8000 M8.

CR5D00LAXF90 Occupies one flexible interface card slot. Provides ten 10GE/GE interfaces for line-rate transmitting and receiving, and supports SFP+/SFP optical modules.

The outdoor application is not supported. The board does not support the OTN or FEC mode. When being used with the colored optical module, it does not support the intermediate optical amplifier and supports only point-to-point transmission.
Item Specification
Description 10-Port 10GBase LAN/WAN-SFP+ Physical Interface Card(PIC)
Part Number 03032TUB
Model CR5D00LAXF90
Card type Interface Card
Silkscreen 10x10GE-SFP+
Basic function Occupies one flexible interface card slot.
Provides ten 10GE/GE interfaces for line-rate transmitting and receiving, and supports SFP+/SFP optical modules.
Reliability and availability Hot swappable.
Restrictions and remarks The outdoor application is not supported. The board does not support the OTN or FEC mode. When being used with the colored optical module, it does not support the intermediate optical amplifier and supports only point-to-point transmission.
Breakout supported No
Interface rate auto-sensing supported Supports GE/10GE auto-sensing.
FlexE supported No
Dimensions without packaging (H x W x D) [mm(in.)] 19.8 mm x 193.8 mm x 209.3 mm (0.78 in. x 7.63 in. x 8.24 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 70 mm x 285 mm x 300 mm (2.76 in. x 11.22 in. x 11.81 in.)
Weight without packaging [kg(lb)] 0.6 kg (1.32 lb)
Typical power consumption [W] 46.7 W
Typical heat dissipation [BTU/hour] 151.51 BTU/hour
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)] –5°C to +55°C (23°F to 131°F)

Huawei NE8000 M Series M14/M8/M6/M4 Specification

Product Model NetEngine 8000 M14 NetEngine 8000 M8 NetEngine 8000 M6 NetEngine 8000 M4
Switching Capacity 4 Tbit/s 2.4 Tbit/s 320 Gbit/s 2.4 Tbps
Forwarding Performance 906 Mpps 453 Mpps 72 Mpps 455 Mpps
Maximum Board Capability 200 Gbit/s 200 Gbit/s 50 Gbit/s 200 Gbps
Capacity Density (G/U) 400 400 80 800
Main Control Board 2, 1:1 2, 1:1 2, 1:1 Single
SFU 2, 1:1 2, 1:1 2, 1:1 2，1+1
(integrated) (integrated) (integrated) (integrated)
Line Card 14(DC) 8(DC) 6(DC) 4
10(AC) 8(AC) 4(AC)
Power Module 2, 1 + 1 (DC) 2, 1 + 1 2, 1 + 1 2, 1 + 1
4, 2 + 2 (AC)
Fan Module 4, 3 + 1 2, 1 + 1 2, 1 + 1 2，1+1
Dimensions (H x W x D) 222 (5U) x 442 x 220mm 132.6 (3U) x 442 x 220mm 88.9 (2U) x 442 x 220mm 88.4mm (2U) x 442mm x 220mm
Typical Power Consumption 1270 W 485 W 220 W 305.1 W
Weight in Full Configuration 27.4 kg 16.5 kg 3.52 kg 7.2 kg (15.87 lb)
