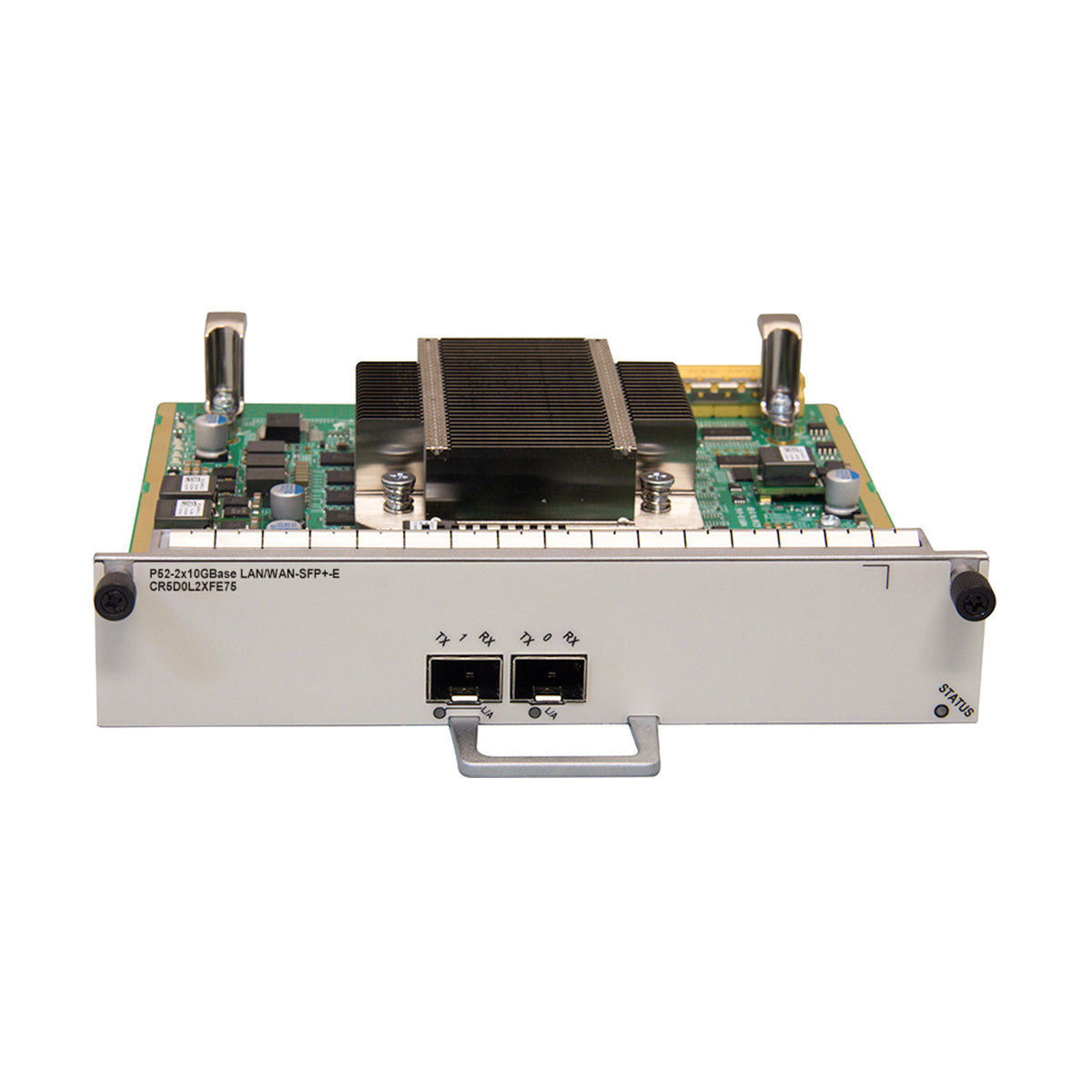

Huawei NE40E 2-Port 10GBase LAN/WAN-SFP+ Flexible Card E(P52-E) CR5D0L2XFE75 PN# 03031XQD
CR5D0L2XFE75 P52-E is flexible sub-card used for Huawei NE40E Series Router.
The board provides two 10GE interfaces for line-rate transmitting and receiving.
10G interfaces 0 to 3 can be configured to work in LAN or WAN mode. When a 10G interface works in WAN mode, it can work only in master clock mode and does not support the slave clock mode.
NOTE: This board does not support 10G DWDM optical modules (BOM number: 02314MED).
| Item | Specification |
| Mapping Card | · CR5DLPUF5170 (Flexible Card Line Processing Unit(LPUF-51,2 sub-slots)) · CR5DLPUF517B (Flexible Card Line Processing Unit(LPUF-51,2 sub-slots) B) · CR5DLPUF517E (Flexible Card Line Processing Unit(LPUF-51,2 sub-slots) E) |
| Basic function | Provides two 10GE interfaces for line-rate transmitting and receiving. |
| Part Number | 03031XQD |
| Reliability and availability | Hot swappable. |
| Dimensions (H x W x D) | 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.) |
| Typical power consumption | 59 W |
| Typical heat dissipation | 191.42 BTU/hour |
| Weight | 1 kg (2.20 lb) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) |
| Short-term operating temperature [°C(°F)] | –5°C to +55°C (23°F to 131°F) |
