Huawei CR8DIPU480C1 Network Processing Card
- Board Functional Testing
- Hardware Compatibility Testing
- Category:Huawei,NE8000 Series,Router

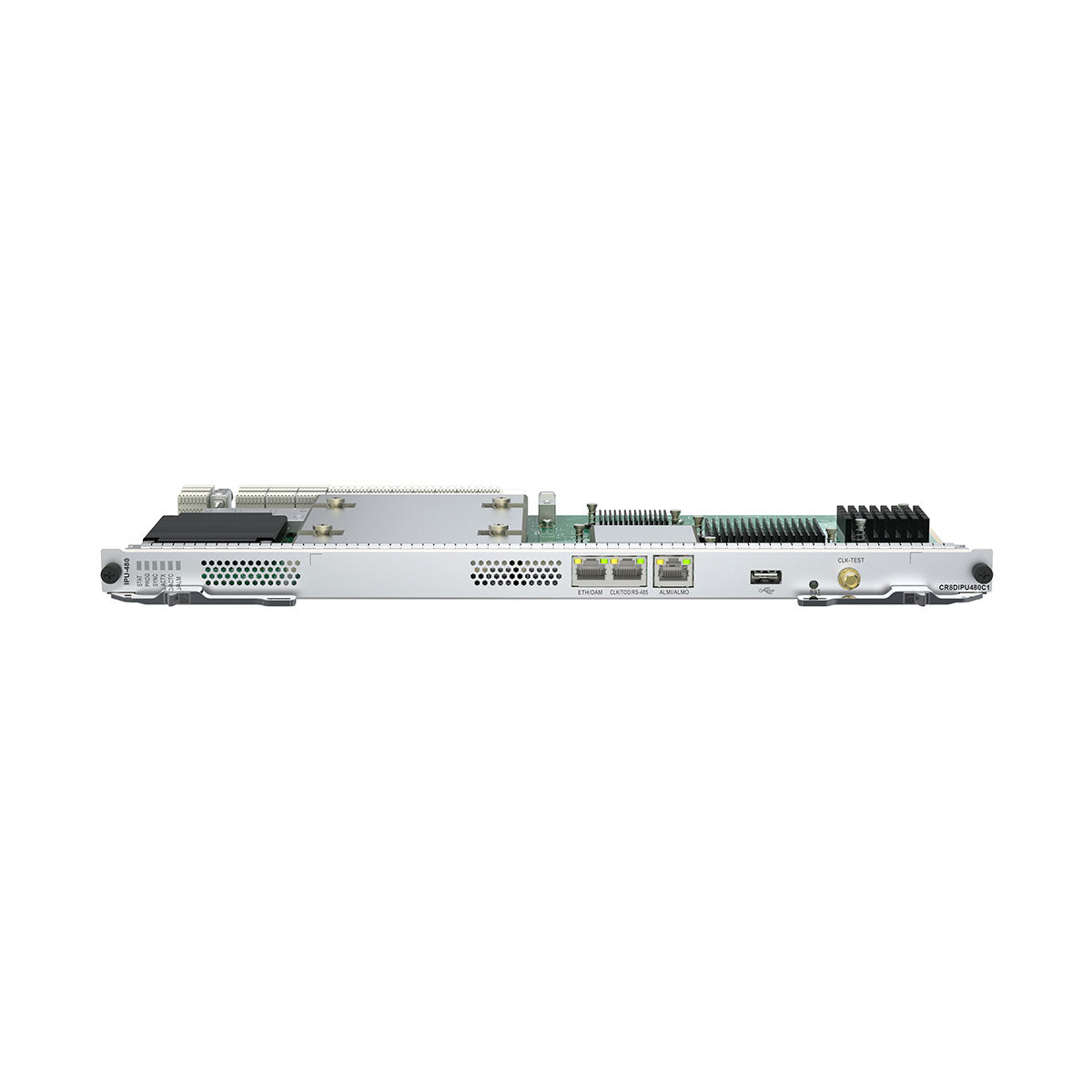

Huawei NE8000 M8 Integrated Network Processing Unit (IPU-480) CR8DIPU480C1 PN# 03033GLB
Data forwarding: The IPU is the core of service processing in the entire system, and is connected to all subcards through data channels.
Control and management: Through the management channels between IPUs and the subcards, the IPUs can manage subcards and transmit routing protocol data.
The line rate capability is 960 Gbit/s@190 bytes (bidirectional).
Supports the hot swappable function.
Supports the board-level 1:1 backup function.
| Item | Specification |
| Description | Integrated Network Processing Unit (IPU-480) |
| Part Number | 03033GLB |
| Model | CR8DIPU480C1 |
| Card type | IPU |
| Silkscreen | IPU-480 |
| Basic function | Data forwarding: The IPU is the core of service processing in the entire system, and is connected to all subcards through data channels. |
| Control and management: Through the management channels between IPUs and the subcards, the IPUs can manage subcards and transmit routing protocol data. | |
| The line rate capability is 960 Gbit/s@190 bytes (bidirectional). | |
| Reliability and availability | Supports the hot swappable function. |
| Supports the board-level 1:1 backup function. | |
| Restrictions and remarks | The board cannot work with IPUs of other models. |
| Breakout supported | No |
| Interface rate auto-sensing supported | No |
| Dimensions without packaging (H x W x D) [mm(in.)] | 22.4 mm x 388.4 mm x 209.3 mm (0.88 in. x 15.29 in. x 8.24 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 170 mm x 560 mm x 385 mm (6.69 in. x 22.05 in. x 15.16 in.) |
| Weight without packaging [kg(lb)] | 2.3 kg (5.07 lb) |
| Weight with packaging [kg(lb)] | 3.7 kg (8.16 lb) |
| Typical power consumption [W] | 113.3 W |
| Typical heat dissipation [BTU/hour] | 367.66 BTU/hour |
| Long-term operating temperature [°C(°F)] | –40°C to +65°C (–40°F to +149°F), start: ≥ –20°C (–4°F) |
| CPU | 8-core 1.5 GHz |
| Memory | 8GB |
| Storage | 4GB NandFlash |
| Product Model | NetEngine 8000 M14 | NetEngine 8000 M8 | NetEngine 8000 M6 | NetEngine 8000 M4 |
| Switching Capacity | 4 Tbit/s | 2.4 Tbit/s | 320 Gbit/s | 2.4 Tbps |
| Forwarding Performance | 906 Mpps | 453 Mpps | 72 Mpps | 455 Mpps |
| Maximum Board Capability | 200 Gbit/s | 200 Gbit/s | 50 Gbit/s | 200 Gbps |
| Capacity Density (G/U) | 400 | 400 | 80 | 800 |
| Main Control Board | 2, 1:1 | 2, 1:1 | 2, 1:1 | Single |
| SFU | 2, 1:1 | 2, 1:1 | 2, 1:1 | 2，1+1 |
| (integrated) | (integrated) | (integrated) | (integrated) | |
| Line Card | 14(DC) | 8(DC) | 6(DC) | 4 |
| 10(AC) | 8(AC) | 4(AC) | ||
| Power Module | 2, 1 + 1 (DC) | 2, 1 + 1 | 2, 1 + 1 | 2, 1 + 1 |
| 4, 2 + 2 (AC) | ||||
| Fan Module | 4, 3 + 1 | 2, 1 + 1 | 2, 1 + 1 | 2，1+1 |
| Dimensions (H x W x D) | 222 (5U) x 442 x 220mm | 132.6 (3U) x 442 x 220mm | 88.9 (2U) x 442 x 220mm | 88.4mm (2U) x 442mm x 220mm |
| Typical Power Consumption | 1270 W | 485 W | 220 W | 305.1 W |
| Weight in Full Configuration | 27.4 kg | 16.5 kg | 3.52 kg | 7.2 kg (15.87 lb) |
Huawei NE8000 M8 Integrated Network Processing Unit (IPU-480) CR8DIPU480C1 PN# 03033GLB
CR8DIPU480C1 is 8-Port 100/1000Base-RJ45 Physical Interface Card(PIC) used for Huawei NE8000 Series Router NetEngine 8000 M8.Data forwarding: The IPU is the core of service processing in the entire system, and is connected to all subcards through data channels.
Control and management: Through the management channels between IPUs and the subcards, the IPUs can manage subcards and transmit routing protocol data.
The line rate capability is 960 Gbit/s@190 bytes (bidirectional).
Supports the hot swappable function.
Supports the board-level 1:1 backup function.
| Item | Specification |
| Description | Integrated Network Processing Unit (IPU-480) |
| Part Number | 03033GLB |
| Model | CR8DIPU480C1 |
| Card type | IPU |
| Silkscreen | IPU-480 |
| Basic function | Data forwarding: The IPU is the core of service processing in the entire system, and is connected to all subcards through data channels. |
| Control and management: Through the management channels between IPUs and the subcards, the IPUs can manage subcards and transmit routing protocol data. | |
| The line rate capability is 960 Gbit/s@190 bytes (bidirectional). | |
| Reliability and availability | Supports the hot swappable function. |
| Supports the board-level 1:1 backup function. | |
| Restrictions and remarks | The board cannot work with IPUs of other models. |
| Breakout supported | No |
| Interface rate auto-sensing supported | No |
| Dimensions without packaging (H x W x D) [mm(in.)] | 22.4 mm x 388.4 mm x 209.3 mm (0.88 in. x 15.29 in. x 8.24 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 170 mm x 560 mm x 385 mm (6.69 in. x 22.05 in. x 15.16 in.) |
| Weight without packaging [kg(lb)] | 2.3 kg (5.07 lb) |
| Weight with packaging [kg(lb)] | 3.7 kg (8.16 lb) |
| Typical power consumption [W] | 113.3 W |
| Typical heat dissipation [BTU/hour] | 367.66 BTU/hour |
| Long-term operating temperature [°C(°F)] | –40°C to +65°C (–40°F to +149°F), start: ≥ –20°C (–4°F) |
| CPU | 8-core 1.5 GHz |
| Memory | 8GB |
| Storage | 4GB NandFlash |
Huawei NE8000 M Series M14/M8/M6/M4 Specification
| Product Model | NetEngine 8000 M14 | NetEngine 8000 M8 | NetEngine 8000 M6 | NetEngine 8000 M4 |
| Switching Capacity | 4 Tbit/s | 2.4 Tbit/s | 320 Gbit/s | 2.4 Tbps |
| Forwarding Performance | 906 Mpps | 453 Mpps | 72 Mpps | 455 Mpps |
| Maximum Board Capability | 200 Gbit/s | 200 Gbit/s | 50 Gbit/s | 200 Gbps |
| Capacity Density (G/U) | 400 | 400 | 80 | 800 |
| Main Control Board | 2, 1:1 | 2, 1:1 | 2, 1:1 | Single |
| SFU | 2, 1:1 | 2, 1:1 | 2, 1:1 | 2，1+1 |
| (integrated) | (integrated) | (integrated) | (integrated) | |
| Line Card | 14(DC) | 8(DC) | 6(DC) | 4 |
| 10(AC) | 8(AC) | 4(AC) | ||
| Power Module | 2, 1 + 1 (DC) | 2, 1 + 1 | 2, 1 + 1 | 2, 1 + 1 |
| 4, 2 + 2 (AC) | ||||
| Fan Module | 4, 3 + 1 | 2, 1 + 1 | 2, 1 + 1 | 2，1+1 |
| Dimensions (H x W x D) | 222 (5U) x 442 x 220mm | 132.6 (3U) x 442 x 220mm | 88.9 (2U) x 442 x 220mm | 88.4mm (2U) x 442mm x 220mm |
| Typical Power Consumption | 1270 W | 485 W | 220 W | 305.1 W |
| Weight in Full Configuration | 27.4 kg | 16.5 kg | 3.52 kg | 7.2 kg (15.87 lb) |
