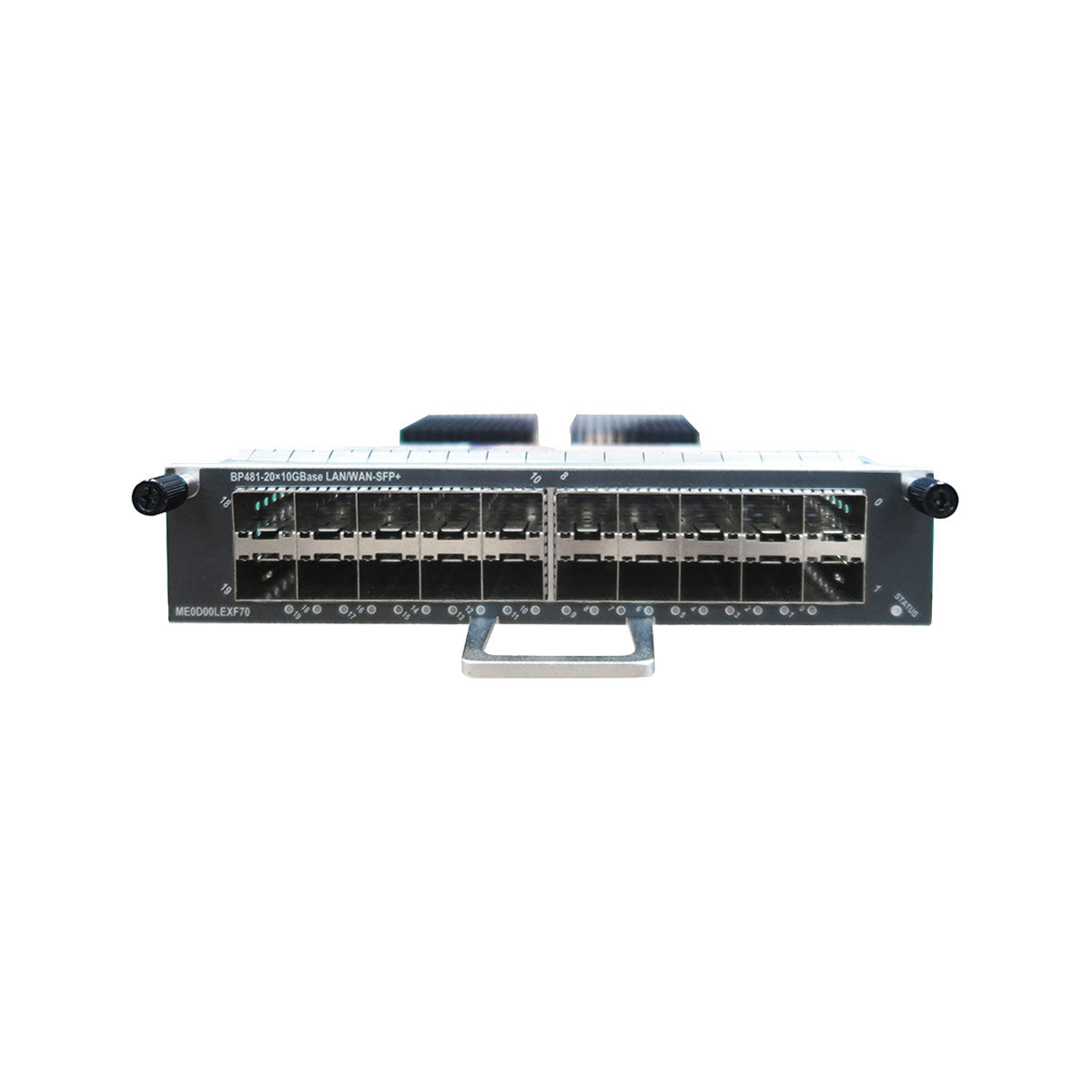

Huawei ME60 ME0D00LEXF70 20-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP481) PN#03032XVS
ME0D00LEXF70 BP481 is Flexible Card used for Huawei ME60 Series Router to provide twenty port 10G interfaces for line-rate transmitting and receiving.
| Item | Specifications |
| Description | Huawei ME60 20-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP481) |
| Part Number | 03032XVS |
| Silkscreen | BP481-20x10GBase LAN/WAN-SFP+ |
| Model | ME0D00LEXF70 |
| Card type | Flexible Board |
| Optical interface attributes | Compliant with |
| 10Gbps SFP+ optical module | |
| 10Gbps SFP+ CWDM optical module | |
| 10Gbps SFP+ BIDI optical module | |
| 10Gbps SFP+ DWDM optical module | |
| Working mode | Full-duplex |
| Frame format | Ethernet_II, Ethernet_SAP and Ethernet_SNAP |
| Compliant standard | IEEE 802.3 |
| Reliability and availability | Hot swappable |
| Line-Rate capability | Provides twenty 10GE interfaces for line-rate transmitting and receiving |
| Long-term and Short-term operating temperature [°C(°F)] | Long terms: 0 °C to 45 °C (32°F to 113°F) Short terms: -5 °C to 55 °C (23°F to 131°F) |
| Dimensions(mm) | 37.2(H)x 178.65 (W) x 193(D) |
| Weight(kg) | 0.9kg |
| Power consumption (typical value)(W) | 71.5 W |
Huawei ME60 Series Router Specifications
| Parameters | ME60-X16A | ME60-X8A | ME60-X16 | ME60-X8 |
ME60-X3 |
| Switching Capacity | 50.32 Tbit/s | 25.16 Tbit/s | 12.58 Tbit/s | 7.08 Tbit/s | 1.08 Tbit/s |
| Forwarding Performance | 11,520 Mpps | 5760 Mpps | 5760 Mpps | 2880 Mpps | 360 Mpps |
| Number of Slots | 22 slots, including 16 BSU/MSU, 2 MPUs, and 4 SFUs | 12 slots, including 8 BSU/MSU, 2 SRUs, and 2 SFUs | 22 slots, including 16 BSU/MSU, 2 MPUs, and 4 SFUs | 11 slots, including 8 BSU/MSU, 2 SRUs, and 1 SFU | 5 slots, including 3 BSU/MSU and 2 MPUs |
| Dimensions | 1778 x 442 x 650 mm (40 U) | 934 x 442 x 650 mm (21 U) | 1420 x 442 x 650 mm (32 U) | 620 x 442 x 650 mm (14 U) | 175 x 442 x 650 mm (DC 4 U) |
| (H x W x D) | 220 x 442 x 650 mm (AC 5 U) | ||||
| Maximum Power Consumption | 7220 W (BSUF-240) | 4110 W (BSUF-240) | 4610 W (BSUF-100) | 2340 W (BSUF-100) | 920 W (BSUF-100) |
| 9040 W (BSUF-480) | 4770 W (BSUF-480) | 6210 W (BSUF-240) | 3220 W (BSUF-240) | ||
| Full Configuration Weight | 356 kg | 190 kg | 279 kg | 136 kg | DC: 42 kg (100G) |
| AC: 52 kg (100G) | |||||
| Interface Types | 100 GE-WAN/LAN 10 GE-WAN/LAN GE/FE |
||||
| BRAS | User access protocols: PPPoE, IPoE, 802.1X, and ND access. User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS. User billing protocols: RADIUS, HWTACACS, and COPS. User authorization protocols: RADIUS, HWTACACS, COPS, and COA. |
||||
| QoS | Provides a well-designed HQoS mechanism. Provides advanced scheduling and congestion avoidance technologies, accurate traffic policing and shaping, and complex rule definition and fine-grained flow identification. Supports MPLS HQoS and ensures QoS for MPLS VPN, VLL, and PWE3 services. Supports DiffServ- and MPLS TE-based DS-TE, eight class types (CTs), and TE-tunnel-based QoS. Supports a maximum of 768K flow queues per slot. |
||||
| Value-Added Services | Supports Destination Address Accounting (DAA), which helps carriers identify services based on destination network segments and perform separate accounting for different services on IP carrier networks. Supports Enhanced Dynamic Service Gateway (EDSG), which identifies various user services based on traffic destination addresses and implements independent rate limit, accounting, and management for each service. |
||||
