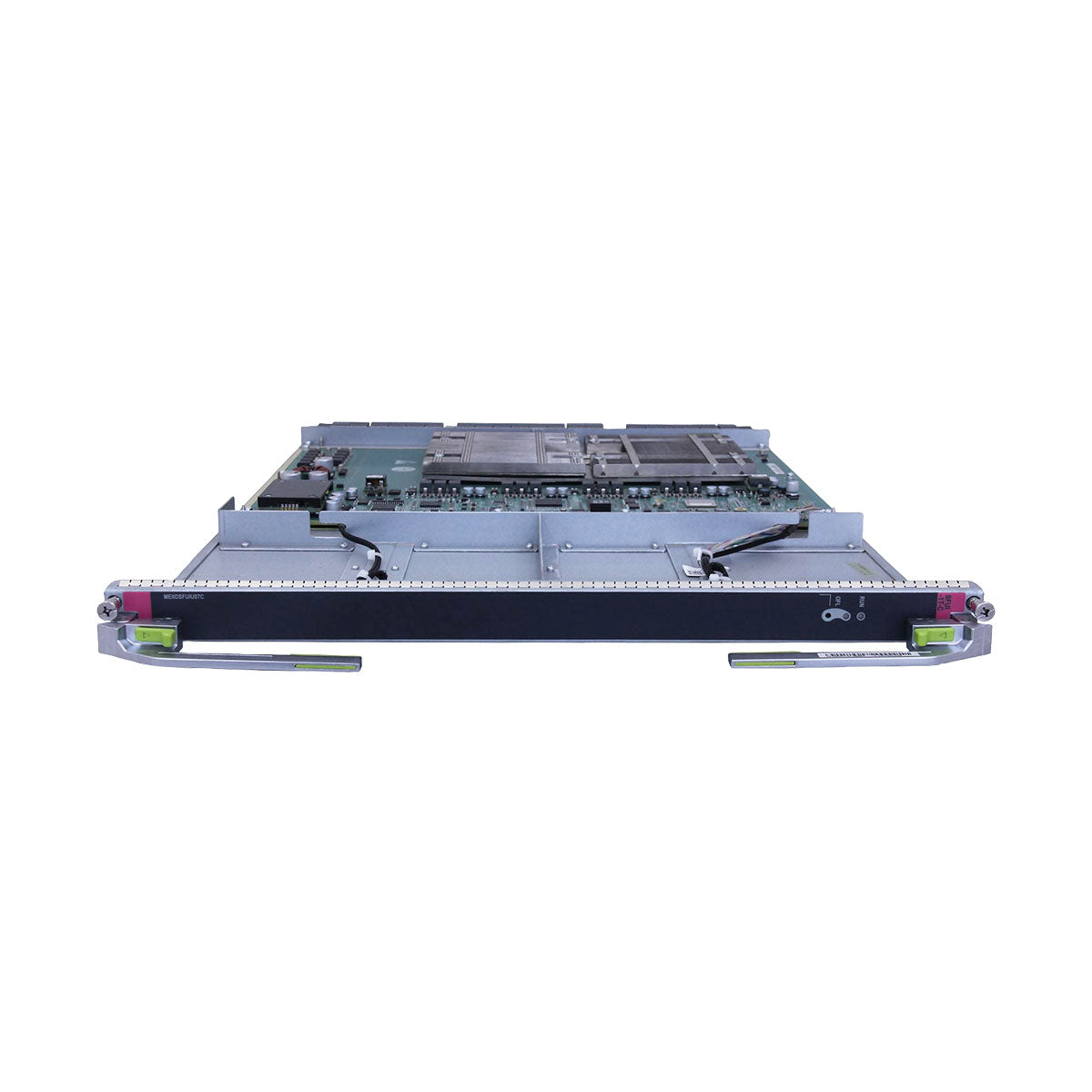

Huawei ME60-X8A 1Tbps Switch Fabric Unit C (SFUI-1T-C) ME0DSFUIU07C PN# 03056513
ME0DSFUIU07C SFUI-1T-C is the 1Tbps Switch Fabric Unit C SFU used for Huawei ME60-X8A.
ME0DSFUIU07C Implements cell exchange between BSUs/MSUs, communicates with the MPU over Ethernet, accepts the MPU's centralized control and management, and monitors board temperature and voltage.
The 3+1 backup mode is used for ME0DSFUIU07C. The four SFUs balance services at the same time (Two SFUs integrate on two SRUs). If one SFU is faulty or replaced, the other three SFUs automatically take over its services to prevent service interruptions.
| Item | Details |
| Description | 1Tbps Switch Fabric Unit C(SFUI-1T-C) |
| Part Number | 03056513 |
| Model | ME0DSFUIU07C |
| Card type | SFU |
| Silkscreen | SFUI-1T-C |
| Basic function | Implements cell exchange between BSUs/MSUs, communicates with the MPU over Ethernet, accepts the MPU's centralized control and management, and monitors board temperature and voltage. |
| Reliability and availability | The 3+1 backup mode is used. The four SFUs balance services at the same time (Two SFUs integrate on two SRUs). If one SFU is faulty or replaced, the other three SFUs automatically take over its services to prevent service interruptions. |
| Restrictions and remarks | - |
| Breakout supported | No |
| Interface rate auto-sensing supported | No |
| Link protocol | - |
Huawei ME60 Series Router Specifications
| Parameters | ME60-X16A | ME60-X8A | ME60-X16 | ME60-X8 | ME60-X3 |
| Switching Capacity | 50.32 Tbit/s | 25.16 Tbit/s | 12.58 Tbit/s | 7.08 Tbit/s | 1.08 Tbit/s |
| Forwarding Performance | 11,520 Mpps | 5760 Mpps | 5760 Mpps | 2880 Mpps | 360 Mpps |
| Number of Slots | 22 slots, including 16 BSU/MSU, 2 MPUs, and 4 SFUs | 12 slots, including 8 BSU/MSU, 2 SRUs, and 2 SFUs | 22 slots, including 16 BSU/MSU, 2 MPUs, and 4 SFUs | 11 slots, including 8 BSU/MSU, 2 SRUs, and 1 SFU | 5 slots, including 3 BSU/MSU and 2 MPUs |
| Dimensions | 1778 x 442 x 650 mm (40 U) | 934 x 442 x 650 mm (21 U) | 1420 x 442 x 650 mm (32 U) | 620 x 442 x 650 mm (14 U) | 175 x 442 x 650 mm (DC 4 U) |
| (H x W x D) | 220 x 442 x 650 mm (AC 5 U) | ||||
| Maximum Power Consumption | 7220 W (BSUF-240) | 4110 W (BSUF-240) | 4610 W (BSUF-100) | 2340 W (BSUF-100) | 920 W (BSUF-100) |
| 9040 W (BSUF-480) | 4770 W (BSUF-480) | 6210 W (BSUF-240) | 3220 W (BSUF-240) | ||
| Full Configuration Weight | 356 kg | 190 kg | 279 kg | 136 kg | DC: 42 kg (100G) |
| AC: 52 kg (100G) | |||||
| Interface Types | 100 GE-WAN/LAN 10 GE-WAN/LAN GE/FE |
||||
| BRAS | User access protocols: PPPoE, IPoE, 802.1X, and ND access. User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS. User billing protocols: RADIUS, HWTACACS, and COPS. User authorization protocols: RADIUS, HWTACACS, COPS, and COA. |
||||
| QoS | Provides a well-designed HQoS mechanism. Provides advanced scheduling and congestion avoidance technologies, accurate traffic policing and shaping, and complex rule definition and fine-grained flow identification. Supports MPLS HQoS and ensures QoS for MPLS VPN, VLL, and PWE3 services. Supports DiffServ- and MPLS TE-based DS-TE, eight class types (CTs), and TE-tunnel-based QoS. Supports a maximum of 768K flow queues per slot. |
||||
| Value-Added Services | Supports Destination Address Accounting (DAA), which helps carriers identify services based on destination network segments and perform separate accounting for different services on IP carrier networks. Supports Enhanced Dynamic Service Gateway (EDSG), which identifies various user services based on traffic destination addresses and implements independent rate limit, accounting, and management for each service. |
||||
