Huawei ME60-X8 Router

  • Full Set of Accessories
  • Firmware & Software Testing
  • License Available
Available:In Stock
$0.00

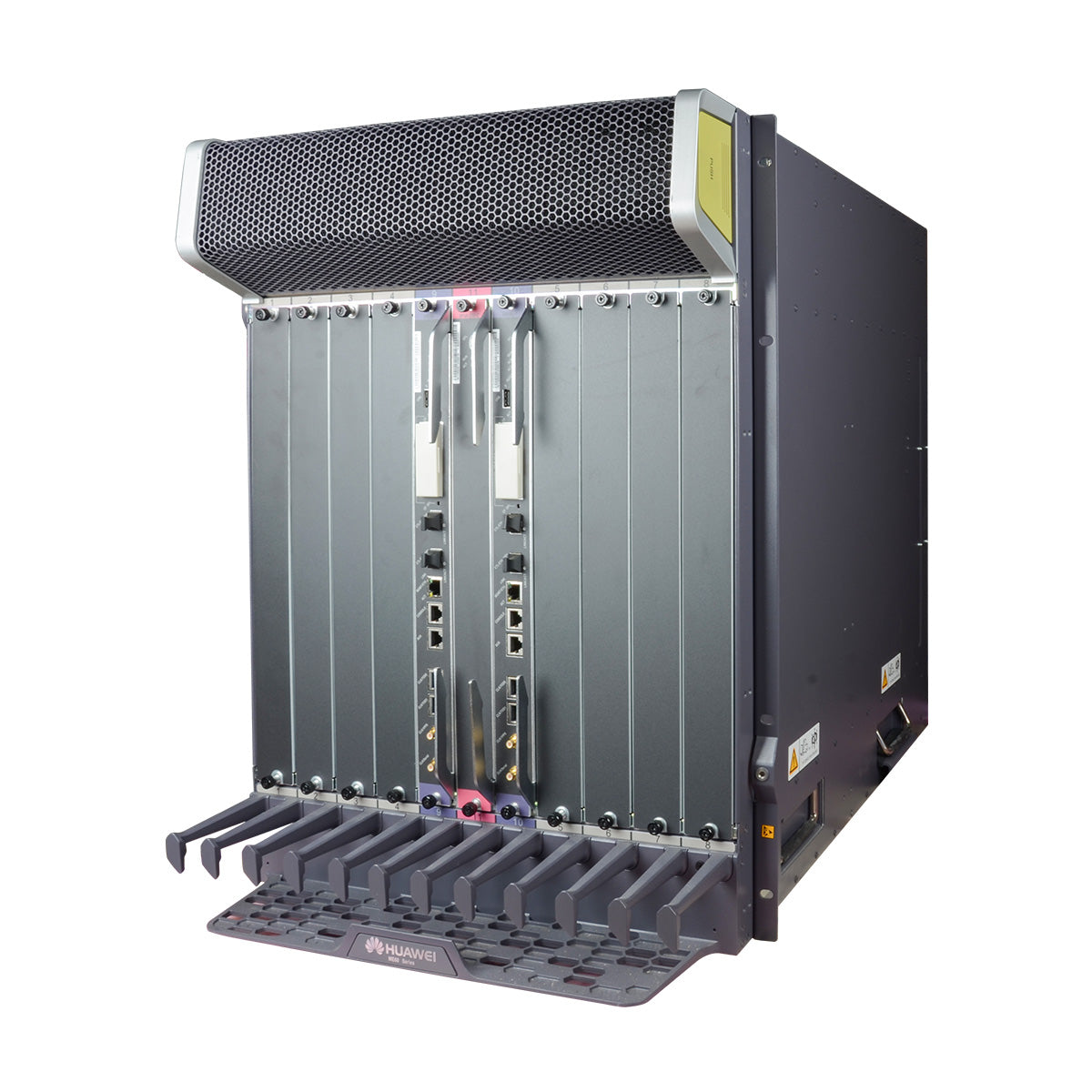

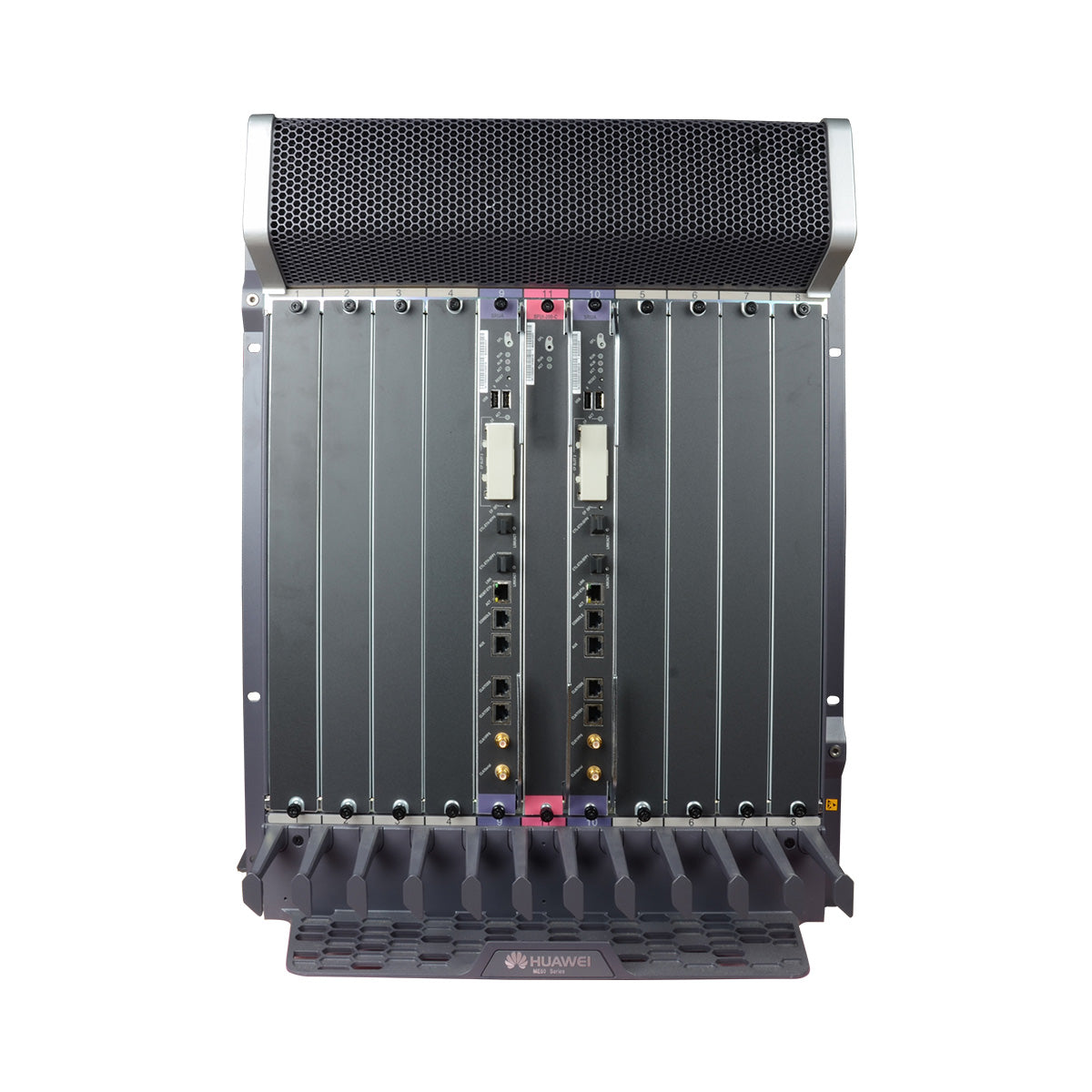

Huawei ME60-X8 Subrack with 11 slots, including 8 BSUs/MSUs, 2 SRUs, and 1 SFU, 4 DC Power

Huawei ME60-X8 is Huawei ME60 Series BRAS Router as a range of multiple-service control gateways — a type of Broadband Remote Access Server (BRAS). Based on a 2T platform, Huawei ME60 Series router boasts the industry’s largest-capacity routing line card (480G) plus a large-capacity NAT service line card (160G), enabling smooth evolution from IPv4 to IPv6, with the following compelling features:

  • Large Capacity

Developed based on a 2T platform, with the industry’s largest capacity routing line cards (480G) plus large capacity Network Address Translation (NAT) service line cards (160G).

  • High Reliability

Stable operation of services is guaranteed with device-, network-, and service-level reliability and innovative multiple-device hot backups.

  • Full-Service Access

Unified platform for user access and management with full support for various access services, including IPoX, PPPoX, 802.1x, and web authentication.

Basic information about the ME60-X8

Description Part Number  Model
ME60-X8 Integrated Chassis Components (Including 4 DC Power) 02352021 ME0B0BKP0830



Slot Layout of Huawei ME60-X8

Slot Layout of Huawei ME60-X8



Technical specifications of Huawei ME60-X8

Item Specification
Cabinet installation standards Can be installed in a standard 19" 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default.
Dimensions without packaging (H x W x D) [mm(in.)] 620 mm x 442 mm x 650 mm (24.41 in. x 17.40 in. x 25.59 in.) (chassis body)
620 mm x 442 mm x 770 mm (24.41 in. x 17.40 in. x 30.31 in.) (chassis body together with cable trays and front and rear attachments)
Chassis height [U] 14U
Weight without packaging [kg(lb)] 43.2 kg (95.24 lb)
Weight without packaging (full configuration) [kg(lb)] 136 kg (299.88 lb)
Typical power consumption (with configuration) [W] 3220 W (fully configured with BSUF-240s)
Typical heat dissipation (with configuration) [BTU/hour] 10447 BTU/hour (fully configured with BSUF-240s)
MTBF [year] 33.89 year
MTTR [hour] 0.5 hour
Availability 0.999998316
Power supply mode DC
Maximum number of power chassis inputs (1 channel/PEM)*4 PEM=4 channels
Rated input voltage [V] –48 V/ –60 V
Input voltage range [V] –38.4 V to –72 V
Maximum input current [A] 70 A/module
Maximum input cable size [mm²] 35 mm²/channel
Front-end circuit breaker/fuse [A] 70 A
Airflow direction Front-to-back airflow.
Noise at normal temperature (acoustic power) [dB(A)] NEBS-compliance (< 78 dBA @ 27°C (80.6°F))
Number of slots 11
Number of service board slots 8
Switching capacity 7.08 Tbit/s(BSUF-240)
Redundant MPUs 1:01
Redundant Switch fabrics 2+1
Redundant power supply 2+2
Redundant fans 2 assemblies
Support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)] –5°C to +55°C (23°F to 131°F)
Restriction on the operating temperature variation rate [°C(°F)] ≤ 0.5°C/min (32.9°F/min), non-condensing
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158 °F)
Long-term operating relative humidity [RH] 5% RH to 85% RH, non-condensing
Short-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] ≤ 4000 m (13123.36 ft.) (From 1800 m to 4000 m [5905.51 ft. to 13123.36 ft.], the operating temperature of the device decreases by 1°C [1.8°F] for every 220 m [721.78 ft.] increase in altitude.)
Storage altitude [m(ft.)] < 5000 m (16404.2 ft.)



Huawei ME60 Series Router Specifications



Parameters ME60-X16A ME60-X8A ME60-X16 ME60-X8 ME60-X3
Switching Capacity 50.32 Tbit/s 25.16 Tbit/s 12.58 Tbit/s 7.08 Tbit/s 1.08 Tbit/s
Forwarding Performance 11,520 Mpps 5760 Mpps 5760 Mpps 2880 Mpps 360 Mpps
Number of Slots 22 slots, including 16 BSUs/MSUs, 2 MPUs, and 4 SFUs 12 slots, including 8 BSUs/MSUs, 2 SRUs, and 2 SFUs 22 slots, including 16 BSUs/MSUs, 2 MPUs, and 4 SFUs 11 slots, including 8 BSUs/MSUs, 2 SRUs, and 1 SFU 5 slots, including 3 BSUs/MSUs and 2 MPUs
Dimensions 1778 x 442 x 650 mm (40 U) 934 x 442 x 650 mm (21 U) 1420 x 442 x 650 mm (32 U) 620 x 442 x 650 mm (14 U) 175 x 442 x 650 mm (DC 4 U)
(H x W x D) 220 x 442 x 650 mm (AC 5 U)
Maximum Power Consumption 7220 W (BSUF-240) 4110 W (BSUF-240) 4610 W (BSUF-100) 2340 W (BSUF-100) 920 W (BSUF-100)
9040 W (BSUF-480) 4770 W (BSUF-480) 6210 W (BSUF-240) 3220 W (BSUF-240)
Full Configuration Weight 356 kg 190 kg 279 kg 136 kg DC: 42 kg (100G)
AC: 52 kg (100G)
Interface Types 100 GE-WAN/LAN
10 GE-WAN/LAN
GE/FE
BRAS User access protocols: PPPoE, IPoE, 802.1X, and ND access.
User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS.
User billing protocols: RADIUS, HWTACACS, and COPS.
User authorization protocols: RADIUS, HWTACACS, COPS, and COA.
QoS Provides a well-designed HQoS mechanism.
Provides advanced scheduling and congestion avoidance technologies, accurate traffic policing and shaping, and complex rule definition and fine-grained flow identification.
Supports MPLS HQoS and ensures QoS for MPLS VPN, VLL, and PWE3 services.
Supports DiffServ- and MPLS TE-based DS-TE, eight class types (CTs), and TE-tunnel-based QoS.
Supports a maximum of 768K flow queues per slot.
Value-Added Services Supports Destination Address Accounting (DAA), which helps carriers identify services based on destination network segments and perform separate accounting for different services on IP carrier networks.
Supports Enhanced Dynamic Service Gateway (EDSG), which identifies various user services based on traffic destination addresses and implements independent rate limit, accounting, and management for each service.

Huawei ME60-X8 Subrack with 11 slots, including 8 BSUs/MSUs, 2 SRUs, and 1 SFU, 4 DC Power

Huawei ME60-X8 is Huawei ME60 Series BRAS Router as a range of multiple-service control gateways — a type of Broadband Remote Access Server (BRAS). Based on a 2T platform, Huawei ME60 Series router boasts the industry’s largest-capacity routing line card (480G) plus a large-capacity NAT service line card (160G), enabling smooth evolution from IPv4 to IPv6, with the following compelling features:

  • Large Capacity

Developed based on a 2T platform, with the industry’s largest capacity routing line cards (480G) plus large capacity Network Address Translation (NAT) service line cards (160G).

  • High Reliability

Stable operation of services is guaranteed with device-, network-, and service-level reliability and innovative multiple-device hot backups.

  • Full-Service Access

Unified platform for user access and management with full support for various access services, including IPoX, PPPoX, 802.1x, and web authentication.

Basic information about the ME60-X8

Description Part Number  Model
ME60-X8 Integrated Chassis Components (Including 4 DC Power) 02352021 ME0B0BKP0830



Slot Layout of Huawei ME60-X8

Slot Layout of Huawei ME60-X8



Technical specifications of Huawei ME60-X8

Item Specification
Cabinet installation standards Can be installed in a standard 19" 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default.
Dimensions without packaging (H x W x D) [mm(in.)] 620 mm x 442 mm x 650 mm (24.41 in. x 17.40 in. x 25.59 in.) (chassis body)
620 mm x 442 mm x 770 mm (24.41 in. x 17.40 in. x 30.31 in.) (chassis body together with cable trays and front and rear attachments)
Chassis height [U] 14U
Weight without packaging [kg(lb)] 43.2 kg (95.24 lb)
Weight without packaging (full configuration) [kg(lb)] 136 kg (299.88 lb)
Typical power consumption (with configuration) [W] 3220 W (fully configured with BSUF-240s)
Typical heat dissipation (with configuration) [BTU/hour] 10447 BTU/hour (fully configured with BSUF-240s)
MTBF [year] 33.89 year
MTTR [hour] 0.5 hour
Availability 0.999998316
Power supply mode DC
Maximum number of power chassis inputs (1 channel/PEM)*4 PEM=4 channels
Rated input voltage [V] –48 V/ –60 V
Input voltage range [V] –38.4 V to –72 V
Maximum input current [A] 70 A/module
Maximum input cable size [mm²] 35 mm²/channel
Front-end circuit breaker/fuse [A] 70 A
Airflow direction Front-to-back airflow.
Noise at normal temperature (acoustic power) [dB(A)] NEBS-compliance (< 78 dBA @ 27°C (80.6°F))
Number of slots 11
Number of service board slots 8
Switching capacity 7.08 Tbit/s(BSUF-240)
Redundant MPUs 1:01
Redundant Switch fabrics 2+1
Redundant power supply 2+2
Redundant fans 2 assemblies
Support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)] –5°C to +55°C (23°F to 131°F)
Restriction on the operating temperature variation rate [°C(°F)] ≤ 0.5°C/min (32.9°F/min), non-condensing
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158 °F)
Long-term operating relative humidity [RH] 5% RH to 85% RH, non-condensing
Short-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] ≤ 4000 m (13123.36 ft.) (From 1800 m to 4000 m [5905.51 ft. to 13123.36 ft.], the operating temperature of the device decreases by 1°C [1.8°F] for every 220 m [721.78 ft.] increase in altitude.)
Storage altitude [m(ft.)] < 5000 m (16404.2 ft.)



Huawei ME60 Series Router Specifications



Parameters ME60-X16A ME60-X8A ME60-X16 ME60-X8 ME60-X3
Switching Capacity 50.32 Tbit/s 25.16 Tbit/s 12.58 Tbit/s 7.08 Tbit/s 1.08 Tbit/s
Forwarding Performance 11,520 Mpps 5760 Mpps 5760 Mpps 2880 Mpps 360 Mpps
Number of Slots 22 slots, including 16 BSUs/MSUs, 2 MPUs, and 4 SFUs 12 slots, including 8 BSUs/MSUs, 2 SRUs, and 2 SFUs 22 slots, including 16 BSUs/MSUs, 2 MPUs, and 4 SFUs 11 slots, including 8 BSUs/MSUs, 2 SRUs, and 1 SFU 5 slots, including 3 BSUs/MSUs and 2 MPUs
Dimensions 1778 x 442 x 650 mm (40 U) 934 x 442 x 650 mm (21 U) 1420 x 442 x 650 mm (32 U) 620 x 442 x 650 mm (14 U) 175 x 442 x 650 mm (DC 4 U)
(H x W x D) 220 x 442 x 650 mm (AC 5 U)
Maximum Power Consumption 7220 W (BSUF-240) 4110 W (BSUF-240) 4610 W (BSUF-100) 2340 W (BSUF-100) 920 W (BSUF-100)
9040 W (BSUF-480) 4770 W (BSUF-480) 6210 W (BSUF-240) 3220 W (BSUF-240)
Full Configuration Weight 356 kg 190 kg 279 kg 136 kg DC: 42 kg (100G)
AC: 52 kg (100G)
Interface Types 100 GE-WAN/LAN
10 GE-WAN/LAN
GE/FE
BRAS User access protocols: PPPoE, IPoE, 802.1X, and ND access.
User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS.
User billing protocols: RADIUS, HWTACACS, and COPS.
User authorization protocols: RADIUS, HWTACACS, COPS, and COA.
QoS Provides a well-designed HQoS mechanism.
Provides advanced scheduling and congestion avoidance technologies, accurate traffic policing and shaping, and complex rule definition and fine-grained flow identification.
Supports MPLS HQoS and ensures QoS for MPLS VPN, VLL, and PWE3 services.
Supports DiffServ- and MPLS TE-based DS-TE, eight class types (CTs), and TE-tunnel-based QoS.
Supports a maximum of 768K flow queues per slot.
Value-Added Services Supports Destination Address Accounting (DAA), which helps carriers identify services based on destination network segments and perform separate accounting for different services on IP carrier networks.
Supports Enhanced Dynamic Service Gateway (EDSG), which identifies various user services based on traffic destination addresses and implements independent rate limit, accounting, and management for each service.
