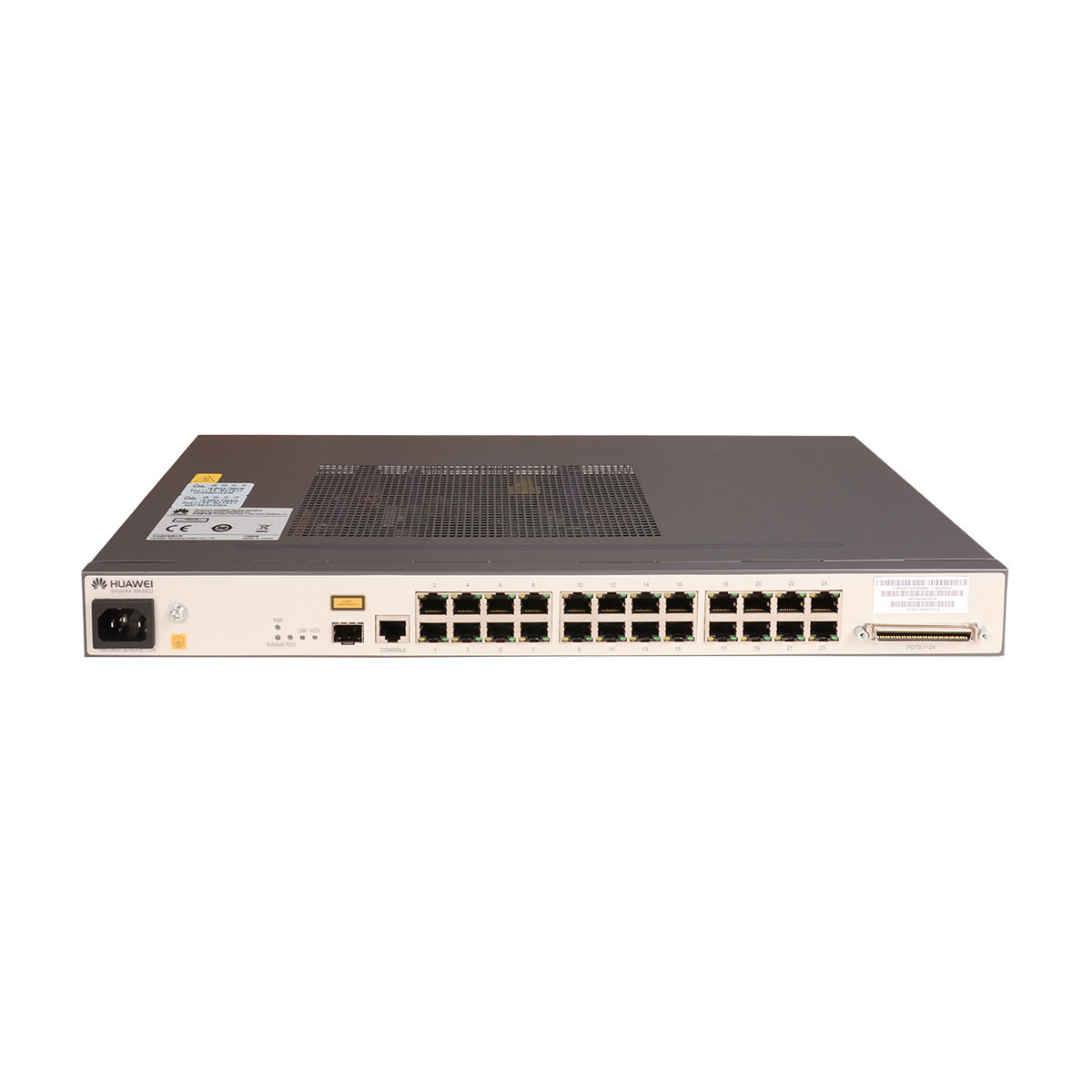

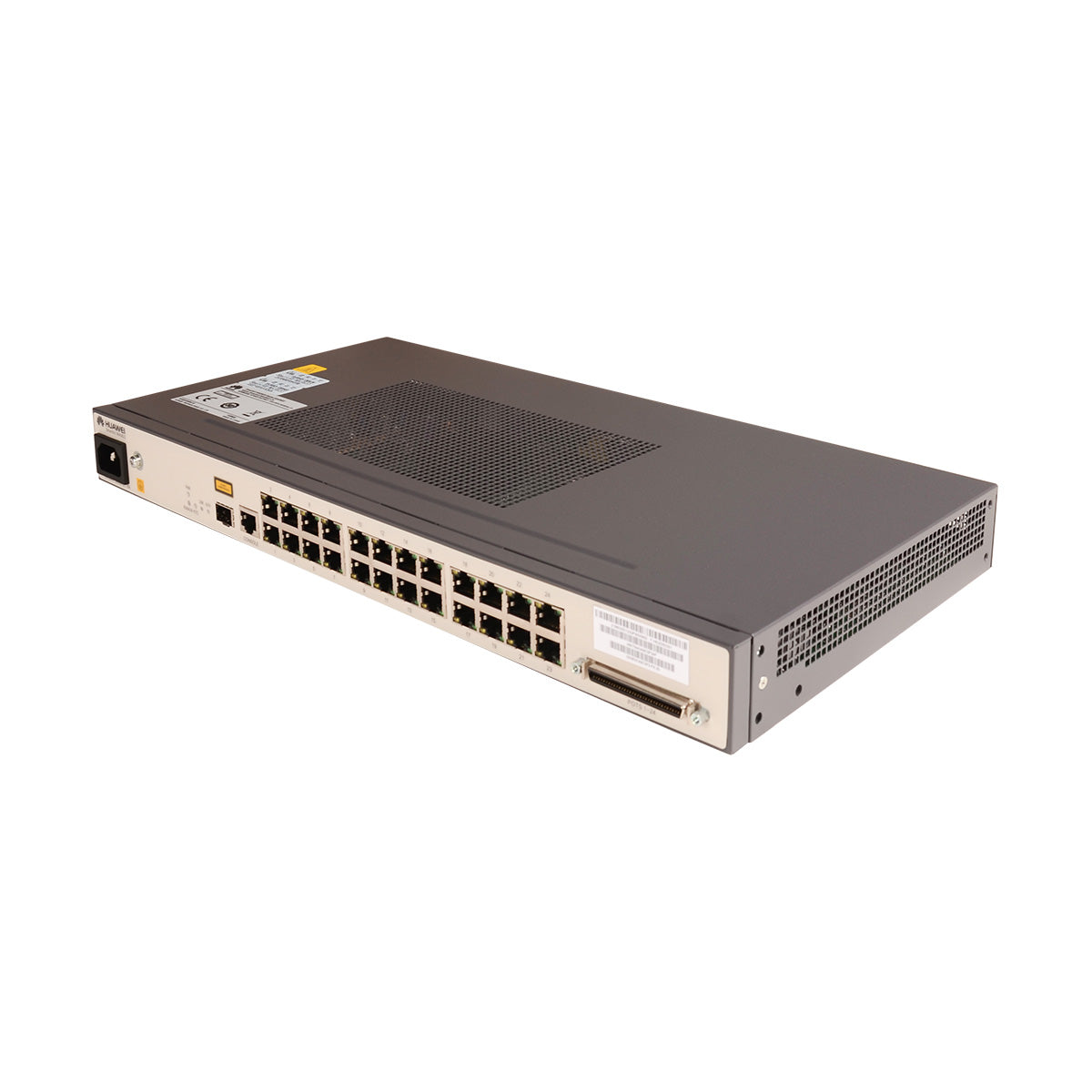

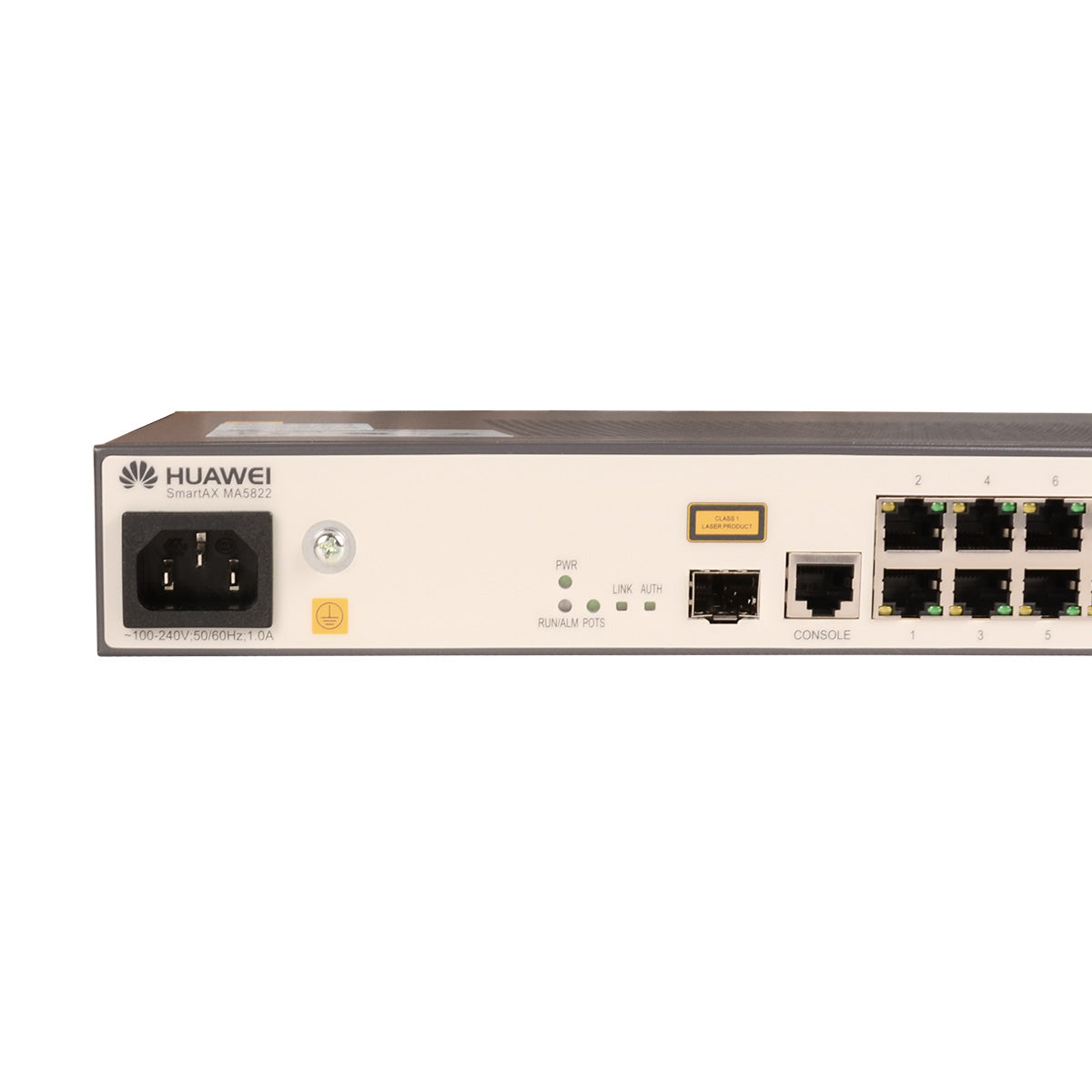

Huawei SmartAX MA5822 is a multi-service access module. The MA5822 applies to fiber to the building (FTTB) or fiber to the curb (FTTC) network applications for providing voice, data, and multicast services for community users. MA5822 24FE+24POTS provides 1x10G GPON/GPON uplink ports, 24xFE ports, 24xPOTS ports.
Specification | |
Working environment | -40°C to +55°C (The device can start up at -25°C and run at -40°C.) |
Environment humidity: 5% RH to 95% RH(1~29g/m3) | |
Atmospheric pressure (kPa) | 70 to 106 |
Altitude (m) | |
Power supply mode (VAC) | AC: 220 |
Working voltage range (VAC) | 100 to 240 |
Maximum input current (A) | 1 |
Static Power Consumption (W) | 13 (AC power input and GPON upstream transmission) |
Max Power Consumption (W) | 40 (AC power input and GPON upstream transmission) |
System packet forwarding rate (Mpps) |
6 |
System switching capacity (Gbit/s) |
12.4 |
Dimensions (mm) (length x width x height) |
442 x 220 x 43.6 (without the mounting brackets) 482.6 x 220 x 43.6 (with the mounting brackets) |
Weight(kg) | 2.43 |
