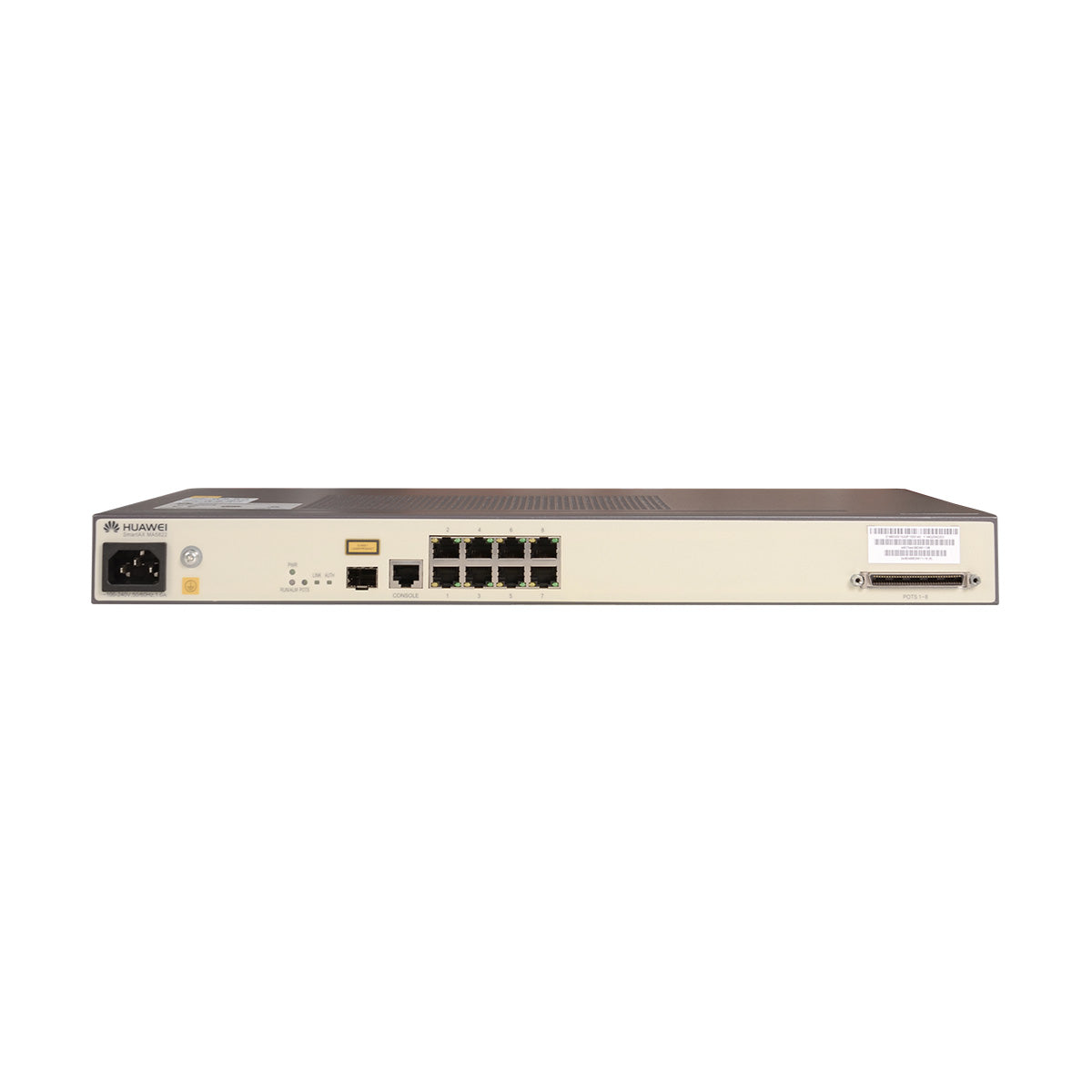

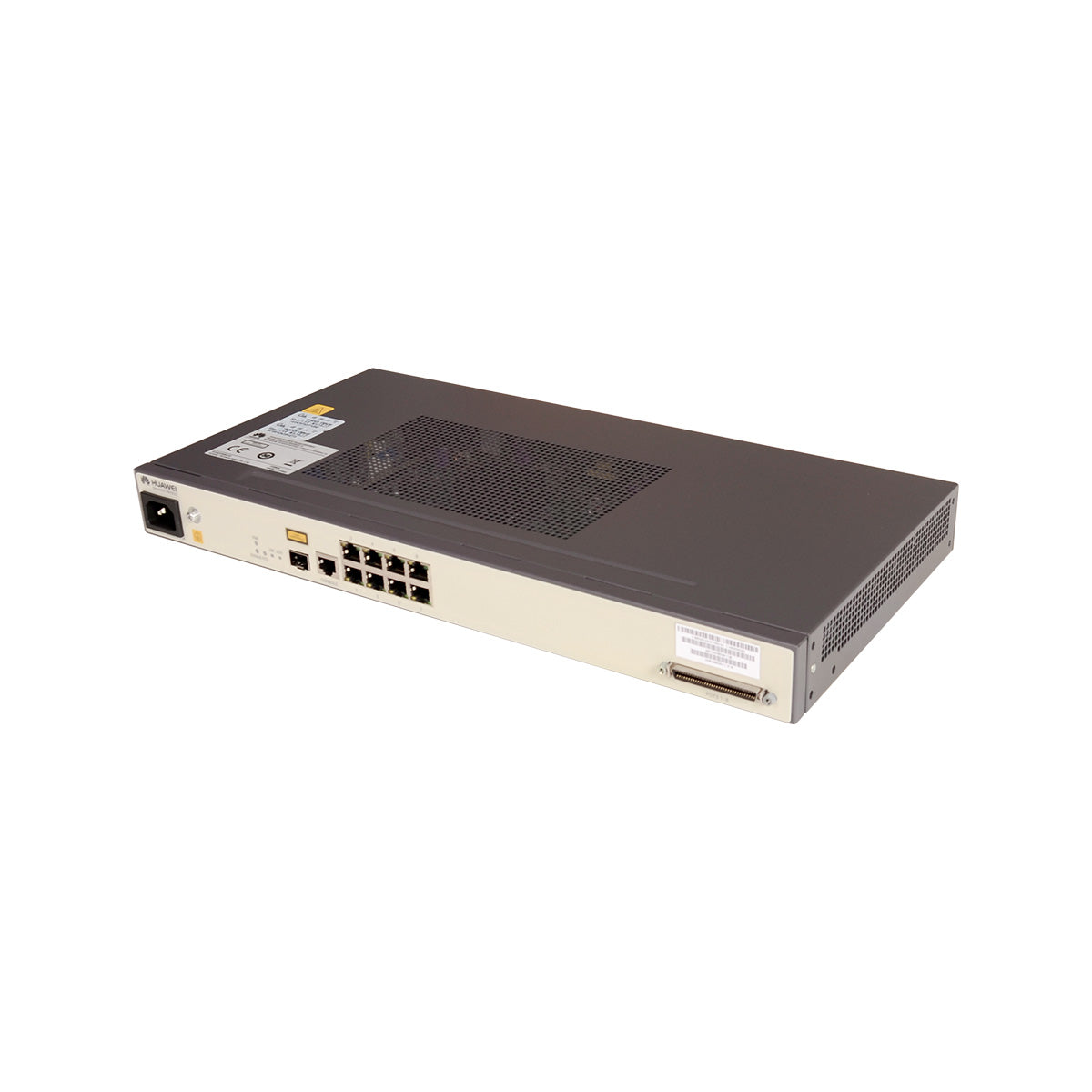

Huawei MA5822 8FE+8POTS ONU
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Huawei MA5822 8FE+8POTS ONU

  • Mainstream Firmware Loaded
  • Sealed Package
  • Original Package
Available:In Stock
$0.00

Huawei SmartAX MA5822 is a multi-service access module. The MA5822 applies to fiber to the building (FTTB) or fiber to the curb (FTTC) network applications for providing voice, data, and multicast services for community users. MA5822 8FE+8POTS provides 1x10G GPON/GPON uplink ports, 8xFE ports, 8xPOTS ports.



Specification
Working environment -40°C to +55°C (The device can start up at -25°C and run at -40°C.)
Environment humidity: 5% RH to 95% RH(1~29g/m3)
Atmospheric pressure (kPa) 70 to 106
Altitude(m) < 4000
Power supply mode (VAC) AC: 220
Working voltage range v 100 to 240
Maximum input current (A) 1
Static Power Consumption (W) 10 (AC power input and GPON upstream transmission)
Max Power Consumption (W) 17 (AC power input and GPON upstream transmission)
System packet forwarding
rate (Mpps)
6
System switching capacity
(Gbit/s)
12.4
Dimensions (mm)
(length x width x height)
442 x 220 x 43.6 (without the mounting brackets)
482.6 x 220 x 43.6 (with the mounting brackets)
Weight(kg) 2.12

Huawei SmartAX MA5822 is a multi-service access module. The MA5822 applies to fiber to the building (FTTB) or fiber to the curb (FTTC) network applications for providing voice, data, and multicast services for community users. MA5822 8FE+8POTS provides 1x10G GPON/GPON uplink ports, 8xFE ports, 8xPOTS ports.



Specification
Working environment -40°C to +55°C (The device can start up at -25°C and run at -40°C.)
Environment humidity: 5% RH to 95% RH(1~29g/m3)
Atmospheric pressure (kPa) 70 to 106
Altitude(m) < 4000
Power supply mode (VAC) AC: 220
Working voltage range v 100 to 240
Maximum input current (A) 1
Static Power Consumption (W) 10 (AC power input and GPON upstream transmission)
Max Power Consumption (W) 17 (AC power input and GPON upstream transmission)
System packet forwarding
rate (Mpps)
6
System switching capacity
(Gbit/s)
12.4
Dimensions (mm)
(length x width x height)
442 x 220 x 43.6 (without the mounting brackets)
482.6 x 220 x 43.6 (with the mounting brackets)
Weight(kg) 2.12
