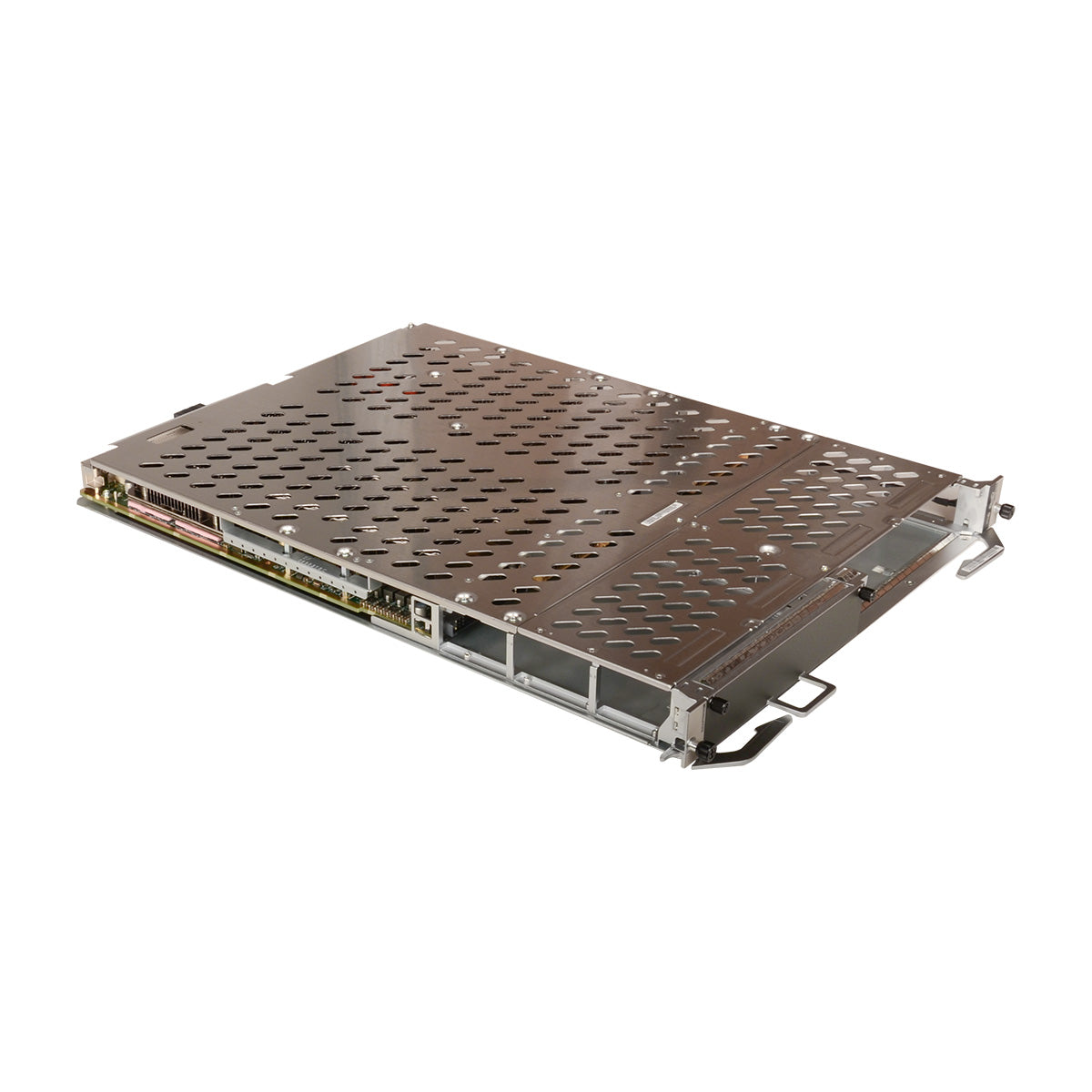

Huawei ME60 Flexible Card Broadband Service Unit(BSUF-240,2 sub-slots) ME0DBSUFF070 PN# 03054701
ME0DBSUFF070 BSUF-240 is Flexible Card Broadband Service Unit used for Huawei ME60 Series Router except for ME60-X3, supporting 240G line-rate forwarding.
The BSUF-240 which enhances networking flexibility and provides low-cost and customized solutions supports packet forwarding at the line speed of 240 Gbit/s.

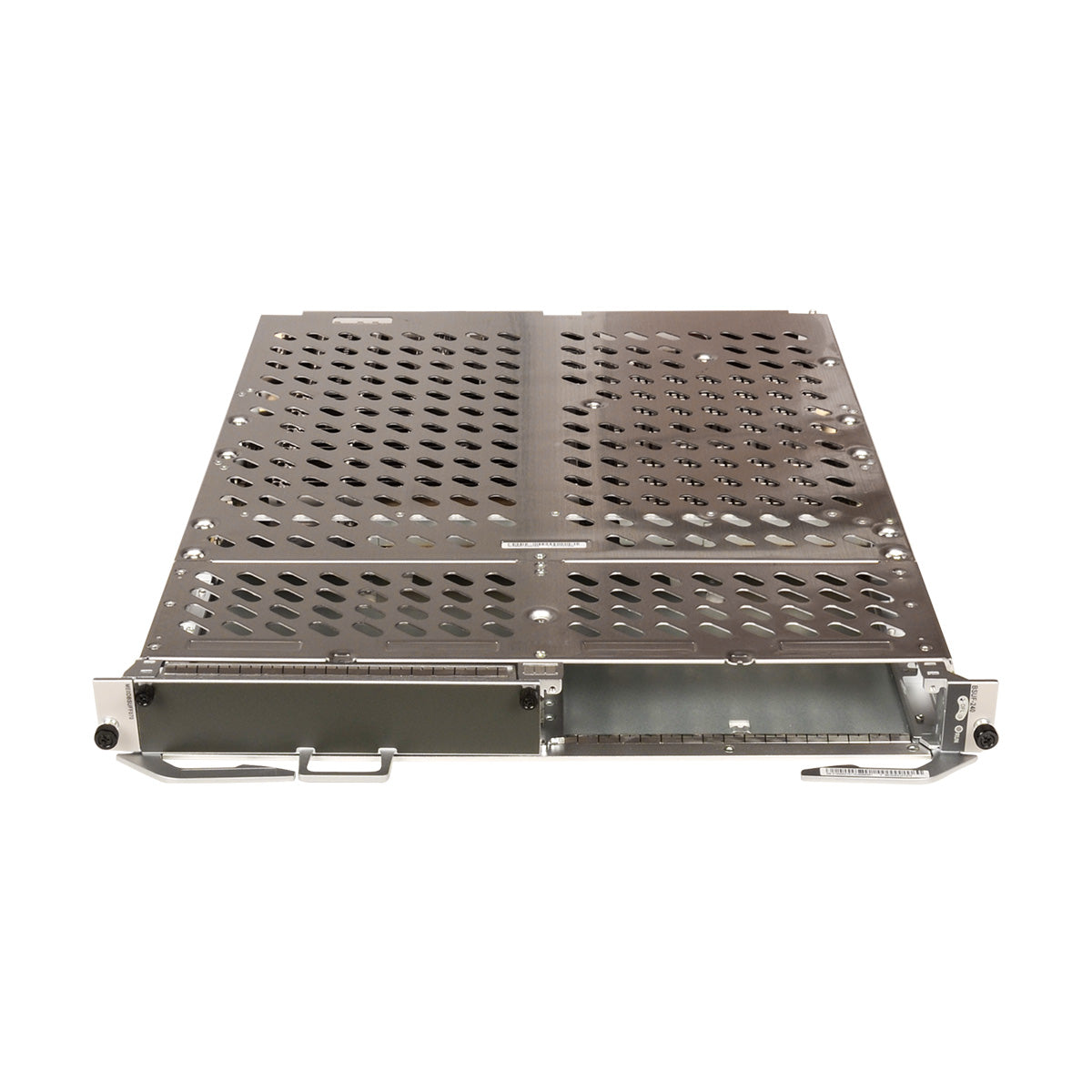

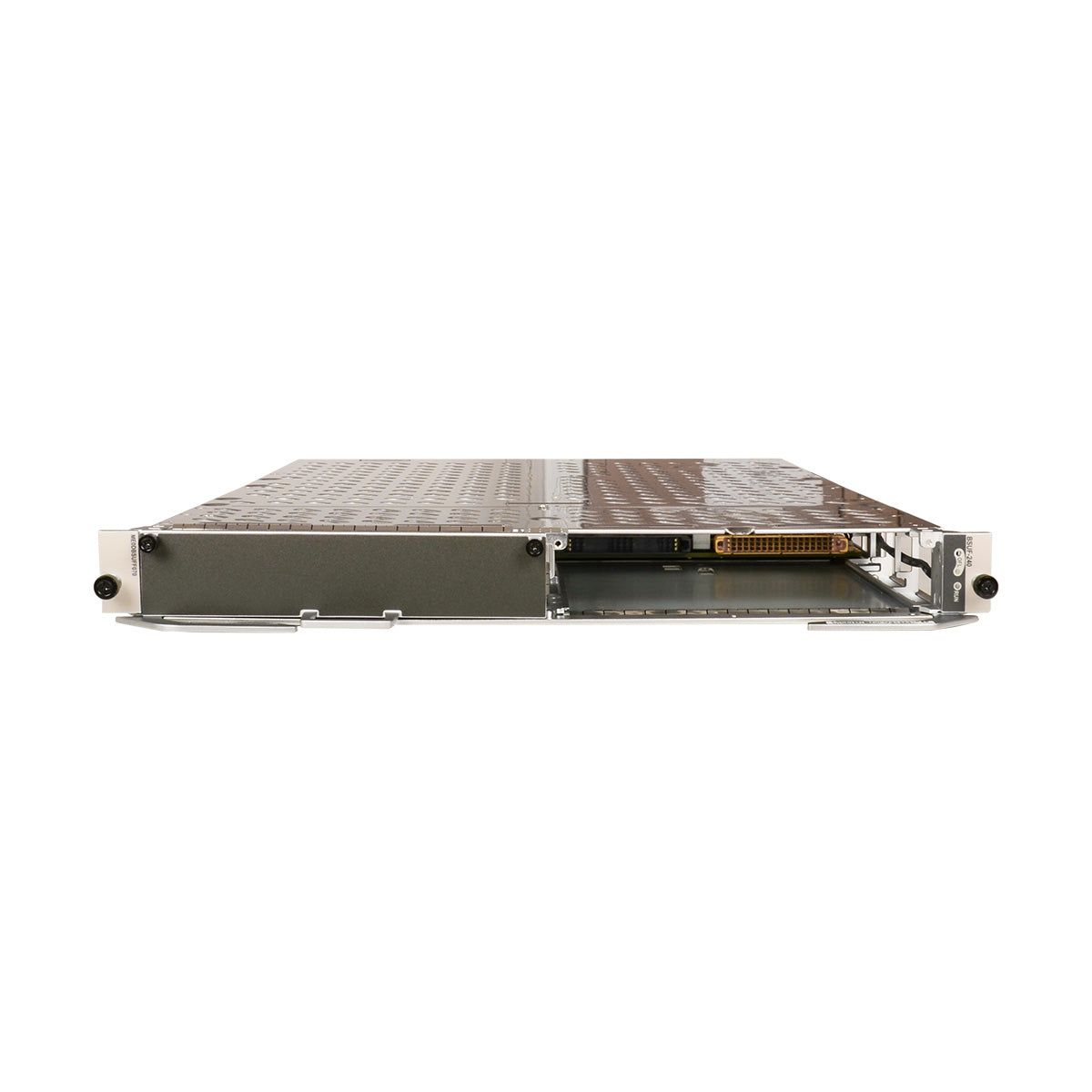

The BSUF-240 provides two 1/2-width slots, and each slot holds one FPIC. An FPIC supports the following functions:
-
Hot swap
-
Automatic recovery of configurations
-
Intermixing with other types of FPICs
| Item | Specification |
| Line-Rate capability | Supports 240G line-rate forwarding. |
| Slot information | provides a maximum of two half-width slots and each slot can hold one FPIC card. |
| Reliability and availability | Hot swappable |
| Dimensions (H x W x D) | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Typical power consumption | 276.69 W |
| Typical heat dissipation | 897.70 BTU/hour |
| Weight | 11.8 kg (26.01 lb) |
| Ambient temperature |
Long terms: 0 °C to 45 °C (32°F to 113°F) Short terms: -5 °C to 55 °C (23°F to 131°F) |
Huawei ME60 Series Router Specifications
| Parameters | ME60-X16A | ME60-X8A | ME60-X16 | ME60-X8 |
ME60-X3 |
| Switching Capacity | 50.32 Tbit/s | 25.16 Tbit/s | 12.58 Tbit/s | 7.08 Tbit/s | 1.08 Tbit/s |
| Forwarding Performance | 11,520 Mpps | 5760 Mpps | 5760 Mpps | 2880 Mpps | 360 Mpps |
| Number of Slots | 22 slots, including 16 BSU/MSU, 2 MPUs, and 4 SFUs | 12 slots, including 8 BSU/MSU, 2 SRUs, and 2 SFUs | 22 slots, including 16 BSU/MSU, 2 MPUs, and 4 SFUs | 11 slots, including 8 BSU/MSU, 2 SRUs, and 1 SFU | 5 slots, including 3 BSU/MSU and 2 MPUs |
| Dimensions | 1778 x 442 x 650 mm (40 U) | 934 x 442 x 650 mm (21 U) | 1420 x 442 x 650 mm (32 U) | 620 x 442 x 650 mm (14 U) | 175 x 442 x 650 mm (DC 4 U) |
| (H x W x D) | 220 x 442 x 650 mm (AC 5 U) | ||||
| Maximum Power Consumption | 7220 W (BSUF-240) | 4110 W (BSUF-240) | 4610 W (BSUF-100) | 2340 W (BSUF-100) | 920 W (BSUF-100) |
| 9040 W (BSUF-480) | 4770 W (BSUF-480) | 6210 W (BSUF-240) | 3220 W (BSUF-240) | ||
| Full Configuration Weight | 356 kg | 190 kg | 279 kg | 136 kg | DC: 42 kg (100G) |
| AC: 52 kg (100G) | |||||
| Interface Types | 100 GE-WAN/LAN 10 GE-WAN/LAN GE/FE |
||||
| BRAS | User access protocols: PPPoE, IPoE, 802.1X, and ND access. User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS. User billing protocols: RADIUS, HWTACACS, and COPS. User authorization protocols: RADIUS, HWTACACS, COPS, and COA. |
||||
| QoS | Provides a well-designed HQoS mechanism. Provides advanced scheduling and congestion avoidance technologies, accurate traffic policing and shaping, and complex rule definition and fine-grained flow identification. Supports MPLS HQoS and ensures QoS for MPLS VPN, VLL, and PWE3 services. Supports DiffServ- and MPLS TE-based DS-TE, eight class types (CTs), and TE-tunnel-based QoS. Supports a maximum of 768K flow queues per slot. |
||||
| Value-Added Services | Supports Destination Address Accounting (DAA), which helps carriers identify services based on destination network segments and perform separate accounting for different services on IP carrier networks. Supports Enhanced Dynamic Service Gateway (EDSG), which identifies various user services based on traffic destination addresses and implements independent rate limit, accounting, and management for each service. |
||||
