Huawei NE40E-X3 Subrack including Dual AC/DC Power Options

Huawei NE40E series are high-end Ethernet network products that are developed based on the VRP routing platform and focus on the access, aggregation, and transmission of metro Ethernet services.

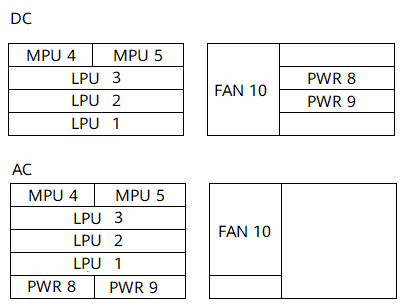

Slot Layout of the NE40E-X3

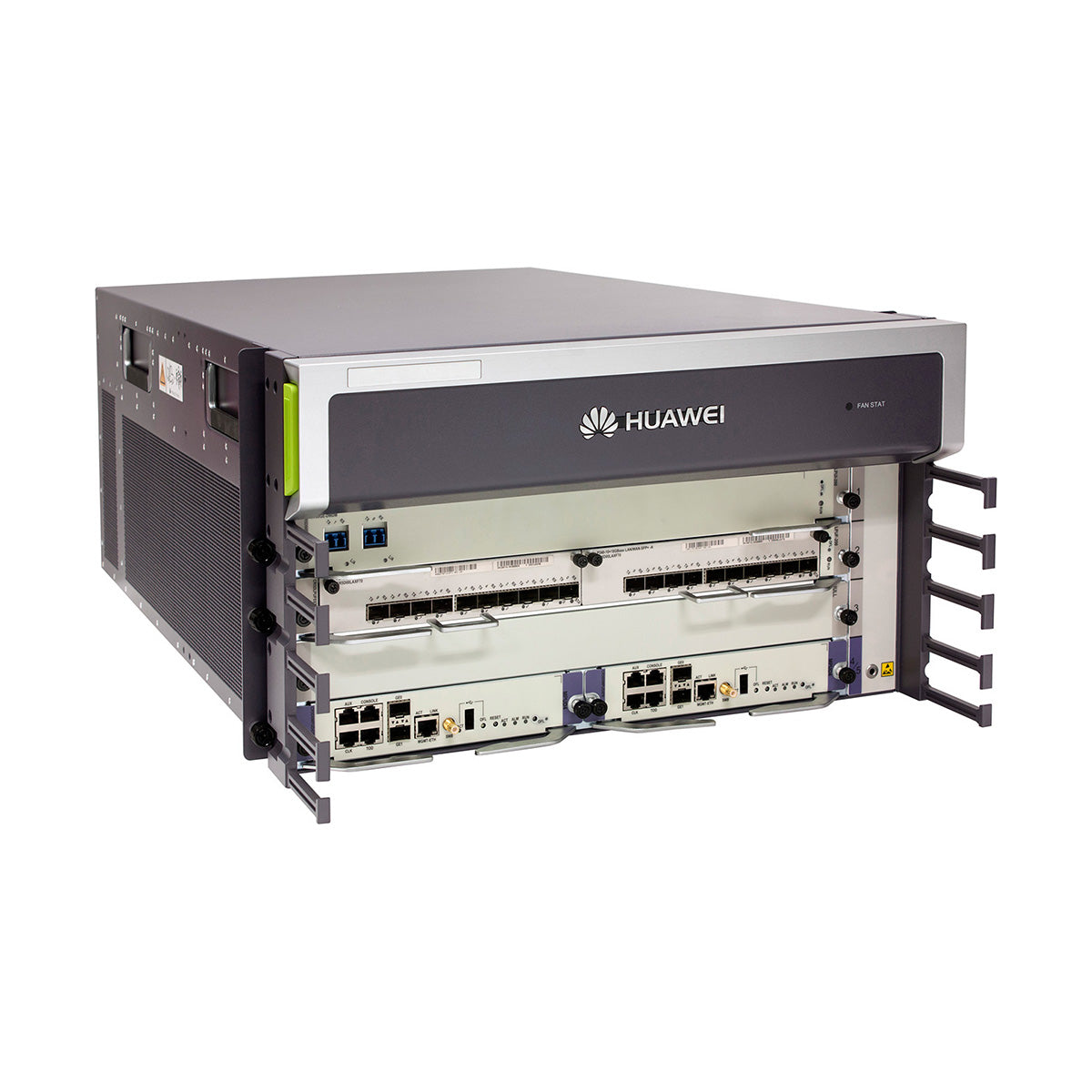

Specifications of the CR52-BKPE-4U-DC_NE40E-X3 Integrated DC Chassis(4 U)

Item Specification
Cabinet installation standards Can be installed in a standard 19" 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default.
Dimensions without packaging (H x W x D) [mm(in.)] 175 mm x 442 mm x 650 mm (6.89 in. x 17.40 in. x 25.59 in.)
Chassis height [U] 4 U
Weight without packaging [kg(lb)] 15 kg (33.07 lb)
Weight without packaging (full configuration) [kg(lb)] 42 kg (92.59 lb)
Typical power consumption (with configuration) [W] 800 W (fully configured with LPUF-51s)
920 W (fully configured with LPUF-120s)
1239 W (fully configured with LPUF-241s)
Typical heat dissipation (with configuration) [BTU/hour] 2595.5 BTU/hour (fully configured with LPUF-51s)
2984.9 BTU/hour (fully configured with LPUF-120s)
4019.8 BTU/hour (fully configured with LPUF-241s)
MTBF [year] 27.44 year
MTTR [hour] 0.5 hour
Availability 0.99999792
Power supply mode DC built-in
Maximum number of power chassis inputs (1 channel/PEM)*2 PEM=2 channels
Rated input voltage [V] –48 V/ –60 V
Input voltage range [V] –38.4 V to –72 V
Maximum input current [A] 42 A/single-module
Maximum input cable size [mm²] 25 mm²
Front-end circuit breaker/fuse [A] 50 A
Noise at normal temperature (acoustic power) [dB(A)] ETSI-compliance (
Number of slots 5
Number of service board slots 3
Switching capacity 1.08 Tbit/s
Redundant MPUs 1:01
Redundant power supply 1+1
Redundant fans Support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)] -5°C to 55°C (23°F to 131°F)
Restriction on the operating temperature variation rate [°C(°F)] ≤ 0.5°C/min (32.9°F/min), non-condensing
Storage temperature [°C(°F)] -40°C to 70°C (-40°F to 158°F)
Long-term operating relative humidity [RH] 5% RH to 85% RH, non-condensing
Short-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] ≤ 4000 m (13123.36 ft.) (From 1800 m to 4000 m [5905.51 ft. to 13123.36 ft.], the operating temperature of the device decreases by 1°C [1.8°F] for every 220 m [721.78 ft.] increase in altitude.)

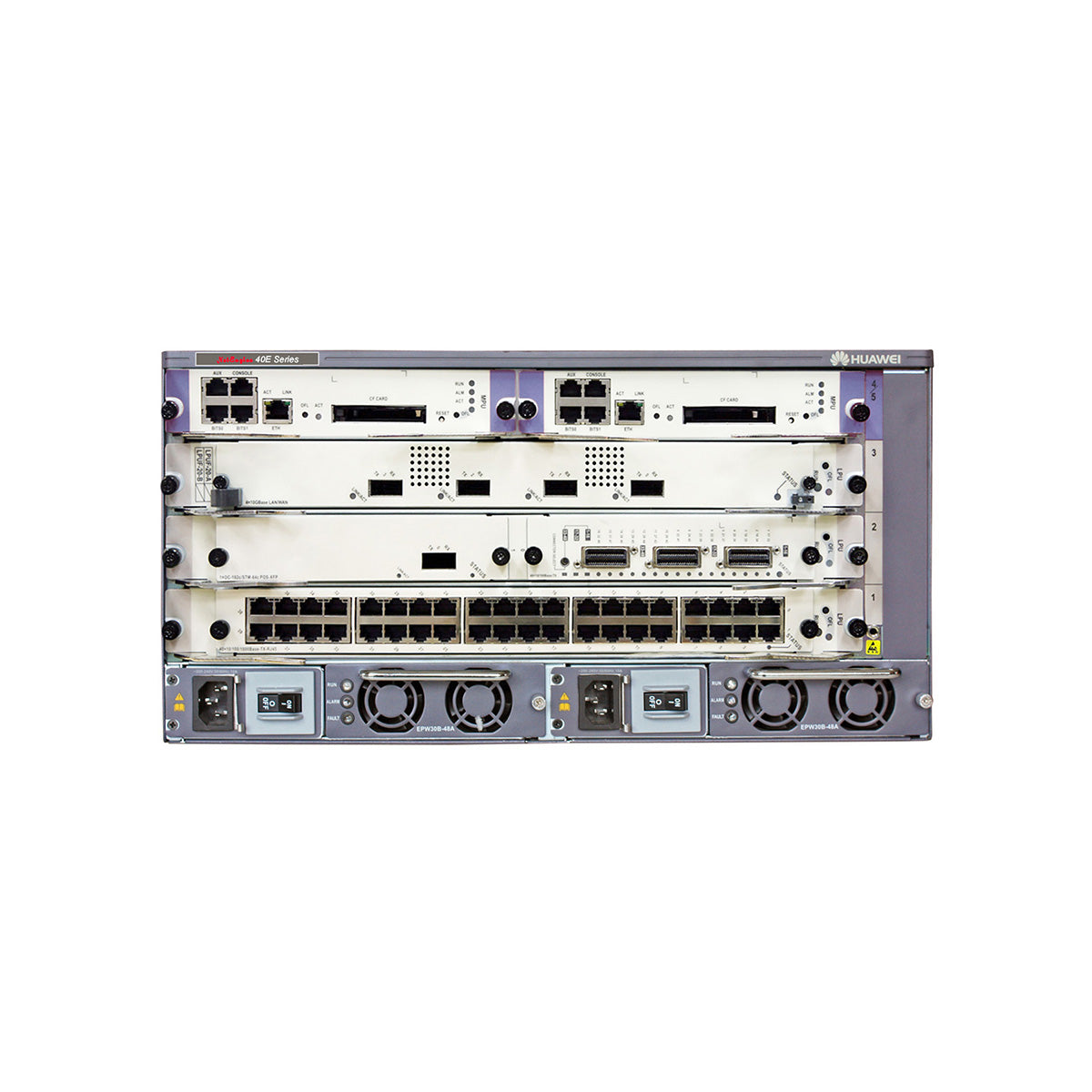

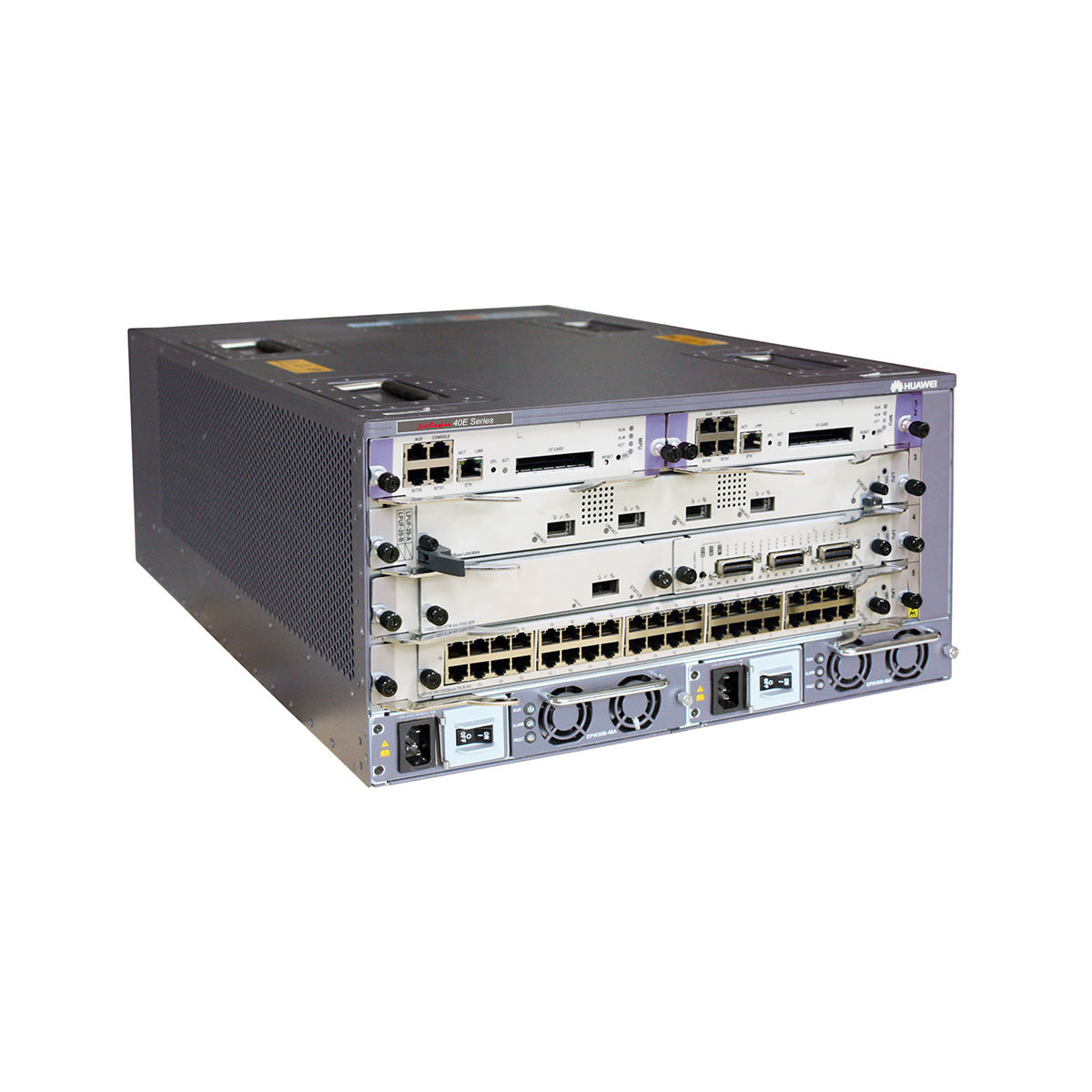

Specifications of the CR5B0BKP0370_NE40E-X3 Integrated AC Chassis (5 U)



Item Specification
Cabinet installation standards Can be installed in a standard 19" 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default.
Dimensions without packaging (H x W x D) [mm(in.)] 220 mm x 442 mm x 650 mm (8.66 in. x 17.40 in. x 25.59 in.)
Chassis height [U] 5 U
Weight without packaging [kg(lb)] 25 kg (55.12 lb)
Weight without packaging (full configuration) [kg(lb)] 52 kg (114.64 lb)
Typical power consumption (with configuration) [W] 950 W (fully configured with LPUF-51s)
1070 W (fully configured with LPUF-120s)
1386 W (fully configured with LPUF-241s)
Typical heat dissipation (with configuration) [BTU/hour] 3082.2 BTU/hour (fully configured with LPUF-51s)
3471.5 BTU/hour (fully configured with LPUF-120s)
4496.8 BTU/hour (fully configured with LPUF-241s)
MTBF [year] 27.44 year
MTTR [hour] 0.5 hour
Availability 0.99999792
Power supply mode AC built-in
Maximum number of power chassis inputs (1 channel/PEM)*2 PEM=2 channels
Rated input voltage [V] 200 V to 240 V
Input voltage range [V] 180 V to 264 V
Maximum input current [A] 12A/single-module
Maximum input cable size [mm²] Standard C19 cable
Front-end circuit breaker/fuse [A] 16 A
Noise at normal temperature (acoustic power) [dB(A)] ETSI-compliance (
Number of slots 5
Number of service board slots 3
Switching capacity 1.08 Tbit/s
Redundant MPUs 1:01
Redundant power supply 1+1
Redundant fans Support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)] -5°C to 55°C (23°F to 131°F)
Restriction on the operating temperature variation rate [°C(°F)] ≤ 0.5°C/min (32.9°F/min), non-condensing
Storage temperature [°C(°F)] -40°C to 70°C (-40°F to 158°F)
Long-term operating relative humidity [RH] 5% RH to 85% RH, non-condensing
Short-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] ≤ 4000 m (13123.36 ft.) (From 1800 m to 4000 m [5905.51 ft. to 13123.36 ft.], the operating temperature of the device decreases by 1°C [1.8°F] for every 220 m [721.78 ft.] increase in altitude.)
Storage altitude [m(ft.)]
