Huawei ME60-X8 Subrack with 11 slots, including 8 BSUs/MSUs, 2 SRUs, and 1 SFU, 4 DC Power
Huawei ME60-X8 is Huawei ME60 Series BRAS Router as a range of multiple-service control gateways — a type of Broadband Remote Access Server (BRAS). Based on a 2T platform, Huawei ME60 Series router boasts the industry’s largest-capacity routing line card (480G) plus a large-capacity NAT service line card (160G), enabling smooth evolution from IPv4 to IPv6, with the following compelling features:
- Large Capacity
Developed based on a 2T platform, with the industry’s largest capacity routing line cards (480G) plus large capacity Network Address Translation (NAT) service line cards (160G).
- High Reliability
Stable operation of services is guaranteed with device-, network-, and service-level reliability and innovative multiple-device hot backups.
- Full-Service Access
Unified platform for user access and management with full support for various access services, including IPoX, PPPoX, 802.1x, and web authentication.
Basic information about the ME60-X8
| Description | Part Number | Model |
| ME60-X8 Integrated Chassis Components (Including 4 DC Power) | 02352021 | ME0B0BKP0830 |

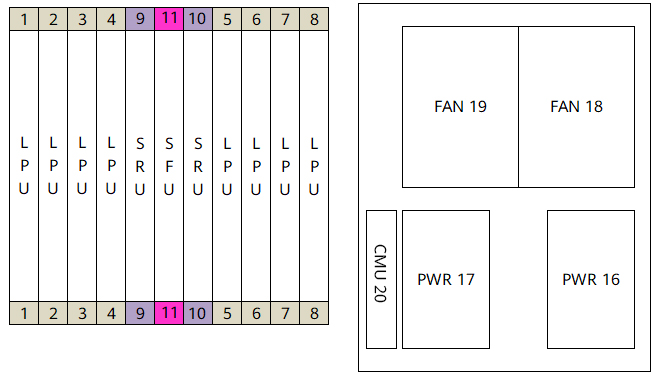

Slot Layout of Huawei ME60-X8
Technical specifications of Huawei ME60-X8
| Item | Specification |
| Cabinet installation standards | Can be installed in a standard 19" 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default. |
| Dimensions without packaging (H x W x D) [mm(in.)] | 620 mm x 442 mm x 650 mm (24.41 in. x 17.40 in. x 25.59 in.) (chassis body) |
| 620 mm x 442 mm x 770 mm (24.41 in. x 17.40 in. x 30.31 in.) (chassis body together with cable trays and front and rear attachments) | |
| Chassis height [U] | 14U |
| Weight without packaging [kg(lb)] | 43.2 kg (95.24 lb) |
| Weight without packaging (full configuration) [kg(lb)] | 136 kg (299.88 lb) |
| Typical power consumption (with configuration) [W] | 3220 W (fully configured with BSUF-240s) |
| Typical heat dissipation (with configuration) [BTU/hour] | 10447 BTU/hour (fully configured with BSUF-240s) |
| MTBF [year] | 33.89 year |
| MTTR [hour] | 0.5 hour |
| Availability | 0.999998316 |
| Power supply mode | DC |
| Maximum number of power chassis inputs | (1 channel/PEM)*4 PEM=4 channels |
| Rated input voltage [V] | –48 V/ –60 V |
| Input voltage range [V] | –38.4 V to –72 V |
| Maximum input current [A] | 70 A/module |
| Maximum input cable size [mm²] | 35 mm²/channel |
| Front-end circuit breaker/fuse [A] | 70 A |
| Airflow direction | Front-to-back airflow. |
| Noise at normal temperature (acoustic power) [dB(A)] | NEBS-compliance ( |
| Number of slots | 11 |
| Number of service board slots | 8 |
| Switching capacity | 7.08 Tbit/s(BSUF-240) |
| Redundant MPUs | 1:01 |
| Redundant Switch fabrics | 2+1 |
| Redundant power supply | 2+2 |
| Redundant fans | 2 assemblies |
| Support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F) | |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) |
| Short-term operating temperature [°C(°F)] | –5°C to +55°C (23°F to 131°F) |
| Restriction on the operating temperature variation rate [°C(°F)] | ≤ 0.5°C/min (32.9°F/min), non-condensing |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158 °F) |
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, non-condensing |
| Short-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | ≤ 4000 m (13123.36 ft.) (From 1800 m to 4000 m [5905.51 ft. to 13123.36 ft.], the operating temperature of the device decreases by 1°C [1.8°F] for every 220 m [721.78 ft.] increase in altitude.) |
| Storage altitude [m(ft.)] |
Huawei ME60 Series Router Specifications
| Parameters | ME60-X16A | ME60-X8A | ME60-X16 | ME60-X8 | ME60-X3 |
| Switching Capacity | 50.32 Tbit/s | 25.16 Tbit/s | 12.58 Tbit/s | 7.08 Tbit/s | 1.08 Tbit/s |
| Forwarding Performance | 11,520 Mpps | 5760 Mpps | 5760 Mpps | 2880 Mpps | 360 Mpps |
| Number of Slots | 22 slots, including 16 BSUs/MSUs, 2 MPUs, and 4 SFUs | 12 slots, including 8 BSUs/MSUs, 2 SRUs, and 2 SFUs | 22 slots, including 16 BSUs/MSUs, 2 MPUs, and 4 SFUs | 11 slots, including 8 BSUs/MSUs, 2 SRUs, and 1 SFU | 5 slots, including 3 BSUs/MSUs and 2 MPUs |
| Dimensions | 1778 x 442 x 650 mm (40 U) | 934 x 442 x 650 mm (21 U) | 1420 x 442 x 650 mm (32 U) | 620 x 442 x 650 mm (14 U) | 175 x 442 x 650 mm (DC 4 U) |
| (H x W x D) | 220 x 442 x 650 mm (AC 5 U) | ||||
| Maximum Power Consumption | 7220 W (BSUF-240) | 4110 W (BSUF-240) | 4610 W (BSUF-100) | 2340 W (BSUF-100) | 920 W (BSUF-100) |
| 9040 W (BSUF-480) | 4770 W (BSUF-480) | 6210 W (BSUF-240) | 3220 W (BSUF-240) | ||
| Full Configuration Weight | 356 kg | 190 kg | 279 kg | 136 kg | DC: 42 kg (100G) |
| AC: 52 kg (100G) | |||||
| Interface Types | 100 GE-WAN/LAN 10 GE-WAN/LAN GE/FE |
||||
| BRAS | User access protocols: PPPoE, IPoE, 802.1X, and ND access. User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS. User billing protocols: RADIUS, HWTACACS, and COPS. User authorization protocols: RADIUS, HWTACACS, COPS, and COA. |
||||
