Huawei HG8310M ONT

  • Failure rate<0.2%
  • OEM Supported
  • Firmware Customized
  • Supports OMCI
Available:In Stock
$0.00

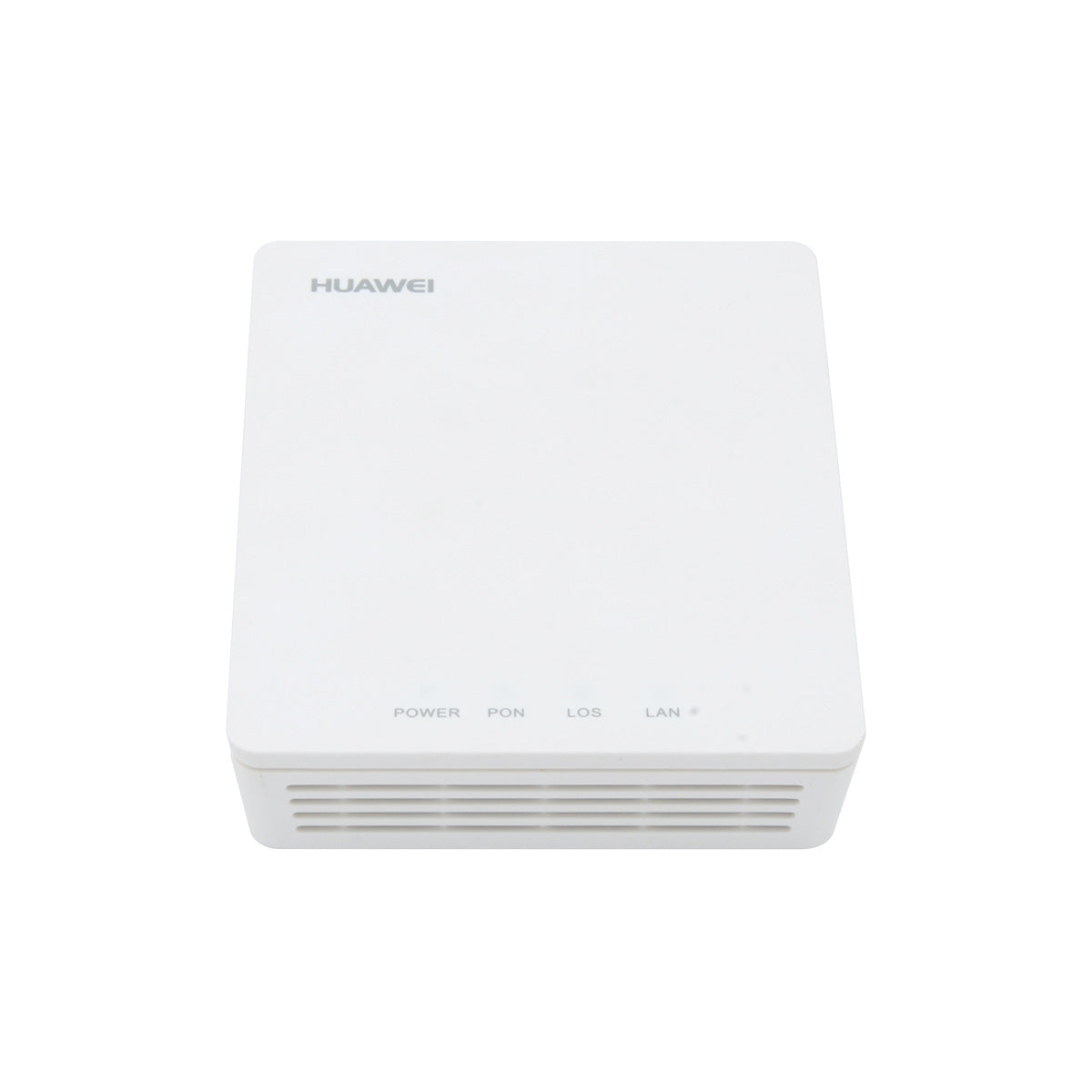

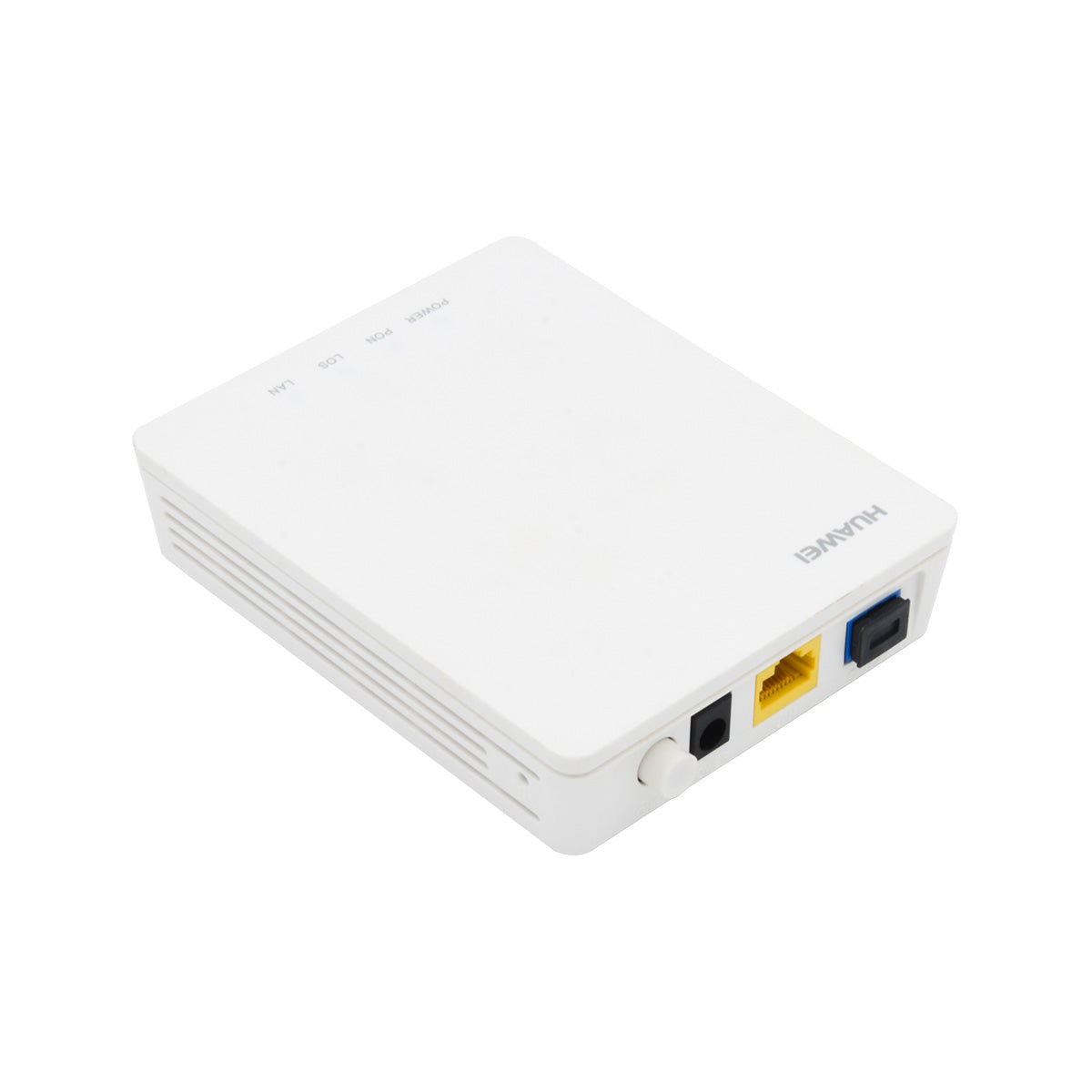

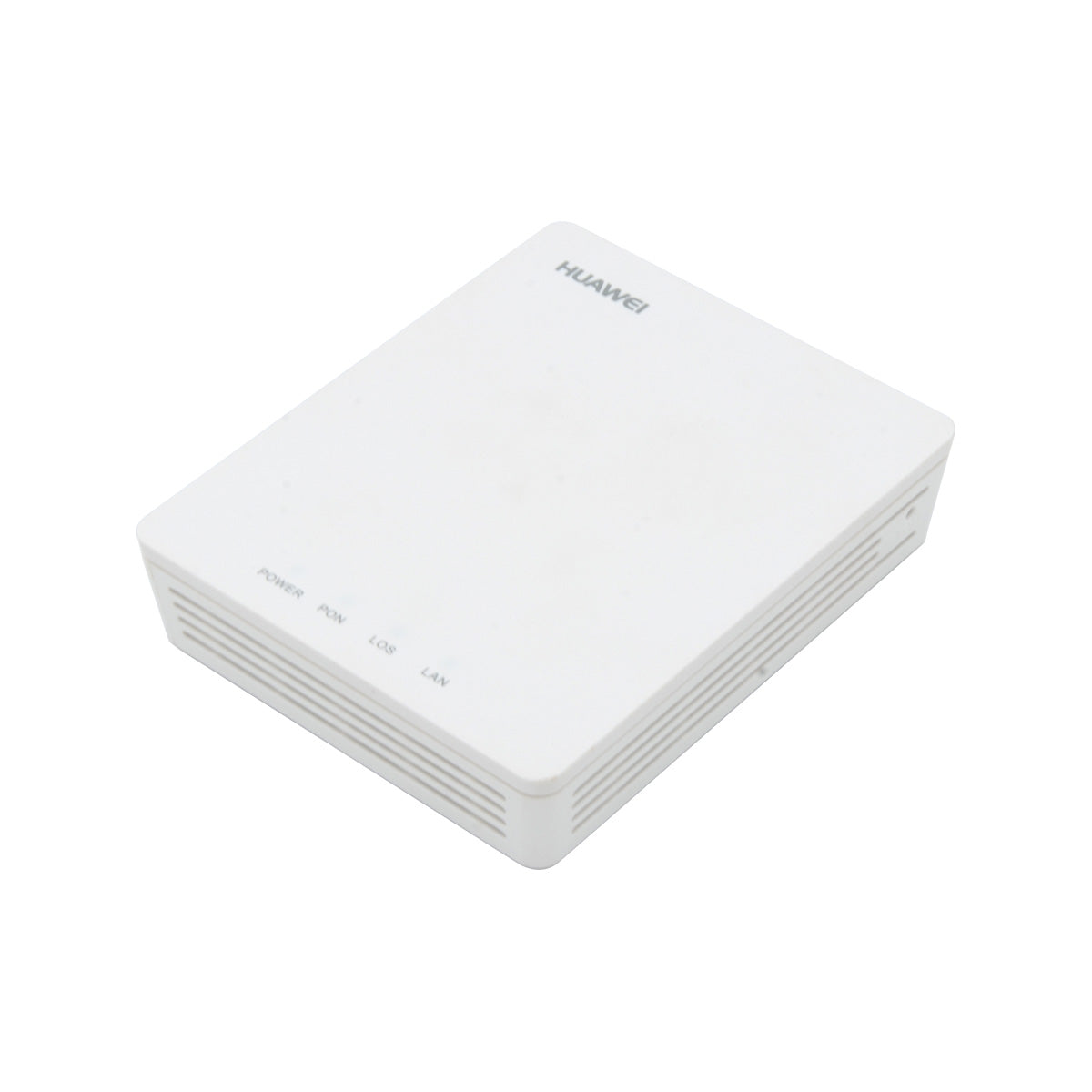

Huawei HG8310M, an intelligent bridging-type ONT

Provides 1GE, with versions of R13 and R15, R13 HG8310M is bigger size than R15

Optical connector SC/UPC

dual-systemsoftware backupand rollback, 802.1ag Ethernet OAM

IGMP/MLDprotocol packet ratelimitation

VLAN tagtranslation, transparent transmission, removal for downstream multicast packets


Specification
Working environment Operating temperature: 0ºC to 40ºC
Environment humidity: 5% to 95% (noncondensing)
Pressure environment: 0 to 106 kPa
Power consumption

Static power:

R13 version: 3W

R15 version: 2W

Maximum power consumption:

R13 version: 3.5W

R15 version: 2.5W

Power specifications Power adapter input: 100 to 240 V AC, 50–60 Hz
System power supply: 11–14 VDC, 0.5 A
Dimensions
(length x width x height)

R13 version: 115 mm x 94 mm x 27 mm

R15 version: 82 mm x 90 mm x 27 mm

Weight < 0.5 Kg

Huawei HG8310M, an intelligent bridging-type ONT

Provides 1GE, with versions of R13 and R15, R13 HG8310M is bigger size than R15

Optical connector SC/UPC

dual-systemsoftware backupand rollback, 802.1ag Ethernet OAM

IGMP/MLDprotocol packet ratelimitation

VLAN tagtranslation, transparent transmission, removal for downstream multicast packets


Specification
Working environment Operating temperature: 0ºC to 40ºC
Environment humidity: 5% to 95% (noncondensing)
Pressure environment: 0 to 106 kPa
Power consumption

Static power:

R13 version: 3W

R15 version: 2W

Maximum power consumption:

R13 version: 3.5W

R15 version: 2.5W

Power specifications Power adapter input: 100 to 240 V AC, 50–60 Hz
System power supply: 11–14 VDC, 0.5 A
Dimensions
(length x width x height)

R13 version: 115 mm x 94 mm x 27 mm

R15 version: 82 mm x 90 mm x 27 mm

Weight < 0.5 Kg
