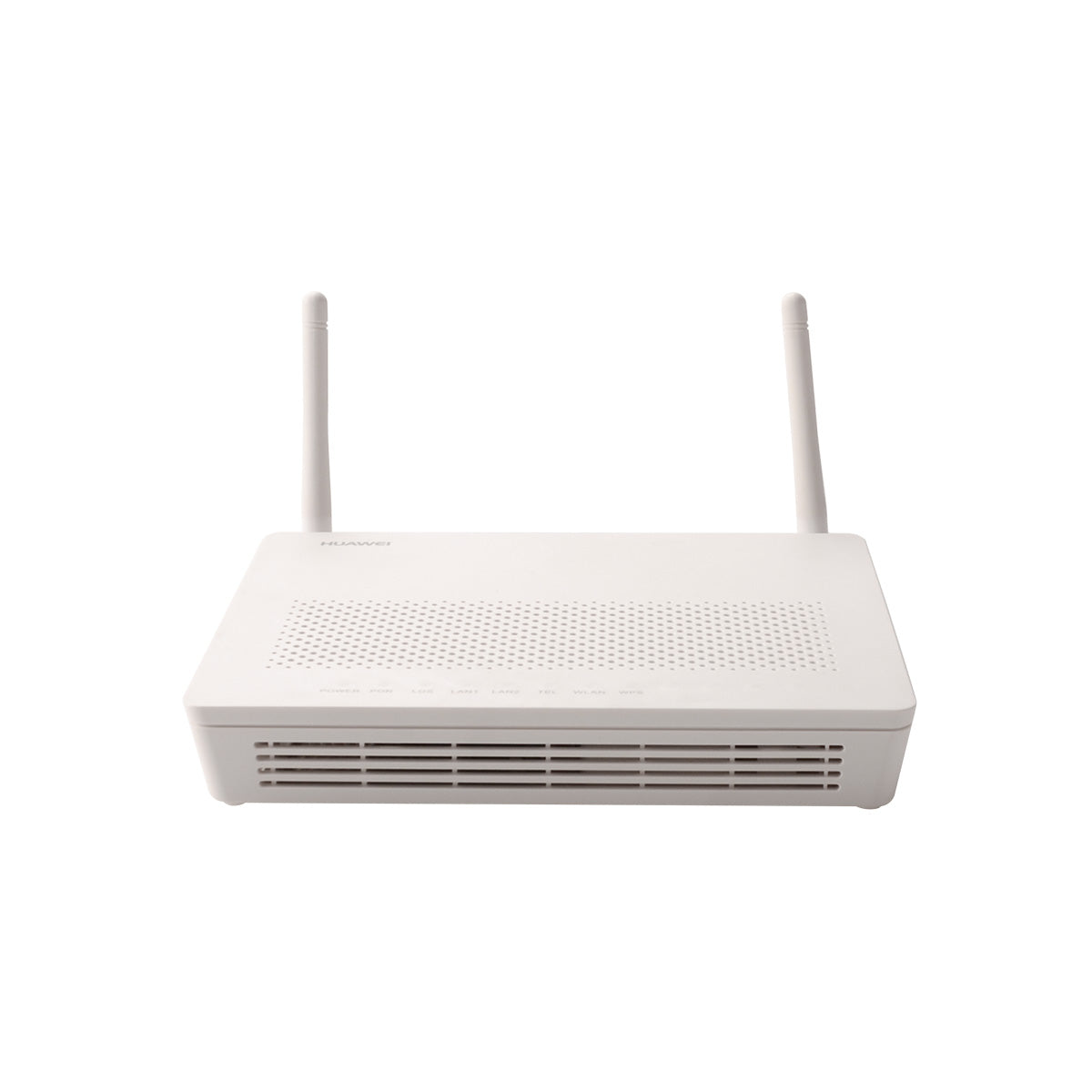

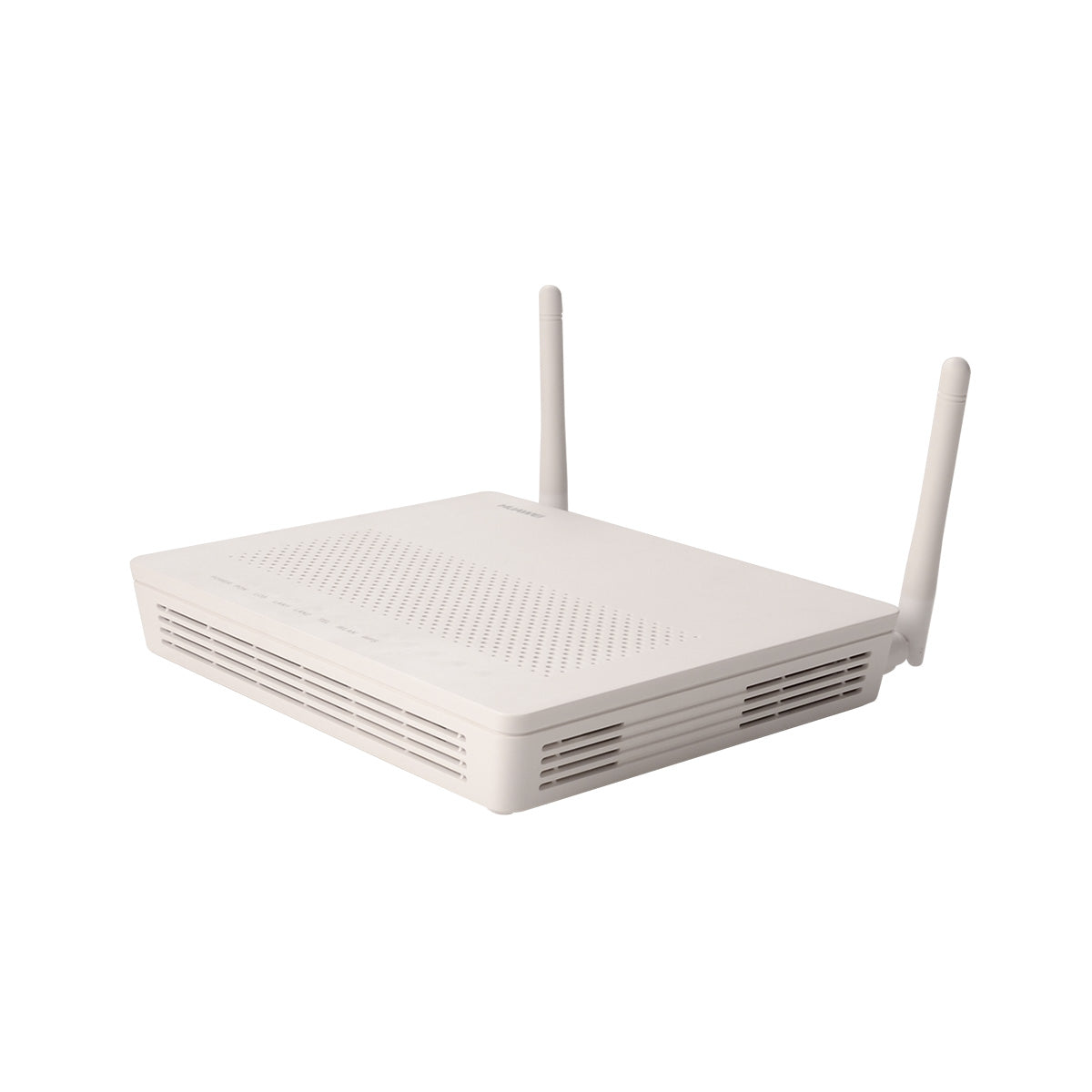

Huawei HG8326R, an intelligent routing-type ONT

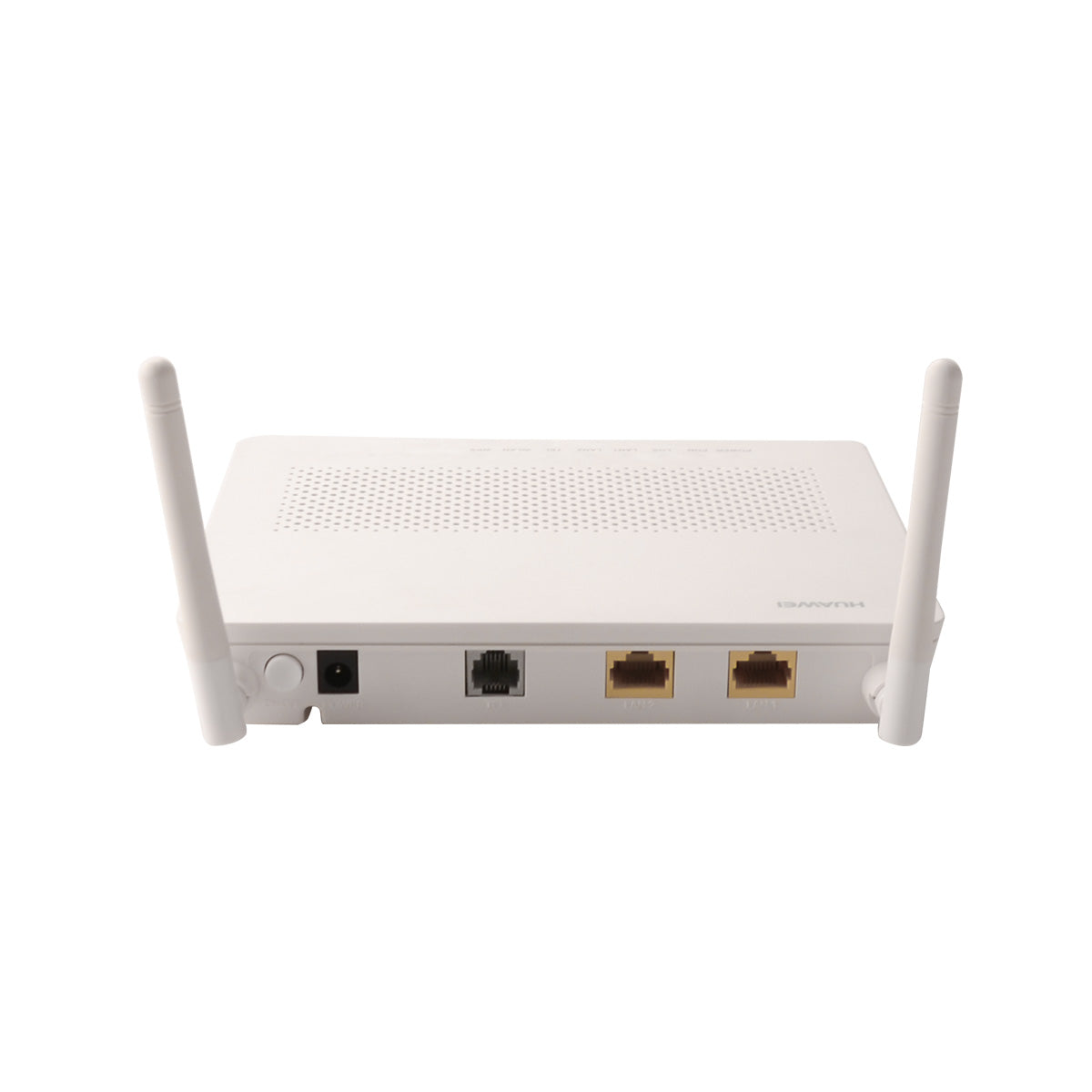

Provides 2FE, 2POTS, 2.4G WIFI
Smart Wi-Fi sharing: Portal/802.1x authentication, SoftGRE-based sharing
IGMP v2/v3 proxy/snooping, MLD v1/v2 snooping, Multicast services through Wi-Fi
Variable-length OMCI messages, Active/Passive rogue ONT detection and isolation, Call emulation, and circuit test and loop-line test, PPPoE/DHCP simulation testing, WLAN emulation
| Specification | |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Pressure environment: 0 to 106 kPa | |
| Altitude: 3000 m | |
| Power consumption | Static power: 7.45 W |
| Maximum power consumption: 12 W | |
| Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz |
| System power supply: 11–14 VDC, 1 A | |
| Weight | About 1 Kg |
