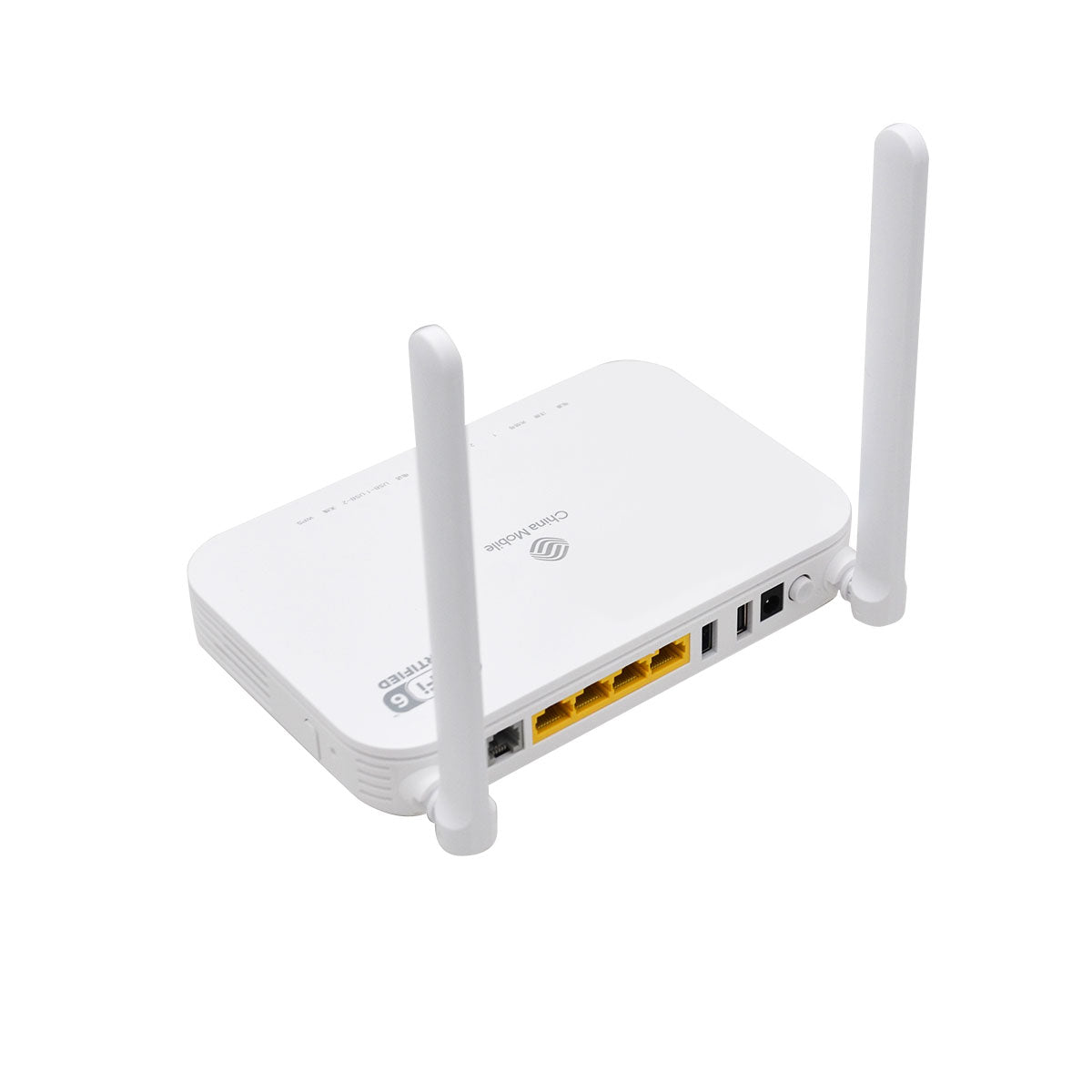

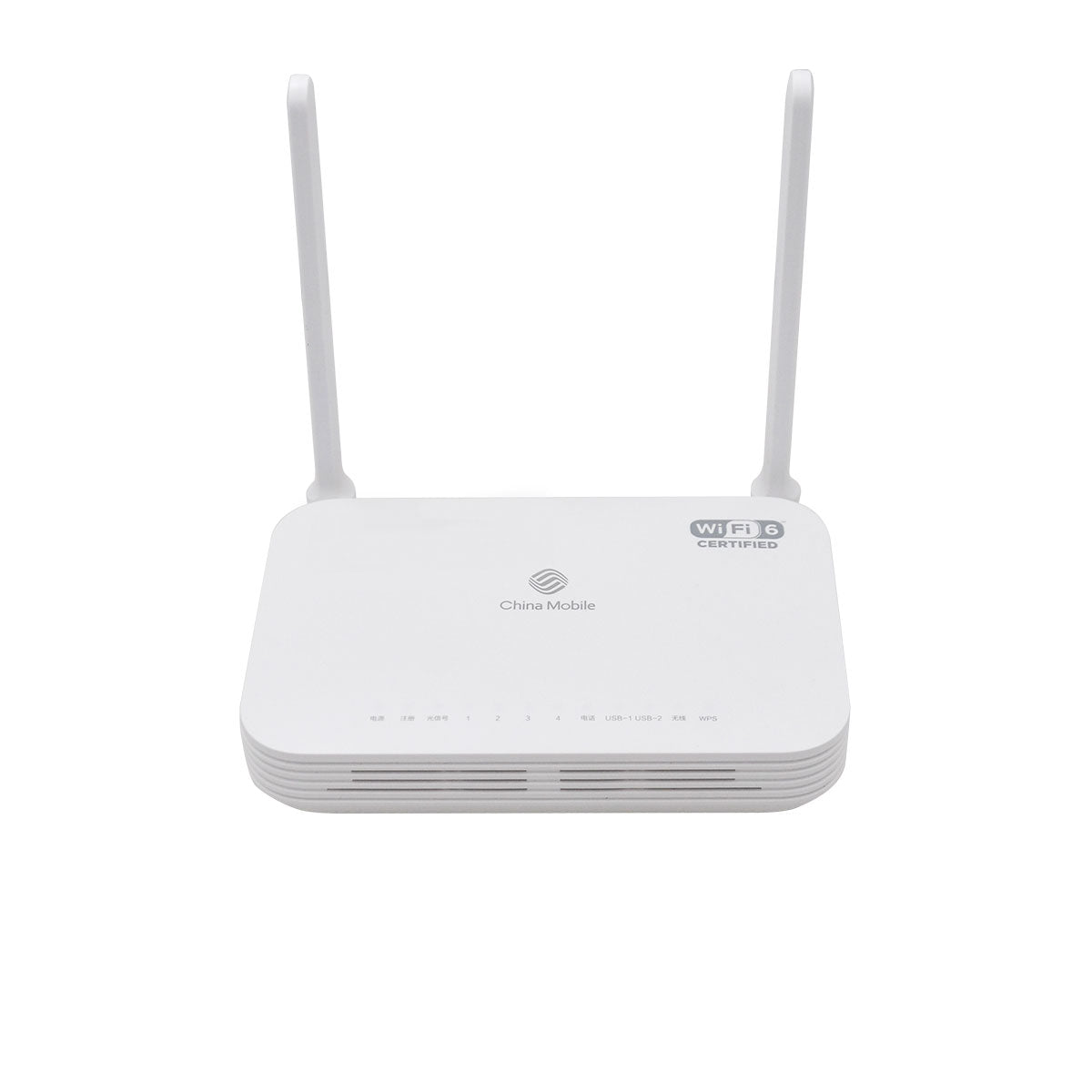

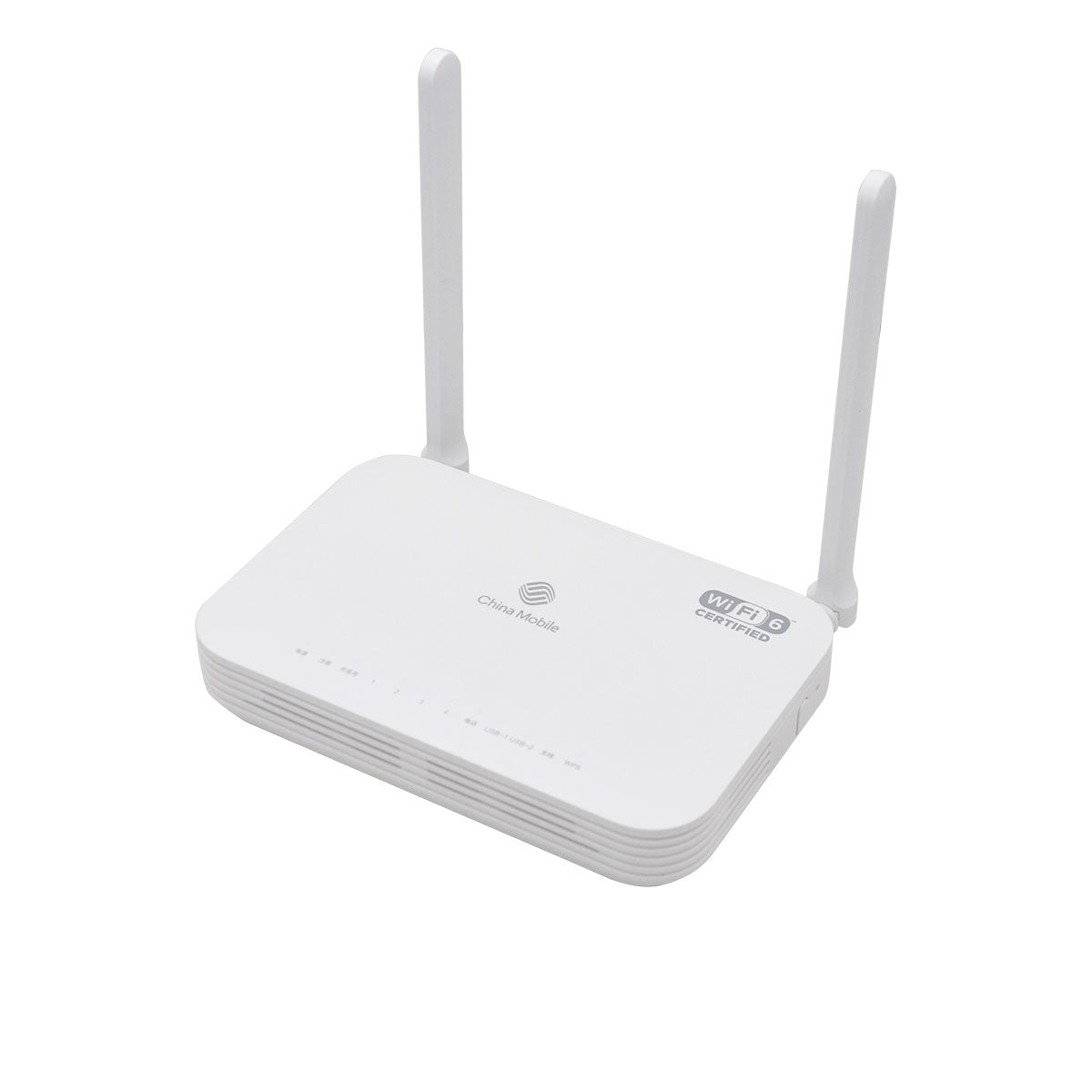

Huawei HN8546X6 ONT

The Huawei OptiXstar HN8546X6 is an XG-PON and Wi-Fi 6 routing-type ONT. It uses the XG-PON and Wi-Fi 6 technologys to implement ultra-broadband access, high performance and wide coverage for users. The user-side rate of a Huawei 10G PON ONT can reach up to 1000 Mbit/s, meeting requirements of home users on bandwidth-hungry services such as 4K/8K HD video, AR/VR, home cloud, and video calls. It can also provide private line access services of up to 10 Gbit/s.

It provides 4 GE ports, 1 POTS port, 2 USB port and 1 2.4G&5G Wi-Fi 6 port.
2.5 Gbit/s upstream, 10 Gbit/s downstream
Receiver sensitivity: -28 dBm
Wavelengths: US 1260-1280 nm, DS 1575-1580 nm
IEEE 802.11 b/g/n/ax (2.4G)
IEEE 802.11 a/n/ac/ax (5G)
2×2 MIMO (2.4G)
2×2 MIMO (5G)
Antenna gain: 5 dBi
OMCI/Web UI/TR069
Variable-length OMCI messages

Specification
UNI
Working environment	Operating temperature: 0ºC to 40ºC
	Environment humidity: 5% to 95% (noncondensing)
Max. power consumption	18 W
Power specifications	Power adapter input: 170 ～ 240 V AC，50/60 Hz
	System power supply: 11 ～14V DC, 1.5 A
WLAN	IEEE 802.11 b/g/n/ax(2.4G) IEEE 802.11 a/n/ac/ax(5G) 2×2 MIMO（2.4G&5G） Antenna gain: 5 dBi WMM/Multiple SSIDs/WPS Air interface rate: 574 Mbit/s (2.4G), 2402 Mbit/s (5G)
Network-side Port	XG-PON
User-side Ports	1 x POTS + 4 x GE + 2 x USB + 2.4G/5G 11ax Wi-Fi 6
Indicators	POWER/REG/PON/LAN 1-4/TEL/USB/WLAN/WPS
Dimensions (length x width x height)	40mm x 185mm x 120mm
Weight	About 400 g

Differences Between 10G GPON and GPON

HN8546X6 Similar Huawei 10G GPON ONTs
