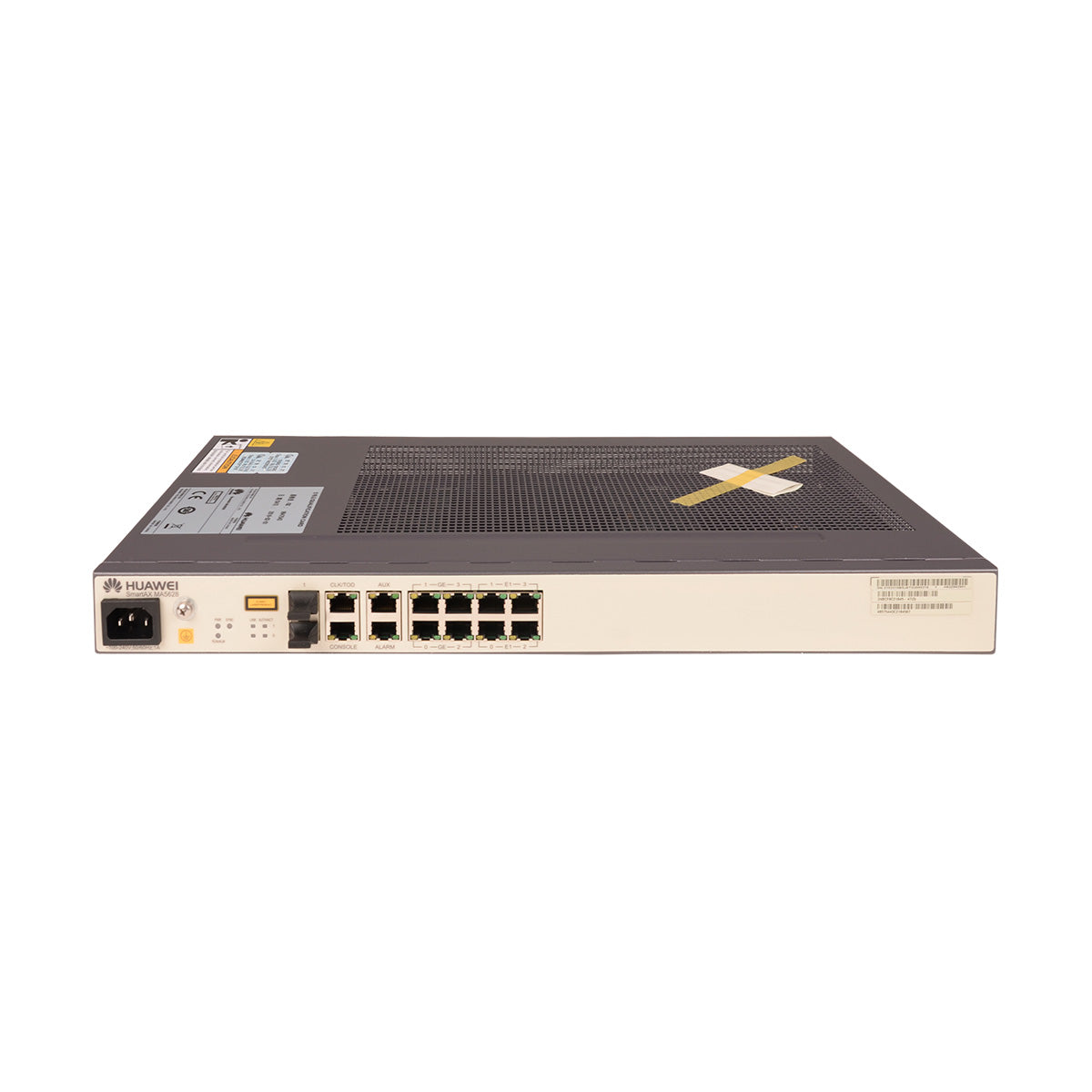

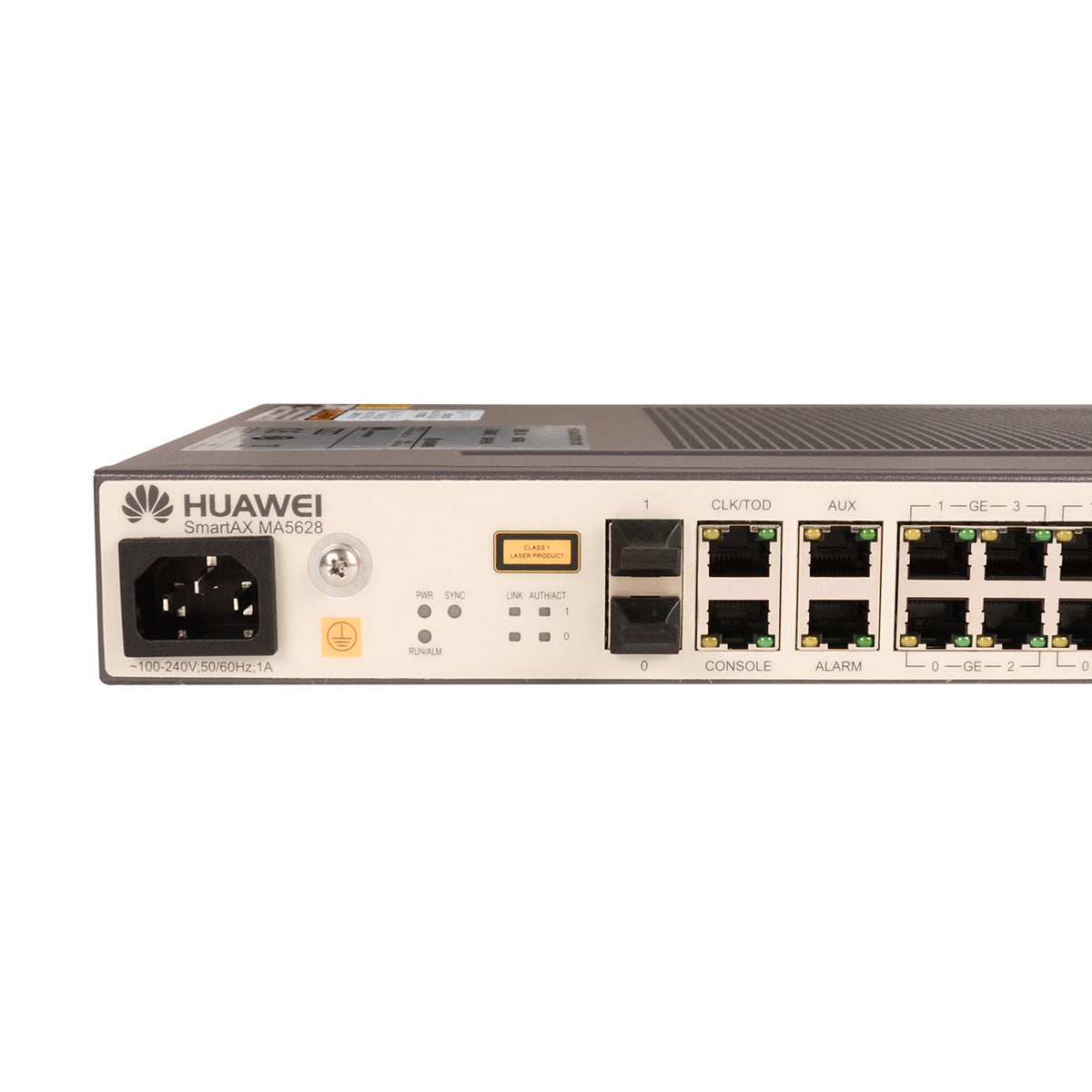

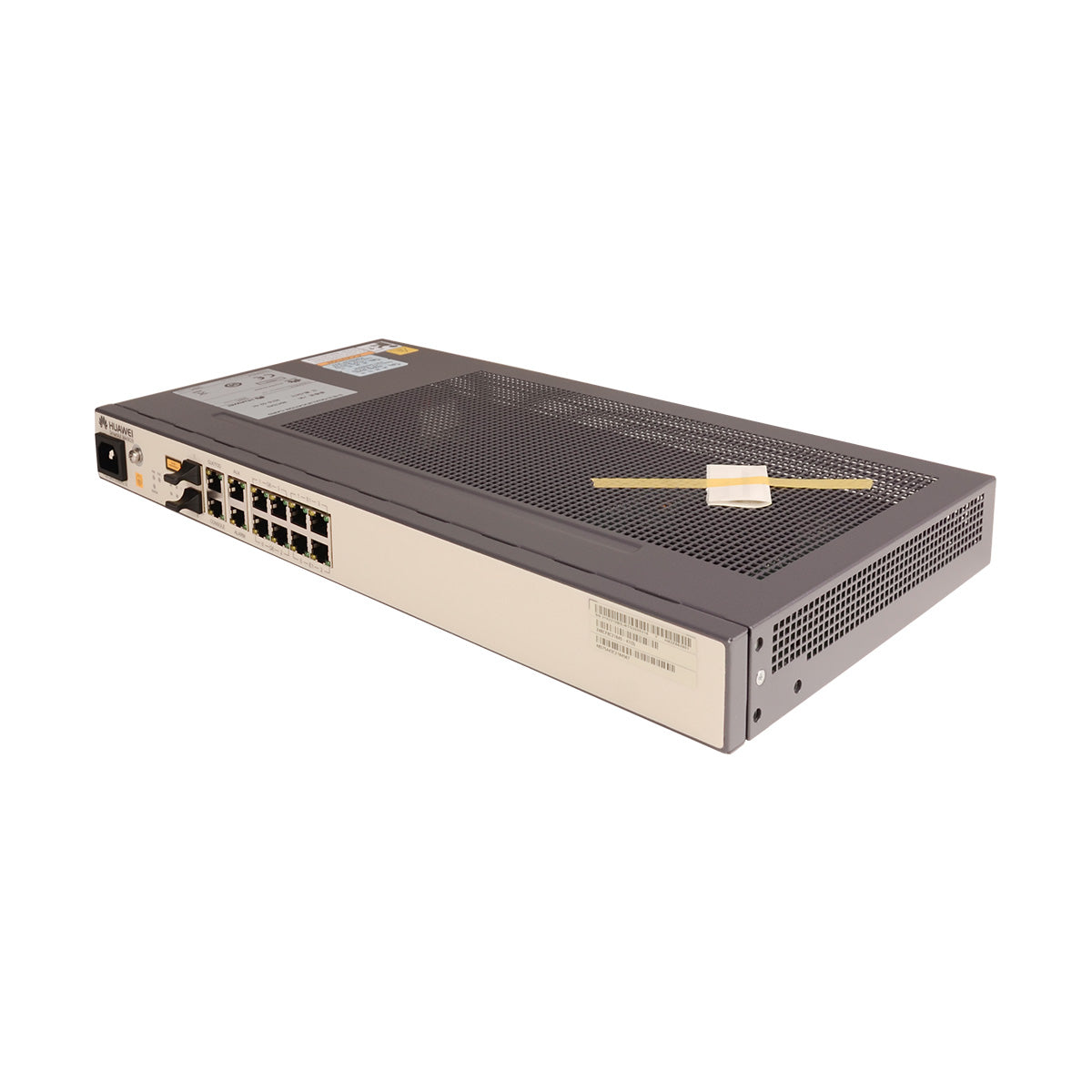

Huawei MA5628 is an industry-leading remote multi dwelling unit (MDU), which provides leased line services on a passive optical network (PON). MA5628 provides 2xGPON uplink ports, 4xGE/FE ports, and 4xE1 ports.
| Specification | |
| GPON | ITU G.984-compliance |
| 32 T-CONTs | |
| 1000 GEM ports | |
| Broadband | 4096 VLANs, supporting QinQ and stacking VLANs |
| 4096 MAC addresses, supporting VMAC | |
|
802.1p, supporting PQ and WRR flow control, and ACL |
|
| Leased line service | Native TDM |
| Clock source recovery of the E1 port | |
| Loopback, blocking and unblocking of the E1 port | |
| Multicast | IGMPv2 and IGMPv3 |
| IGMP proxy and IGMP snooping | |
|
A maximum of configurable 1024 multicast programs in the system A maximum of 48 multicast users A maximum of 16 concurrent multicast programs for each user |
|
| Security | PPPoE+ and DHCP option82 |
| Static and dynamic MAC address binding | |
|
Anti-MAC and anti-IP spoofing; source MAC address and IP address filtering |
|
| Anti-DoS attack and firewall | |
|
Maintenance and management |
SNMPv1, SNMPv2, and SNMPv3 |
| Telnet and SSHv2 | |
| Remote and batch pre-deployment | |
| Remote upgrade and monitoring | |
|
Dimensions (H×W×D) |
43.6mm×442mm×245mm |
|
Network-side port |
2×GPON |
| User-side port | 4×GE/FE (electrical) + 4×E1 |
|
Operating temperature |
-40°C to +55°C ; startup at -25°C |
| Humidity | 5% to 95% (non-condensing) |
|
Heat dissipation mode |
Not providing fans; passive cooling |
|
Lightning protection capability |
6 KV |
| Power supply | AC: 220V/110V |
| Weight | 1.5 kg |
Huawei MA5628 is an industry-leading remote multi dwelling unit (MDU), which provides leased line services on a passive optical network (PON). MA5628 provides 2xGPON uplink ports, 4xGE/FE ports, and 4xE1 ports.
| Specification | |
| GPON | ITU G.984-compliance |
| 32 T-CONTs | |
| 1000 GEM ports | |
| Broadband | 4096 VLANs, supporting QinQ and stacking VLANs |
| 4096 MAC addresses, supporting VMAC | |
|
802.1p, supporting PQ and WRR flow control, and ACL |
|
| Leased line service | Native TDM |
| Clock source recovery of the E1 port | |
| Loopback, blocking and unblocking of the E1 port | |
| Multicast | IGMPv2 and IGMPv3 |
| IGMP proxy and IGMP snooping | |
|
A maximum of configurable 1024 multicast programs in the system A maximum of 48 multicast users A maximum of 16 concurrent multicast programs for each user |
|
| Security | PPPoE+ and DHCP option82 |
| Static and dynamic MAC address binding | |
|
Anti-MAC and anti-IP spoofing; source MAC address and IP address filtering |
|
| Anti-DoS attack and firewall | |
|
Maintenance and management |
SNMPv1, SNMPv2, and SNMPv3 |
| Telnet and SSHv2 | |
| Remote and batch pre-deployment | |
| Remote upgrade and monitoring | |
|
Dimensions (H×W×D) |
43.6mm×442mm×245mm |
|
Network-side port |
2×GPON |
| User-side port | 4×GE/FE (electrical) + 4×E1 |
|
Operating temperature |
-40°C to +55°C ; startup at -25°C |
| Humidity | 5% to 95% (non-condensing) |
|
Heat dissipation mode |
Not providing fans; passive cooling |
|
Lightning protection capability |
6 KV |
| Power supply | AC: 220V/110V |
| Weight | 1.5 kg |
