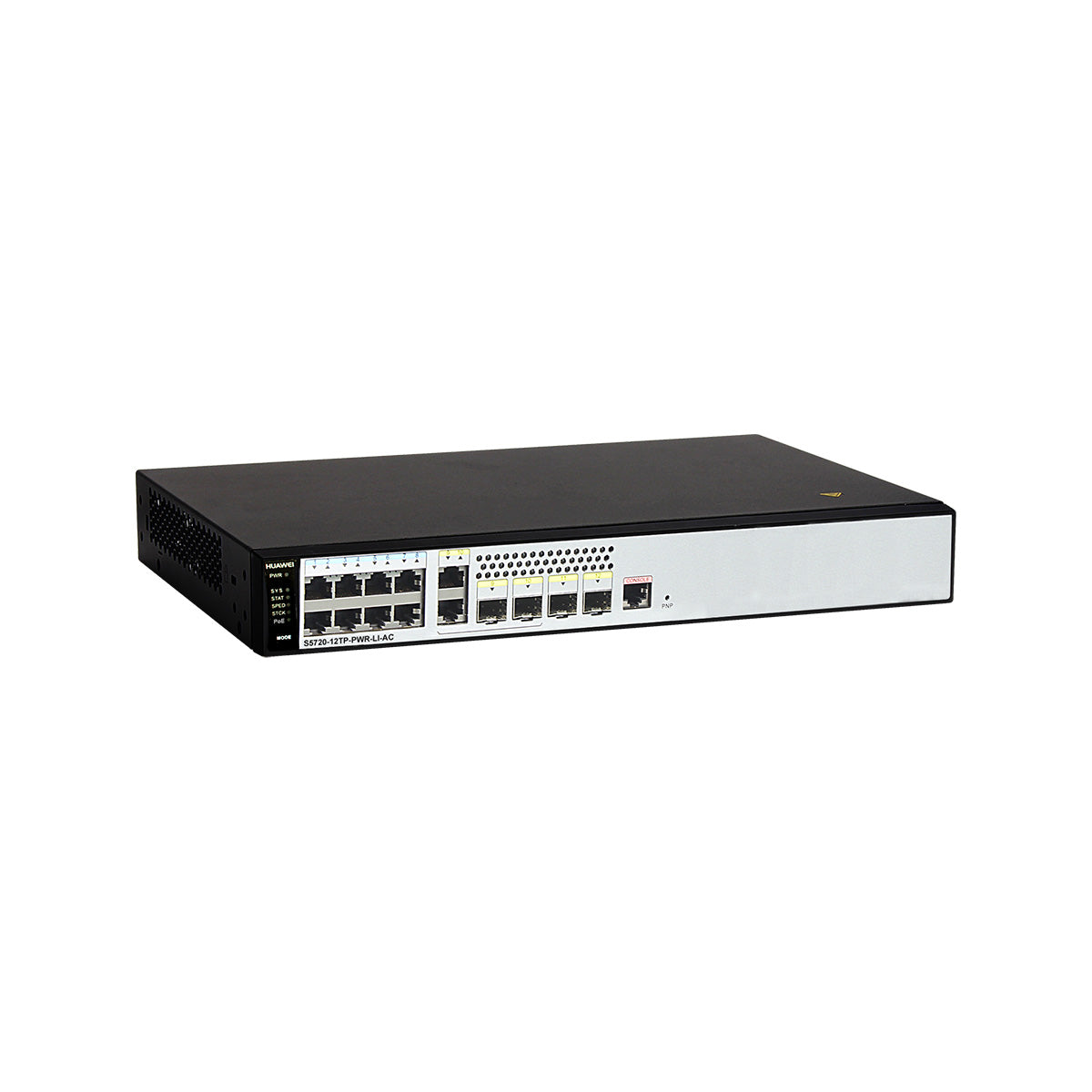

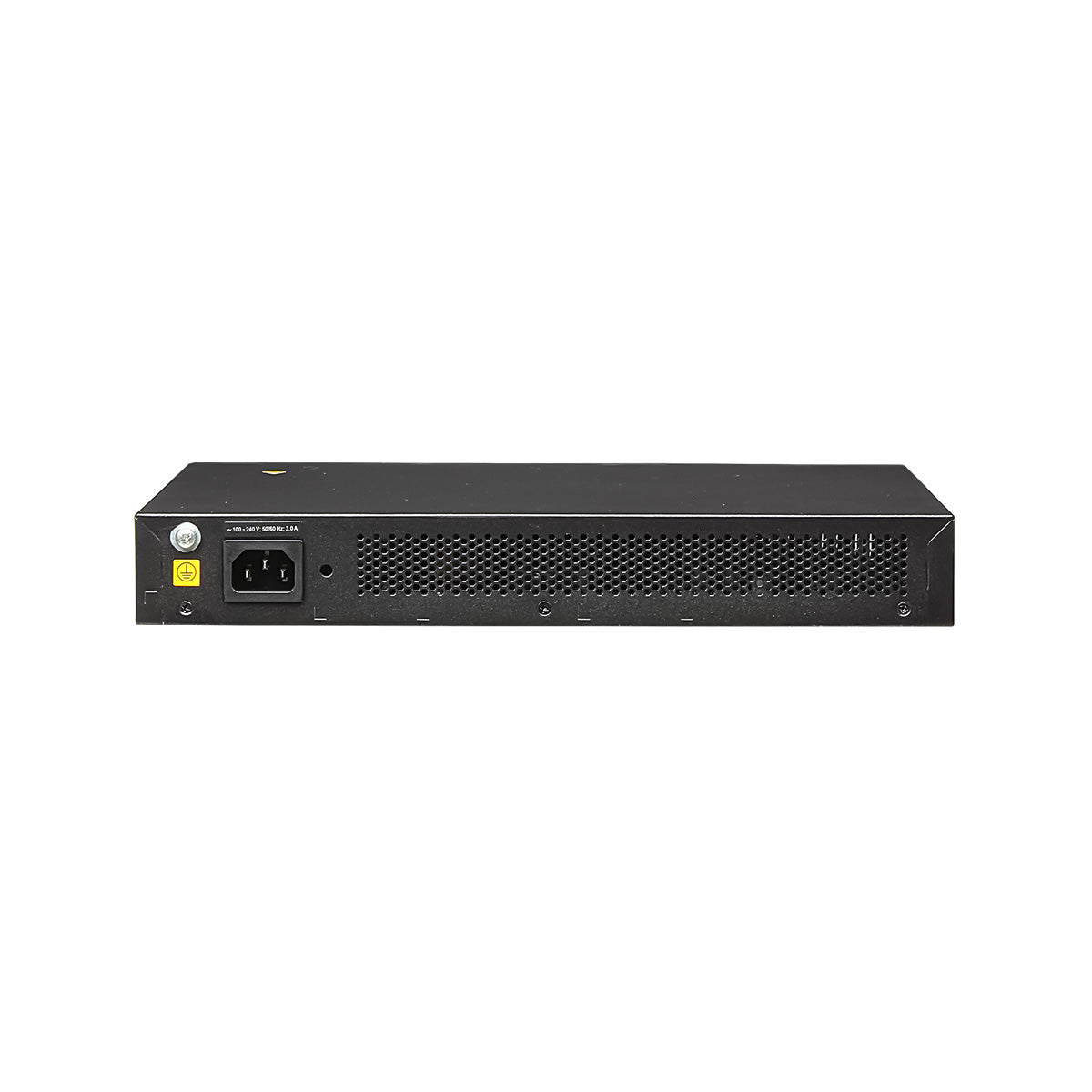

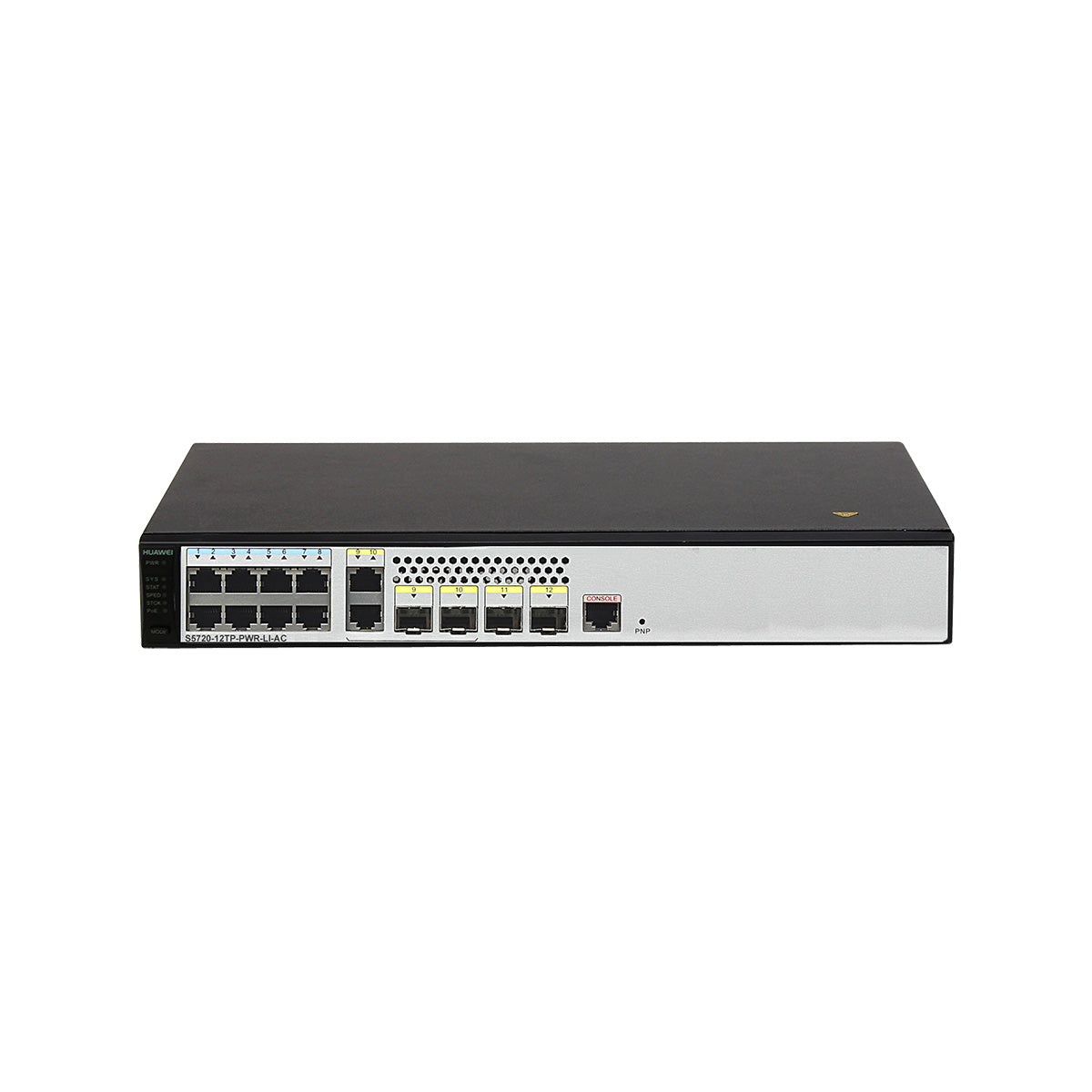

Huawei S5720-12TP-PWR-LI-AC switch with 8-port 1000BASE-T PoE+, 4-port GE SFP, 2-port 1000BASE-T combo, 1 AC power fixed
Forwarding performance: 27Mpps
Switching capacity: 336Gbps
16K MAC address entries
POE supported
The S5720-LI series are energy-saving gigabit Ethernet switches that provide flexible GE access ports and 10 GE uplink ports. Building on high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720-LI series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control.
| Specification | |
| Fixed port | 8 x Ethernet 10/100/1,000 Base-T ports, 4 x Gig SFP ports, 2 x combo 10/100/1,000 Base-T Ethernet ports |
| MAC address table | STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) |
| 16K MAC address entries | |
| MAC address learning and aging | |
| Static, dynamic, and blackhole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| VLAN | 4K VLANs |
| Guest VLAN and voice VLAN, GVRP, MUX VLAN | |
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | |
| 1:1 and N:1 VLAN Mapping | |
| Reliability | RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover | |
| SEP | |
| ERPS(G.8032）(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series) | |
| STP, RSTP, and MSTP | |
| BPDU protection, root protection, and loop protection | |
| IP routing | Static route, RIP, RIPng, and OSPF |
| IPv6 features | Neighbor Discovery (ND) |
| Path MTU (PMTU) | |
| IPv6 ping, IPv6 tracert, and IPv6 Telnet | |
| ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type | |
| MLD v1/v2 snooping | |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
| Multicast forwarding in a VLAN and multicast replication between VLANs | |
| Multicast load balancing among member ports of a trunk | |
| Controllable multicast | |
| Port-based multicast traffic statistics | |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Packet redirection | |
| Port-based traffic policing and two-rate three-color CAR | |
| Eight queues on each port | |
| WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms | |
| Re-marking of the 802.1p priority and DSCP priority | |
| Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID | |
| Rate limiting in each queue and traffic shaping on ports | |
| Security | User privilege management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense | |
| Binding of the IP address, MAC address, interface, and VLAN | |
| Port isolation, port security, and sticky MAC | |
| Blackhole MAC address entries | |
| Limit on the number of learned MAC addresses | |
| 802.1x authentication and limit on the number of users on an interface | |
| AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC | |
| SSH v2.0 | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| CPU defense | |
| MFF | |
| Blacklist and whitelist | |
| Access Security | DHCP relay, DHCP server, DHCP snooping, and DHCP security, DHCPv6 relay, DHCPv6 server, and DHCPv6 snooping |
| Super Virtual Fabric (SVF) | Working as an SVF client that is plug-and-play with zero configuration |
| Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurations | |
| Supports independent running client | |
| Management and maintenance | iStack(excluding S5700-10P-LI-AC, S5700-10P-PWR-LI-AC, S5700S-28P-LI-AC, S5700S-52P-LI-AC and battery LAN switches) |
| Virtual Cable Test (VCT) | |
| Remote configuration and maintenance using Telnet | |
| SNMP v1/v2c/v3 | |
| RMON | |
| eSight and web-based NMS | |
| HTTPS | |
| System logs and multi-level alarms | |
| 802.3az EEE | |
| Dying Gasp (excluding battery LAN switches) | |
| Operating temperature | 0°C to 45°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Input voltage | Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage range: 90 V to 264 V AC, 47/63 Hz |
| Power consumption | without PD: 15.61W; with PD: 160.5W (PoE: 123.2W) |
| PN. | 98010570 |
|
Dimensions(W x D x H) |
320mm x 220mm x 43.6mm |
