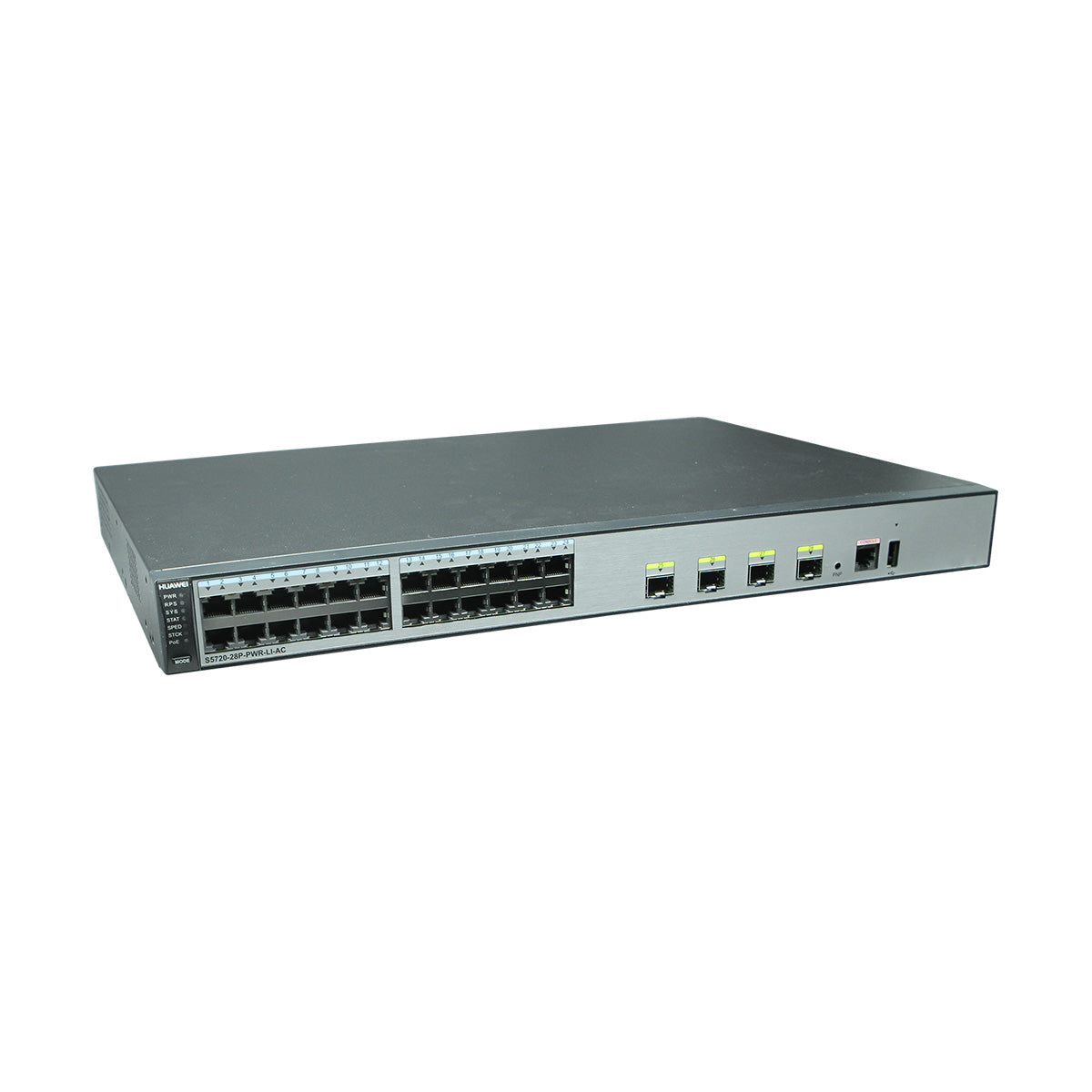

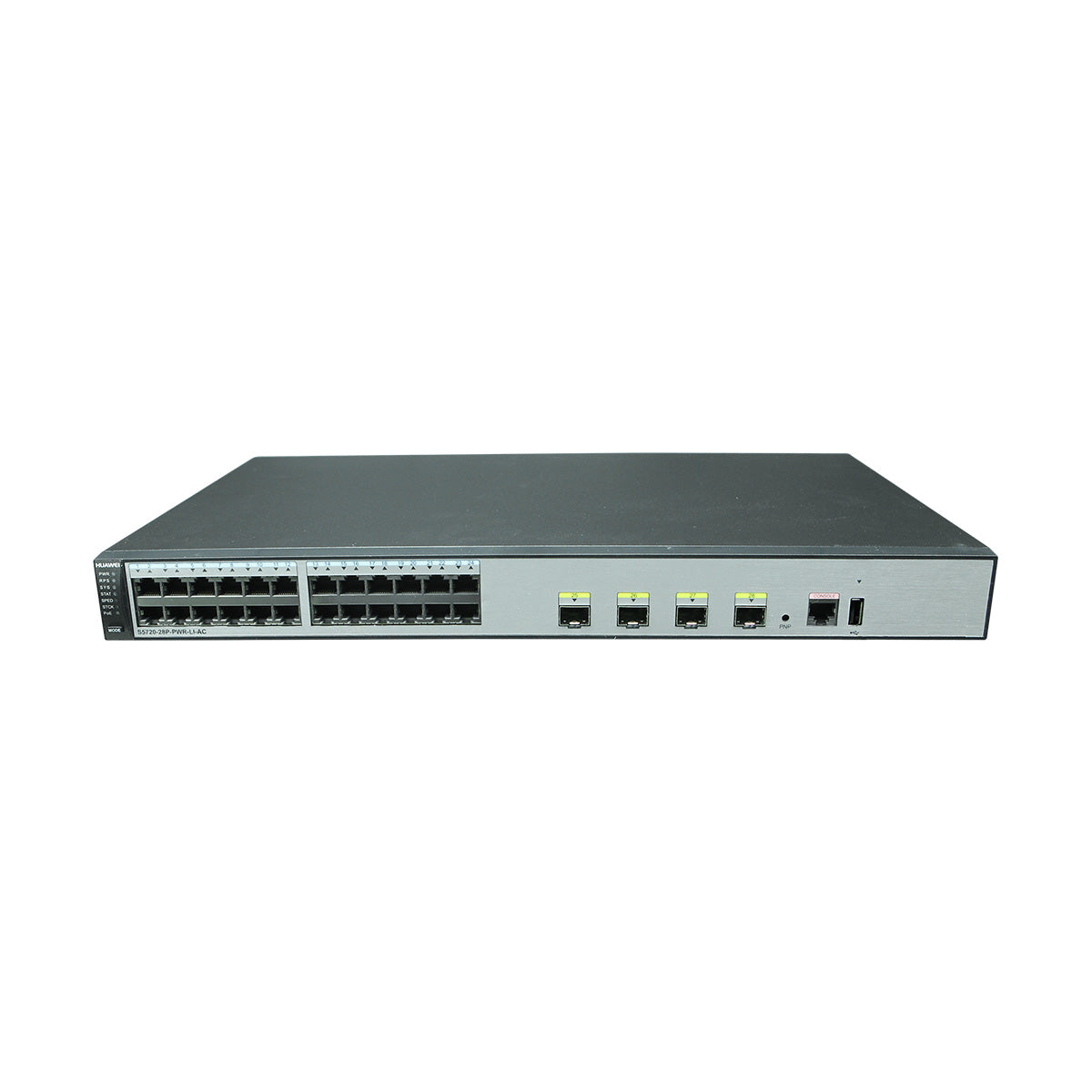

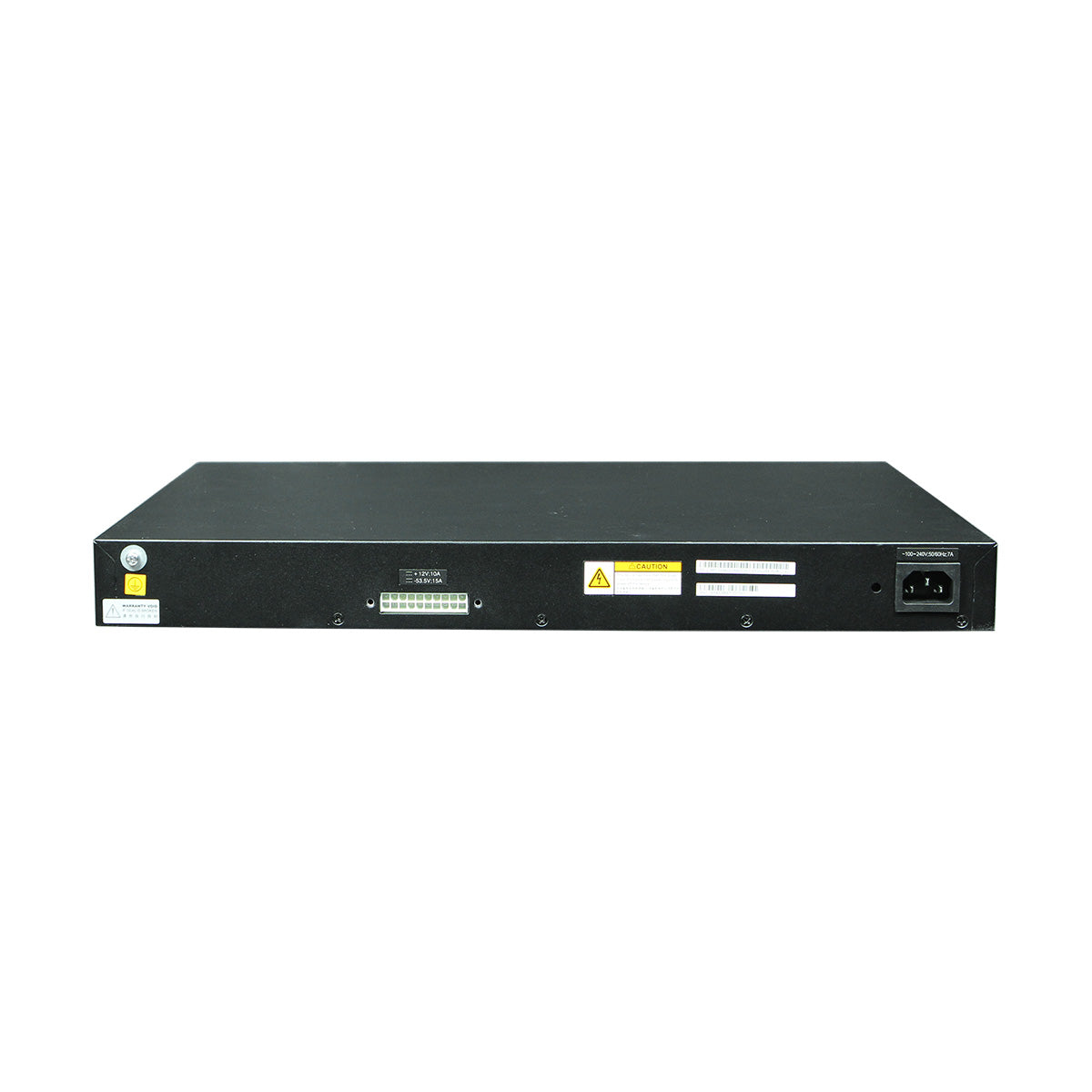

Huawei S5720-28P-PWR-LI-AC switch with 24-ports 1000BASE-T, 4-ports GE SFP, 1 AC power
Forwarding performance: 51Mpps
Switching capacity: 336Gbps
16K MAC address entries
POE supported
The S5720-LI series are energy-saving gigabit Ethernet switches that provide flexible GE access ports and 10 GE uplink ports. Building on high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720-LI series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control.
| Item | Description |
| Fixed port | 24 Ethernet 10/100/1000 ports, 4 Gig SFP ports |
| Forwarding performance | 51 Mpps |
| MAC address table | Interface-based MAC learning limiting |
| 16K MAC address entries | |
| MAC address learning and aging | |
| Static, dynamic, and blackhole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| VLAN | 4K VLANs |
| Guest VLAN and voice VLAN | |
| GVRP | |
| MUX VLAN | |
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | |
| 1:1 and N:1 VLAN Mapping | |
| Wireless AC | AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, Tag/terminal location, and spectrum analysis |
| Jumbo frame | 10K |
| IP routing | Static routes, RIP, RIPng, OSPF |
| IPv6 features | Neighbor Discovery (ND) |
| Path maximum transmission unit (PMTU) | |
| IPv6 Ping, IPv6 Tracert, and IPv6 Telnet | |
| ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports or protocol types |
|
| Multicast Listener Discovery (MLD) v1/v2 snooping | |
| Multicast forwarding | IGMP v1/v2/v3 snooping and IGMP fast leave |
| Multicast forwarding in a VLAN and multicast replication between VLANs | |
| Multicast load balancing among member ports of a trunk | |
| Controllable multicast | |
| Port-based multicast traffic statistics collection | |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Packet redirection | |
| Broadcast storm control | |
| Port-based traffic policing and two-rate and three-color CAR | |
| Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms | |
| Weighted random early detection (WRED) | |
| Re-marking of the 802.1p priority and DSCP priority | |
| Packet filtering on Layer 2 to Layer 4, filtering out invalid fr ames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol number, and VLAN ID |
|
| Rate limiting in each queue and traffic shaping on interfaces | |
| Security features | Hierarchical user management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense | |
| Binding of the IP address, MAC address, interface number, and VLAN ID of a user | |
| Port isolation, port security, and sticky MAC | |
| MAC Forced Forwarding (MFF) | |
| Blackhole MAC address entries | |
| Limit on the number of learned MAC addresses | |
| IEEE 802.1x authentication and the limit on the number of users on an interface | |
| AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0 |
|
| Hypertext Transfer Protocol Secure (HTTPS) | |
| CPU defense; Blacklist and whitelist; MACSec ready; DHCP relay, DHCP server,DHCP snooping DHCPv6 relay, DHCPv6 server, DHCPv6 snooping | |
| Reliability | VRRP,VRRP for BFD,VRRP6 |
| EFM OAM (802.3ah) | |
| CFM OAM (802.1ag) | |
| ITU-Y.1731 | |
| DLDP | |
| LACP | |
| Super Virtual Fabric (SVF) | Working as an SVF client that is plug-and-play with zero configuration |
| Automatically loading the system software package and patches of clients One-click,and automatic delivery of service configurations | |
| Supports independent running client | |
| Management and Maintenance |
iStack |
| Virtual Cable Test (VCT) | |
| Remote configuration and maintenance using Telnet | |
| SNMPv1/v2c/v3 | |
| RMON | |
| web-based NMS | |
| HTTPS | |
| LLDP/LLDP-MED | |
| System logs and multi-level alarms | |
| 802.3az EEE | |
| Dying Gasp (S5720-X-LI, S5720-TP-LI series) | |
| Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST) |
| Supports LNP (Similar to DTP | |
| Supports VCMP (Similar to VTP) | |
| Operating environment | Operating temperature: 0-1800 m altitude: 0-45℃ 1800-5000m altitude: The operating temperature reduces by 1℃ every time the altitude increases by 220m. Relative humidity: 5% to 95% (noncondensing) |
| Input voltage | AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz DC:Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V, DC |
| Dimensions (mm) | 442 (W) x 310 (D)x 43.6 (H) |
| Typical power consumption | without PD: 40.4W; with PD: 446.7W（PoE: 369.6W） |
| PN. | 98010769 |
