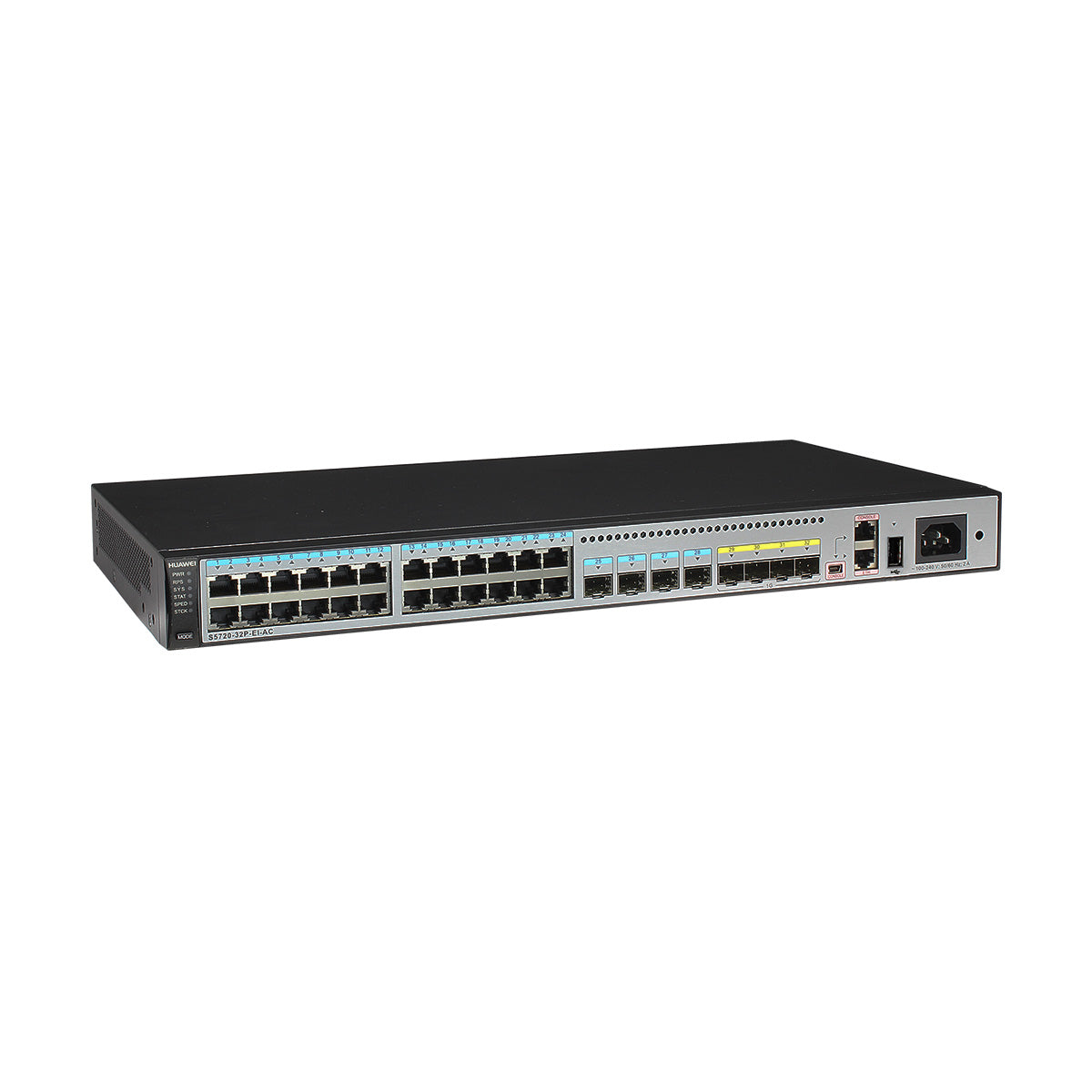

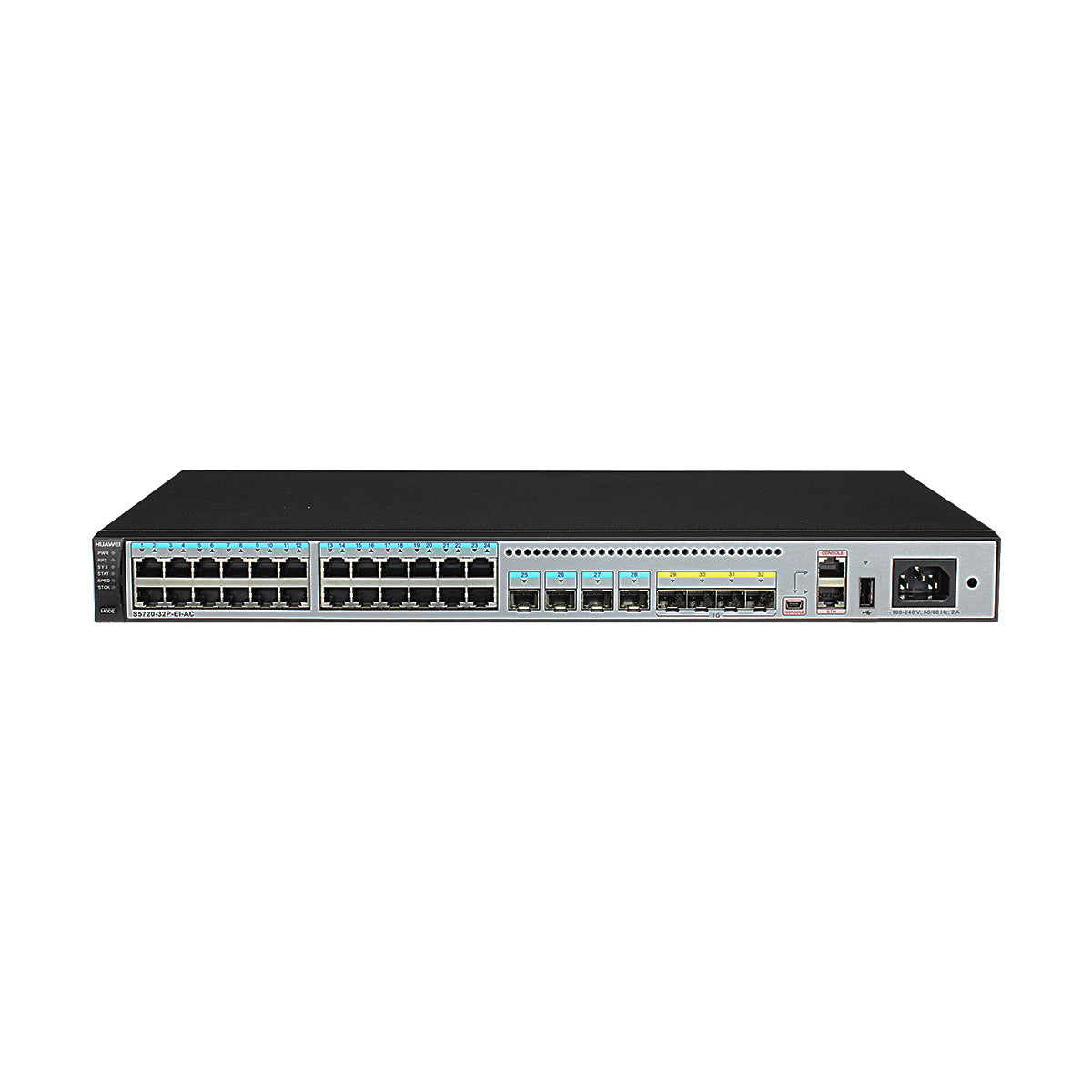

Huawei S5720-32P-EI-AC switch with 24-port 1000BASE-T, 4-port 100/1000BASE-X, 4-port 1000BASE-X, 2-port QSFP+ stack optical, 1 AC power
Forwarding Capacity : 48 Mpps
Switching Capacity: 598 Gbit/s
64k MAC address entries
No extended Slots
Huawei S5720-EI series provide flexible all-gigabit access and enhanced 10 GE uplink port scalability. They are widely used as access/aggregation switches in enterprise campus networks or gigabit access switches in data centers.
| Item | Description |
| Fixed Ports | 24-port 1000BASE-T, 4-port FE/GE SFP, 4-port GE SFP |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total. |
| Mean time between failures (MTBF) | 80.32 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±6 kV |
| Power supply surge protection | ±6 kV in differential mode, ±6 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.9 mm |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 237.3 mm | |
| Weight (with packaging) | 4.5 kg (9.92 lb) |

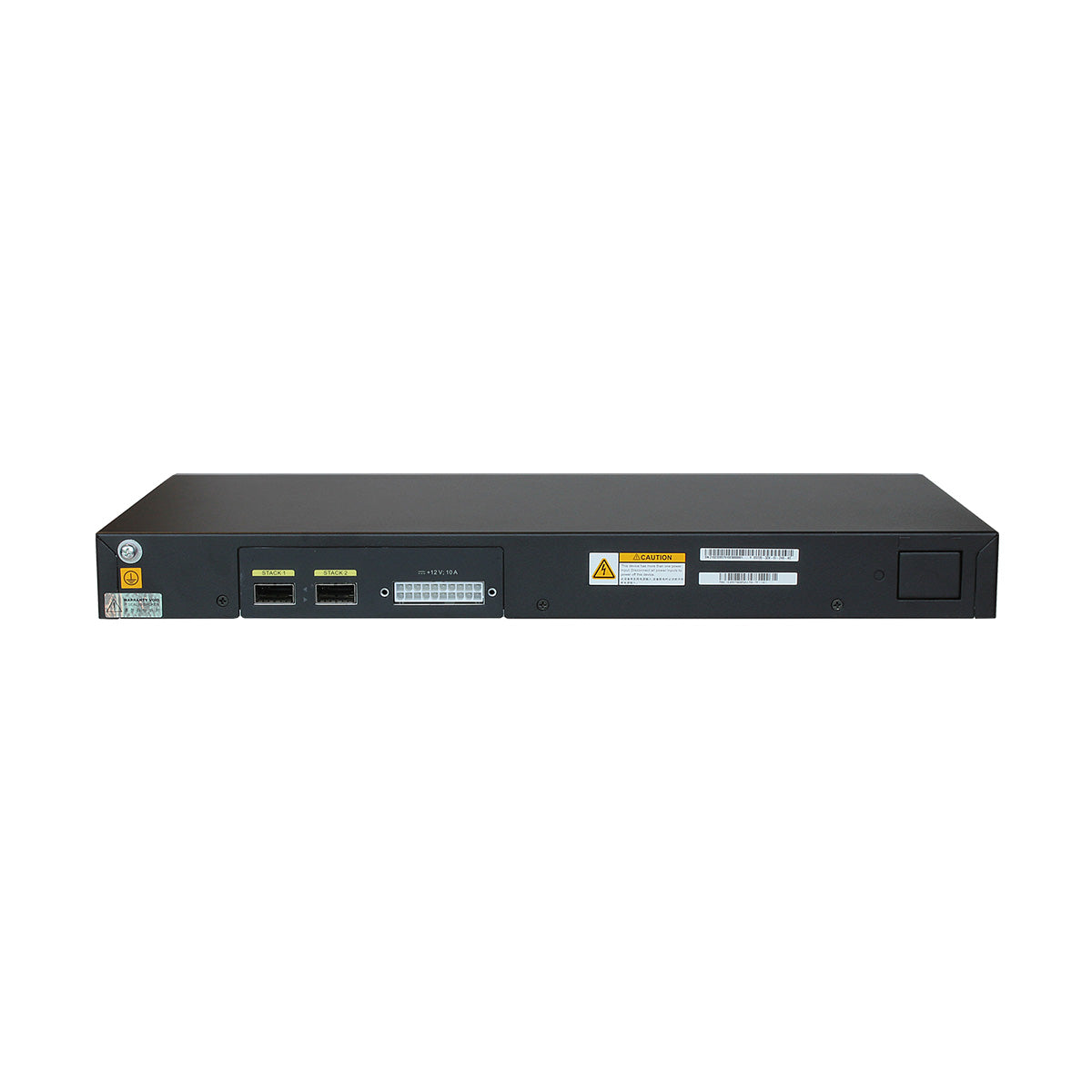

| Stack ports | Two fixed QSFP+ stack ports on the rear card |
| RTC | Supported |
| RPS | Supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, full speed of fans) | 50.7 W |
| Typical power consumption (30% of traffic load) | 39.75 W |
| Tested according to ATIS standard | |
| EEE enabled | |
| No PoE power consumption | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27掳C, sound power) | |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Part number | 02350BDY |
