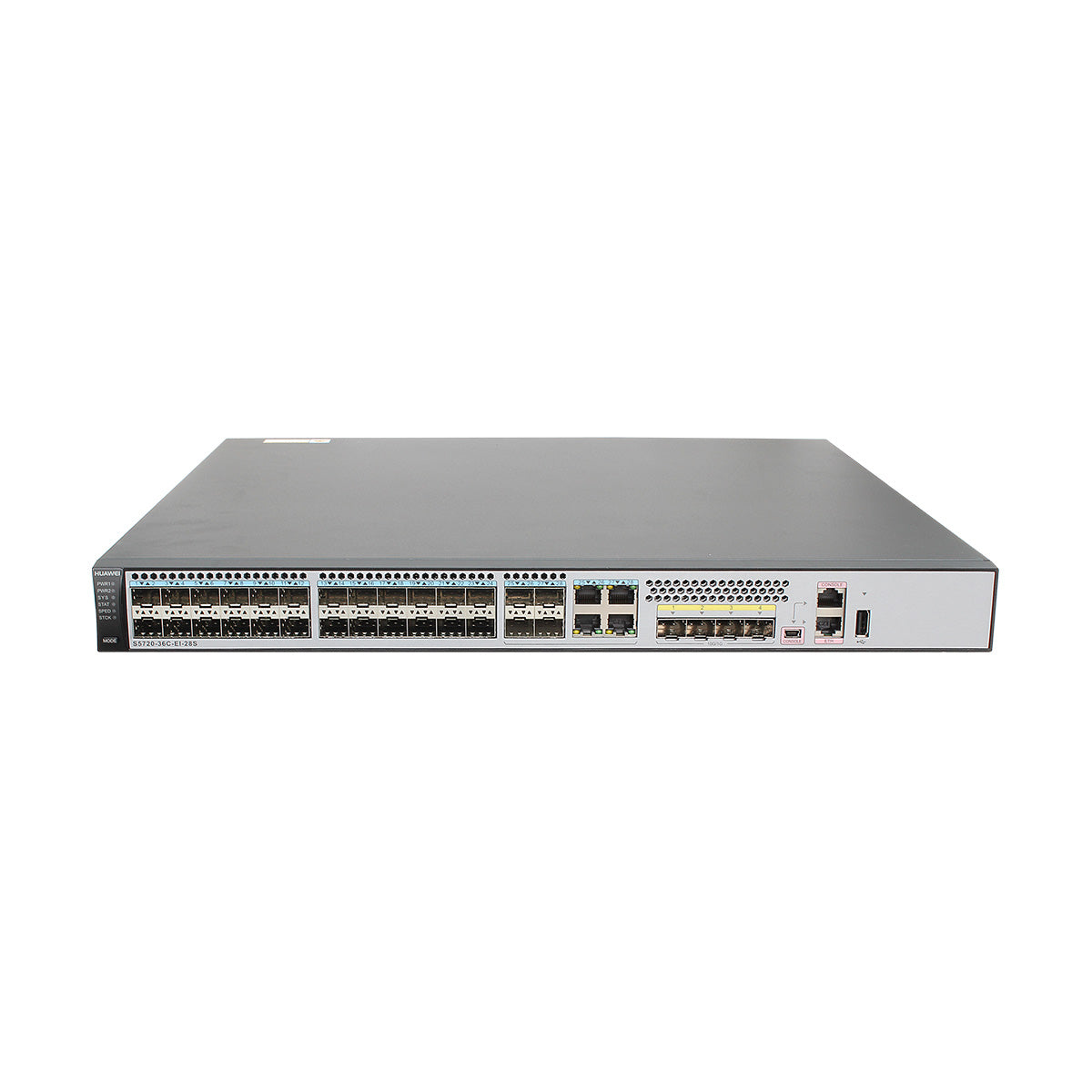

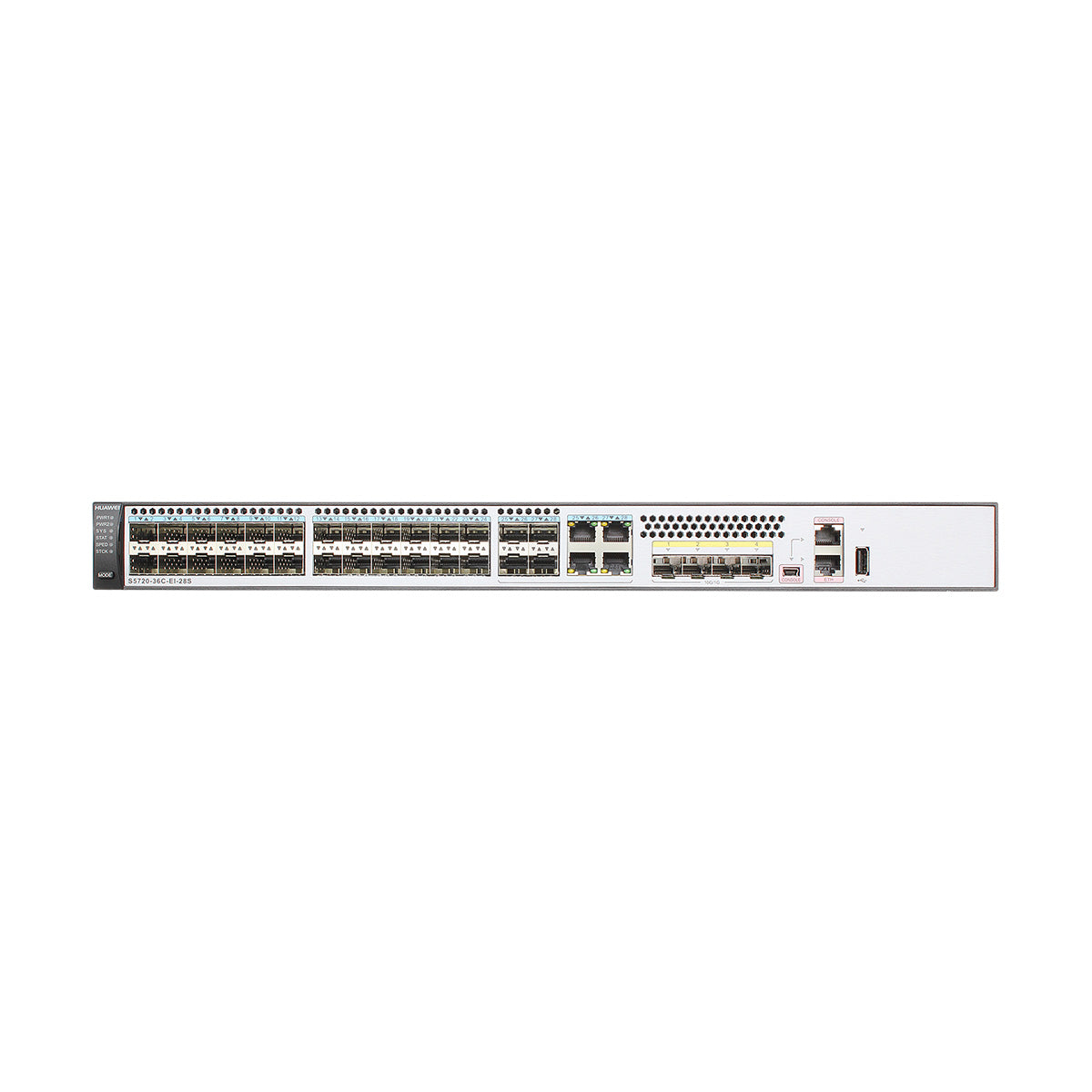

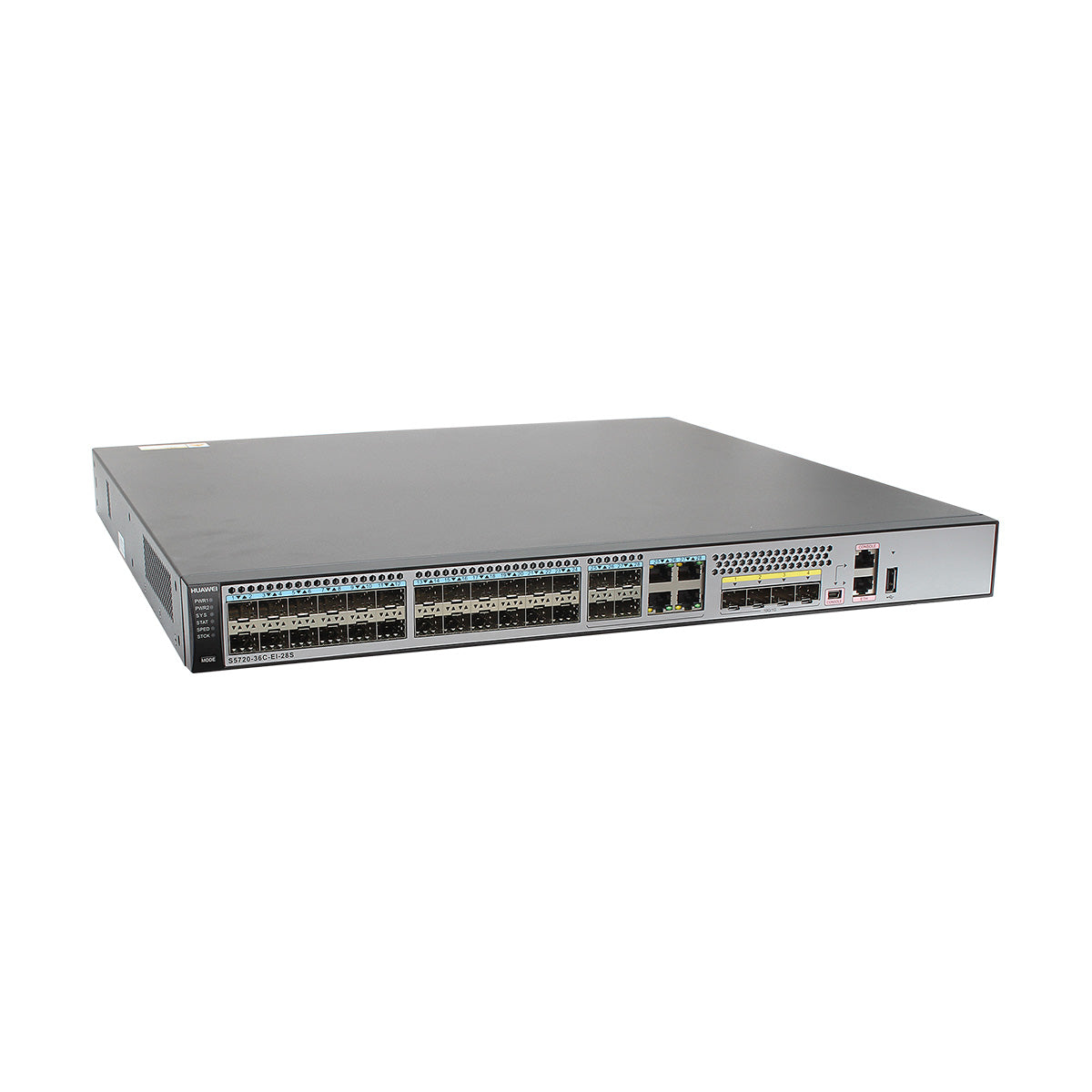

Huawei S5720-36C-EI-28S-AC Switch
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Huawei S5720-36C-EI-28S-AC Switch

  • Brand New Condition
  • Original Box Packed
  • Latest Firmware Version
Available:In Stock
$0.00

Huawei S5720-36C-EI-28S-AC switch with 24-ports 1000BASE-X, 4-ports 1000BASE-T+1000BASE-X combo, 4-ports 10G SFP+, 2 power slots

 Forwarding perfomance: 132 Mpps

Switching capacity: 598Gbps

64K MAC address entries

With 1 extension slots, Card supported:
ES5D21X02S01 (2-Port 10 Gig SFP+ Rear Interface Card, Used in S5720-EI Series)
ES5D21X02T01 (2-Port 10 Gig RJ45 Rear Interface Card, Used in S5720-EI Series)
ES5D21VST000 (Dedicated Stack Card with 2*QSFP+ Interface)

Huawei S5720-EI series provide flexible all-gigabit access and enhanced 10 GE uplink port scalability. They are widely used as access/aggregation switches in enterprise campus networks or gigabit access switches in data centers.



Item Description
Fixed port 28 Gig SFP, 4 of which are dual-purpose 10/100/1000, 4 10 Gig SFP+
Forwarding performance 132 Mpps
Extended slot One extended slot that supports an uplink interface card or private stack card
DRAM and Flash SDRAM: 2 GB; Flash: 340 MB
MAC address table IEEE 802.1d
64K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN 4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
VLAN-based transparent transmission of protocol packets
Jumbo frame 12K
Ring protection RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing millisecond-level
protection switchover
Smart Ethernet Protection (SEP),G.8032 Ethernet Ring Protection Switching (ERPS)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection; BPDU tunnel
IP routing Static routing, RIPv1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and policy-based routing
16K IPv4 unicast routes, 8K IPv6 unicast routes
3K IPv4 static routes, 1K IPv6 static routes
IPv6 features Neighbor Discovery (ND)
Path maximum transmission unit (PMTU)
IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
6 to4 tunnel, ISATAP tunnel, and manually configured tunnel
ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports,
or protocol types
Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load splitting among trunk member ports
Controllable multicast
Layer 2 multicast control
Port-based multicast traffic statistics collection
IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent
Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM)
Multicast Source Discovery Protocol (MSDP)
QoS/ACL Inbound and outbound traffic rate limiting on a port
Packet redirection
Broadcast storm control
Port-based traffic policing and two-rate and three-color CAR
Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
Weighted random early detection (WRED)
Re-marking of the 802.1p priority and DSCP value of packets
Packet filtering based on Layer 2 to Layer 4 information, includi ng source MAC addresses, destination MAC addresses, source IP addresses, destination IP addresses, TCP/UCD source/destination ports, protocol types, and VLAN IDs
Per queue rate limiting and interface traffic shaping
1:1,N:1,N:4 port mirroring; VLAN mirroring
Security
features		 Hierarchical user management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface number, and VLAN ID of a user
Port isolation, port security, and sticky MAC
MAC Forced Forwarding (MFF)
Blackhole MAC address entries
Limit on the number of learned MAC addresses
IEEE 802.1x authentication and the limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense; Blacklist and whitelist; MACSec ready
Access security DHCP Relay, DHCP Server, DHCP Snooping, DHCP Client, DHCP Security
Port aggregation LACP
Up to 128 trunk groups
Up to 8 member interfaces in each trunk group
Reliability Ethernet OAM (IEEE 802.3ah and 802.1ag)
ITU-Y.1731; BFD for BGP/IS-IS/OSPF/static route
Super Virtual Fabric (SVF) Working as an SVF client that is plug-and-play with zero configuration
Automatically loading the system software package and patches of clients
One-click and automatic delivery of service configurations
Supports independent running client
Management
and
Maintenance		 iStack, Virtual cable test, SNMP v1/v2c/v3, RMON/RMON2
Web-based network management system
System logs and multi-level alarms
sFlow, LLDP/LLDP-MED, 802.3az EEE
SCP (Secure Copy Protocol), TFTP, FTP
Store dual software images and configuration files
Interoperability VLAN-based Spanning Tree (working with PVST/PVST+/RPVST)
Link-type Negotiation Protocol (LNP), similar to the Dynamic Trunking Protocol (DTP)
VLAN Central Management Protocol (VCMP), similar to the VLAN Trunk Protocol (VTP)
Operating environment Operating temperature:
0-1800 m altitude: 0-45℃
1800-5000m altitude: The operating temperature reduces by 1℃ every time the
altitude increases by 220m.
Relative humidity: 5% to 95% (noncondensing)
Input voltage AC:
Rated voltage range: 100 V to 240 V A C, 50/60 Hz
Maximum voltage range: 90 to 264 V AC, 47/63 Hz
No front power input
Dimensions (mm) 442 (W) x 420 (D)x 43.6 (H)
Typical power
consumption		 47.9W
PN. 02359503

Huawei S5720-36C-EI-28S-AC switch with 24-ports 1000BASE-X, 4-ports 1000BASE-T+1000BASE-X combo, 4-ports 10G SFP+, 2 power slots

 Forwarding perfomance: 132 Mpps

Switching capacity: 598Gbps

64K MAC address entries

With 1 extension slots, Card supported:
ES5D21X02S01 (2-Port 10 Gig SFP+ Rear Interface Card, Used in S5720-EI Series)
ES5D21X02T01 (2-Port 10 Gig RJ45 Rear Interface Card, Used in S5720-EI Series)
ES5D21VST000 (Dedicated Stack Card with 2*QSFP+ Interface)

Huawei S5720-EI series provide flexible all-gigabit access and enhanced 10 GE uplink port scalability. They are widely used as access/aggregation switches in enterprise campus networks or gigabit access switches in data centers.



Item Description
Fixed port 28 Gig SFP, 4 of which are dual-purpose 10/100/1000, 4 10 Gig SFP+
Forwarding performance 132 Mpps
Extended slot One extended slot that supports an uplink interface card or private stack card
DRAM and Flash SDRAM: 2 GB; Flash: 340 MB
MAC address table IEEE 802.1d
64K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN 4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
VLAN-based transparent transmission of protocol packets
Jumbo frame 12K
Ring protection RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing millisecond-level
protection switchover
Smart Ethernet Protection (SEP),G.8032 Ethernet Ring Protection Switching (ERPS)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection; BPDU tunnel
IP routing Static routing, RIPv1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and policy-based routing
16K IPv4 unicast routes, 8K IPv6 unicast routes
3K IPv4 static routes, 1K IPv6 static routes
IPv6 features Neighbor Discovery (ND)
Path maximum transmission unit (PMTU)
IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
6 to4 tunnel, ISATAP tunnel, and manually configured tunnel
ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports,
or protocol types
Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load splitting among trunk member ports
Controllable multicast
Layer 2 multicast control
Port-based multicast traffic statistics collection
IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent
Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM)
Multicast Source Discovery Protocol (MSDP)
QoS/ACL Inbound and outbound traffic rate limiting on a port
Packet redirection
Broadcast storm control
Port-based traffic policing and two-rate and three-color CAR
Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
Weighted random early detection (WRED)
Re-marking of the 802.1p priority and DSCP value of packets
Packet filtering based on Layer 2 to Layer 4 information, includi ng source MAC addresses, destination MAC addresses, source IP addresses, destination IP addresses, TCP/UCD source/destination ports, protocol types, and VLAN IDs
Per queue rate limiting and interface traffic shaping
1:1,N:1,N:4 port mirroring; VLAN mirroring
Security
features		 Hierarchical user management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface number, and VLAN ID of a user
Port isolation, port security, and sticky MAC
MAC Forced Forwarding (MFF)
Blackhole MAC address entries
Limit on the number of learned MAC addresses
IEEE 802.1x authentication and the limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense; Blacklist and whitelist; MACSec ready
Access security DHCP Relay, DHCP Server, DHCP Snooping, DHCP Client, DHCP Security
Port aggregation LACP
Up to 128 trunk groups
Up to 8 member interfaces in each trunk group
Reliability Ethernet OAM (IEEE 802.3ah and 802.1ag)
ITU-Y.1731; BFD for BGP/IS-IS/OSPF/static route
Super Virtual Fabric (SVF) Working as an SVF client that is plug-and-play with zero configuration
Automatically loading the system software package and patches of clients
One-click and automatic delivery of service configurations
Supports independent running client
Management
and
Maintenance		 iStack, Virtual cable test, SNMP v1/v2c/v3, RMON/RMON2
Web-based network management system
System logs and multi-level alarms
sFlow, LLDP/LLDP-MED, 802.3az EEE
SCP (Secure Copy Protocol), TFTP, FTP
Store dual software images and configuration files
Interoperability VLAN-based Spanning Tree (working with PVST/PVST+/RPVST)
Link-type Negotiation Protocol (LNP), similar to the Dynamic Trunking Protocol (DTP)
VLAN Central Management Protocol (VCMP), similar to the VLAN Trunk Protocol (VTP)
Operating environment Operating temperature:
0-1800 m altitude: 0-45℃
1800-5000m altitude: The operating temperature reduces by 1℃ every time the
altitude increases by 220m.
Relative humidity: 5% to 95% (noncondensing)
Input voltage AC:
Rated voltage range: 100 V to 240 V A C, 50/60 Hz
Maximum voltage range: 90 to 264 V AC, 47/63 Hz
No front power input
Dimensions (mm) 442 (W) x 420 (D)x 43.6 (H)
Typical power
consumption		 47.9W
PN. 02359503

GLOBAL SHIPPING
XponShop offers you various options of shipping ways:
-EXW SHENZHEN
-Overseas Express which includes shipping by Carriers, by Air Cargo, and Sea Freight.

Cargo Weight/Volume Suggested Shipping Ways Comments
≤ 45KGS By Shipping Carriers (DHL, UPS, FedEx, etc.) Door to door service, fast and convenient.
＞45KGS By Air Cargo Door to airport service, more cost-efficient.
＞1CBM By Sea Freight Large-volume goods, door to seaport service, longer shipping time but cheaper.

XponShop makes the most commonly used trade terms available for your convenience: CNF, CPT, CIF, DDP, etc to ensure global fast and convenient delivery.
Once you confirm your order, you may contact XponShop team for calculating the freight charges and choose the optimal shipping way.
NOTE:
· Shipping may be subject to local taxes or duties; XponShop is not responsible for and has no control over these charges.
· No matter which shipping ways you chose, cargo insurance is highly recommended in case of unpredictable loss.

RETURN POLICY
We aim to deliver products for your appreciation and satisfaction. XponShop return or replacement policy applies only if the product is damaged or incorrectly delivered.
–If you receive a damaged product or it is different from the one requested, you can return or replace it within 7 days of receipt. In such a case, costs shall be borne by XponShop.
–If the product is malfunctional during use and under 12 months warranty, XponShop support team will contact you to troubleshoot the issue by professional diagnosis. The unsolvable problem will trigger the return procedure: repair, replace and reship to you or refund if repair or replacement is inapplicable.
NOTE:
· Please be aware that the product must be returned to the specified address as defined by shipping incoterms against the sales invoice/contract.
· For further information about how to return products, please contact our XponShop team at sales@xponshop.com, we will advise you on how to proceed.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
