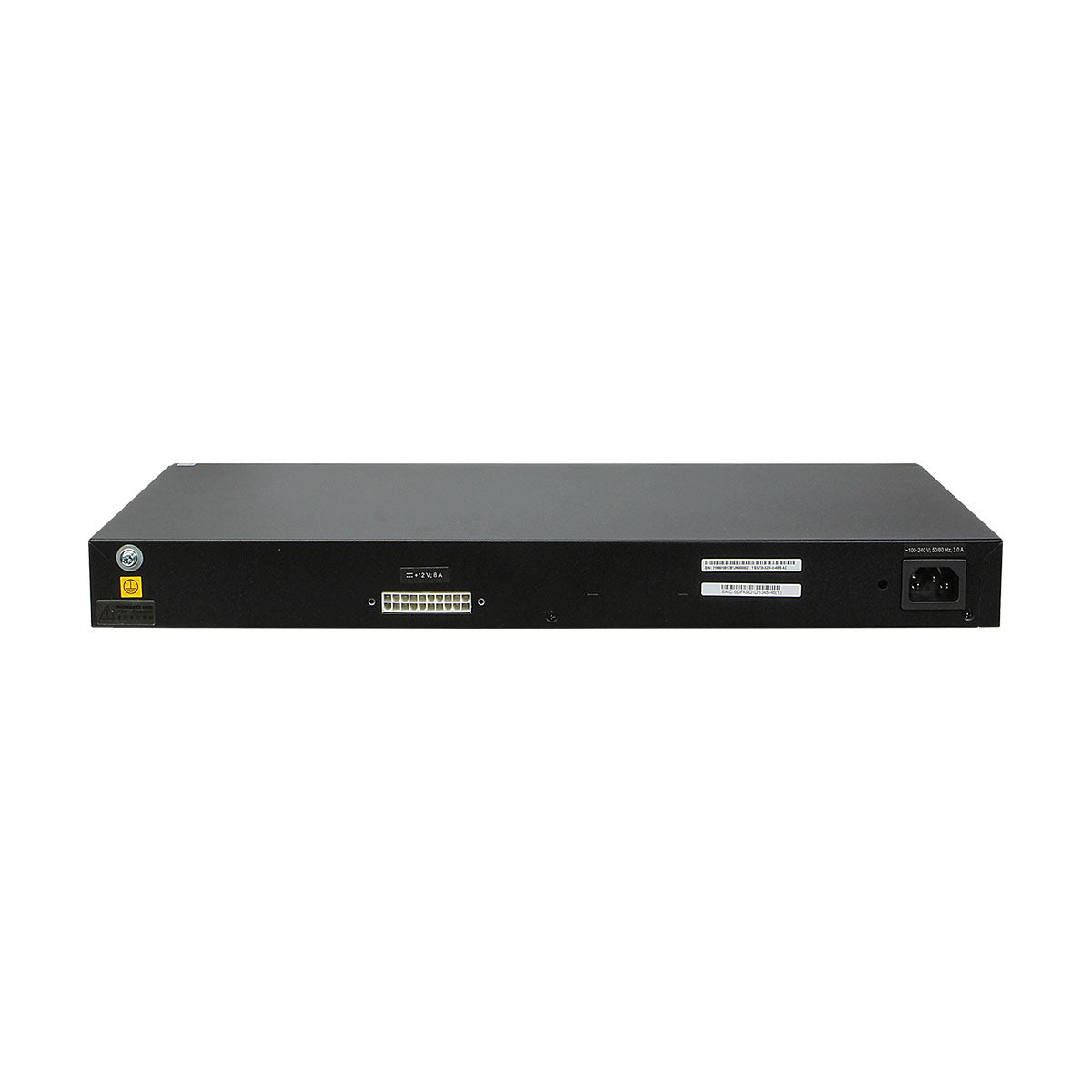

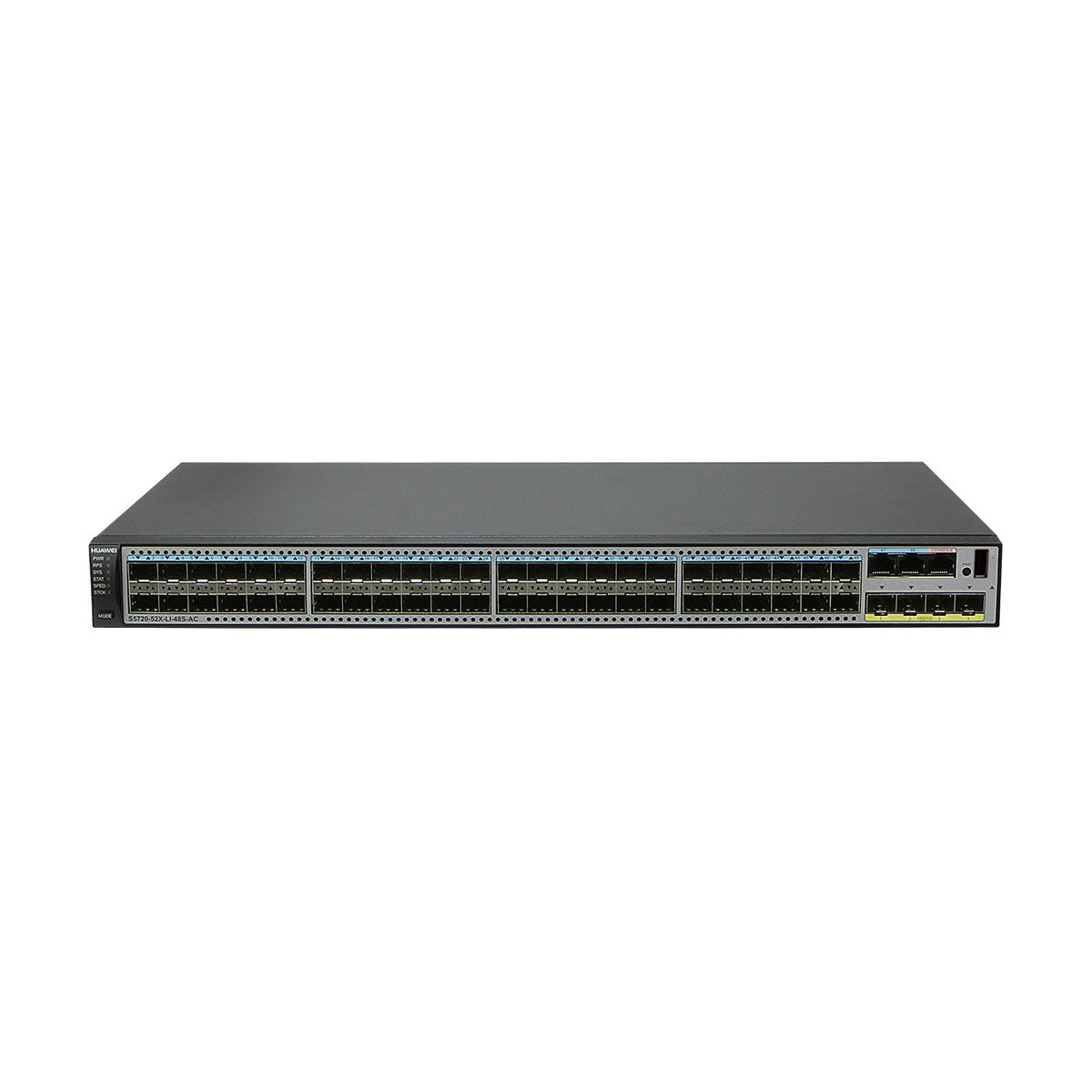

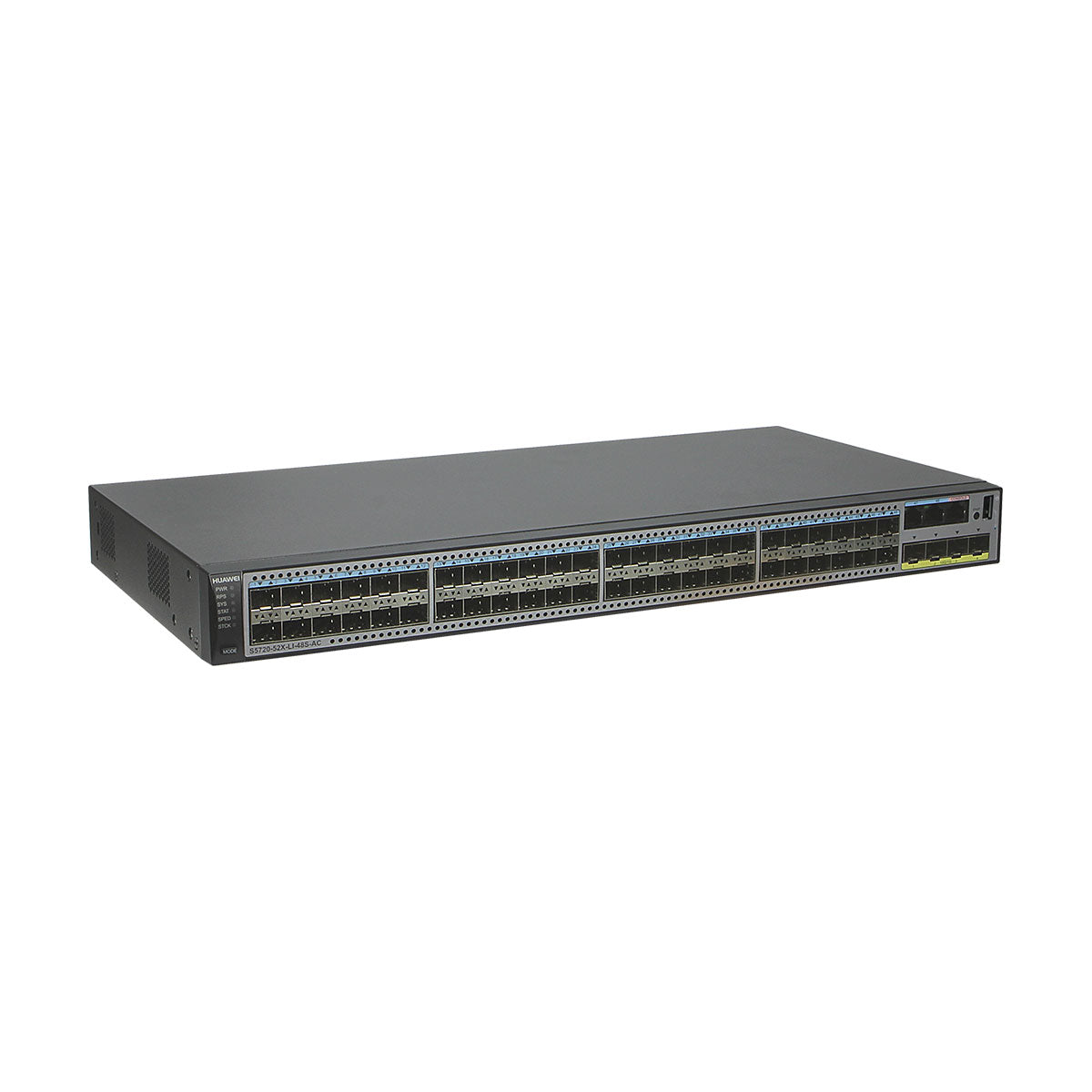

Huawei S5720-52X-LI-48S-AC switch with 46-port 1000BASE-X, 2-port dual-purpose 1000Base-T/1000Base-X, 4-port 10GE SFP+, 1 AC power
Forwarding performance: 144 Mpps
Switching capacity: 336 Gbit/s
The S5720-LI series are energy-saving gigabit Ethernet switches that provide flexible GE access ports and 10 GE uplink ports. Building on high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720-LI series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control.
| Item | Description |
| Memory (RAM) | 512 MB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 34.91 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | ±6 kV in differential mode, ±6 kV in common mode |
| Stack ports | GE optical ports and 10GE SFP+ optical ports except combo ports on the front panel |
| RTC | Not supported |
| RPS | Supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Certification | · EMC certification
· Safety certification · Manufacturing certification |
| Part number | 98010813 |
| Dimensions | · Basic dimensions: 43.6 mm x 442.0 mm x 224.9 mm
· Maximum dimensions: 43.6 mm x 442.0 mm x 233.9 mm |
| Weight (with packaging) | 5.25 kg (11.57 lb) |
