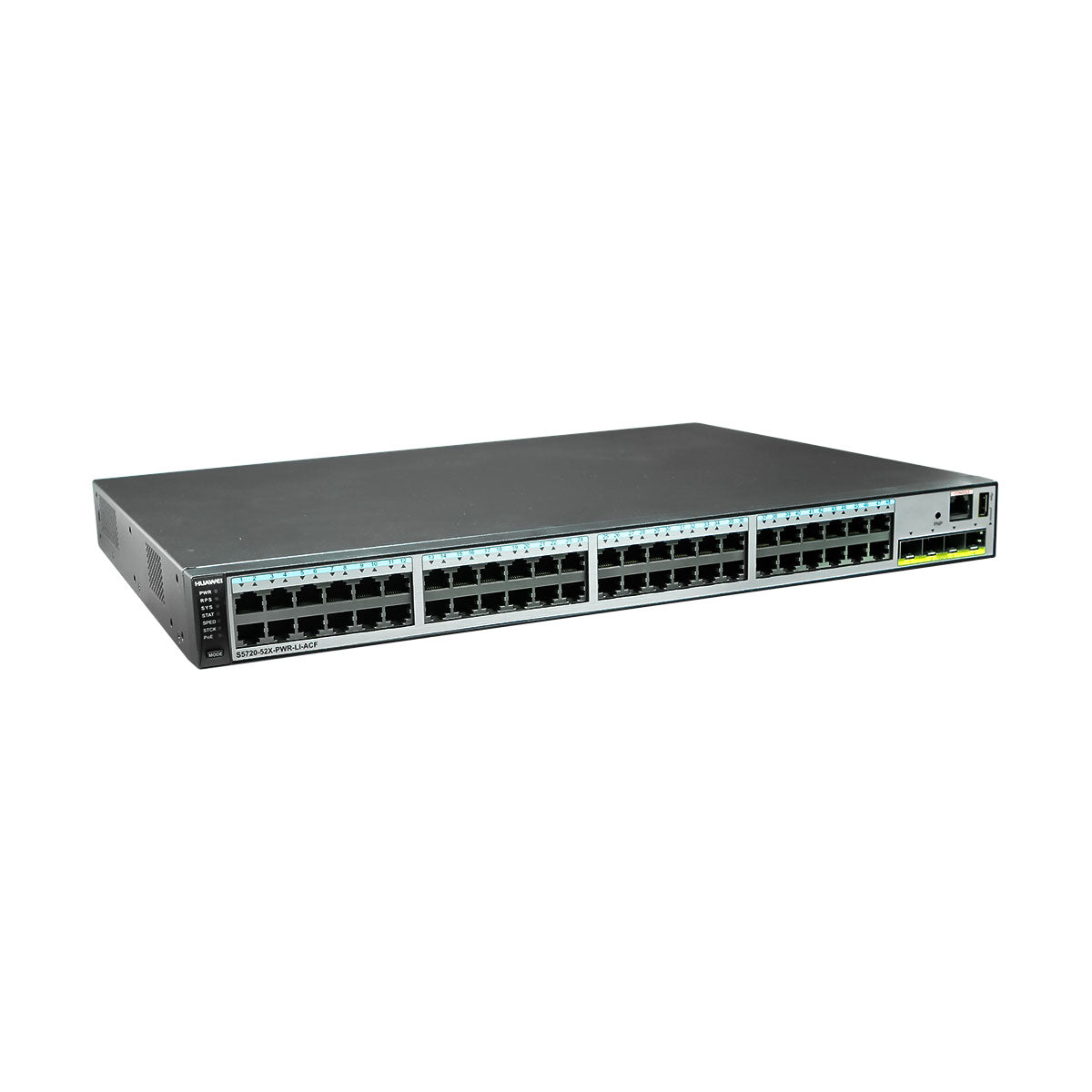

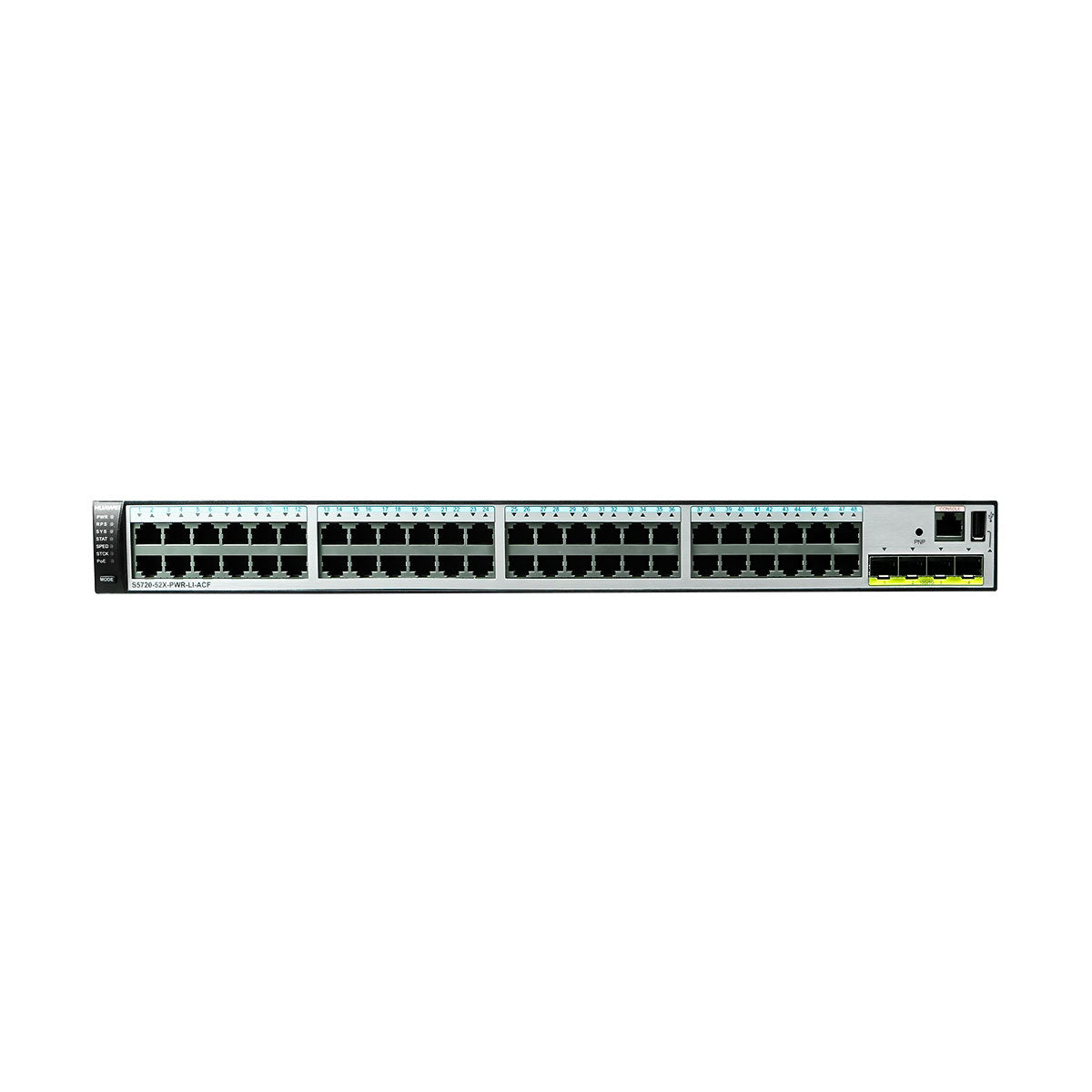

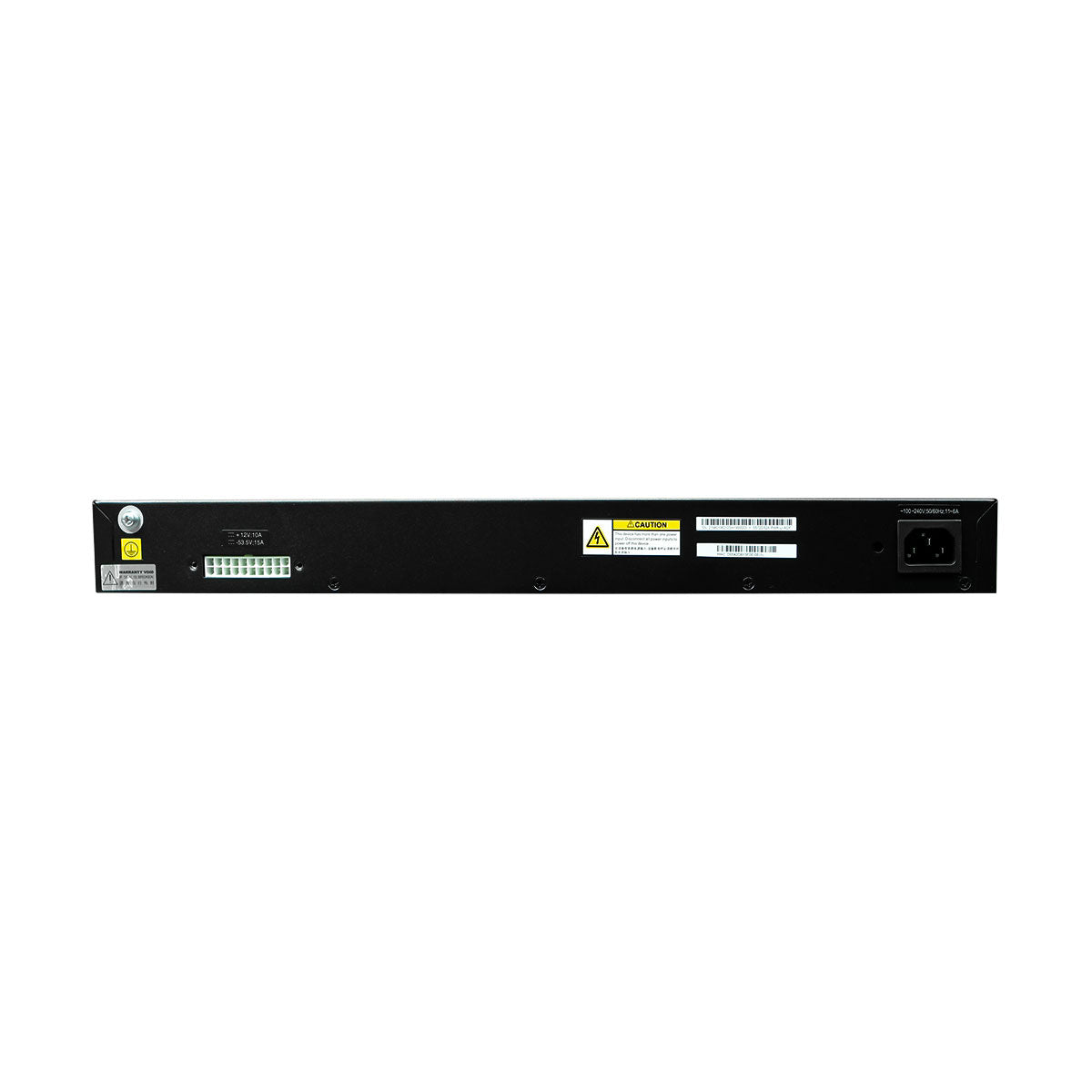

Huawei S5720-52X-PWR-LI-ACF switch with 48-port PoE+ 10/100/1000BASE-T, 4-port 10GE SFP+, 1 AC power
Switching Capacity: 336 Gbit/s
Forwarding Performance: 144 Mpps
16K MAC address entries
PoE Supported
The S5720-LI series are energy-saving gigabit Ethernet switches that provide flexible GE access ports and 10 GE uplink ports. Building on high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720-LI series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control.
| Item | Description |
| Memory (RAM) | 512 MB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 45 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | ±6 kV in differential mode, ±6 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 314.8 mm |
| Maximum dimension 43.6 mm x 442.0 mm x 323.8 mm |
|
| Weight (with packaging) | 6.6 kg (14.55 lb) |
| Stack ports | Forty-eight 10/100/1000BASE-T ports and four 10G SFP+ ports |
| RTC | Not supported |
| RPS | Supported |
| PoE | Supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, full speed of fans) | Not providing the PoE function: 52.1 W |
| 100% PoE loads: 977 W (system power consumption: 237.8 W, PoE: 739.2 W) | |
| Typical power consumption (30% of traffic load) | 42.9 W
Tested according to ATIS standard |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Part number | 98010621 |
