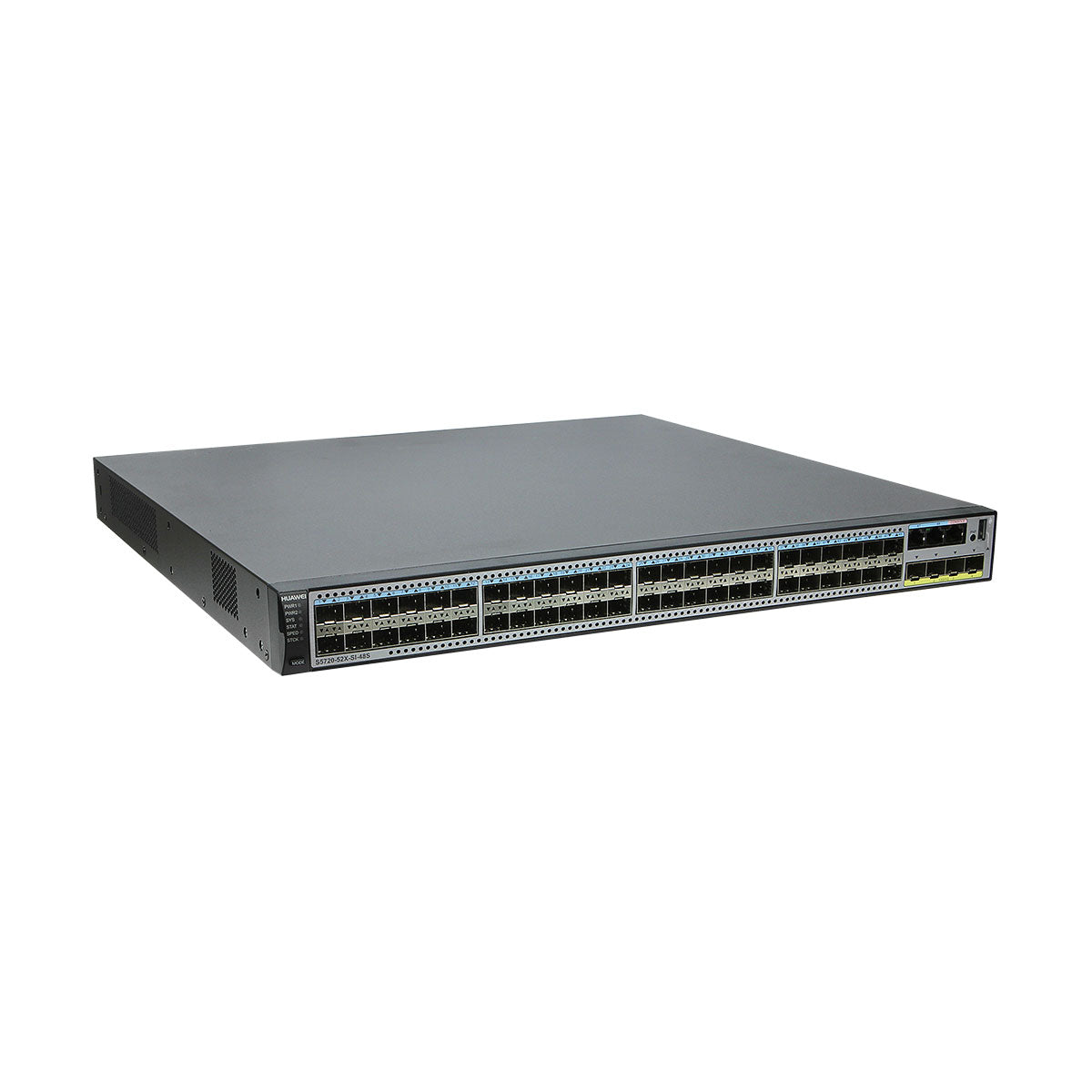

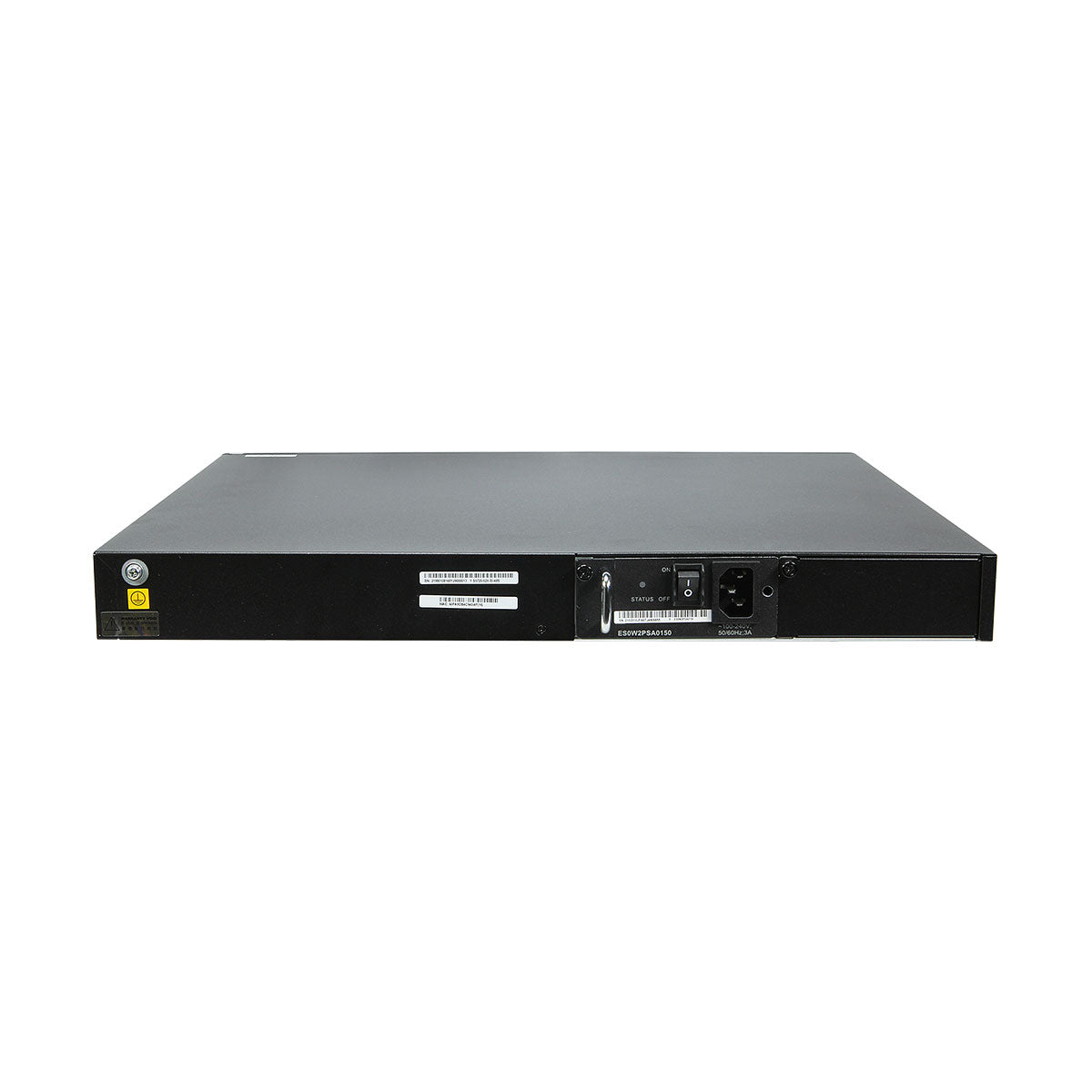

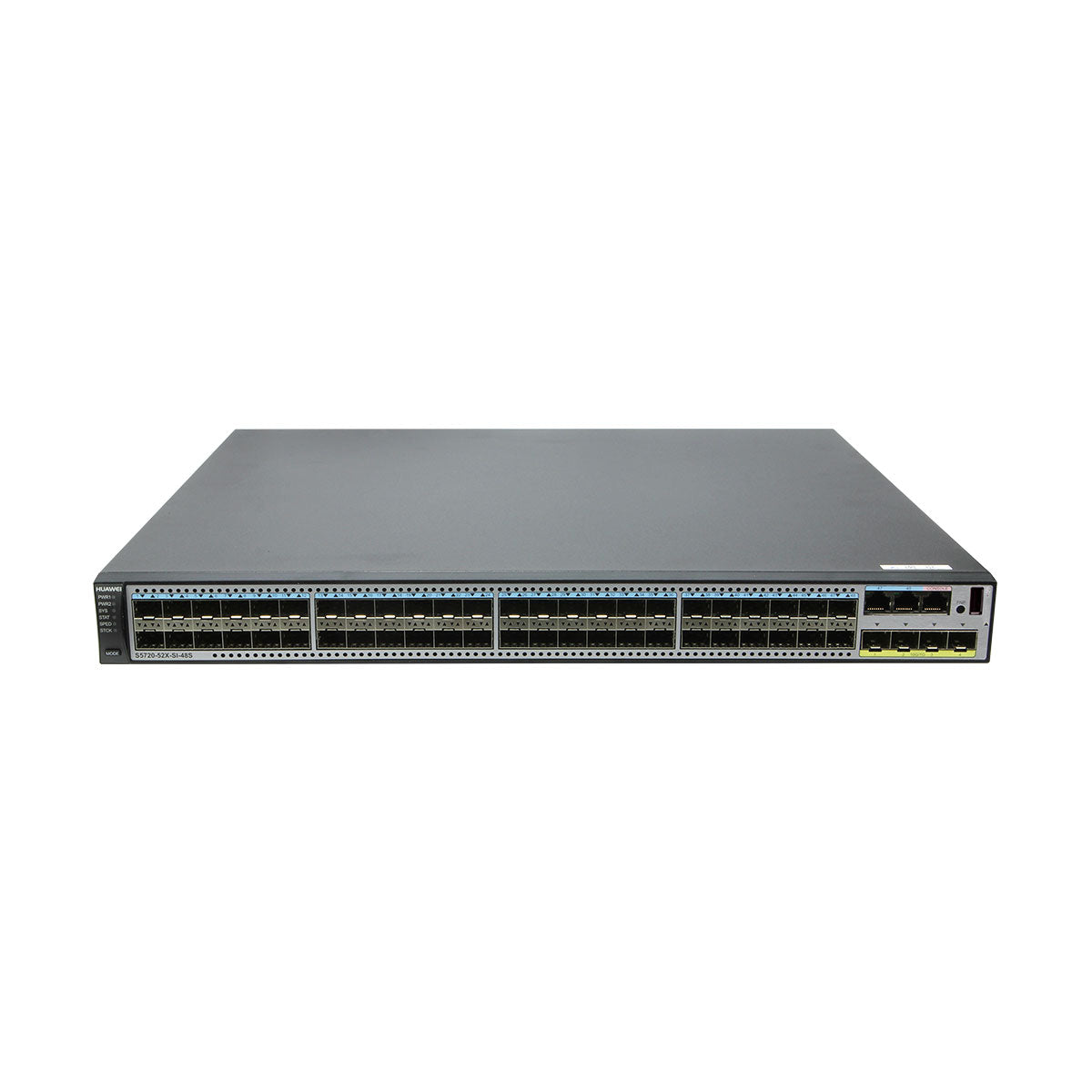

Huawei S5720-52X-SI-48S switch with 46-port 1000BASE-X, 2-port 1000BASE-X & 1000BASE-T combo, 4-port 10GE SFP+, 2 power slots
Forwarding performance: 132 Mpps
Switching capacity: 336 Gbit/s
Applicable power modules:
150 W AC power module: LS5M100PWA00/ES0W2PSA0150
150 W DC power module: LS5M100PWD00/ES0W2PSD0150
Huawei S5720-SI Flexible Gigabit Ethernet switches that provide resilient, high-density Layer 3 switching for data centers. Features include multiple-terminals, HD video security, and video conferencing applications. Intelligent iStack clustering, 10 Gbit/s upstream ports and IPv6 forwarding enable use as aggregation switches in enterprise campus networks.
Next-generation reliability, security, and energy-saving technologies make S5720-SI Series Switches easy to install and maintain, and an excellent source of low Total Cost of Ownership (TCO).
| Item | Description |
| Memory (RAM) | 512 MB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 35.23 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode | |
| Stack ports | GE optical ports and 10GE SFP+ optical ports except combo ports on the front panel |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| -48 V DC to -60 V DC | |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| -36 V DC to -72 V DC | |
| Maximum power consumption (100% throughput, full speed of fans) | 85 W |
| Typical power consumption (30% of traffic load) ·Tested according to ATIS standard ·EEE enabled ·No PoE power consumption |
65 W |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Part number | 98010814 |
| Dimensions (H x W x D) | Basic dimensions 44.4 mm x 442.0 mm x 424.9 mm |
| Max dimensions 44.4 mm x 442.0 mm x 451.3 mm | |
| Weight (with packaging) | 8.05 kg (17.75 lb) |
