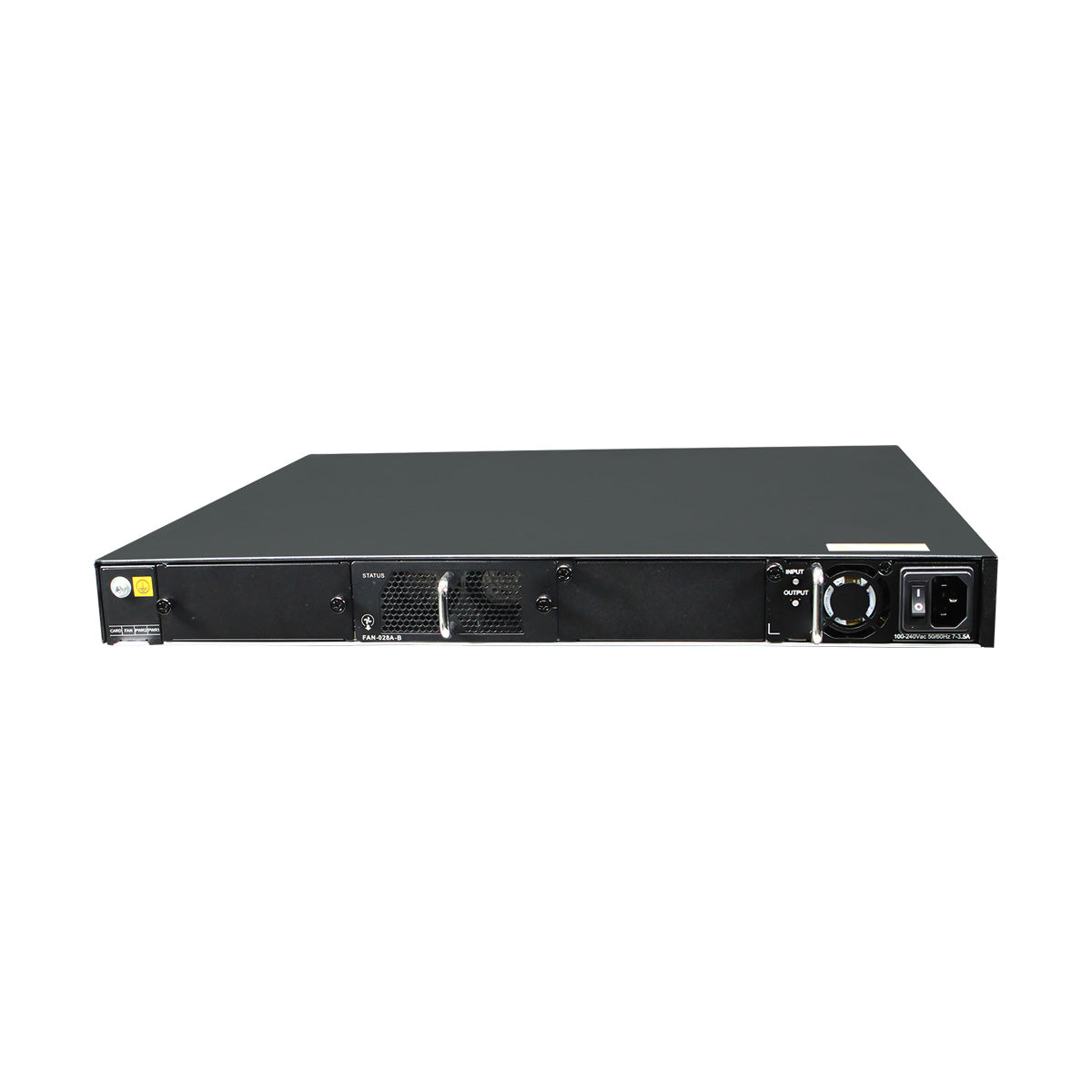

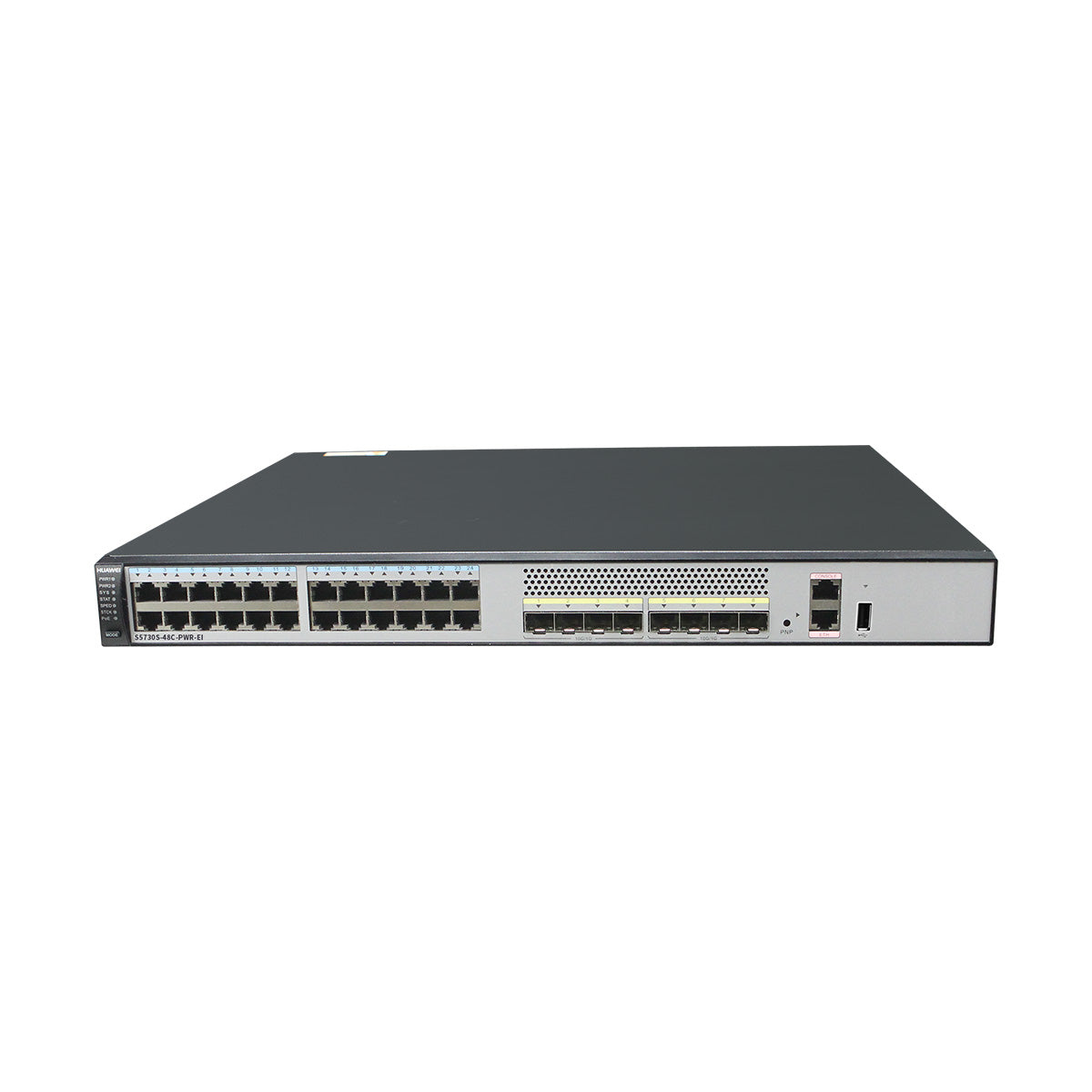

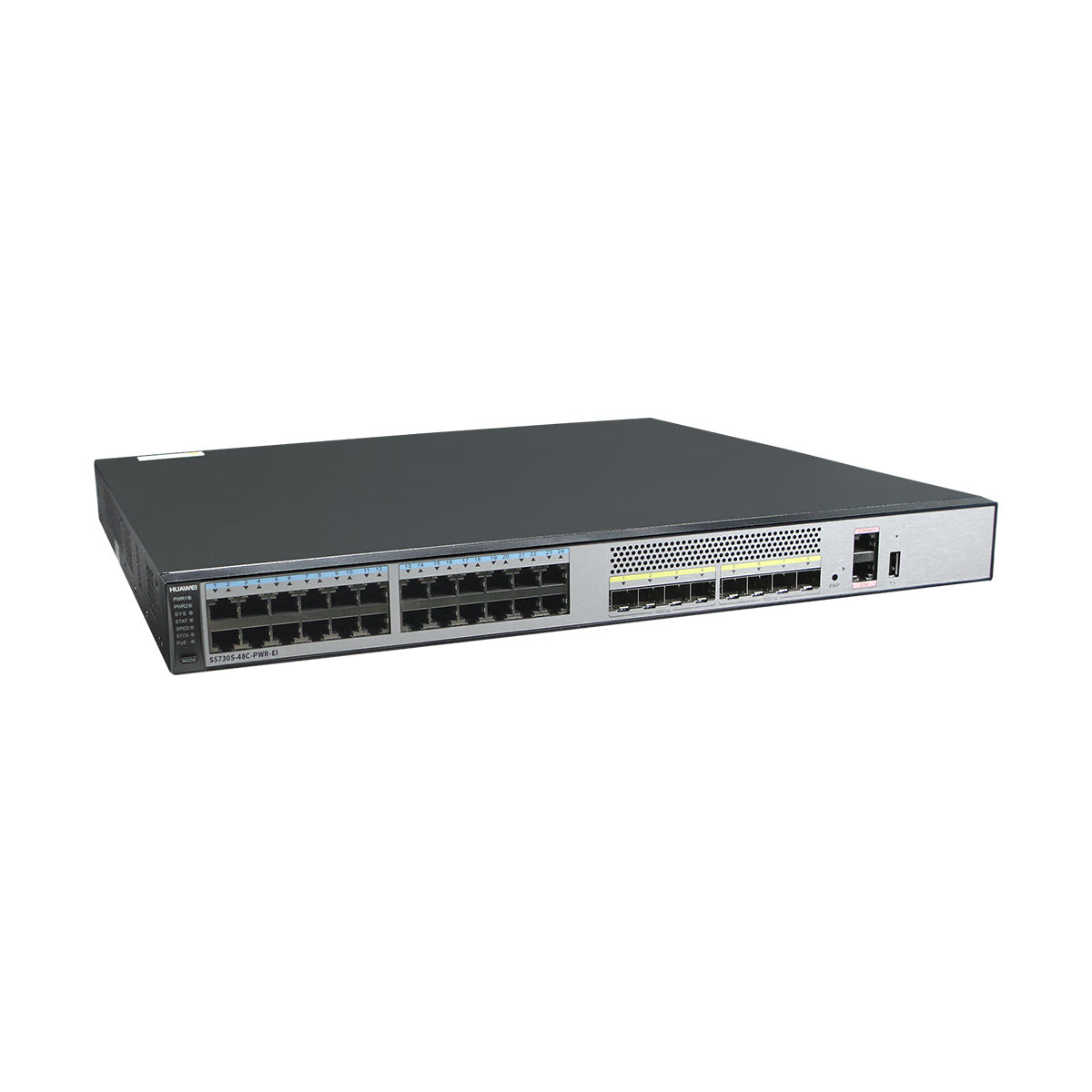

Huawei S5730S-48C-PWR-EI switch with 24-port PoE+1000BASE-T, 8-port 10GE SFP+, 2 power slots PN#98010791
With 1 extension slot
Switching capacity: 680Gbps
Forwarding capacity: 444Mpps
32K MAC address entries
PoE+ Supported
Stack ports: Any 10GE SFP+ or 40GE QSFP+ ports; Ports on the 2-port QSFP+ rear stack card
Card supported: ES5D21Q04Q01; ES5D21VST000 (applicable in V200R012C00 and later versions)
| Item | Description |
| Fixed ports | 24x1000BASE-T ports, 8x10GE SFP+ ports |
| Extended slot | One extended slot |
| Input voltage | AC:
Rated AC voltage: 100-240 V AC; 50/60 Hz Max AC voltage: 90-264 V AC; 47-63 Hz DC: Rated DC voltage: -48-60 V DC; Max DC voltage: -38.4-72 V DC |
| Maximum power consumption (without card) | 83.2 W (without PoE and extension card)
967 W (with PoE, PoE: 739.2 W) |
| Operating temperature | 0-1800 m altitude: -5°C to 50°C 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Relative humidity | 5% to 95% (non-condensing) |
| Heat dissipation | Air cooling heat dissipation and intelligent speed adjustment |
| MAC address table | IEEE 802.1d standards compliance
32K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
| VLAN | 4K VLANs
Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping function |
| Ethernet loop protection | RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection SEP ERPS (G.8032) STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection |
| IP routing | Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, VRRP, VRRP6 |
| IPv6 features | Neighbor Discover (ND)
PMTU IPv6 Ping, IPv6 Tracert, IPv6 Telnet 6to4, ISATAP ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types Multicast Listener Discovery snooping (MLDv1/v2) |
| Multicast | PIM-SM, PIM-DM, and PIM-SSM
IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics |
| QoS/ACL | Rate limitation in the inbound and outbound directions of a port
Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP and DRR+SP queue scheduling algorithms Re-marking of the 802.1p and DSCP fields of packets Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Queue-based rate limitation and shaping on ports |
