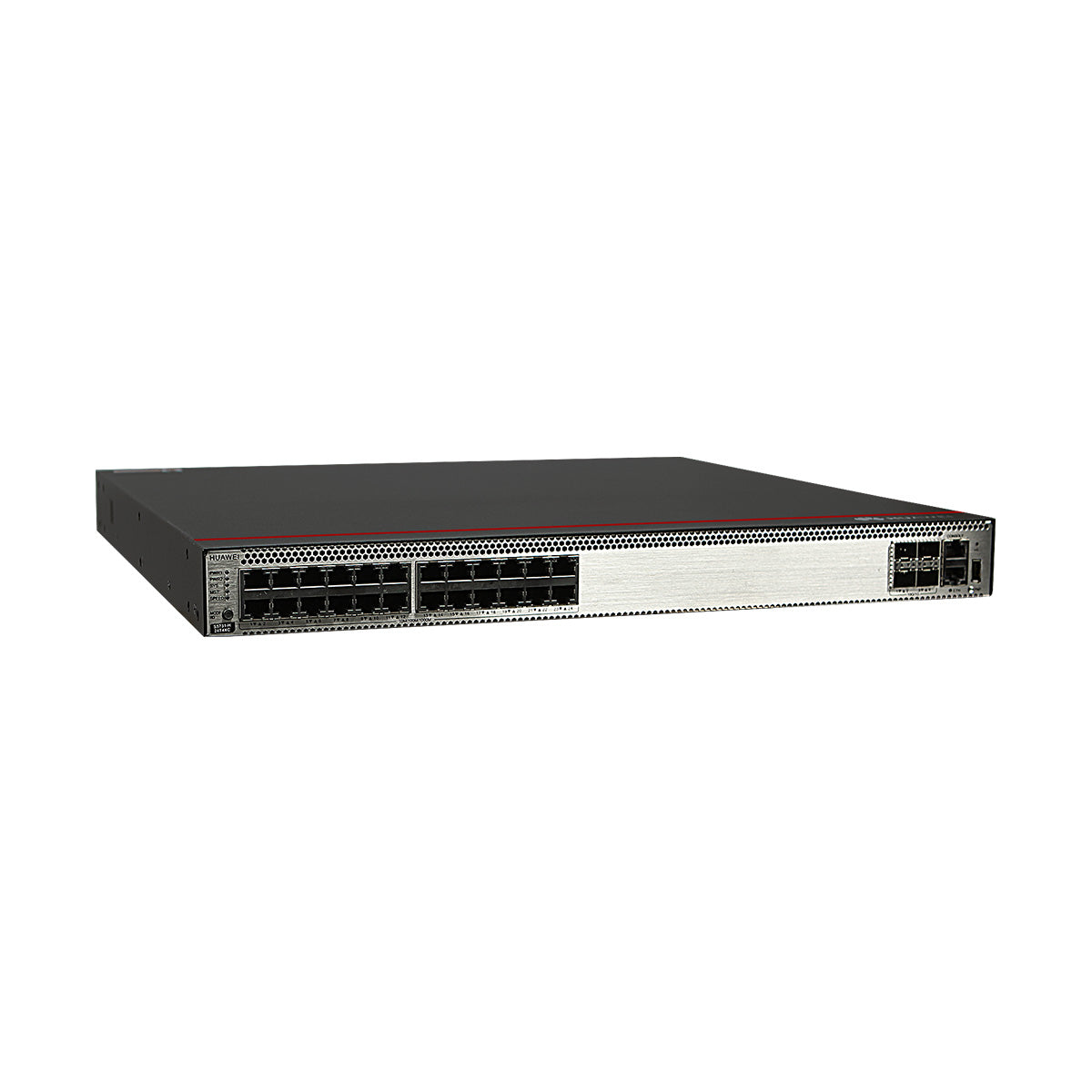

Huawei CloudEngine S5731-H24T4XC switch with 24-port 1000BASE-T, 4-port 10GE SFP+, 2 power slots
Switching capacity: 288 Gbps/672 Gbps
PoE+ Not supported
One extended slot, support 2 x 40GE QSFP+, 2 x 25GE SFP28 or 8 x 10GE SFP+, 8*10GE Base-T cards
Applicable power module:
PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module)
PDC1000S12-DB (1000 W DC Power Module)
PAC150S12-R (150 W AC Power Module)
PDC180S12-CR (180 W DC Power Module)
CloudEngine S5731-H delivers gigabit connectivity at the aggregation or access layer in large and midsize campuses, at the core layer in branches and small campuses, and at the access layer in data centers. Integrating native WLAN AC capabilities to support up to 1024 WLAN APs, CloudEngine S5731-H enables you to converge your wired and wireless networks for simplified operations.
| Item | Description |

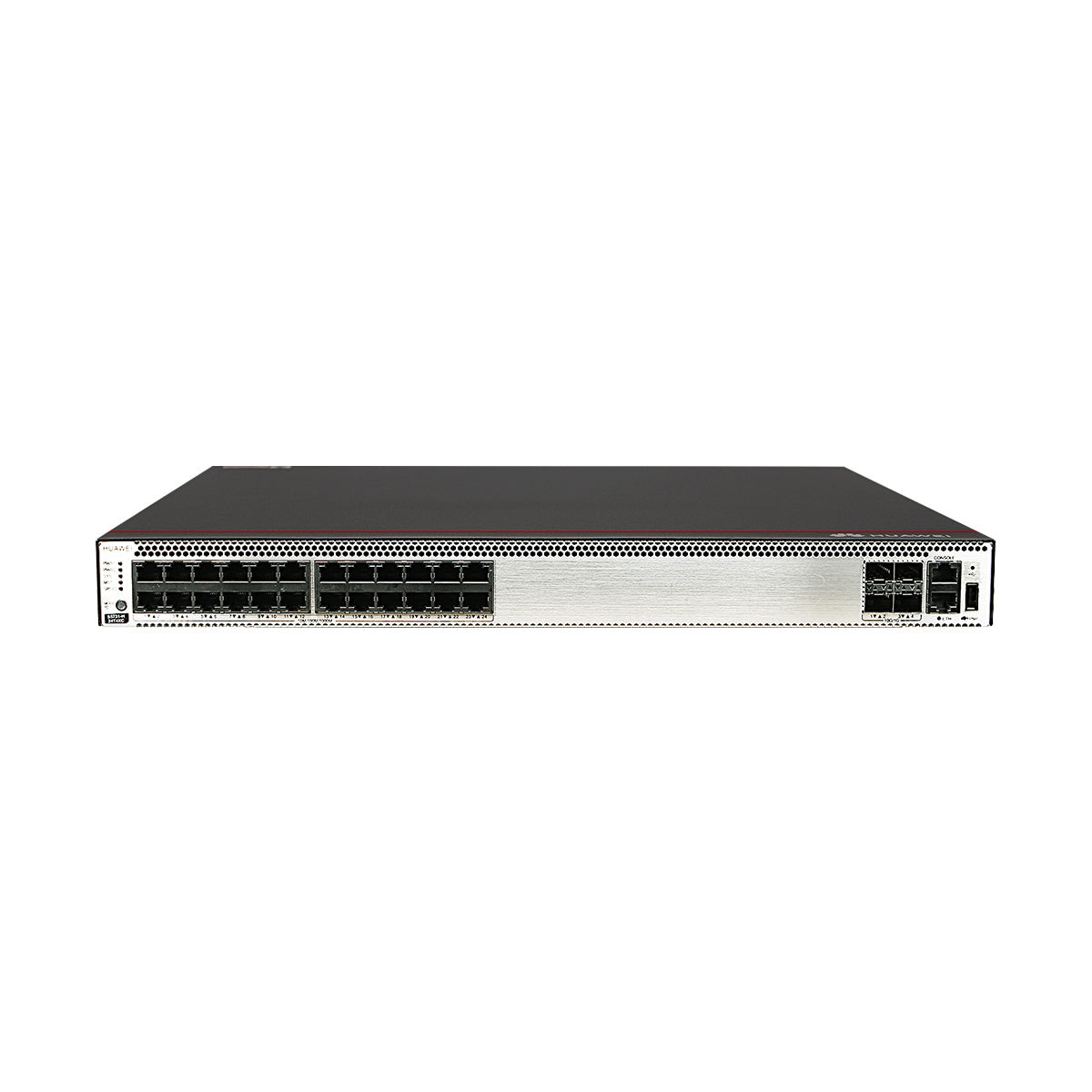

| Fixed Ports | Twenty-four 10/100/1000BASE-T ports Four 10GE SFP+ ports |
| Memory (RAM) | 4 GB |
| Flash | 1 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 57.73 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±6 kV |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode | |
| Dimensions (H x W x D) | Basic dimensions 43.6 mm x 442.0 mm x 420.0 mm |
| Maximum dimensions 43.6 mm x 442.0 mm x 448.0 mm | |
| Weight (with packaging) | 8.4 kg (18.52 lb) |

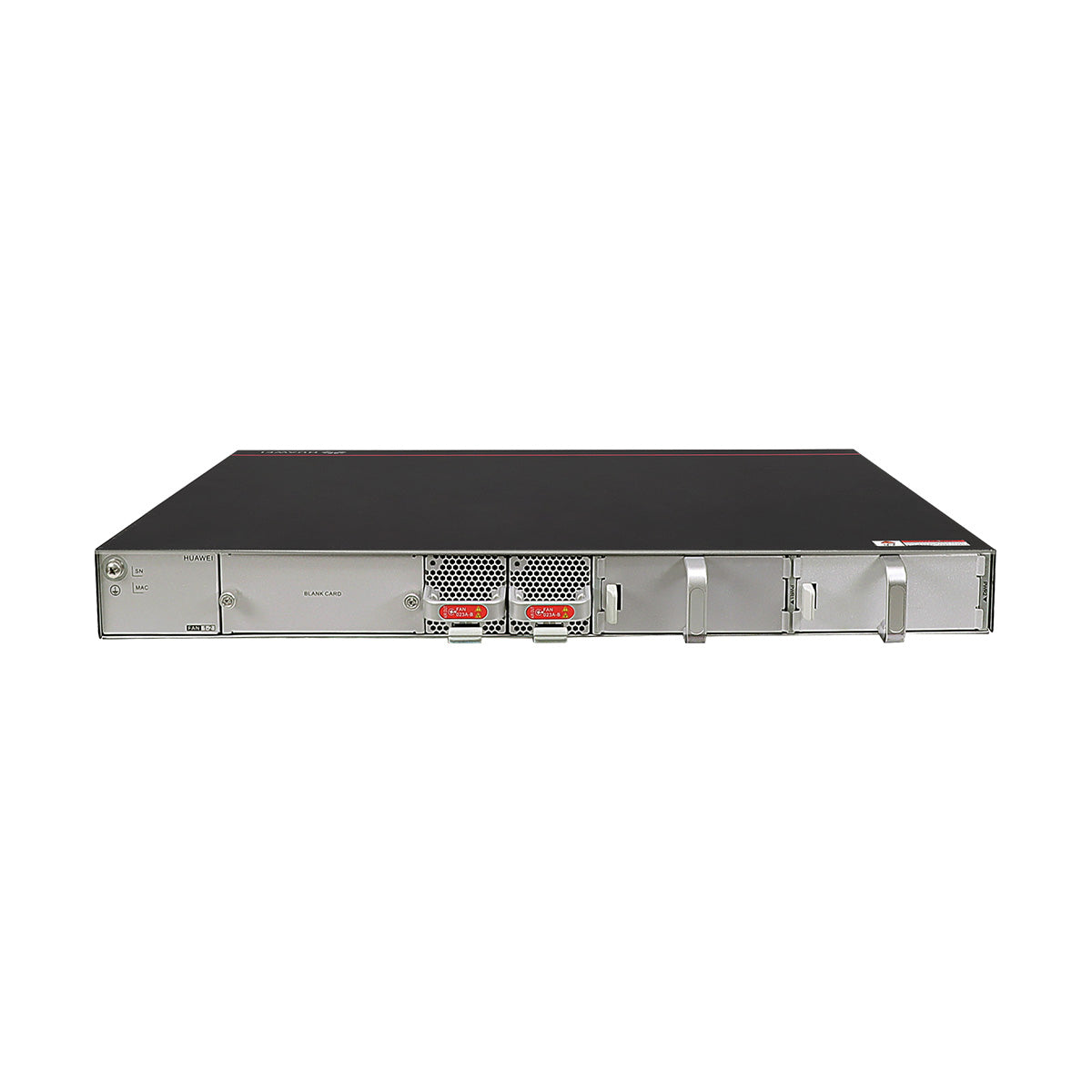

| Stack ports | 10GE SFP+ ports on the front panel, or ports on the rear card |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| High-Voltage DC input: 240 V DC | |
| DC input: -48 V DC to -60 V DC | |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| High-Voltage DC input: 190 V DC to 290 V DC | |
| DC input: -38.4 V DC to -72 V DC | |
| Maximum power consumption | 114 W (without card) |
| Typical power consumption | 88 W (without card) |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature | |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Part number | 02352QPP |
| 02352QPP-001 | |
| 02352QPP-005 |
