Huawei S5731-H48P4XC Switch

  • Brand New Condition
  • Original Box Packed
  • Latest Firmware Version
Available:In Stock
$0.00

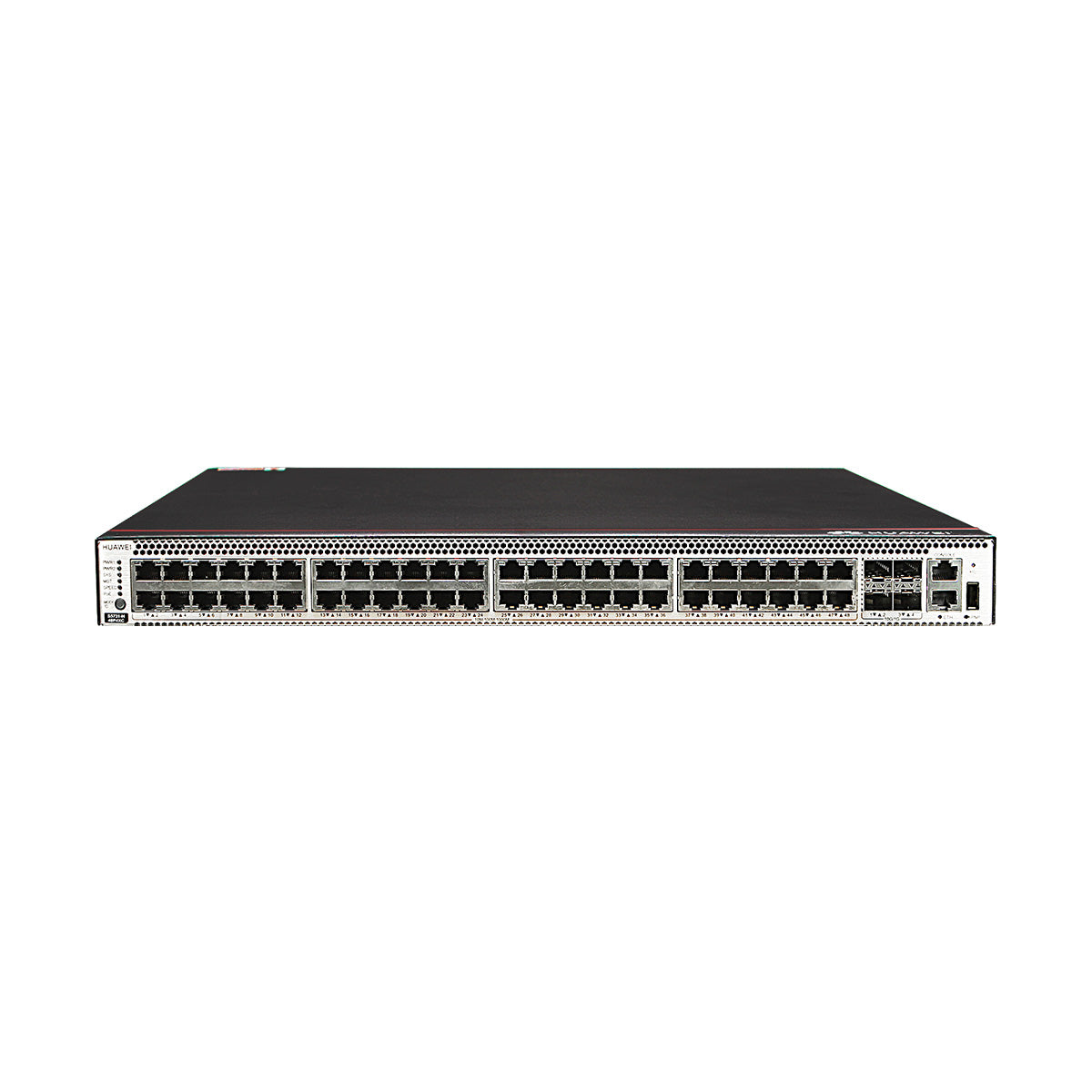

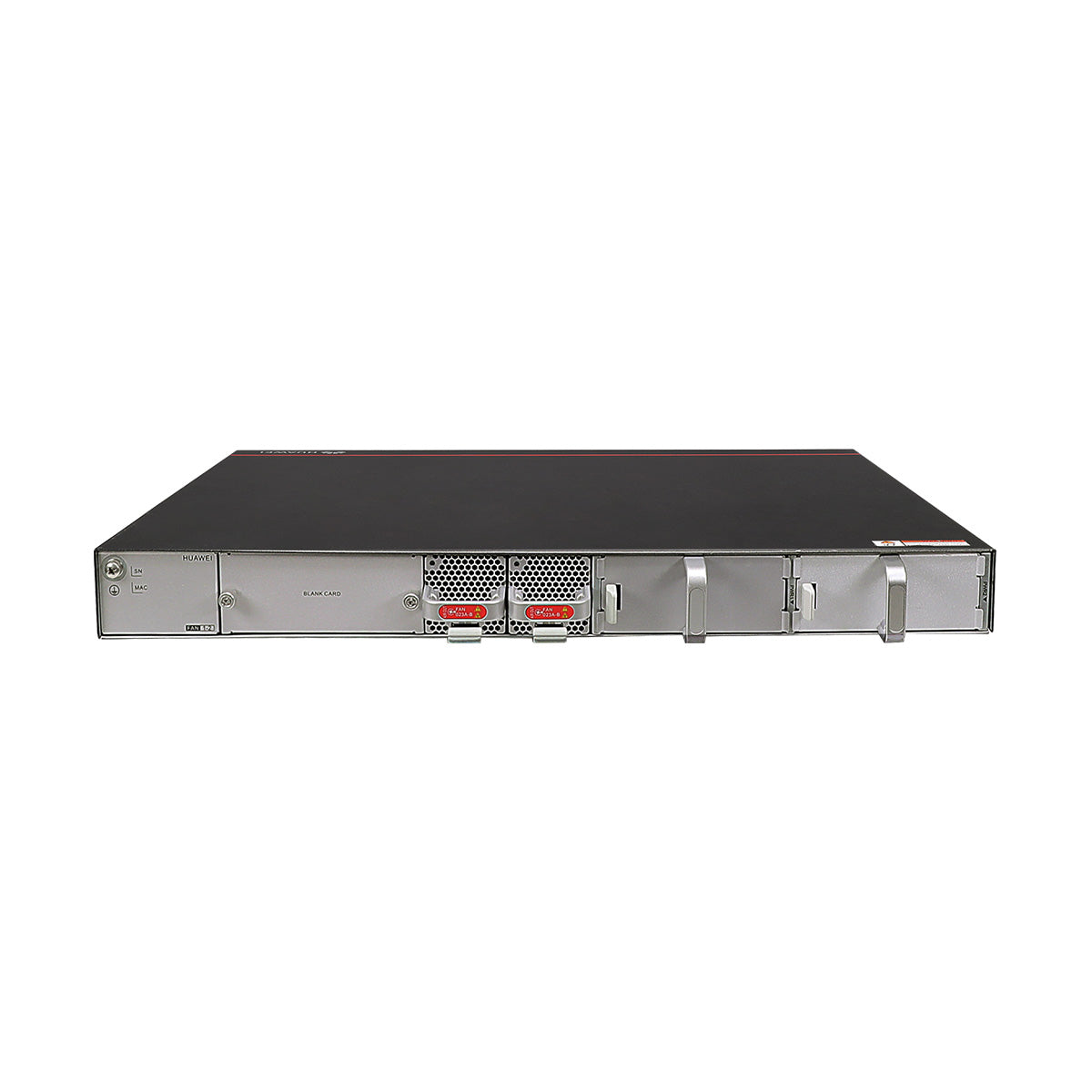

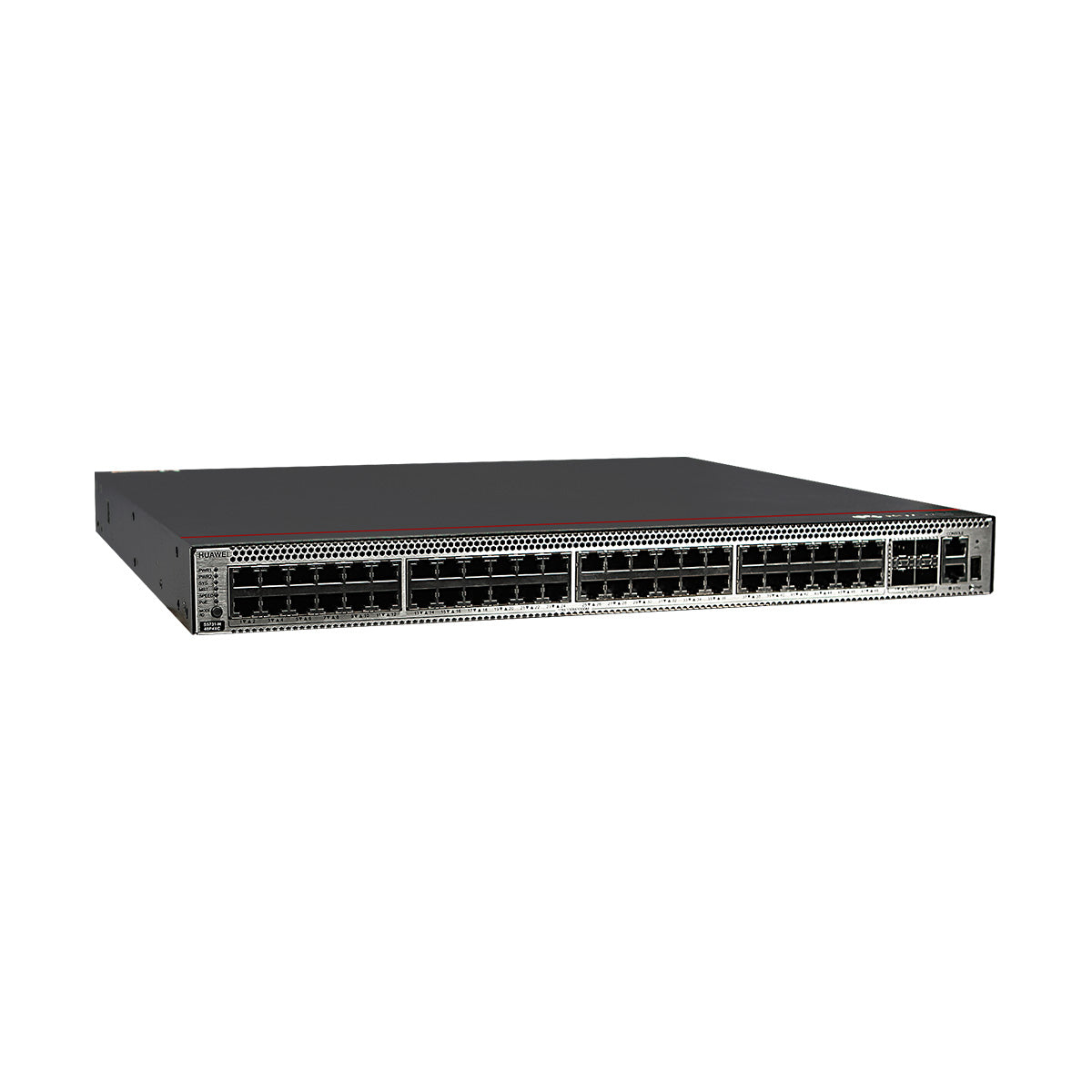

Huawei CloudEngine S5731-H48P4XC switch with 48-port 1000BASE-T, 4-port 10GE SFP+, PoE+, 2 power slots

Switching capacity: 336 Gbps/672 Gbps

PoE+ supported

Management of up to 1024 APs

One extended slot, support 2 x 40GE QSFP+, 2 x 25GE SFP28 or 8 x 10GE SFP+, 8*10GE Base-T cards

Applicable card: ES5D21X08T00

ES5D21Q02Q00
S7X08000 (02312URW) (applicable in V200R019C10 and later versions)
S7X08000 (02312URW-002) (applicable in V200R021C10SPC600 and later versions)
S7Q02001 (02313UBW) (applicable in V200R021C01 and later versions)
S7Q02001 (02313UBW-002) (applicable in V200R021C10SPC600 and later versions)

CloudEngine S5731-H series switches are brand-new enhanced gigabit access switches that provide all-GE electrical downlink ports, fixed 10GE uplink ports, and one extended slot.
CloudEngine S5731-H delivers gigabit connectivity at the aggregation or access layer in large and midsize campuses, at the core layer in branches and small campuses, and at the access layer in data centers. Integrating native WLAN AC capabilities to support up to 1024 WLAN APs, CloudEngine S5731-H enables you to converge your wired and wireless networks for simplified operations.



Specification
Fixed port 48 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports

Extended slot		 One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards

Power supply type



1000 W PoE AC (pluggable)
Rated voltage range



AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range



AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz

High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification)
Maximum power consumption



132 W (without PD)

1750 W (with PD, PD power consumption of 1440 W)
Noise



Under normal temperature (sound power): 62.3dB (A)

Under high temperature (sound power): 71.8dB (A)

Under normal temperature (sound pressure): 52.8dB (A)


Operating temperature 0-1800 m altitude: -5°C to 45°C



1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Storage temperature -40°C to +70°C
Relative humidity 5% to 95% (non condensing)
Surge protection specification (service port) Common mode: ±6 kV
Surge protection specification (power port)



Differential mode: ±6 kV; Common mode: ±6kV


Heat dissipation Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans

Dimensions (H x W xD)		 43.6 mm x 442 mm x420 mm
Chassis height 1 U
Chassis weight (including packaging) 8.8 kg



Huawei CloudEngine S5731-H48P4XC switch with 48-port 1000BASE-T, 4-port 10GE SFP+, PoE+, 2 power slots

Switching capacity: 336 Gbps/672 Gbps

PoE+ supported

Management of up to 1024 APs

One extended slot, support 2 x 40GE QSFP+, 2 x 25GE SFP28 or 8 x 10GE SFP+, 8*10GE Base-T cards

Applicable card: ES5D21X08T00

ES5D21Q02Q00
S7X08000 (02312URW) (applicable in V200R019C10 and later versions)
S7X08000 (02312URW-002) (applicable in V200R021C10SPC600 and later versions)
S7Q02001 (02313UBW) (applicable in V200R021C01 and later versions)
S7Q02001 (02313UBW-002) (applicable in V200R021C10SPC600 and later versions)

CloudEngine S5731-H series switches are brand-new enhanced gigabit access switches that provide all-GE electrical downlink ports, fixed 10GE uplink ports, and one extended slot.
CloudEngine S5731-H delivers gigabit connectivity at the aggregation or access layer in large and midsize campuses, at the core layer in branches and small campuses, and at the access layer in data centers. Integrating native WLAN AC capabilities to support up to 1024 WLAN APs, CloudEngine S5731-H enables you to converge your wired and wireless networks for simplified operations.



Specification
Fixed port 48 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports

Extended slot		 One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards

Power supply type



1000 W PoE AC (pluggable)
Rated voltage range



AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range



AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz

High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification)
Maximum power consumption



132 W (without PD)

1750 W (with PD, PD power consumption of 1440 W)
Noise



Under normal temperature (sound power): 62.3dB (A)

Under high temperature (sound power): 71.8dB (A)

Under normal temperature (sound pressure): 52.8dB (A)


Operating temperature 0-1800 m altitude: -5°C to 45°C



1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Storage temperature -40°C to +70°C
Relative humidity 5% to 95% (non condensing)
Surge protection specification (service port) Common mode: ±6 kV
Surge protection specification (power port)



Differential mode: ±6 kV; Common mode: ±6kV


Heat dissipation Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans

Dimensions (H x W xD)		 43.6 mm x 442 mm x420 mm
Chassis height 1 U
Chassis weight (including packaging) 8.8 kg
