Huawei S5731-H48T4XC-B Switch

  • Brand New Condition
  • Original Box Packed
  • Latest Firmware Version
Available:In Stock
$0.00

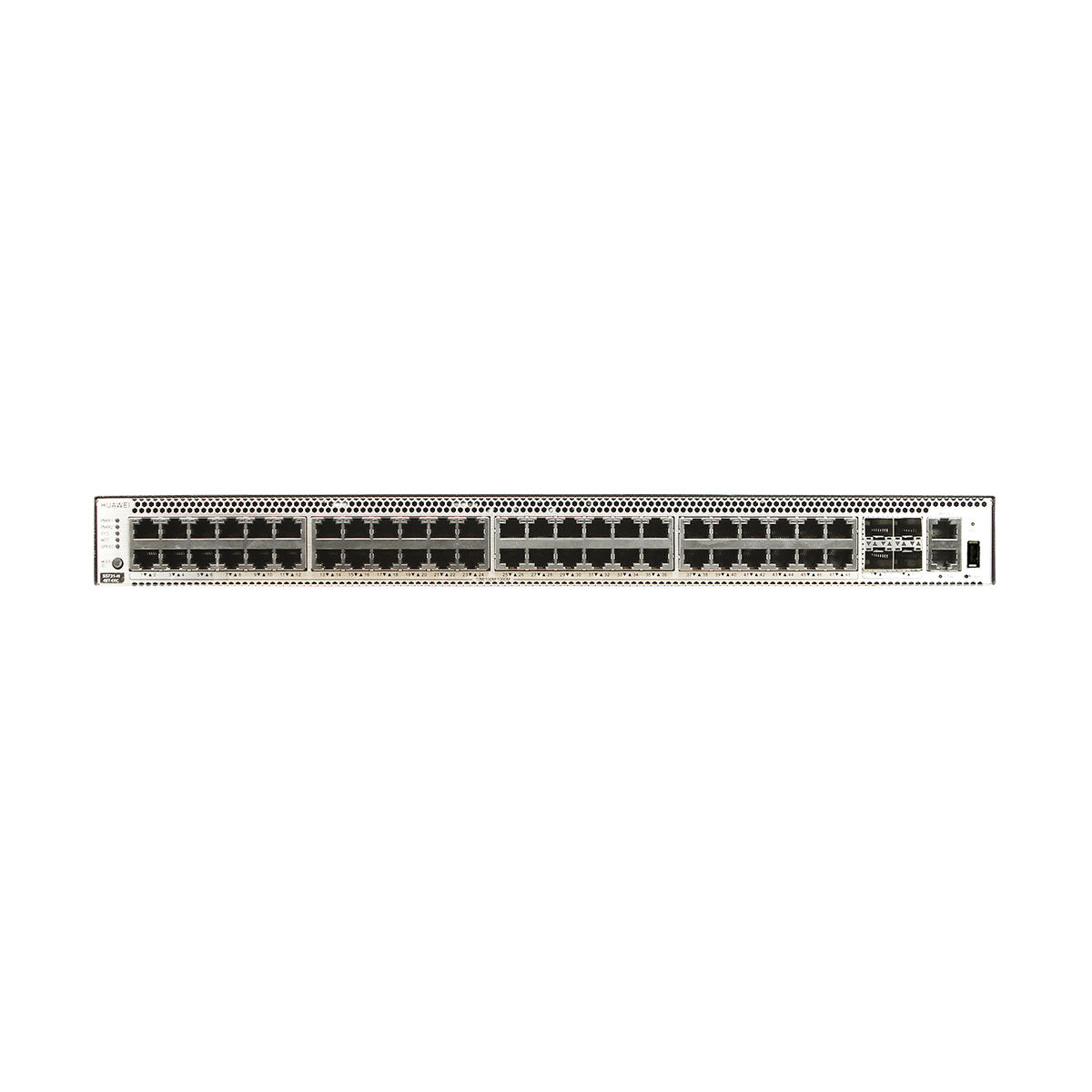

Huawei CloudEngine S5731-H48T4XC-B switch with 48-port 10/100/1000BASE-T, 4-port 10GE SFP+, 2 power slots

Switching Capacity: 176 Gbit/s/672 Gbit/s

Management of up to 1024 APs

CloudEngine S5731-H series switches are brand-new enhanced gigabit access switches that provide all-GE electrical downlink ports, fixed 10GE uplink ports, and one extended slot.
CloudEngine S5731-H delivers gigabit connectivity at the aggregation or access layer in large and midsize campuses, at the core layer in branches and small campuses, and at the access layer in data centers. Integrating native WLAN AC capabilities to support up to 1024 WLAN APs, CloudEngine S5731-H enables you to converge your wired and wireless networks for simplified operations.



Item Description
Fixed Ports 48 × 10/100/1000Base-T Ethernet ports, 4 × 10 Gig SFP+
Memory (RAM) 4 GB
Flash 1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 55.31 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) Basic 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging) 8.55 kg (18.85 lb)
Stack ports 10GE SFP+ ports on the front panel
RTC Supported
RPS Not supported
PoE Not supported
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz
DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
DC input: -38.4 V DC to -72 V DC
Maximum power consumption 130 W
Typical power consumption 82.89 W
Operating temperature -5°C to +40°C (23°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 59.9 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 02353VAD
02353VAD-003

Huawei CloudEngine S5731-H48T4XC-B switch with 48-port 10/100/1000BASE-T, 4-port 10GE SFP+, 2 power slots

Switching Capacity: 176 Gbit/s/672 Gbit/s

Management of up to 1024 APs

CloudEngine S5731-H series switches are brand-new enhanced gigabit access switches that provide all-GE electrical downlink ports, fixed 10GE uplink ports, and one extended slot.
CloudEngine S5731-H delivers gigabit connectivity at the aggregation or access layer in large and midsize campuses, at the core layer in branches and small campuses, and at the access layer in data centers. Integrating native WLAN AC capabilities to support up to 1024 WLAN APs, CloudEngine S5731-H enables you to converge your wired and wireless networks for simplified operations.



Item Description
Fixed Ports 48 × 10/100/1000Base-T Ethernet ports, 4 × 10 Gig SFP+
Memory (RAM) 4 GB
Flash 1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 55.31 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) Basic 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging) 8.55 kg (18.85 lb)
Stack ports 10GE SFP+ ports on the front panel
RTC Supported
RPS Not supported
PoE Not supported
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz
DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
DC input: -38.4 V DC to -72 V DC
Maximum power consumption 130 W
Typical power consumption 82.89 W
Operating temperature -5°C to +40°C (23°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 59.9 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 02353VAD
02353VAD-003
