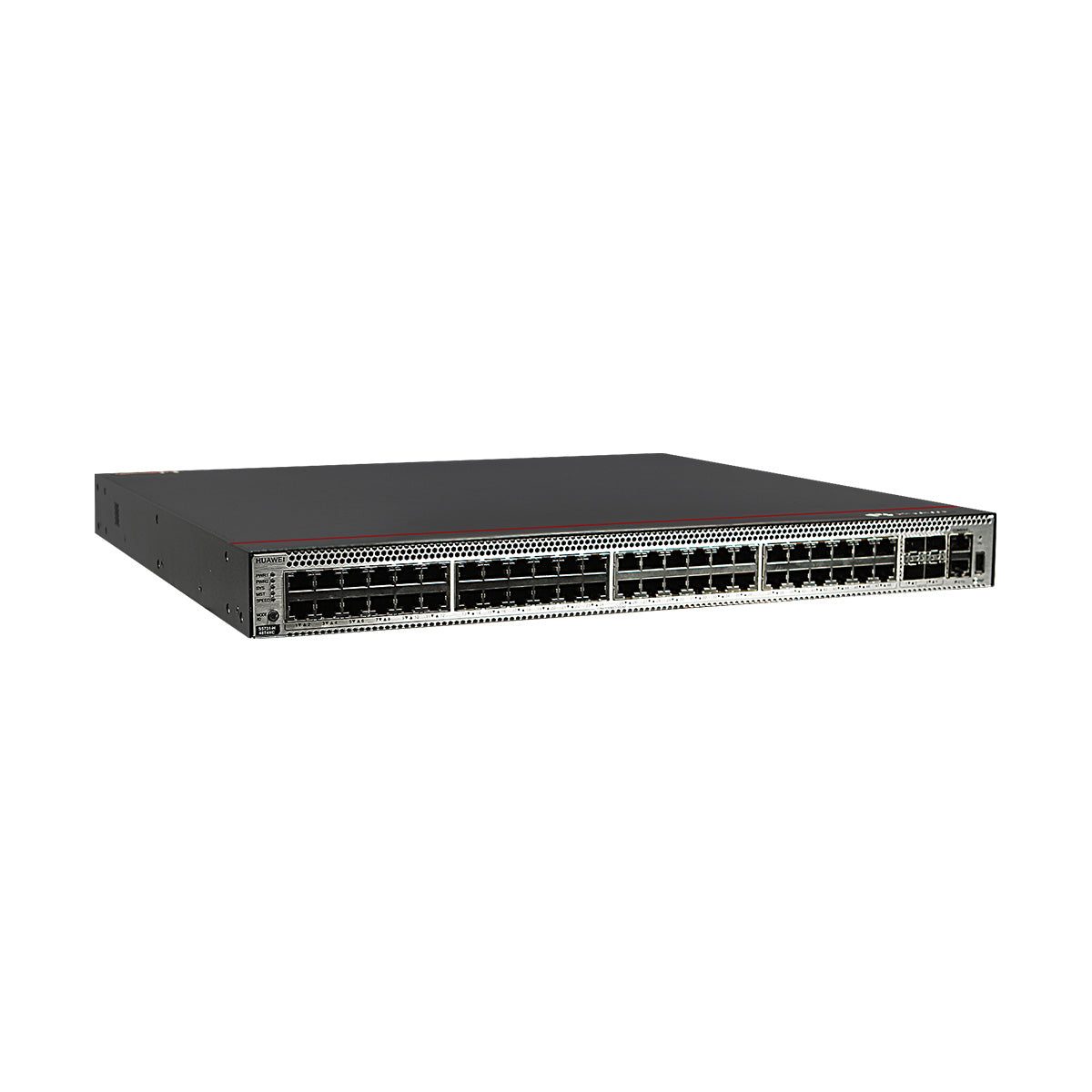

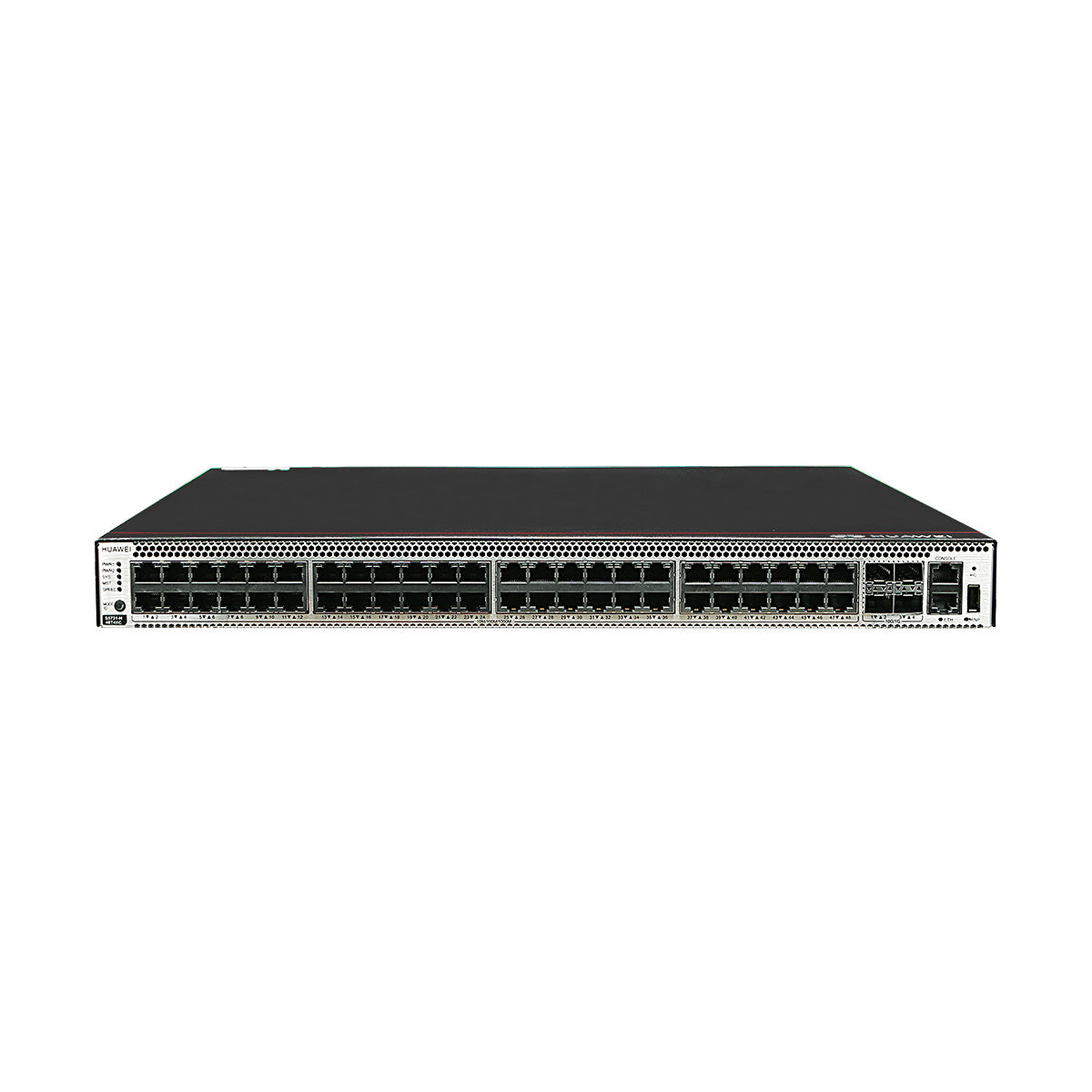

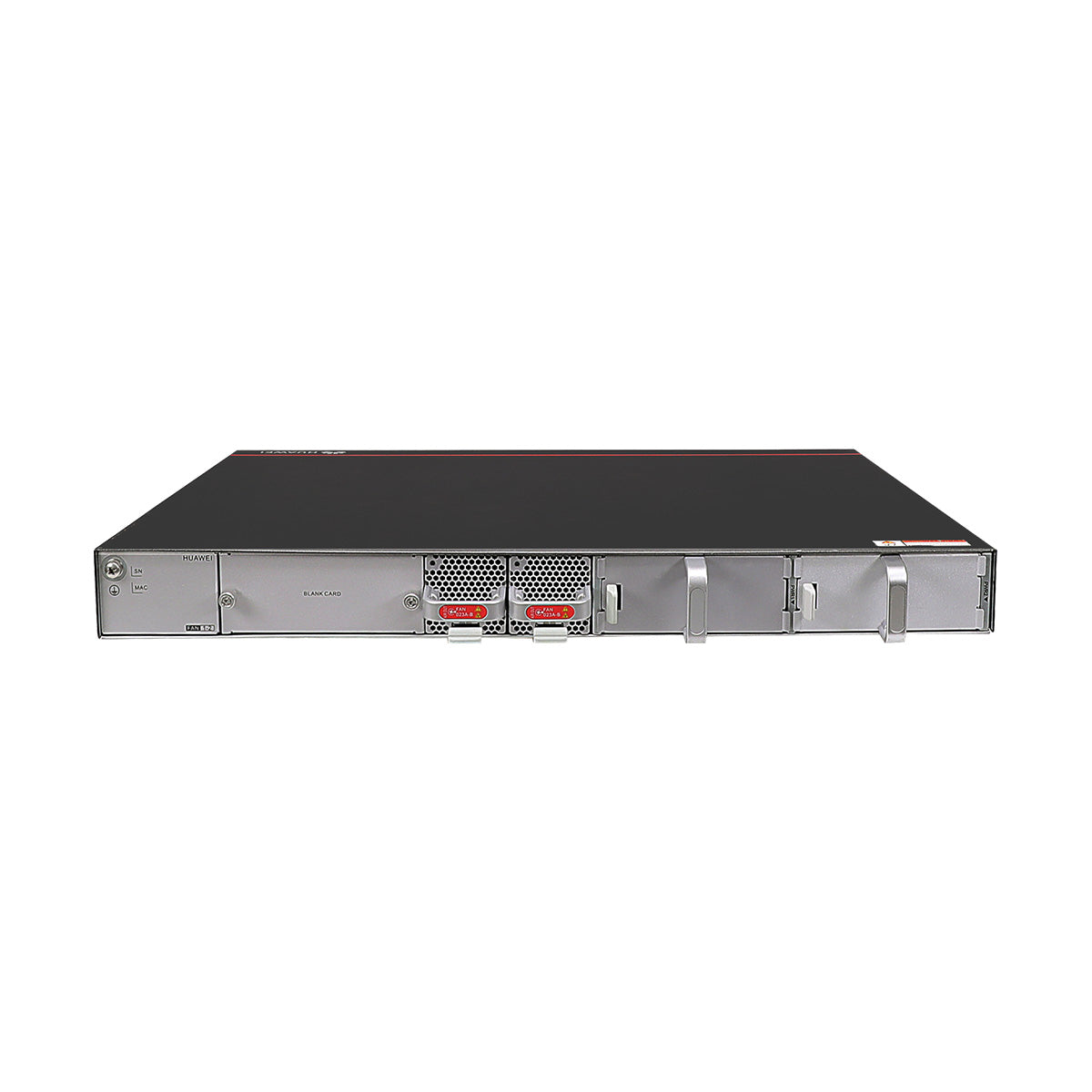

Huawei CloudEngine S5731-H48T4XC switch with 48-port 1000BASE-T, 4-port 10GE SFP+, 2 power slots
Switching capacity: 336 Gbps/672 Gbps
PoE+ Not supported
Management of up to 1024 APs
One extended slot, support 2 x 40GE QSFP+, 2 x 25GE SFP28 or 8 x 10GE SFP+, 8*10GE Base-T cards
Applicable power module:
PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module)
PDC1000S12-DB (1000 W DC Power Module)
PAC150S12-R (150 W AC Power Module)
PDC180S12-CR (180 W DC Power Module)
CloudEngine S5731-H delivers gigabit connectivity at the aggregation or access layer in large and midsize campuses, at the core layer in branches and small campuses, and at the access layer in data centers. Integrating native WLAN AC capabilities to support up to 1024 WLAN APs, CloudEngine S5731-H enables you to converge your wired and wireless networks for simplified operations.
| Specification | ||
| Fixed Port | 48 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports | |
Extended slot |
One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards | |
Power supply type |
600 W AC (pluggable); 150 W AC (pluggable); 1000 W DC (pluggable) | |
| Rated voltage range |
AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz
AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz DC input (1000 W DC): -48 VDC to – 60 V DC |
|
| Maximum voltage range |
AC input (150 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz
AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) DC input (1000 W DC): -38.4 V DC to -72V DC |
|
| Maximum power consumption | 124 W | |
| Noise |
Under normal temperature (sound power): 57.5dB (A)
Under high temperature (sound power): 70.9dB (A) Under normal temperature (sound pressure): 47.5dB (A) |
|
| Operating temperature |
0-1800 m altitude: -5°C to 45°C
1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
|
| Storage temperature | -40°C to +70°C | |
| Relative humidity | 5% to 95% (non condensing) | |
| Surge protection specification (service port) | Common mode: ±6 kV | |
| Surge protection specification (power port) |
AC power port: ±6 kV in differential mode, ±6 kV in common mode
DC power port: ±2 kV in differential mode, ±4 kV in common mode |
|
| Heat dissipation | Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans | |
Dimensions (H x W xD) |
43.6 mm x 442 mm x420 mm | |
| Chassis height | 1 U | |
| Chassis weight (including packaging) | 8.55 kg | |
