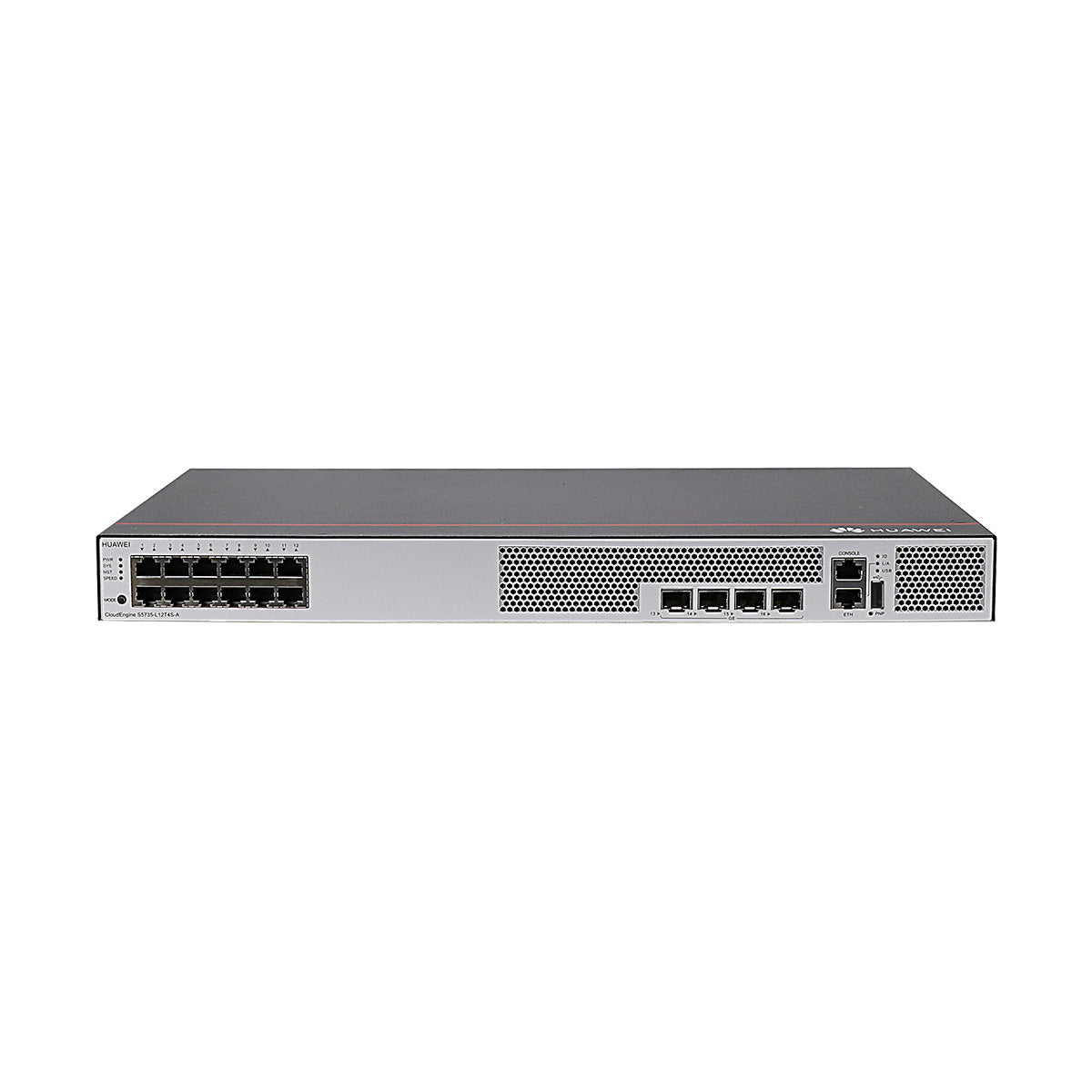

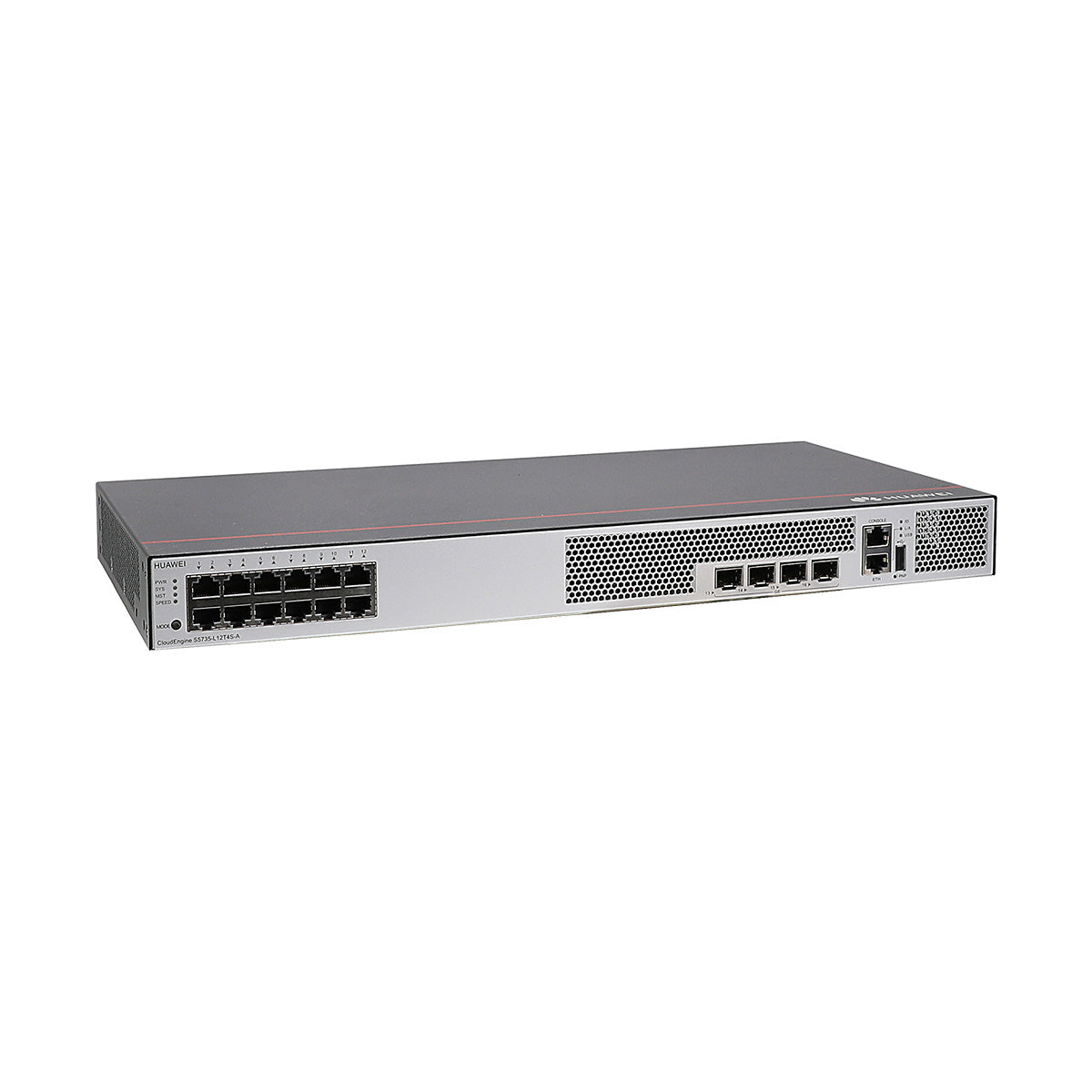

Huawei CloudEngine S5735-L12T4S-A switch with 12-port 10/100/1000BASE-T, 4-port GE SFP, 1 AC power
Forwarding performance: 24 Mpps
Switching capacity: 32 Gbps/336 Gbps
Designed for enterprise campus network access and gigabit to the desktop, Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports.
Built on next-generation, high-performance hardware and powered by Huawei's Versatile Routing Platform (VRP), the switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
| Specification | ||
| Physical specifications | Dimensions (H x W x D) | 43.6 mm x 442 mm x 220 mm |
| Chassis height | 1 U | |
| Chassis weight (including packaging) | 3.83 kg | |
| Fixed port | GE Base-T port | 12 |
| GE SFP port | 4 | |
| 10GE port | NA | |
| Management port | Console port (RJ45) | Supported |
| USB port | USB 2.0 | |
| CPU | Frequency | 1000 MHz |
| Core | 4 | |
| Storage | Memory (RAM) | 1 GB |
| Flash memory | Hardware: 512MB, of which 306MB is available for users | |
| Power supply system | Power supply type | Built-in AC |
| Rated voltage rang | 100 V AC to 240V AC, 50/60 Hz | |
| Maximum voltage range | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
High-voltage DC input: 190 V DC to 290 V DC (meeting 240 V high voltage DC certification) |
|
| Maximum input current | 2 A | |
| Maximum power consumption of the device | 29 W | |
| Power consumption in the case of 30% traffic load1 | 23 W | |
| Power consumption in the case of 100% traffic load1 | 25 W | |
| Reliability | MTBF (year)2 | 98.6 |
| MTTR (hour) | 1.22 | |
| Availability | > 0.99999 | |
