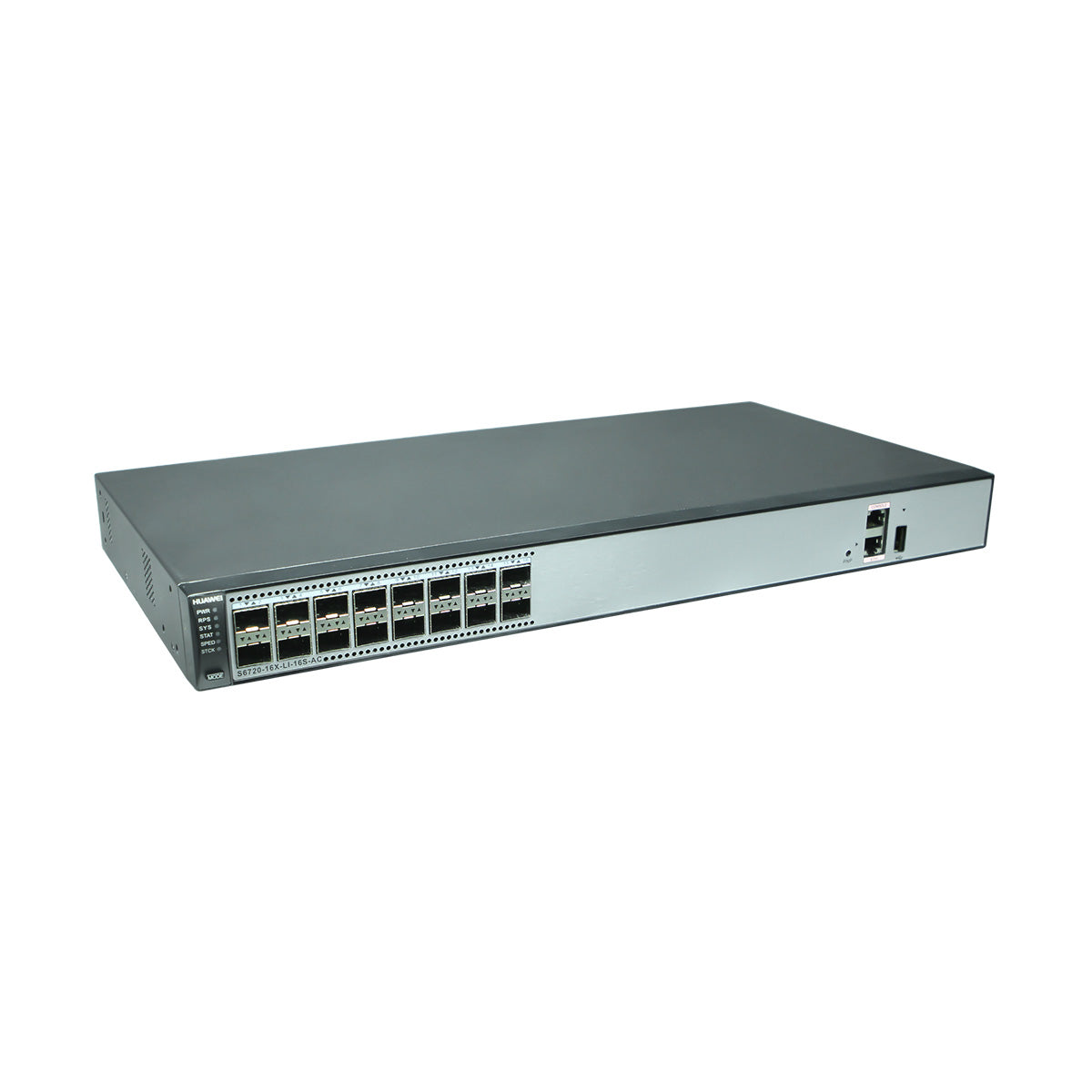

Huawei S6720-16X-LI-16S-AC switch with 16-port 10GE SFP+, 1 AC power
Forwarding performance: 480Mpps
Switching capacity: 1.28/12.8Tbps
32K MAC address entries
Huawei S6720-LI series switch are next-generation simplified all-10 GE fixed switches and can be used for 10 GE access on campus and data center networks.
Item | Description |
Fixed Ports | 16 x 10GE SFP+ |
Memory (RAM) | 1 GB |
Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 39.2 years |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port surge protection | NA |
Power supply surge protection | ±6 kV in differential mode, ± 6 kV in common mode |
Dimensions (H x W x D) | Basic 43.6 mm x 442.0 mm x 225.0 mm |
Maximum 43.6 mm x 442.0 mm x 234.4 mm | |
Weight (including package) | 4.1 kg |
Stack ports | Any 10GE SFP+ ports |
RTC | Supported |
RPS | Supported |
PoE | Not supported |
Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
Maximum power consumption (100% throughput, full speed of fans) | 67.9 W |
Typical power consumption (30% of traffic load, tested according to ATIS standard) | 45.2 W |
Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27째C, sound power) | |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-5000 m (0-16404 ft.) |
Certification | EMC certification |
Safety certification | |
Manufacturing certification | |
Part number | 98010687 |
