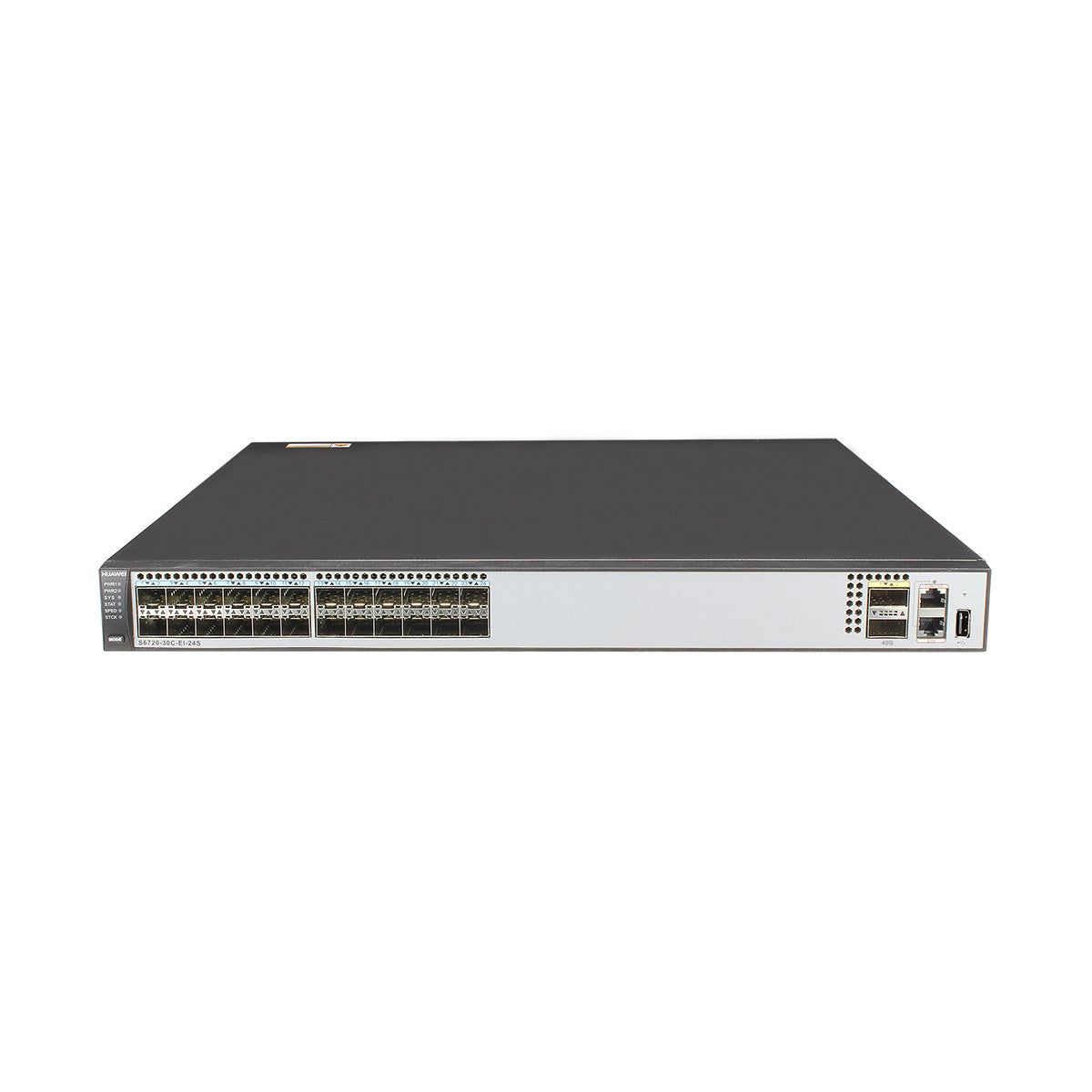

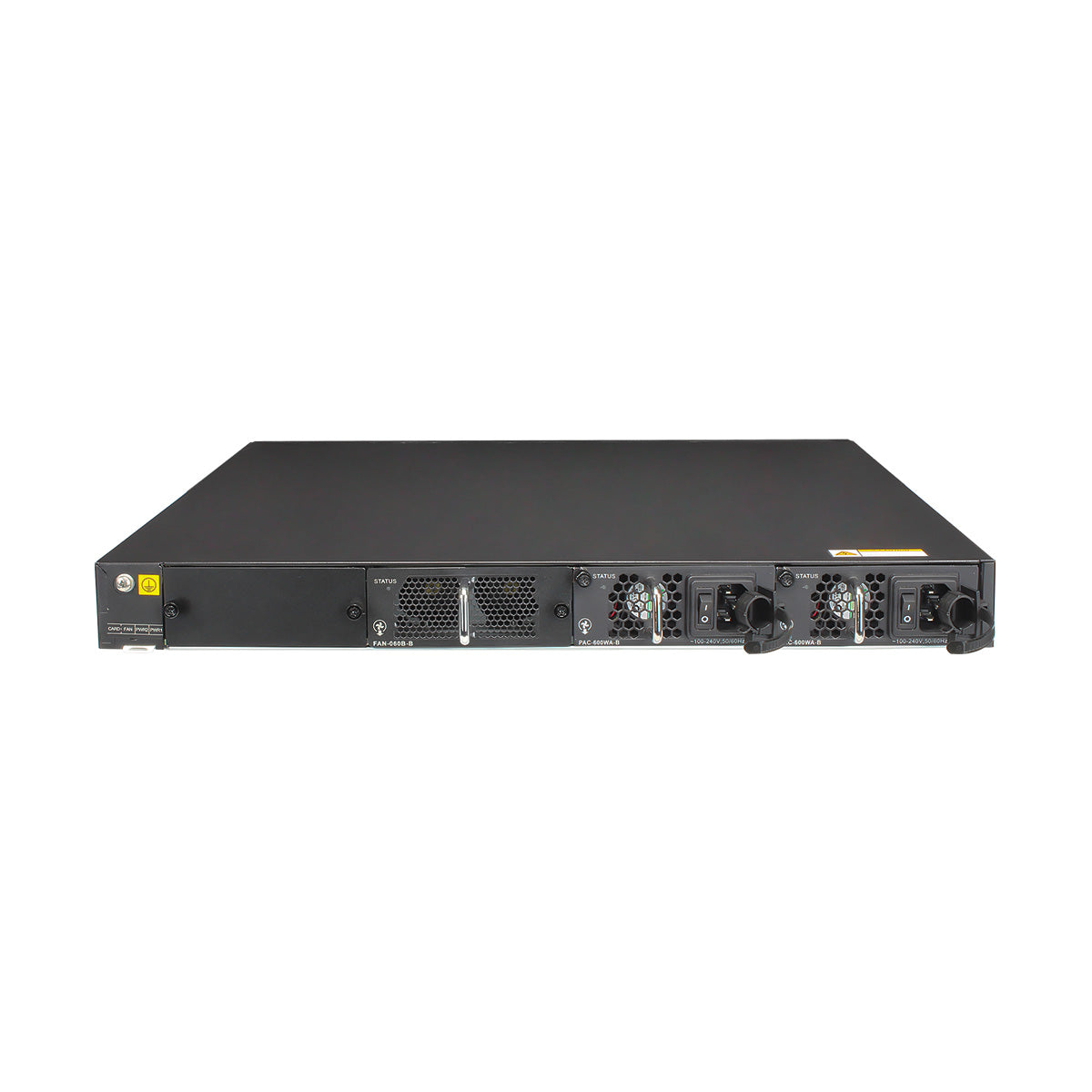

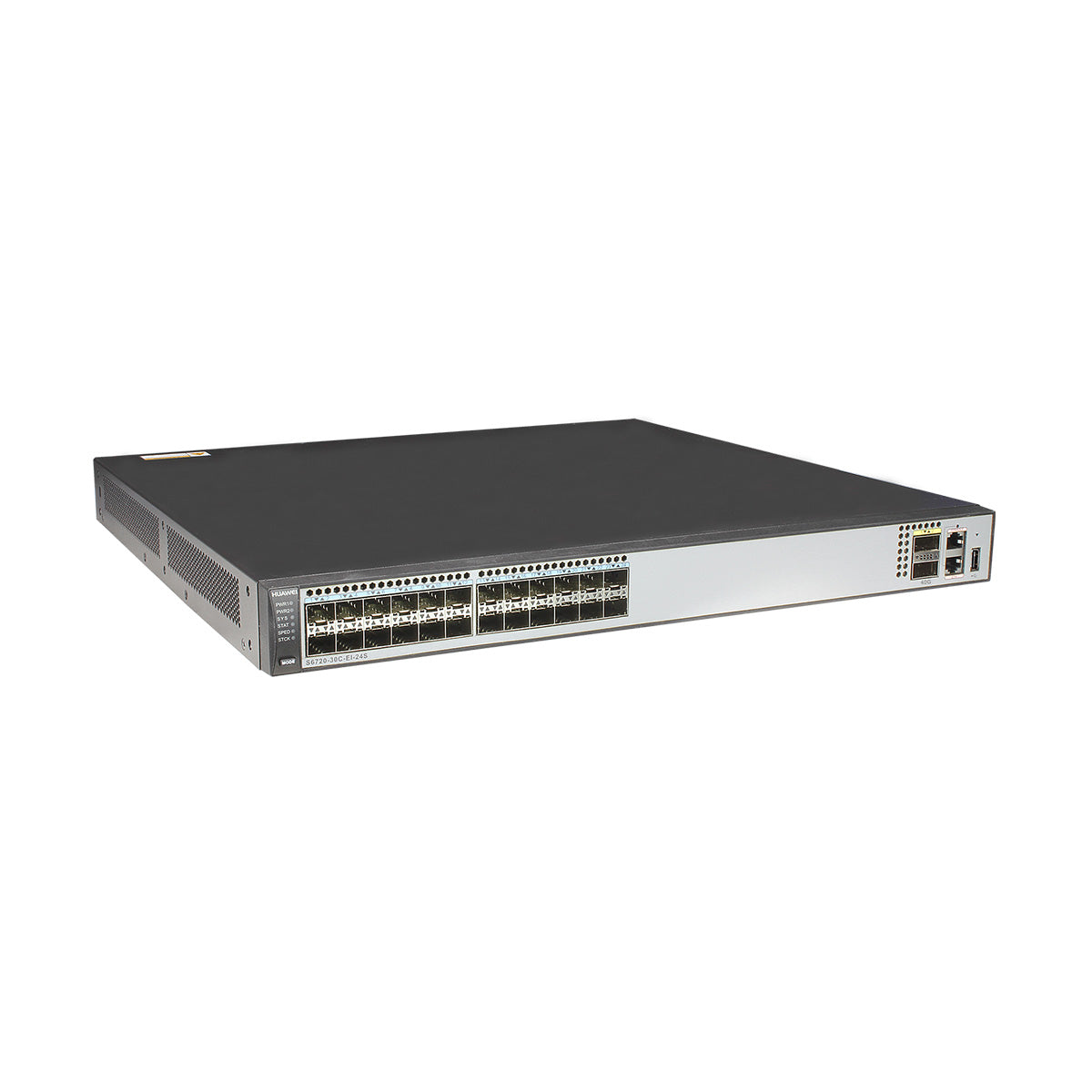

Huawei S6720-30C-EI-24S-AC switch with 24-port 10GE SFP+, 2-port 40GE QSFP+, 2 power slots
Forwarding performance: 720Mpps
Switching capacity: 2.56 Tbps
288K MAC address entries
4,094 VLANs
1 Rear card slot, Card supported:
ES5D21Q04Q01
ES5D21X08S00 (applicable in V200R012C00 and later versions)
ES5D21X04S01 (applicable in V200R019C00 and later versions)
Huawei S6720-EI series fixed switches provide extensive services, comprehensive security control policies, and various QoS features. The S6720-EI can be used for server access in data centers or as core switches for campus networks.
· All-10 GE Switch with Up to Six 40 GE Uplink Ports
· Supports iStack and configuration-free stacking. The bi-directional stack bandwidth has the capacity of 480 Gbit/s.
· SVF for Ultra-Simplified Network O&M
| Item | Description |
| Fixed Ports | Twenty-four 10GE SFP+ ports,Two 40GE QSFP+ ports |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 80.60 years (without card) |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | NA |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode | |
| Dimensions (H x W x D) | Basic dimensions 44.4 mm x 442.0 mm x 424.7 mm |
| Maximum dimensions 44.4 mm x 442.0 mm x 451.8 mm | |
| Weight (with packaging) | 9.8 kg (21.61 lb) |
| Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports) |
| Any 40GE QSFP+ ports (a maximum of 6 physical ports) | |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| -48 V DC to -60 V DC | |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| -38.4 V DC to -72 V DC | |
|
Maximum power consumption |
233.7 W |
|
Typical power consumption |
147 W (without card) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature |
|
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Part number | 02350DMN |
