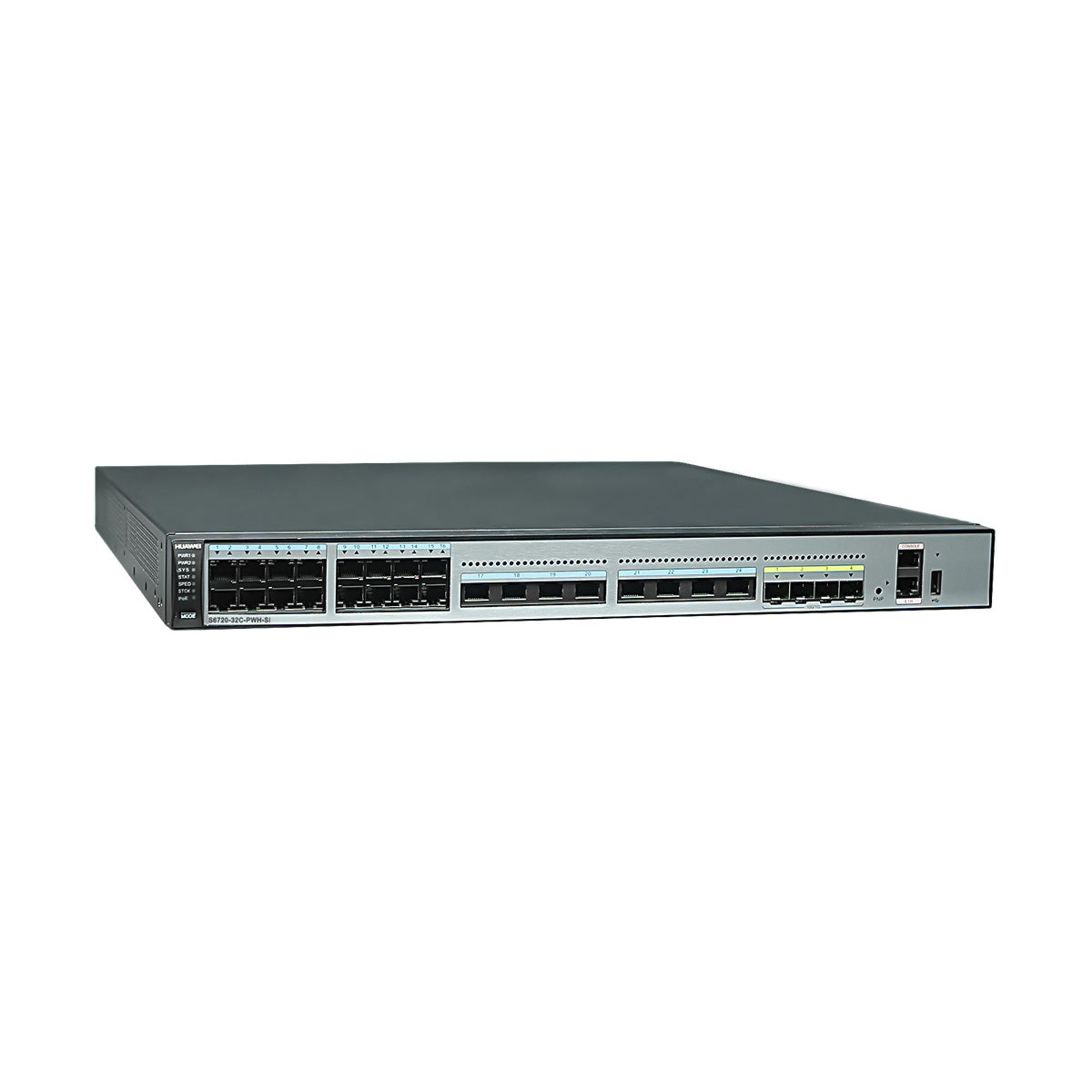

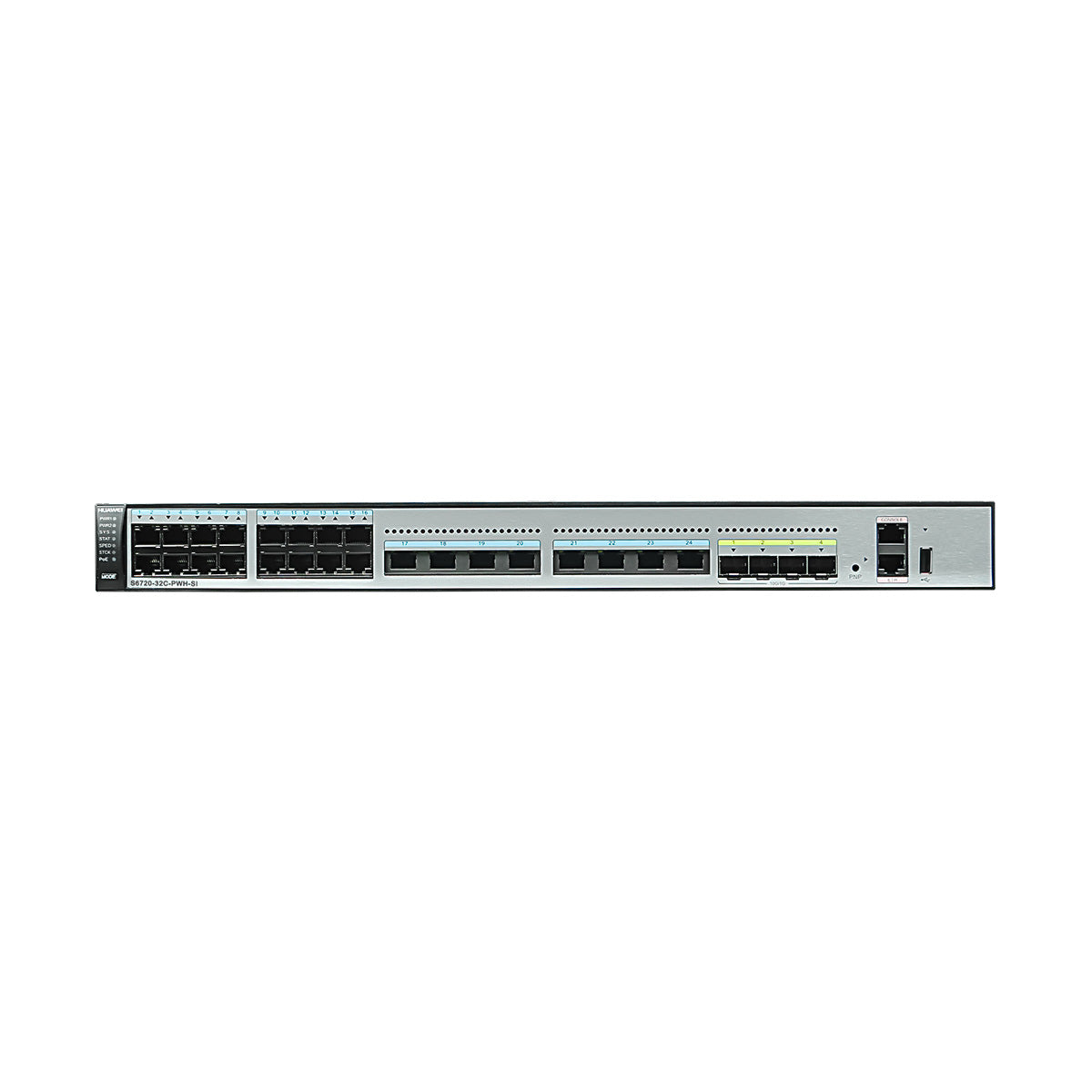

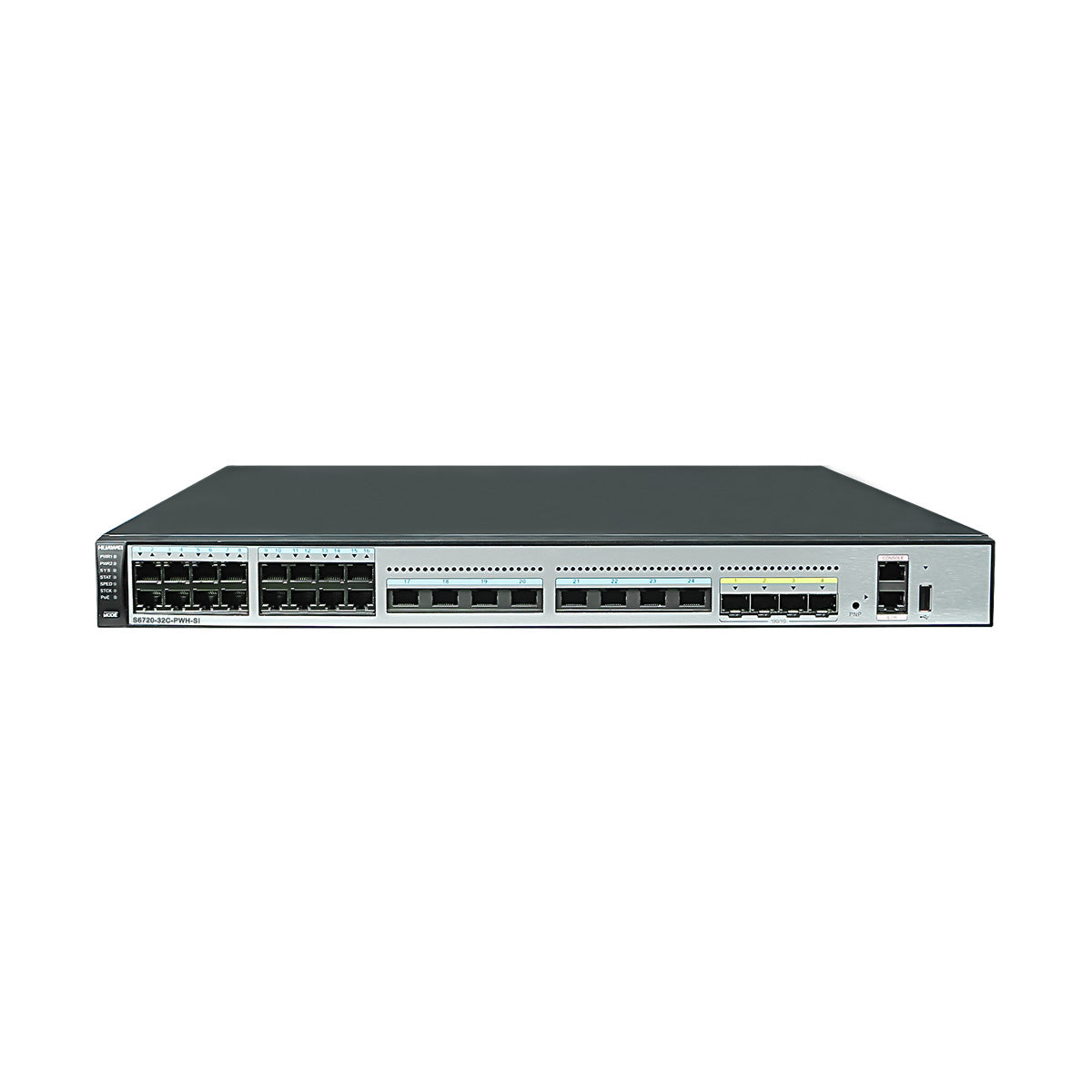

Huawei S6720-32C-PWH-SI switch with 24-port 100M/1G/2.5G/5G/10G BASE-T PoE++, 2 power slots
Forwarding performance: 240Mpps
Switching capacity: 2.56/23.04Tbps
32K MAC address entries
POE supported
Huawei S6720-SI series next-generation Multi GE fixed switches are ideal for high-speed wireless device access, 10 GE data center server access, and campus network access/aggregation.
| Item | Description |
| Fixed Ports | 24 x multi-gigabit Base-T Ethernet ports, 4 x 10 GE SFP+ |
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 22.7 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | Using 580 W AC or 1000 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using 650 W DC power modules: ±2 kV in differential mode, ±4 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body):
44.4 mm x 442.0 mm x 425.0 mm |
| Maximum dimensions (the depth is the distance from ports
on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.3 mm |
|
| Weight (including package) | 9.1 kg (20.06 lb) |
| Stack ports | Any MultiGE, 10GE SFP+, or 40GE QSFP+ ports (a maximum of 16 physical ports) |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| -48 V DC to -60 V DC | |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| -38.4 V DC to -72 V DC | |
| Maximum power consumption (100% throughput, full speed of fans) | Using 650 W DC or 580 W AC power modules: |
| Not providing the PoE function: 125.6 W (without card) | |
| 100% PoE loads: 1017.2 W (system power consumption: 278 W, PoE: 739.2 W, without card) | |
| Using 1000 W AC power modules: | |
| Not providing the PoE function: 125.6 W (without card) | |
| 100% PoE loads: 1735 W (system power consumption: 295 W, PoE: 1440 W) | |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | Using 650 W DC or 580 W AC power modules: 106.9 W (without card and PoE) |
| Using 1000 W AC power modules: 121.6 W (without card and PoE) | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27째C, sound power) | |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Part number | 98010720 |
