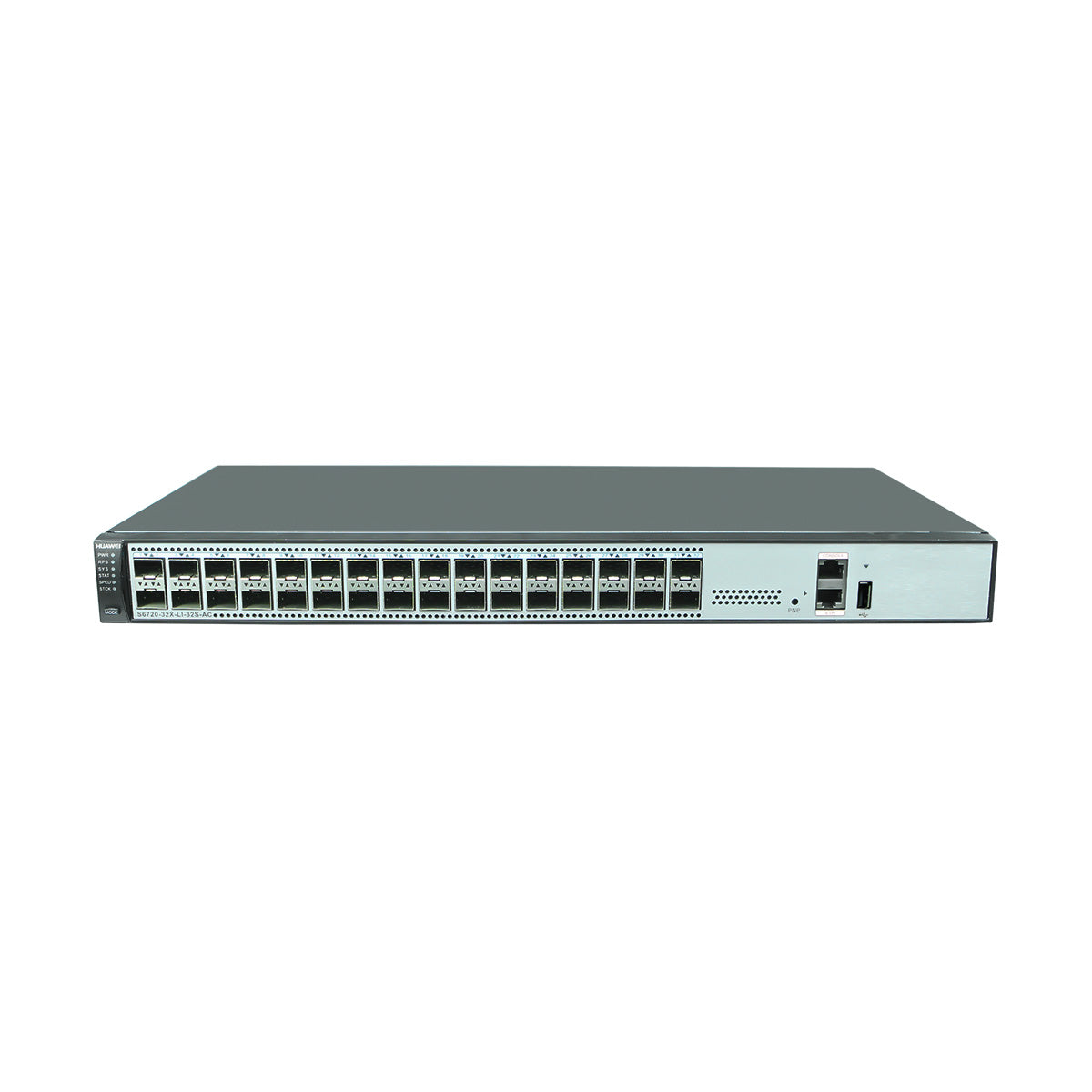

Huawei S6720-32X-LI-32S-AC switch with 32-port 10GE SFP+, 1 AC power
Forwarding performance: 240Mpps
Switching capacity: 1.28/12.8Tbps
32K MAC address entries
Huawei S6720-LI series switch are next-generation simplified all-10 GE fixed switches and can be used for 10 GE access on campus and data center networks.
| Item | Description |
| Fixed Ports | 32 x 10GE SFP+ |
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 42.8 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | NA |
| Power supply surge protection | ±6 kV in differential mode, ± 6 kV in common mode |
| Dimensions (H x W x D) | Basic : 43.6 mm x 442.0 mm x 225.0 mm |
| Maximum: 43.6 mm x 442.0 mm x 234.4 mm | |
| Weight (including package) | 4.3 kg (9.48 lb) |
| Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports) |
| RTC | Supported |
| RPS | Supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, full speed of fans) | 108.5 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 71.8 W |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27째C, sound power) | |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Part number | 98010693 |
