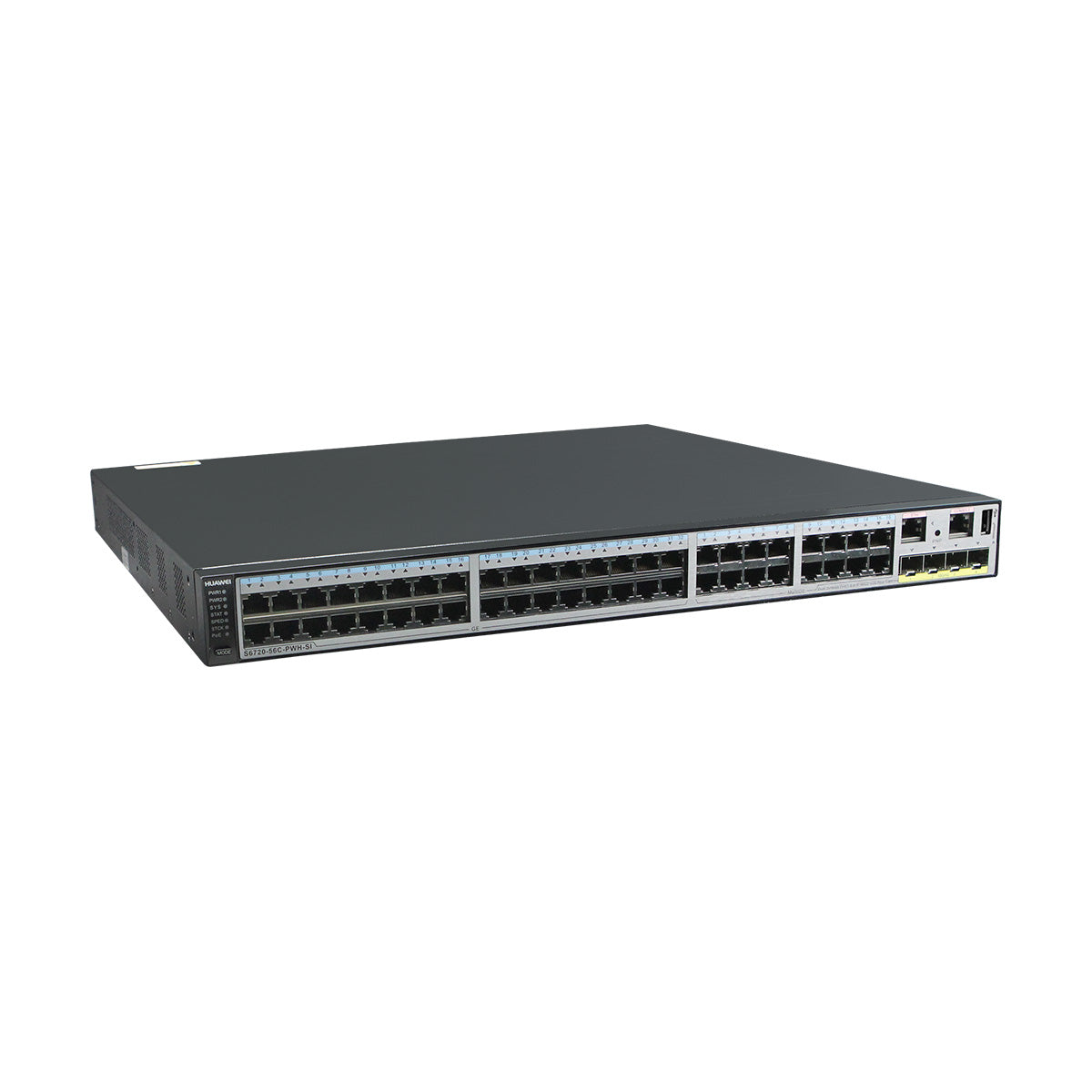

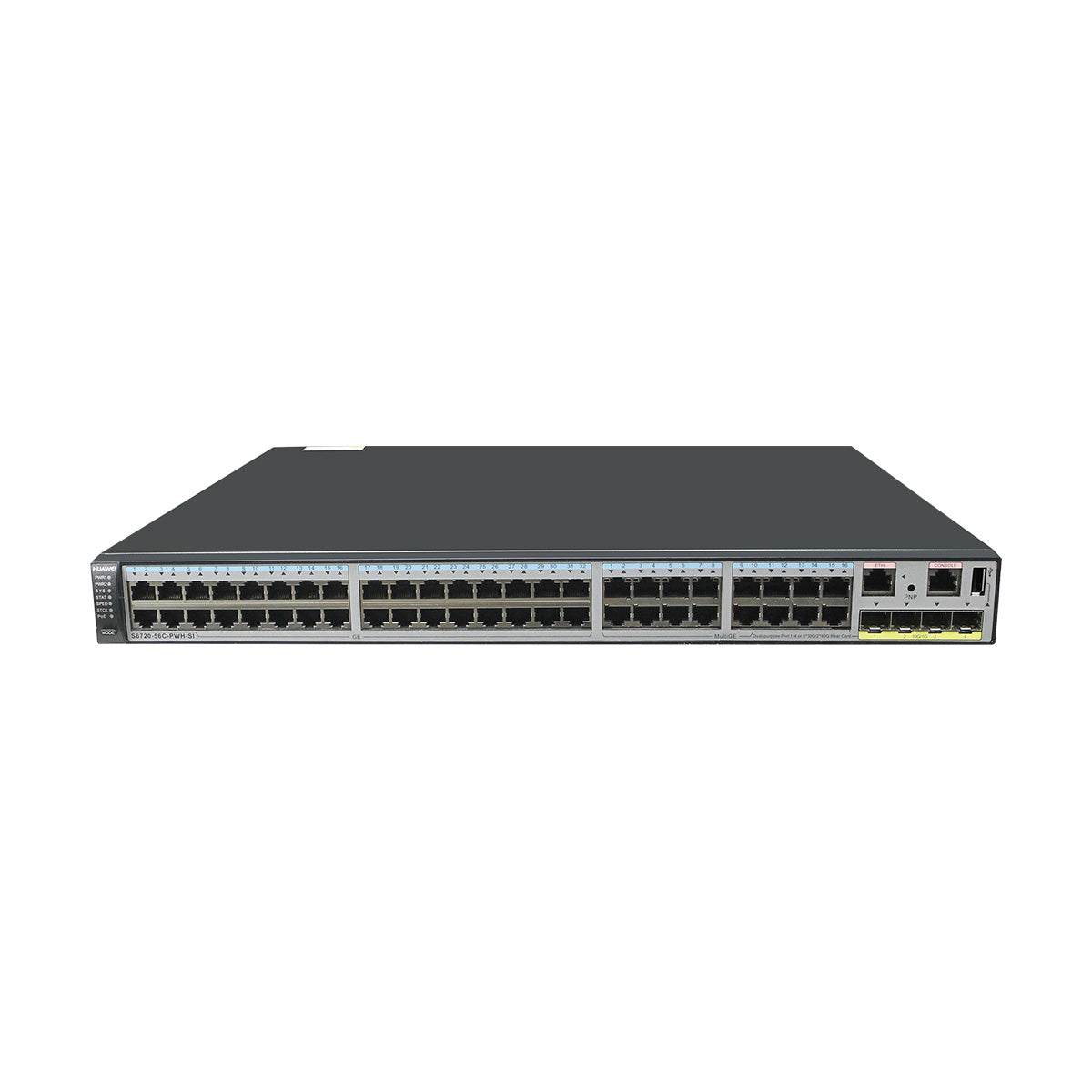

Huawei S6720-56C-PWH-SI-AC switch with 32-port PoE++ 1000BASE-T, 16-port PoE++ 100M/1000M/2.5GE/5GE/10GE BASE-T, 4-port 10GE SFP+, 2 power slots
Switching Capacity: 2.56 Tbit/s
Forwarding Performance: 240 mpps
PoE supported
32K MAC address entries
One extended slot, cards supported:
ES5D21Q02Q00
ES5D21X04S01
| Item | Description |
| Fixed Ports | 32 x 10/100/1,000 Base-T Ethernet ports 16 x multi-gigabit Base-T Ethernet ports 4 x 10 GE SFP+ |
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 23.9 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±6 kV |
| Power supply surge protection | Using 580 W AC or 1000 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using 650 W DC power modules: ±2 kV in differential mode, ±4 kV in common mode | |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 425.0 mm (1.75 in. x 17.4 in. x 16.73 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.) | |
| Weight (with packaging) | 9.3 kg (20.5 lb) |
| Stack ports | Any MultiGE, 10GE SFP+, or 40GE QSFP+ ports (a maximum of 16 physical ports) |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| -48 V DC to -60 V DC | |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| -38.4 V DC to -72 V DC | |
| Maximum power consumption (100% throughput, full speed of fans) | Using 650 W DC power modules or 580 W AC power modules |
| Not providing the PoE function: 120.5 W (without card) | |
| 100% PoE loads: 1068.1 W (system power consumption: 328.9 W, PoE: 739.2 W, without card) | |
| Using 1000 W AC power modules | |
| Not providing the PoE function: 120.5 W (without card) | |
| 100% PoE loads: 1995.4 W (system power consumption: 555.4 W, PoE: 1440 W, without card) | |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 91.01 W (not providing the PoE function, without card) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Part number | 98010727 |
