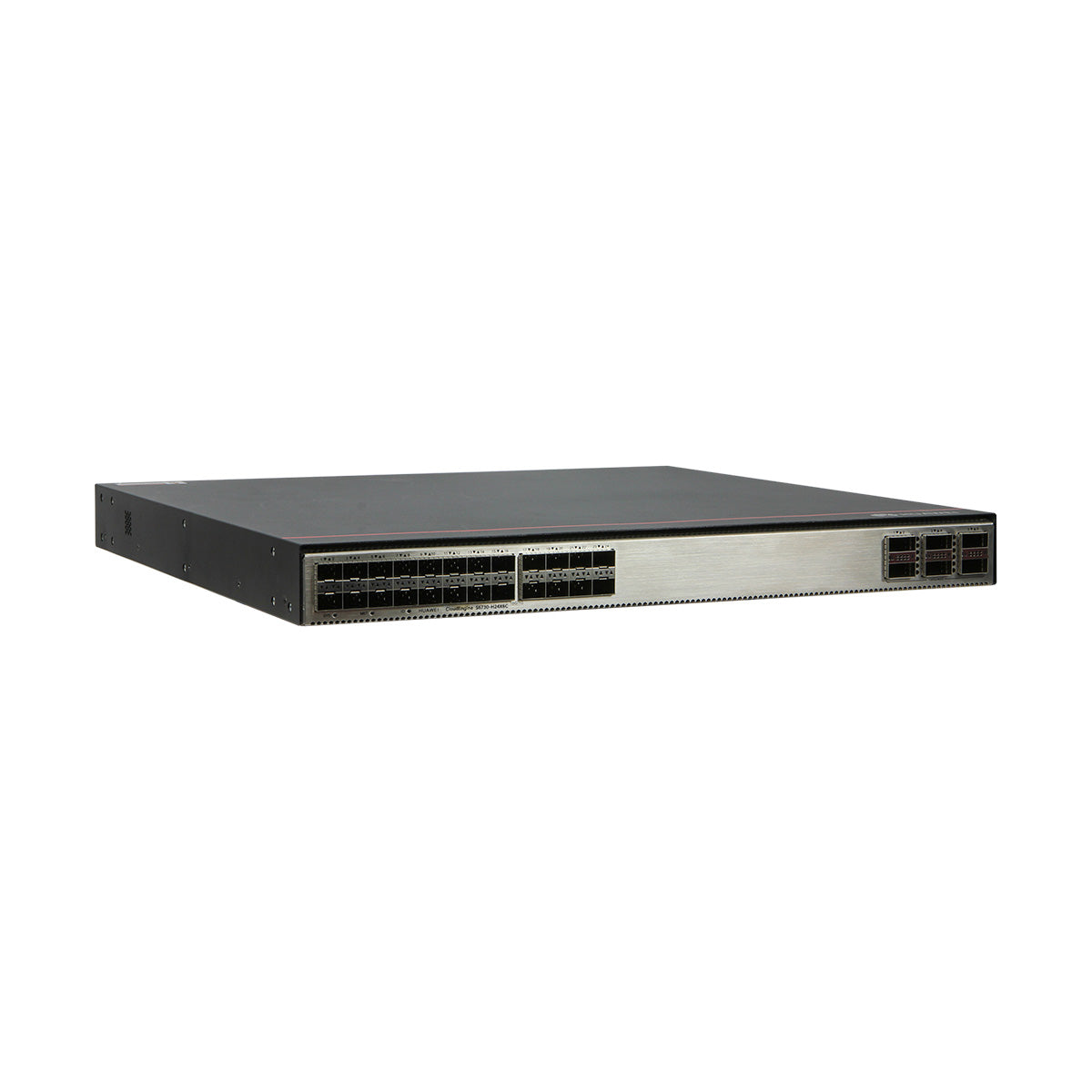

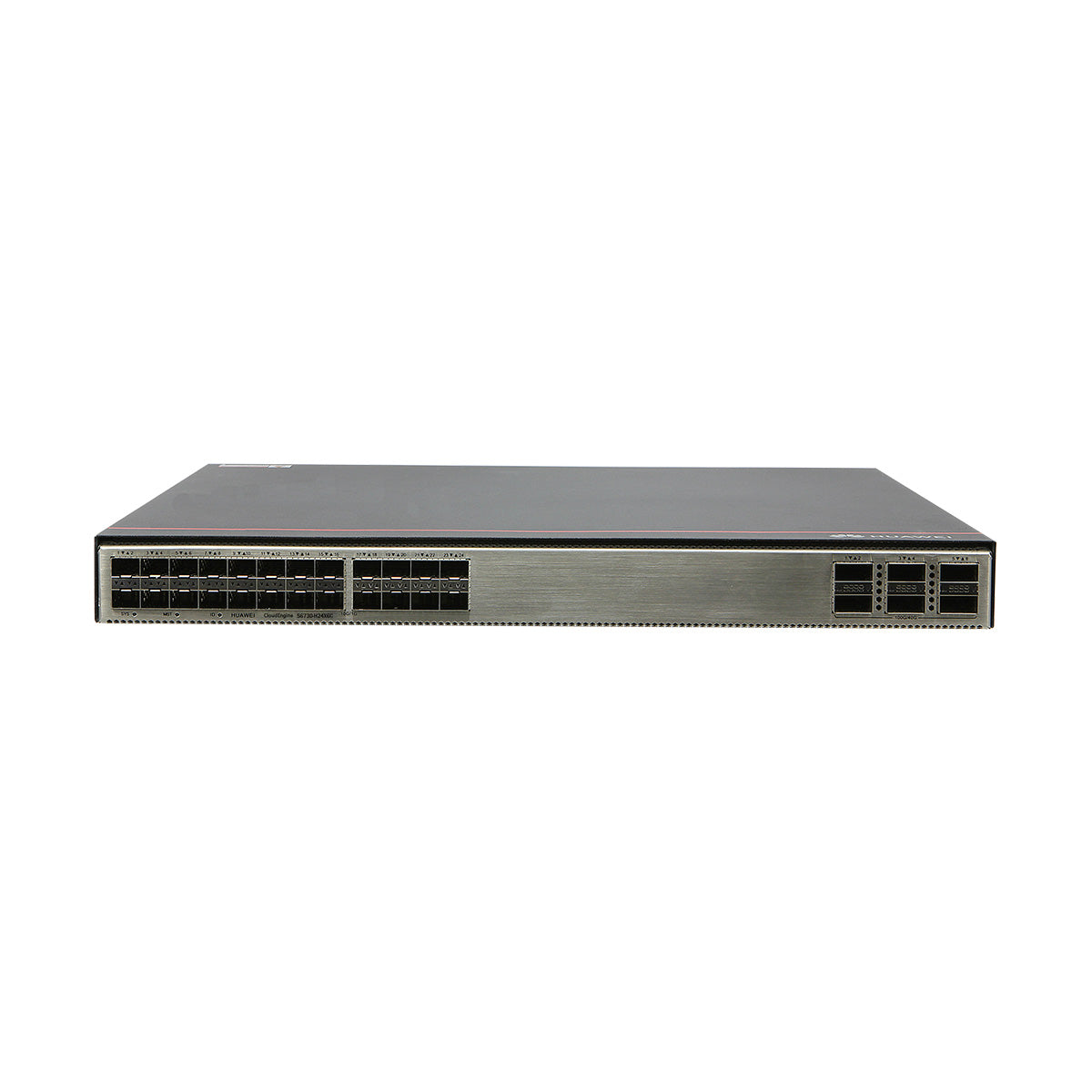

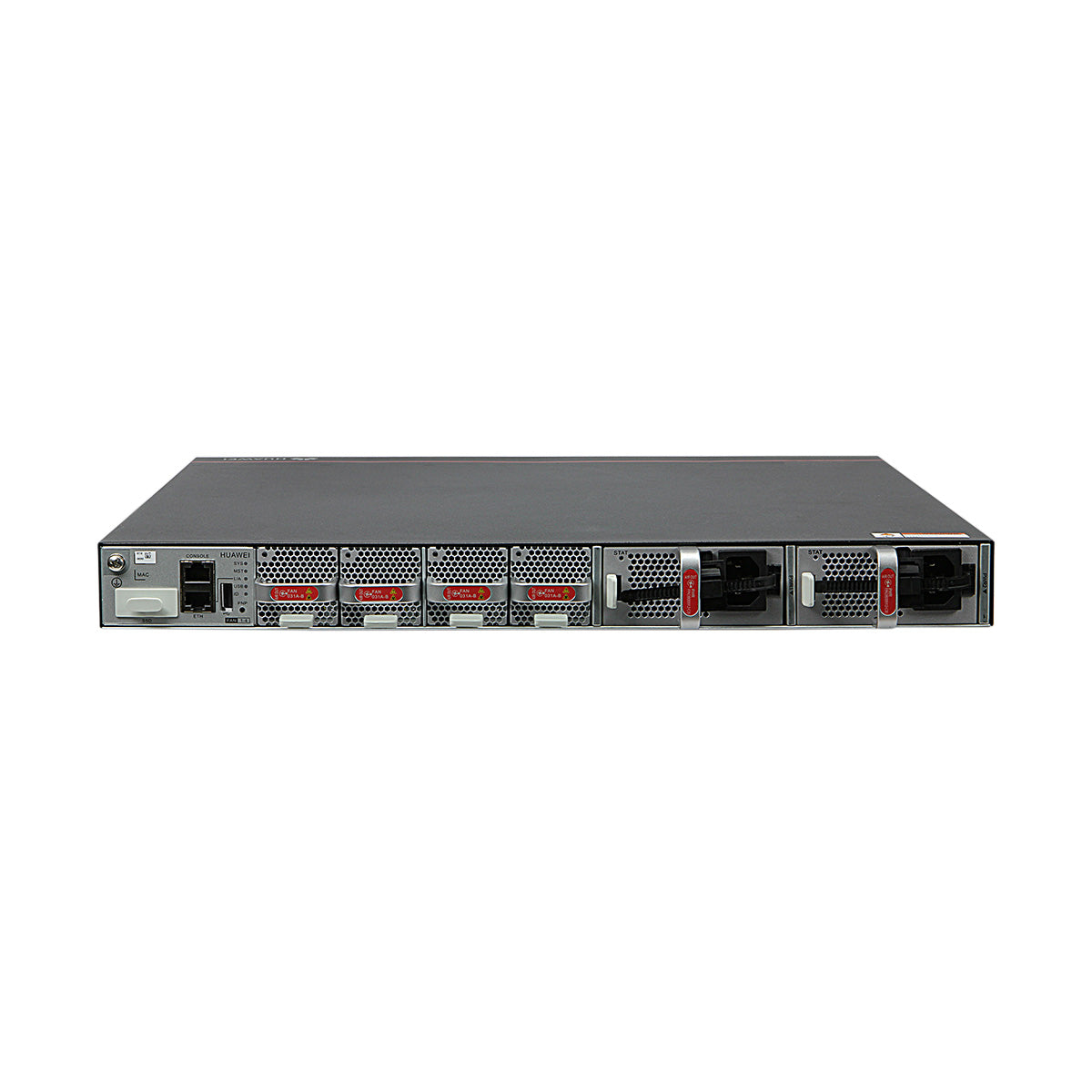

Huawei S6730-H24X6C Switch
- Brand New Condition
- Original Box Packed
- Latest Firmware Version
- Category:Huawei,Huawei Switch,S6700 Series
Huawei S6730-H24X6C switch with 24-port 10GE SFP+, 6-port 40/100GE QSFP28 (RTU License Available), 2 power slots
Forwarding performance: 420Mpps
Switching capacity: 1.68Tbps/2.4Tbps
128K MAC address entries
Management of up to 1024APs
Applicable power module:
PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)
PDC1000S12-DB (1000 W DC Power Module)
CloudEngine S6730-H Series 10 GE Switches deliver 10 GE downlink and 100 GE uplink connectivity for enterprise campuses, carriers, higher education institutions, and governments, integrating native Wireless Local Area Network (WLAN) Access Controller (AC) capabilities, to support up to 1024 WLAN Access Points (APs).
| Item | Description |
| Fixed Ports | 24 × 10 Gig SFP+, 6 x 40/100 Gig QSFP28 |
| Switching Capacity | 1.68Tbps/2.4Tbps |
| Wireless Services | Management of up to 1024 APs AP access control, AP domain management, and AP configuration template management Radio channel management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis |
| Super Virtual Fabric (SVF) | Functions as the parent node to virtualize downstream switches and APs vertically
as one device for simpler management |
| Interoperability | VBST (compatible with PVST, PVST+, and RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
| VXLAN | VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol |
| Memory (RAM) | 4 GB |
| Flash | 2 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 62.27 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | N/A |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode | |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body):
43.6 mm x 442.0 mm x 420.0 mm |
| Maximum dimensions : 43.6 mm x 442.0 mm x 446.0 mm | |
| Weight (with packaging) | 8.9 kg (19.62 lb) |
| Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports) |
| Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports) | |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| High-Voltage DC input: 240 V DC | |
| DC input: -48 V DC to -60 V DC | |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| High-Voltage DC input: 190 V DC to 290 V DC | |
| DC input: -38.4 V DC to -72 V DC | |
| Maximum power consumption | 254 W |
| Typical power consumption | 149 W |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature | < 65 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Part number | 02352FSG |
| 02352FSG-001 | |
| 02352FSG-005 | |
| 02352FSG-007 | |
| 02353GFC | |
| 02353GFC-001 | |
| 02353GFC-003 | |
| 02353GFC-004 |
Huawei S6730-H24X6C switch with 24-port 10GE SFP+, 6-port 40/100GE QSFP28 (RTU License Available), 2 power slots
Forwarding performance: 420Mpps
Switching capacity: 1.68Tbps/2.4Tbps
128K MAC address entries
Management of up to 1024APs
Applicable power module:
PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)
PDC1000S12-DB (1000 W DC Power Module)
CloudEngine S6730-H Series 10 GE Switches deliver 10 GE downlink and 100 GE uplink connectivity for enterprise campuses, carriers, higher education institutions, and governments, integrating native Wireless Local Area Network (WLAN) Access Controller (AC) capabilities, to support up to 1024 WLAN Access Points (APs).
| Item | Description |
| Fixed Ports | 24 × 10 Gig SFP+, 6 x 40/100 Gig QSFP28 |
| Switching Capacity | 1.68Tbps/2.4Tbps |
| Wireless Services | Management of up to 1024 APs AP access control, AP domain management, and AP configuration template management Radio channel management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis |
| Super Virtual Fabric (SVF) | Functions as the parent node to virtualize downstream switches and APs vertically
as one device for simpler management |
| Interoperability | VBST (compatible with PVST, PVST+, and RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
| VXLAN | VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol |
| Memory (RAM) | 4 GB |
| Flash | 2 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 62.27 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | N/A |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode | |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body):
43.6 mm x 442.0 mm x 420.0 mm |
| Maximum dimensions : 43.6 mm x 442.0 mm x 446.0 mm | |
| Weight (with packaging) | 8.9 kg (19.62 lb) |
| Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports) |
| Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports) | |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| High-Voltage DC input: 240 V DC | |
| DC input: -48 V DC to -60 V DC | |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| High-Voltage DC input: 190 V DC to 290 V DC | |
| DC input: -38.4 V DC to -72 V DC | |
| Maximum power consumption | 254 W |
| Typical power consumption | 149 W |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature | < 65 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Part number | 02352FSG |
| 02352FSG-001 | |
| 02352FSG-005 | |
| 02352FSG-007 | |
| 02353GFC | |
| 02353GFC-001 | |
| 02353GFC-003 | |
| 02353GFC-004 |
