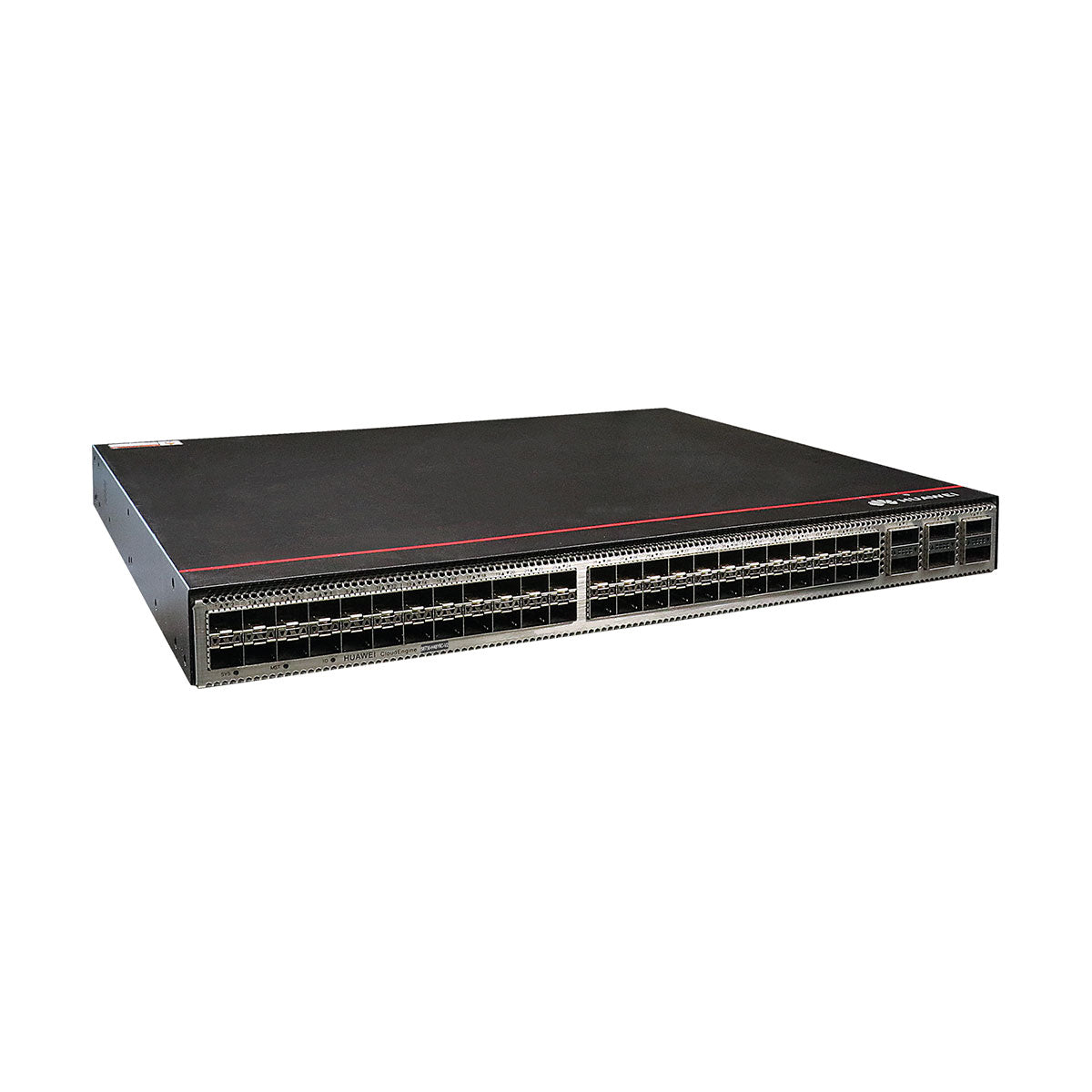

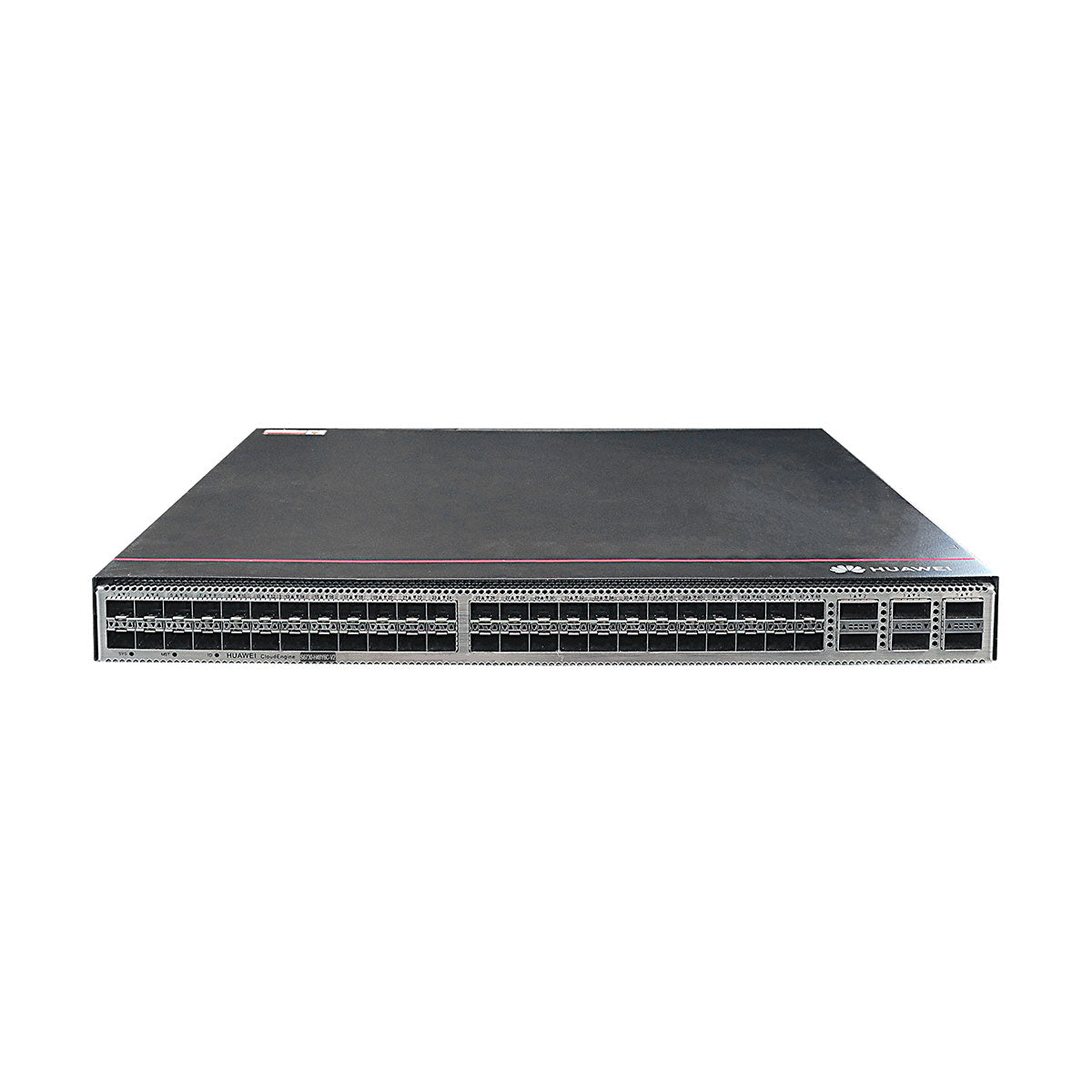

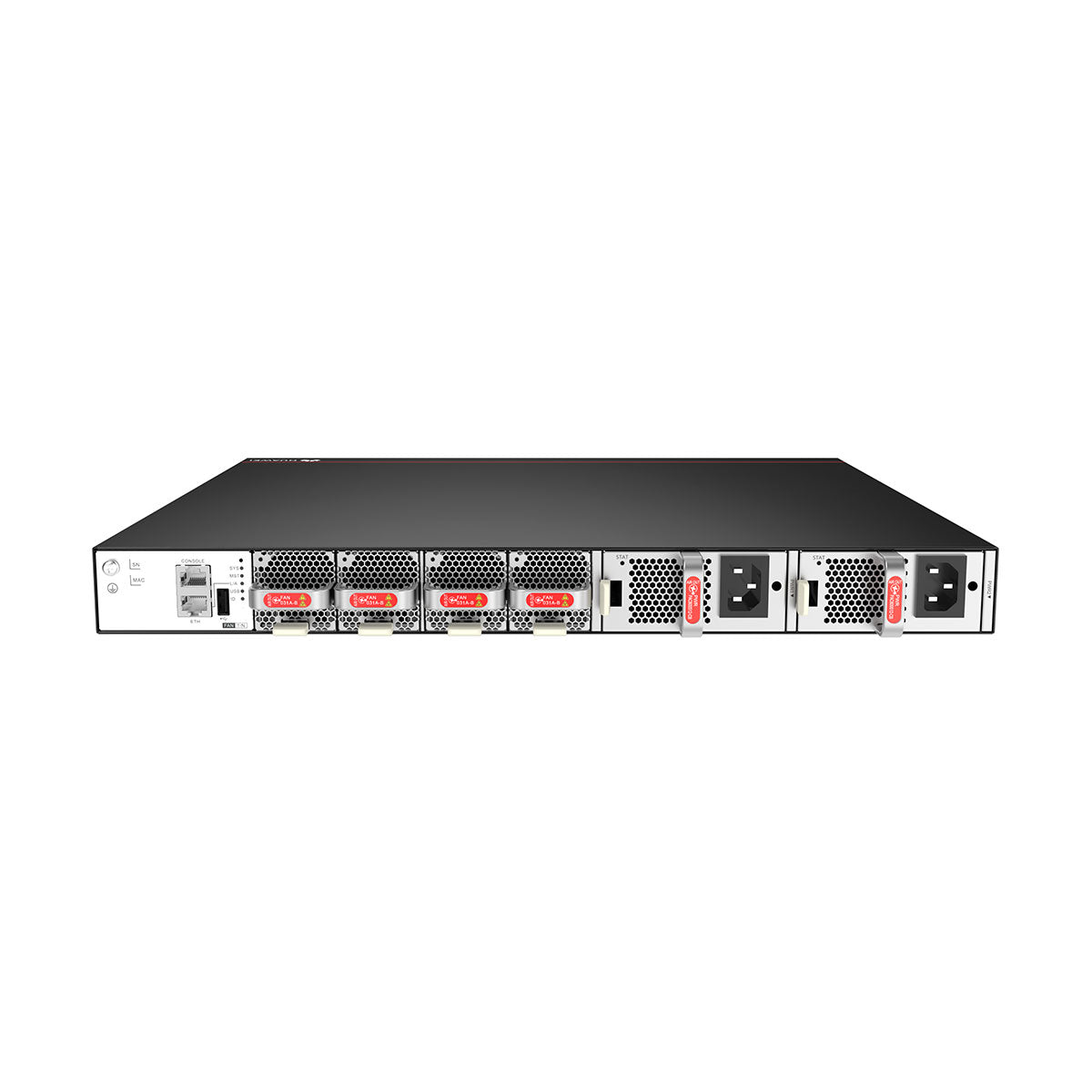

Huawei CloudEngine S6730-H48Y6C-V2 switch with 48-port 1GE/10GE/25GE SFP28, 6-port 40GE/100GE QSFP28, 2 power module slots
Switching Capacity: 3.6Tbps/4.8Tbps
Forwarding performance: 980 Mpps
Applicable power module: PAC600S12-CB(600W AC)；PDC1000S12-DB(1000W DC)
The S6700 series Ethernet switches are next-generation 10G fixed switches. The S6700 can function as an access switch in an Internet data center (IDC) or a core switch on a campus network. The S6700 has industry-leading performance and provides line-speed 10GE access ports and line-speed 40GE even 100GE uplink ports. It can be used in a data center to provide 10 Gbit/s access to servers or function as a core switch on a campus network to provide 40 Gbit/s even 100 Gbit/s traffic aggregation.
| Item | Specification |
| Description | 48-port 1GE/10GE/25GE SFP28, 6-port 40GE/100GE QSFP28, 2 power slots |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) For detailed interoperability certifications and test reports |
| iPCA | Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels |
| VXLAN | VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm | |
| Dimensions with packaging (H x W x D) [mm(in.)] | 175 mm x 650 mm x 550 mm |
| Chassis height [U] | 1 U |
| Weight without packaging [kg(lb)] | 7.03 kg (15.5 lb) |
| Weight with packaging [kg(lb)] | 10.01 kg (22.07 lb) |
| Typical power consumption [W] | 256 W |
| Typical heat dissipation [BTU/hour] | 873.50 BTU/hour |
| Maximum power consumption [W] | 384 W |
| Maximum heat dissipation [BTU/hour] | 1310.25 BTU/hour |
| Static power consumption [W] | 167 W |
| MTBF [year] | 47.81 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 67 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 58 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 2 |
| Number of fans modules | 4 |
| Redundant power supply | 1+1 |
| Pluggable AC and DC power modules can be used together in the same switch. | |
| Long-term operating temperature [°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Devices cannot start when the temperature is lower than 0°C (32°F). | |
| When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F). | |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Pluggable power supply |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC; 50/60 Hz |
| High-voltage DC input: 240 V DC | |
| DC input: –48 V DC to –60 V DC | |
| Input voltage range [V] | AC input: 90–290 V AC; 45–65 Hz |
| High-voltage DC input: 190 V DC to 290 V DC | |
| DC input: -38.4 V DC to -72 V DC | |
| Maximum input current [A] | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. |
| Memory | 4 GB |
| Flash memory | 4 GB in total. To view the available flash memory size, run the display version command. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | - |
| Power supply surge protection [kV] | AC power module configured: ±6 kV in differential mode, ±6 kV in common mode |
| DC power module configured: ±2 kV in differential mode, ±4 kV in common mode | |
| Types of fans | Pluggable |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from front, air exhaustion from rear (front-to-rear) |
| PoE | Not supported |
| Part Number | 02354NGU |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification |
